SW20L-ACMZFG (1989)

Toyota Mr2

Production Dec 1989 - Jan 1995
Engine 3SGE
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(8912- )5F

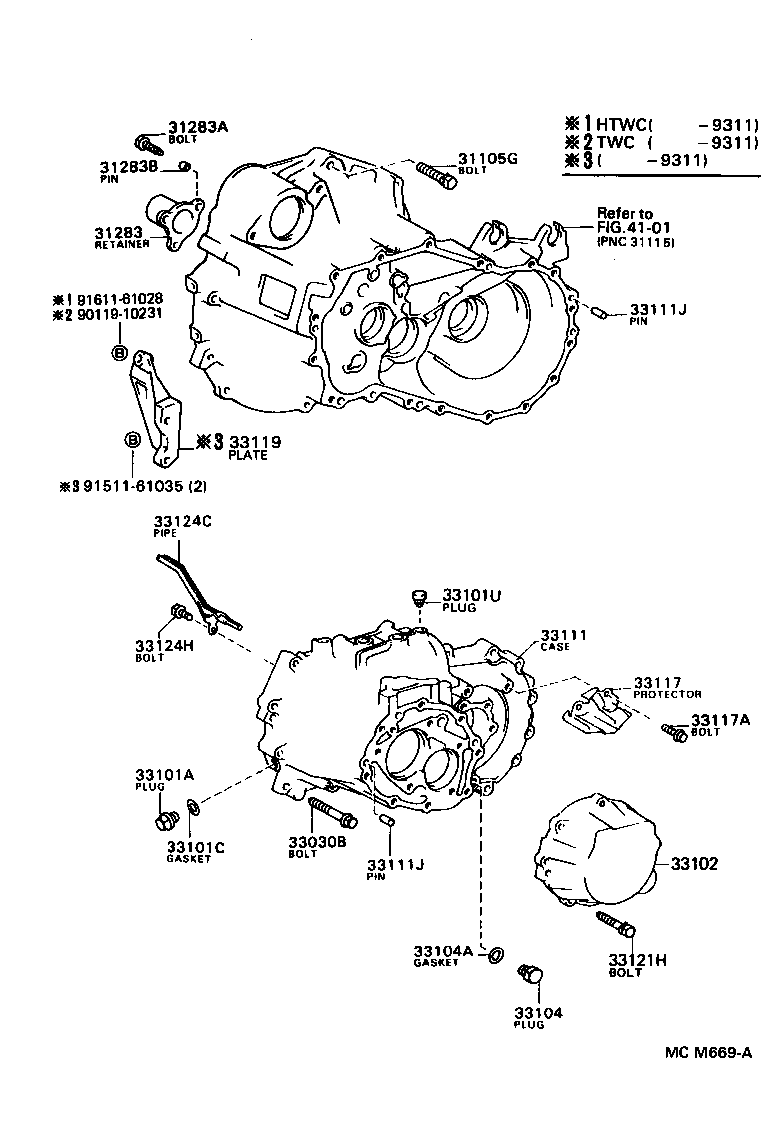

Click highlighted areas on diagram

S54

diagram 31105G 31283 31283A 31283B 33030B 33101A 33101C 33101U 33102 33104 33104A 33111 33111J 33111J 33117 33117A 33119 33121H 33124C 33124H 4101 9011910231 9151161035 9161161028
Part # Description Qty Price
31105G - BOLT(FOR TRANSAXLE CASE & ENGINE SETTING)
91651-41022

SW20..5F

*10-1.25PX22-22

 1
90105-08040

SW20..5F

*8-1.25PX18-15

 1
90119-10231

SW20

*10-1.25PX45-32

 1
90119-12168

SW20..5F

*12-1.25PX55-30

 3
90105-10077

SW20..5F

*10-1.25PX43-26

 1
31283 - RETAINER, CLUTCH RELEASE BEARING HUB
31283-32010

SW20..5F

 1
31283A - BOLT(FOR CLUTCH RELEASE BEARING HUB RETAINER)
90105-06023

SW20..5F

 3
31283B - PIN, RING(FOR CLUTCH RELEASE BEARING HUB RETAINER)
90253-08002

SW20..5F

 2
33030B - BOLT(FOR TRANSAXLE CASE & TRANSMISSION CASE SETTING)
90105-08042

SW20..5F

*8-1.25PX45-27.5

 17
33101A - PLUG(FOR MANUAL TRANSMISSION FILLER)
90341-18006

SW20

 1
90341-18033

SW20..5F

 1
90341-18002

SW20..5F

 1
33101C - GASKET(FOR MANUAL TRANSMISSION FILLER PLUG)
90430-18008

SW20..5F

 1
33101U - PLUG, BREATHER(FOR MANUAL TRANSMISSION)
90930-03080

SW20..5F

 1
33102 - COVER SUB-ASSY, MANUAL TRANSMISSION CASE
33102-32012

SW20..5F

 1
33102-33020

SW20

 1
33102-32011

SW20..5F

 1
33104 - PLUG SUB-ASSY, DRAIN(MTM)
90341-18006

SW20..5F

 1
33104A - GASKET, DRAIN PLUG(MTM)
90430-18008

SW20..5F

 1
33111 - CASE, MANUAL TRANSMISSION
33111-17030

SW20..5F

 1
33111-17070

SW20

 1
33111-17050

SW20..5F

 1
33111J - PIN, STRAIGHT(FOR MANUAL TRANSMISSION CASE)
90250-08054

SW20..5F

L=23,OD=8

 6
33111J - PIN, STRAIGHT(FOR MANUAL TRANSMISSION CASE)
90250-08054

SW20..5F

L=23,OD=8

 6
33117 - PROTECTOR, MANUAL TRANSMISSION CASE
33117-32011

SW20..5F

 1
33117A - BOLT(FOR MANUAL TRANSMISSION CASE PROTECTOR)
90105-08040

SW20..5F

 2
33119 - PLATE, STIFFENER, LH(MTM)
33119-20110

SW20..TWC

 1
33121H - BOLT, W/WASHER(FOR TRANSMISSION CASE COVER)
90105-08273

SW20..5F

 8
90105-08089

SW20..5F

 8
33124C - PIPE, OIL RECEIVER, NO.1(MTM)
33124-32012

SW20..5F

 1
33124-33010

SW20

 1
33124-32011

SW20..5F

 1
33124H - BOLT(FOR OIL RECEIVER PIPE)
91651-60618

SW20..5F

 1
Common parts
90119-10231
91511-61035
91611-61028
Linked diagrams
4101
