AW11L-WJMQFG (1986)
Toyota Mr2

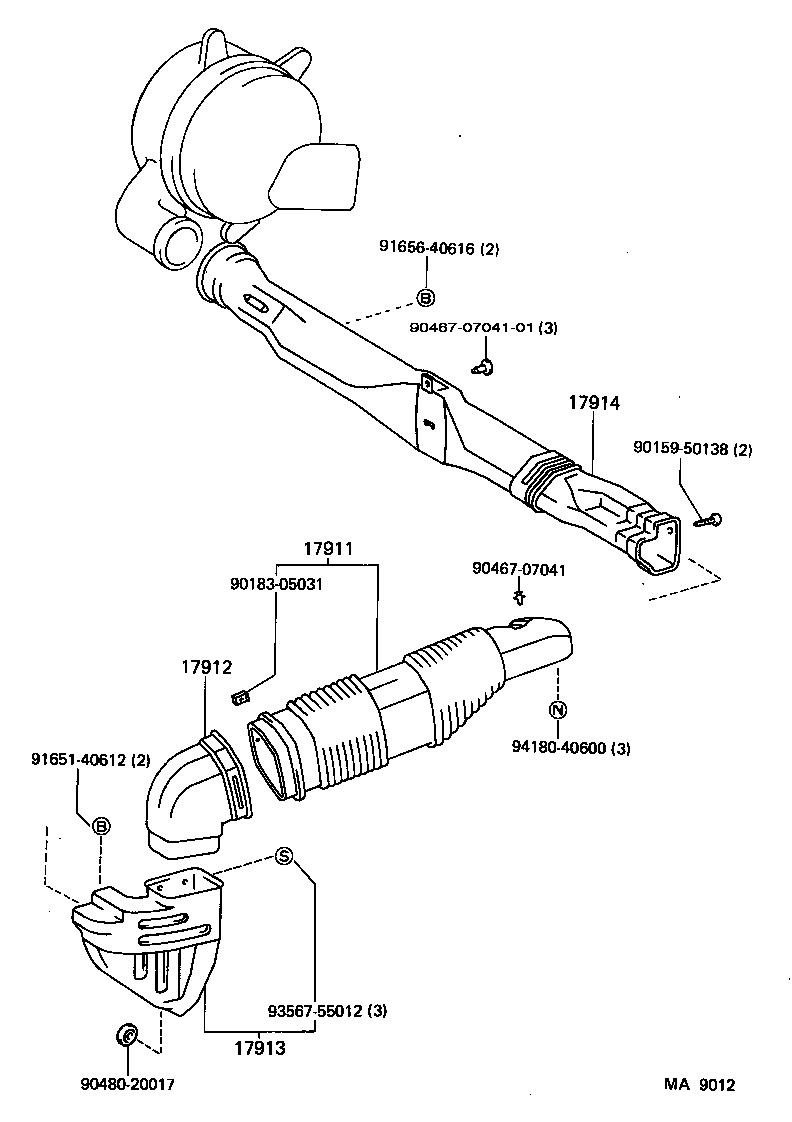

ILLUST NO. 2 OF 2(8608- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 17911 - DUCT, COOL AIR INTAKE, NO.1 | ||||
| 52814-17010 |
4AG#..AW11 |
1 | ||
| 17912 - DUCT, COOL AIR INTAKE, NO.2 | ||||
| 52815-17010 |
4AG#..AW11 |
1 | ||
| 17913 - DUCT, COOL AIR INTAKE, NO.3 | ||||
| 53208-17010 |
4AG#..AW11 |
1 | ||
| 17914 - DUCT, COOL AIR INTAKE, NO.4 | ||||
| 53207-17010 |
4AG#..AW11 |
1 | ||
| 53207-17020 |
4AG#..AW11 |
1 | ||
| Common parts | ||||
| 90159-50138 | ||||
| 90183-05031 | ||||
| 90467-07041 | ||||
| 90467-0704101 | ||||
| 90480-20017 | ||||
| 91651-40612 | ||||
| 91656-40616 | ||||
| 93567-55012 | ||||
| 94180-40600 | ||||
ILLUST NO. 1 OF 2(8608- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 17700 - CLEANER ASSY, AIR | ||||
| 17700-16260 |
4AGEL..AW11 |
1 | ||
| 17700-16350 |
4AG#..AW11 |
1 | ||
| 17705 - CAP SUB-ASSY, AIR CLEANER | ||||
| 17705-16080 |
4AGEL..AW11 |
1 | ||
| 17705-16140 |
4AG#..AW11 |
1 | ||
| 17801 - ELEMENT SUB-ASSY, AIR CLEANER FILTER | ||||
| 17801-70020 |
4AG#..AW11 |
1 | ||
| 17801-45020 |
4AG#..AW11 |
1 | ||
| 17805 - CONNECTOR SUB-ASSY, INTAKE AIR | ||||
| 17805-16020 |
4AG#..AW11 |
1 | ||
| 17805C - PIPE SUB-ASSY, AIR CLEANER, NO.1 | ||||
| 17805-16030 |
4AGEL..AW11 |
1 | ||
| 17806 - PIPE SUB-ASSY, AIR CLEANER, NO.2 | ||||
| 53206-17010 |
4AG#..AW11 |
1 | ||
| 53206-17020 |
4AG#..AW11 |
1 | ||
| 17806A - GROMMET, AIR CLEANER PIPE | ||||
| 90480-20019 |
4AGEL..AW11 |
1 | ||
| 17881 - HOSE, AIR CLEANER, NO.1 | ||||
| 17881-16120 |
4AG#..AW11 |
1 | ||
| 17881-16060 |
4AGEL..AW11 |
1 | ||
| 17881A - CLAMP(FOR AIR CLEANER HOSE, NO.1) | ||||
| 96111-10830 |
4AG#..AW11 BODY SIDE |
1 | ||
| 96111-10830 |
4AG#..AW11 BODY SIDE |
1 | ||
| 90460-01040 |
4AG#..AW11 AIR CLEANER SIDE |
1 | ||
| 90460-01040 |
4AG#..AW11 AIR CLEANER SIDE |
1 | ||
| 96111-10750 |
4AGEL..AW11 |
2 | ||
| 17881A - CLAMP(FOR AIR CLEANER HOSE, NO.1) | ||||
| 96111-10830 |
4AG#..AW11 BODY SIDE |
1 | ||
| 96111-10830 |
4AG#..AW11 BODY SIDE |
1 | ||
| 90460-01040 |
4AG#..AW11 AIR CLEANER SIDE |
1 | ||
| 90460-01040 |
4AG#..AW11 AIR CLEANER SIDE |
1 | ||
| 96111-10750 |
4AGEL..AW11 |
2 | ||
| 17882 - HOSE, AIR CLEANER, NO.2 | ||||
| 17882-16060 |
4AG#..AW11 |
1 | ||
| 17882-16080 |
4AG#..AW11 |
1 | ||
| 17882-16120 |
4AG#..AW11 |
1 | ||
| 17882-16120 |
4AG#..AW11 |
1 | ||
| 17882-16080 |
4AGEL..AW11 |
1 | ||
| 17882-16120 |
4AGELC..AW11 |
1 | ||
| 17882A - CLAMP(FOR AIR CLEANER HOSE, NO.2) | ||||
| 96111-10830 |
4AG#..AW11 |
2 | ||
| 17882A - CLAMP(FOR AIR CLEANER HOSE, NO.2) | ||||
| 96111-10830 |
4AG#..AW11 |
2 | ||
| 17883 - HOSE, AIR CLEANER, NO.3 | ||||
| 17883-16010 |
4AG#..AW11 |
1 | ||
| 17883A - CLAMP(FOR AIR CLEANER HOSE, NO.3) | ||||
| 96111-10750 |
4AG#..AW11 THROTTLE BODY SIDE |
1 | ||
| 96111-10750 |
4AG#..AW11 THROTTLE BODY SIDE |
1 | ||
| 96111-10830 |
4AG#..AW11 AIR FLOW METER OR PIPE SIDE |
1 | ||
| 96111-10830 |
4AGEL..AW11 PIPE SIDE |
1 | ||
| 96111-10830 |
4AGELC..AW11 AIR FLOW METER SIDE |
1 | ||
| 17883A - CLAMP(FOR AIR CLEANER HOSE, NO.3) | ||||
| 96111-10750 |
4AG#..AW11 THROTTLE BODY SIDE |
1 | ||
| 96111-10750 |
4AG#..AW11 THROTTLE BODY SIDE |
1 | ||
| 96111-10830 |
4AG#..AW11 AIR FLOW METER OR PIPE SIDE |
1 | ||
| 96111-10830 |
4AGEL..AW11 PIPE SIDE |
1 | ||
| 96111-10830 |
4AGELC..AW11 AIR FLOW METER SIDE |
1 | ||
| 17885 - PIPE, AIR CLEANER | ||||
| 17885-16010 |
4AGEL..AW11 |
1 | ||
| 17893 - RESONATOR, INTAKE AIR | ||||
| 17893-16010 |
4AGELC..AW11 |
1 | ||
| 17893-16010 |
4AG#..AW11 |
1 | ||
| 17893-16010 |
4AG#..AW11 |
1 | ||
| 17897 - CLAMP, HOSE(FOR AIR CLEANER) | ||||
| 96111-10490 |
4AG#..AW11 |
1 | ||
| 96111-10490 |
4AG#..AW11 |
1 | ||
| 96111-10490 |
4AGELC..AW11 |
1 | ||
| 22250 - METER ASSY, INTAKE AIR FLOW | ||||
| 22250-16040 |
4AGELC..AW11 |
1 | ||
| 22255 - BRACKET, AIR FLOW METER | ||||
| 57617-17010 |
4AGELC..AW11 |
1 | ||
| Common parts | ||||
| 90099-04399 | ||||
| 90119-06171 | ||||
| 90339-07001 | ||||
| 90480-20017 | ||||
| 91651-40612 | ||||
| 91656-40616 | ||||
| 91665-40835 | ||||
