AW11L-WCMQF (1984)

Toyota Mr2

Production Nov 1984 - Aug 1988
Engine 4AGEL
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

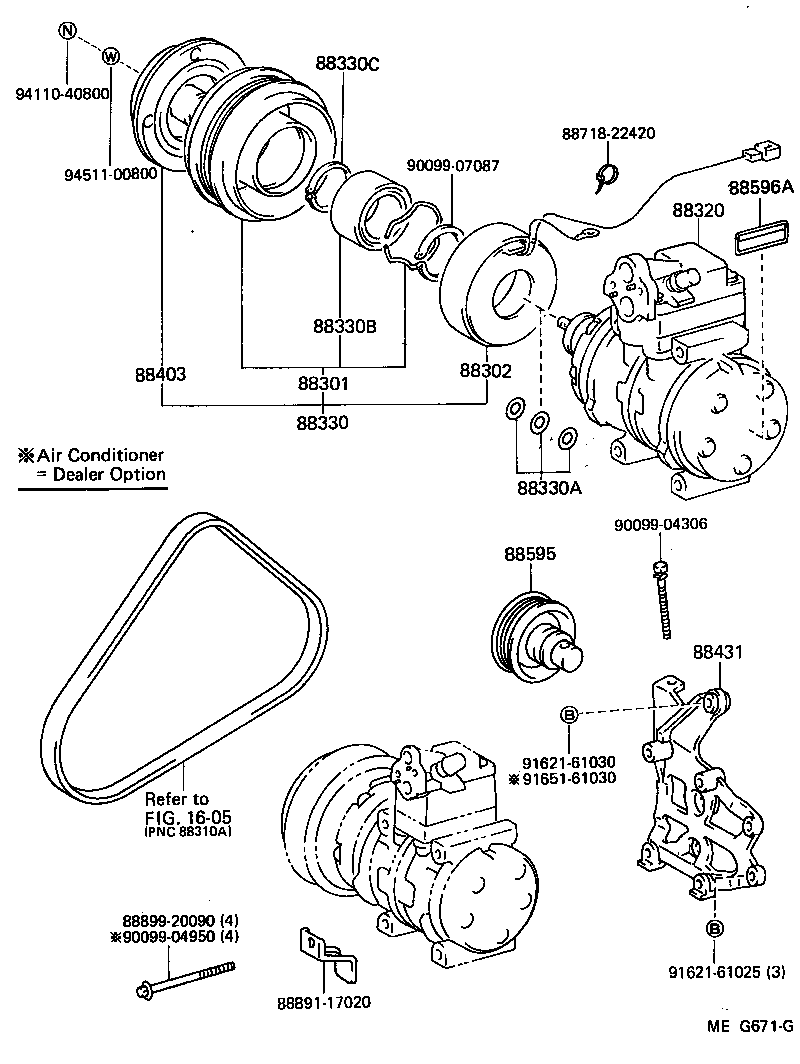

ILLUST NO. 1 OF 2(8411- )

Click highlighted areas on diagram

diagram 1605 88301 88302 88320 88330 88330A 88330B 88330C 88403 88431 88595 88596A 8871822420 8889117020 8889920090 9009904306 9009904950 9009907087 9162161025 9162161030 9165161030 9411040800 9451100800
Part # Description Qty Price
88301 - ROTOR SUB-ASSY, MAGNET CLUTCH
88412-22050

AW11..ARL,GEN

 1
88302 - STATOR SUB-ASSY, MAGNET CLUTCH
88411-17010

AW11..ARL,GEN

 1
88320 - COMPRESSOR ASSY, COOLER
88320-17040

AW11..GEN

W(AUTOMATIC AIR CONDITIONER(MOP))

 1
88320-17010

AW11..GEN

COOLER=MAKER OPTION

 1
88320-17040

AW11..GEN

COOLER=MAKER OPTION

 1
88330 - CLUTCH ASSY, MAGNET
88410-17010

AW11..ARL,GEN

 1
88330B - BEARING, MAGNET CLUTCH
90099-10133

AW11..ARL,GEN

 1
88330C - RING, SNAP (FOR MAGNET CLUTCH)
90099-07114

AW11..ARL,GEN

 1
88403 - HUB SUB-ASSY, MAGNET CLUTCH
88403-14030

AW11..ARL,GEN

 1
88431 - BRACKET, COMPRESSOR MOUNTING, NO.1
88431-17010

AW11..ARL,GEN

 1
88595 - PULLEY, COOLER COMPRESSOR IDLE
88440-17010

AW11..ARL,GEN

 1
88596A - PLATE, CAUTION
88356-12010

AW11..GEN

 1
Common parts
88718-22420
88891-17020
88899-20090
90099-04306
90099-04950
90099-07087
91621-61025
91621-61030
91651-61030
94110-40800
94511-00800
Linked diagrams
1605

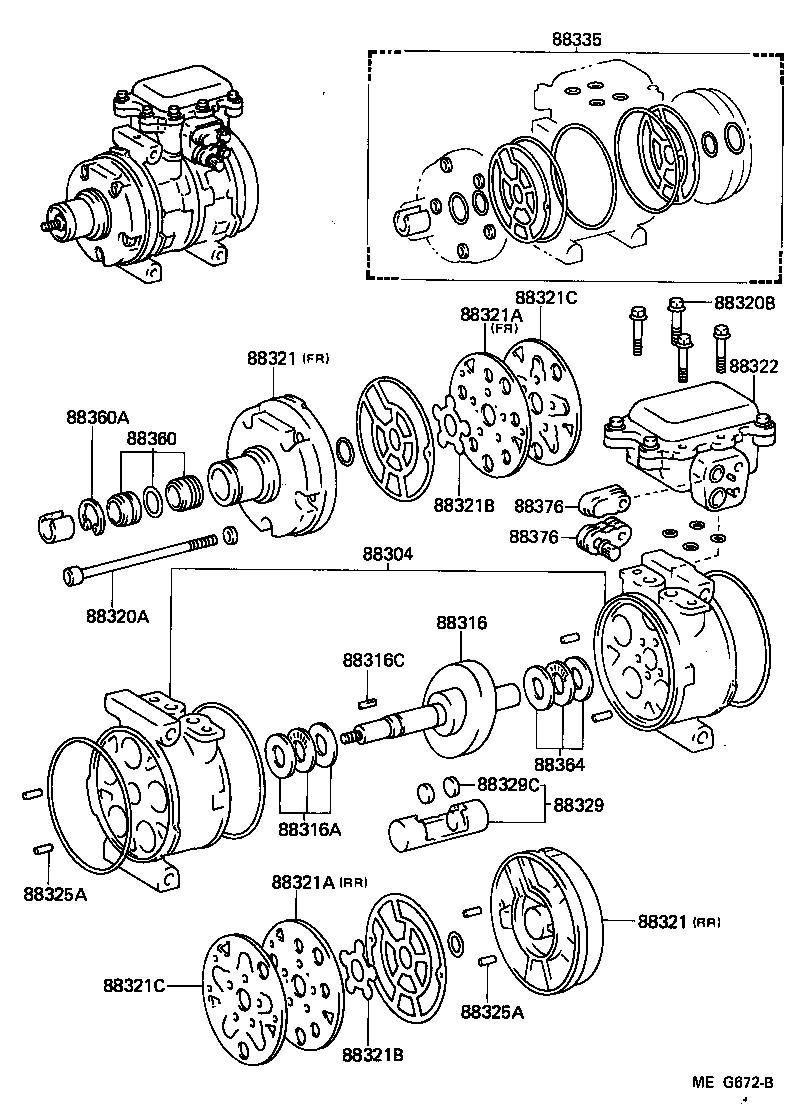

ILLUST NO. 2 OF 2(8411- )

Click highlighted areas on diagram

diagram 88304 88316 88316A 88316C 88320A 88320B 88321 88321 88321A 88321A 88321B 88321B 88321C 88321C 88322 88325A 88325A 88329 88329C 88335 88360 88360A 88364 88376 88376
Part # Description Qty Price
88304 - CYLINDER SUB-ASSY, COOLER COMPRESSOR
88304-14041

AW11..GEN

 1
88316 - CRANKSHAFT, COOLER COMPRESSOR
88316-14021

AW11..GEN

 1
88316A - BEARING, COMPRESSOR CRANKSHAFT, FRONT
88366-14010

AW11..GEN

 1
88316C - KEY, COMPRESSOR CRANKSHAFT
90099-13024

AW11..GEN

 1
90099-13024

AW11..GEN

COOLER=MAKER OPTION

 1
88320A - BOLT, THROUGH
90099-04968

AW11..ARL,GEN

 5
88320B - BOLT, SERVICE VALVE
90099-04983

AW11..GEN

COOLER=MAKER OPTION

 4
90099-04983

AW11..GEN

 4
88321 - HEAD, COOLER COMPRESSOR CYLINDER
88321-14011

AW11..ARL,GEN

FR

 1
88322-14011

AW11..ARL,GEN

RR

 1
88321 - HEAD, COOLER COMPRESSOR CYLINDER
88321-14011

AW11..ARL,GEN

FR

 1
88322-14011

AW11..ARL,GEN

RR

 1
88321A - PLATE SUB-ASSY, VALVE
88342-14010

AW11..ARL,GEN

RR

 1
88341-14010

AW11..ARL,GEN

FR

 1
88321A - PLATE SUB-ASSY, VALVE
88342-14010

AW11..ARL,GEN

RR

 1
88341-14010

AW11..ARL,GEN

FR

 1
88321B - REED SUB-ASSY, VALVE
88344-14011

AW11..ARL,GEN

 2
88321B - REED SUB-ASSY, VALVE
88344-14011

AW11..ARL,GEN

 2
88321C - REED, SUCTION VALVE
88343-14011

AW11..ARL,GEN

 2
88321C - REED, SUCTION VALVE
88343-14011

AW11..ARL,GEN

 2
88322 - VALVE, COOLER COMPRESSOR SUCTION SERVICE
88371-17010

AW11..GEN

COOLER=MAKER OPTION

 1
88371-17040

AW11..GEN

W(AUTOMATIC AIR CONDITIONER(MOP))

 1
88371-17040

AW11..GEN

COOLER=MAKER OPTION

 1
88325A - PIN, CYLINDER BLOCK
90099-08058

AW11..ARL,GEN

 4
88325A - PIN, CYLINDER BLOCK
90099-08058

AW11..ARL,GEN

 4
88329 - PISTON SUB-ASSY, COOLER COMPRESSOR
88301-12050

AW11..GEN

 5
88329C - SHOE, PISTON
88313-14010

AW11..GEN

 10
88335 - GASKET KIT, OVERHAUL
88335-12030

AW11..GEN

 1
88335-12030

AW11..GEN

COOLER=MAKER OPTION

 1
88360 - SEAL ASSY, COOLER COMPRESSOR SHAFT
88360-40010

AW11..GEN

COOLER=MAKER OPTION

 1
88360-40010

AW11..ARL,GEN

 1
88360A - RING, COMPRESSOR SEAL PLATE SNAP
90096-90022

AW11..ARL,GEN

 1
88364 - BEARING, COMPRESSOR CRANKSHAFT, REAR
88366-14010

AW11..GEN

 1
88376 - CAP, BLIND
88376-22020

AW11..GEN

DISCHARGE,MAKER OPTION

 1
88376-17020

AW11..GEN

SUCTION,MAKER OPTION

 1
88376 - CAP, BLIND
88376-22020

AW11..GEN

DISCHARGE,MAKER OPTION

 1
88376-17020

AW11..GEN

SUCTION,MAKER OPTION

 1
