AW11L-WCMQF (1984)

Toyota Mr2

Production Nov 1984 - Aug 1988
Engine 4AGEL
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

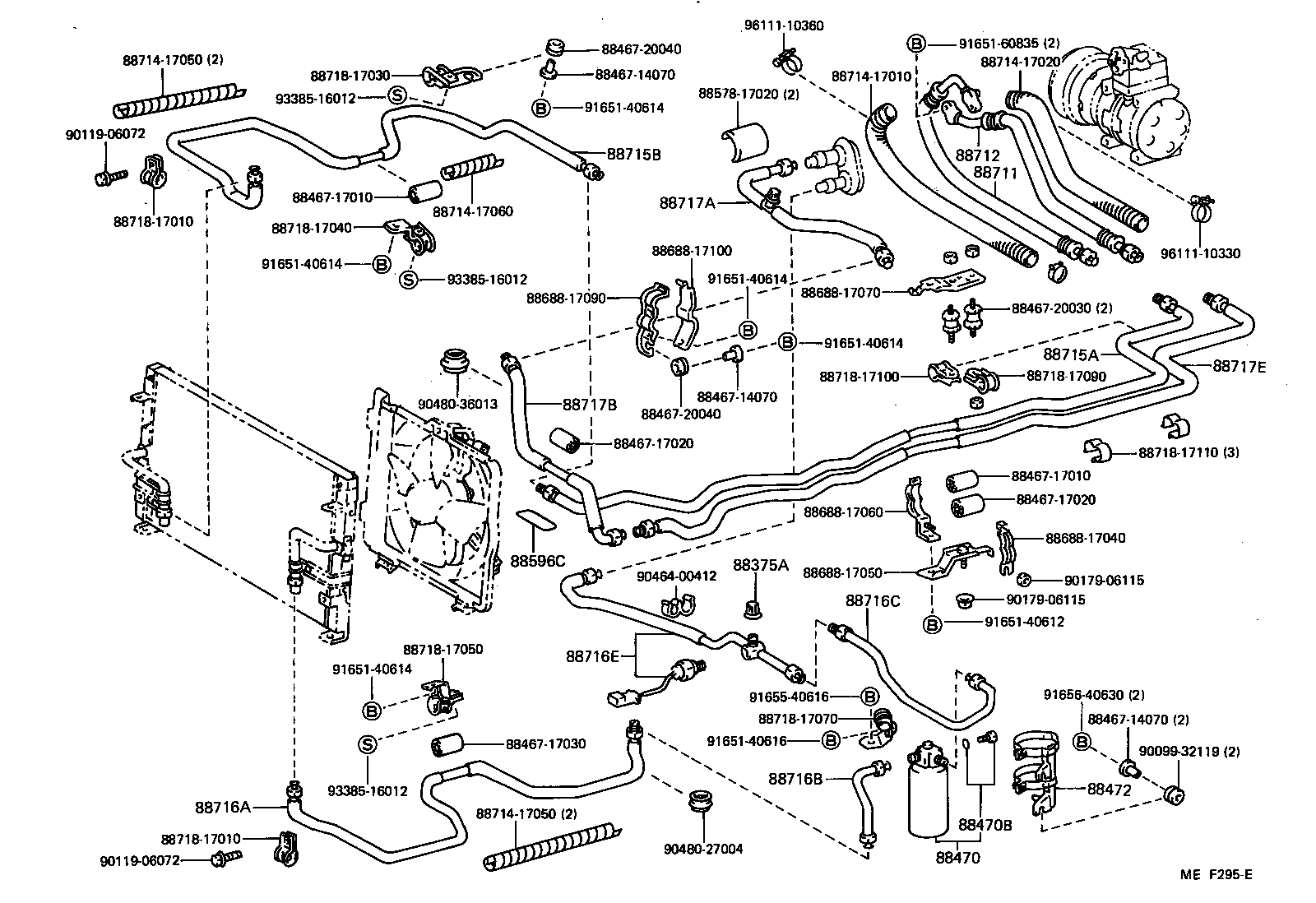

ILLUST NO. 2 OF 2(8411- )LHD

Click highlighted areas on diagram

diagram 88375A 8846714070 8846714070 8846714070 8846717010 8846717010 8846717020 8846717020 8846717030 8846720030 8846720040 8846720040 88470 88470B 88472 8857817020 88596C 8868817040 8868817050 8868817060 8868817070 8868817090 8868817100 88711 88712 8871417010 8871417020 8871417050 8871417050 8871417060 88715A 88715B 88716A 88716B 88716C 88716E 88717A 88717B 88717E 8871817010 8871817010 8871817030 8871817040 8871817050 8871817070 8871817090 8871817100 8871817110 9009932119 9011906072 9011906072 9017906115 9017906115 9046400412 9048027004 9048036013 9165140612 9165140614 9165140614 9165140614 9165140614 9165140614 9165140616 9165160835 9165540616 9165640630 9338516012 9338516012 9338516012 9611110330 9611110360
Part # Description Qty Price
88375A - CAP, SERVICE VALVE (FOR COOLER PIPE)
88375-30270

AW11..GEN

 1
88470 - RECEIVER & DRYER ASSY, COOLER
88471-16010

AW11..GEN

COOLER=MAKER OPTION

 1
88471-16010

AW11..ARL,GEN

 1
88470B - BOLT, FUSE
88475-12020

AW11..ARL,GEN

 1
88472 - BRACKET, RECEIVER TANK, NO.1
88473-17010

AW11..ARL,GEN

 1
88596C - PLATE, CAUTION, NO.2
88596-17010

AW11..GEN

 2
88711 - HOSE, COOLER REFRIGERANT DISCHARGE, NO.1
88711-17010

AW11..GEN

COOLER=MAKER OPTION

 1
88711-17030

AW11..GEN

COOLER=MAKER OPTION

 1
88712 - HOSE, COOLER REFRIGERANT SUCTION, NO.1
88712-17010

AW11..GEN

COOLER=MAKER OPTION

 1
88715A - PIPE, COOLER REFRIGERANT DISCHARGE, A
88715-17020

AW11..GEN

 1
88715B - PIPE, COOLER REFRIGERANT DISCHARGE, B
88715-17080

AW11..GEN

COOLER=MAKER OPTION

 1
88715-17010

AW11..GEN

COOLER=MAKER OPTION

 1
88716A - PIPE, COOLER REFRIGERANT LIQUID, A
88716-17080

AW11..ARL,GEN

 1
88716-17010

AW11..GEN

 1
88716B - PIPE, COOLER REFRIGERANT LIQUID, B
88716-17030

AW11..ARL,GEN

 1
88716C - PIPE, COOLER REFRIGERANT LIQUID, C
88716-17040

AW11..LHD..GEN

 1
88716E - PIPE, COOLER REFRIGERANT LIQUID, E
88716-17071

AW11..LHD..GEN

 1
88716-17070

AW11..LHD..GEN

 1
88717A - PIPE, COOLER REFRIGERANT SUCTION, A
88717-17040

AW11..LHD..GEN

 1
88717B - PIPE, COOLER REFRIGERANT SUCTION, B
88717-17050

AW11..LHD..GEN

 1
88717E - PIPE, COOLER REFRIGERANT SUCTION, E
88717-17010

AW11..GEN

 1
Common parts
88467-14070
88467-17010
88467-17020
88467-17030
88467-20030
88467-20040
88578-17020
88688-17040
88688-17050
88688-17060
88688-17070
88688-17090
88688-17100
88714-17010
88714-17020
88714-17050
88714-17060
88718-17010
88718-17030
88718-17040
88718-17050
88718-17070
88718-17090
88718-17100
88718-17110
90099-32119
90119-06072
90179-06115
90464-00412
90480-27004
90480-36013
91651-40612
91651-40614
91651-40616
91651-60835
91655-40616
91656-40630
93385-16012
96111-10330
96111-10360

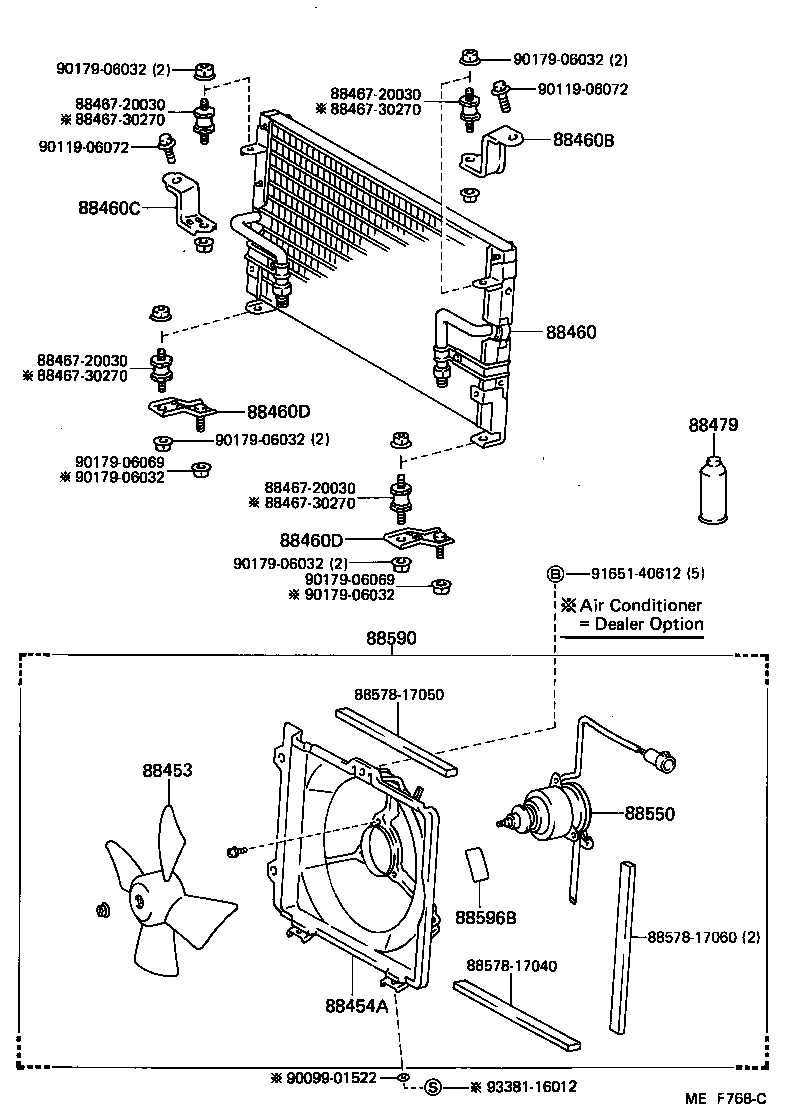

ILLUST NO. 1 OF 2(8411-8608)

Click highlighted areas on diagram

diagram 88453 88454A 88460 88460B 88460C 88460D 88460D 8846720030 8846720030 8846720030 8846720030 8846730270 8846730270 8846730270 8846730270 88479 88550 8857817040 8857817050 8857817060 88590 88596B 9009901522 9011906072 9011906072 9017906032 9017906032 9017906032 9017906032 9017906032 9017906032 9017906069 9017906069 9165140612 9338116012
Part # Description Qty Price
88453 - FAN, COOLING (FOR CONDENSER)
16361-16020

AW11..ARL,GEN

 1
88454A - SHROUD, FAN
88590-17090

AW11..ARL,GEN

 1
88590-17030

AW11..GEN

 1
88460 - CONDENSER ASSY, COOLER
88460-17040

AW11..ARL,GEN

 1
88460-17020

AW11..GEN

 1
88460B - BRACKET, COOLER CONDENSER, NO.1
88688-17190

AW11..ARL,GEN

 1
88688-17020

AW11..GEN

 1
88460C - BRACKET, COOLER CONDENSER, NO.2
88688-17010

AW11..GEN

 1
88688-17180

AW11..ARL,GEN

 1
88460D - BRACKET, COOLER CONDENSER, NO.3
88688-17030

AW11..GEN

 1
88688-17210

AW11..ARL,GEN

LH

 1
88688-17200

AW11..ARL,GEN

RH

 1
88460D - BRACKET, COOLER CONDENSER, NO.3
88688-17030

AW11..GEN

 1
88688-17210

AW11..ARL,GEN

LH

 1
88688-17200

AW11..ARL,GEN

RH

 1
88479 - FREON GAS, AIR CONDITIONER (DRUM, COOLER REFRIGERANT)
90986-02001

AW11..ARL,GEN

400G

 3
88550 - MOTOR ASSY, BLOWER (FOR CONDENSER)
16363-16010

AW11..ARL,GEN

 1
88590 - BLOWER ASSY, W/SHROUD
88590-17010

AW11..GEN

 1
88590-17070

AW11..ARL,GEN

 1
88596B - PLATE, CAUTION, NO.1
88596-14010

AW11..GEN

 1
Common parts
88467-20030
88467-30270
88578-17040
88578-17050
88578-17060
90099-01522
90119-06072
90179-06032
90179-06069
91651-40612
93381-16012

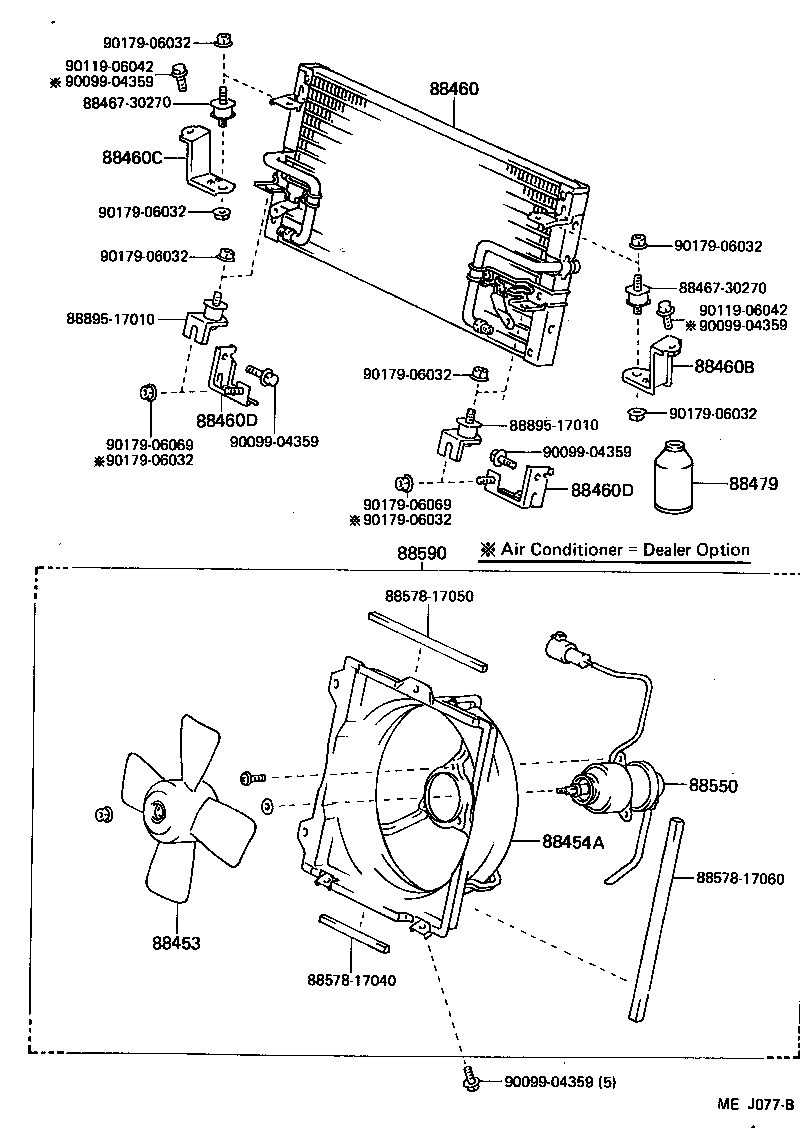

ILLUST NO. 1 OF 2(8608- )

Click highlighted areas on diagram

diagram 88453 88454A 88460 88460B 88460C 88460D 88460D 8846730270 8846730270 88479 88550 8857817040 8857817050 8857817060 88590 8889517010 8889517010 9009904359 9009904359 9009904359 9009904359 9009904359 9011906042 9011906042 9017906032 9017906032 9017906032 9017906032 9017906032 9017906032 9017906032 9017906032 9017906069 9017906069
Part # Description Qty Price
88453 - FAN, COOLING (FOR CONDENSER)
16361-16020

AW11..ARL,GEN

 1
88454A - SHROUD, FAN
88590-17090

AW11..ARL,GEN

 1
88590-17030

AW11..GEN

 1
88460 - CONDENSER ASSY, COOLER
88460-17040

AW11..ARL,GEN

 1
88460-17020

AW11..GEN

 1
88460B - BRACKET, COOLER CONDENSER, NO.1
88688-17190

AW11..ARL,GEN

 1
88688-17020

AW11..GEN

 1
88460C - BRACKET, COOLER CONDENSER, NO.2
88688-17010

AW11..GEN

 1
88688-17180

AW11..ARL,GEN

 1
88460D - BRACKET, COOLER CONDENSER, NO.3
88688-17030

AW11..GEN

 1
88688-17210

AW11..ARL,GEN

LH

 1
88688-17200

AW11..ARL,GEN

RH

 1
88460D - BRACKET, COOLER CONDENSER, NO.3
88688-17030

AW11..GEN

 1
88688-17210

AW11..ARL,GEN

LH

 1
88688-17200

AW11..ARL,GEN

RH

 1
88479 - FREON GAS, AIR CONDITIONER (DRUM, COOLER REFRIGERANT)
90986-02001

AW11..ARL,GEN

400G

 3
88550 - MOTOR ASSY, BLOWER (FOR CONDENSER)
16363-16010

AW11..ARL,GEN

 1
88590 - BLOWER ASSY, W/SHROUD
88590-17010

AW11..GEN

 1
88590-17070

AW11..ARL,GEN

 1
Common parts
88467-30270
88578-17040
88578-17050
88578-17060
88895-17010
90099-04359
90119-06042
90179-06032
90179-06069
