AW11L-WCMQF (1984)
Toyota Mr2

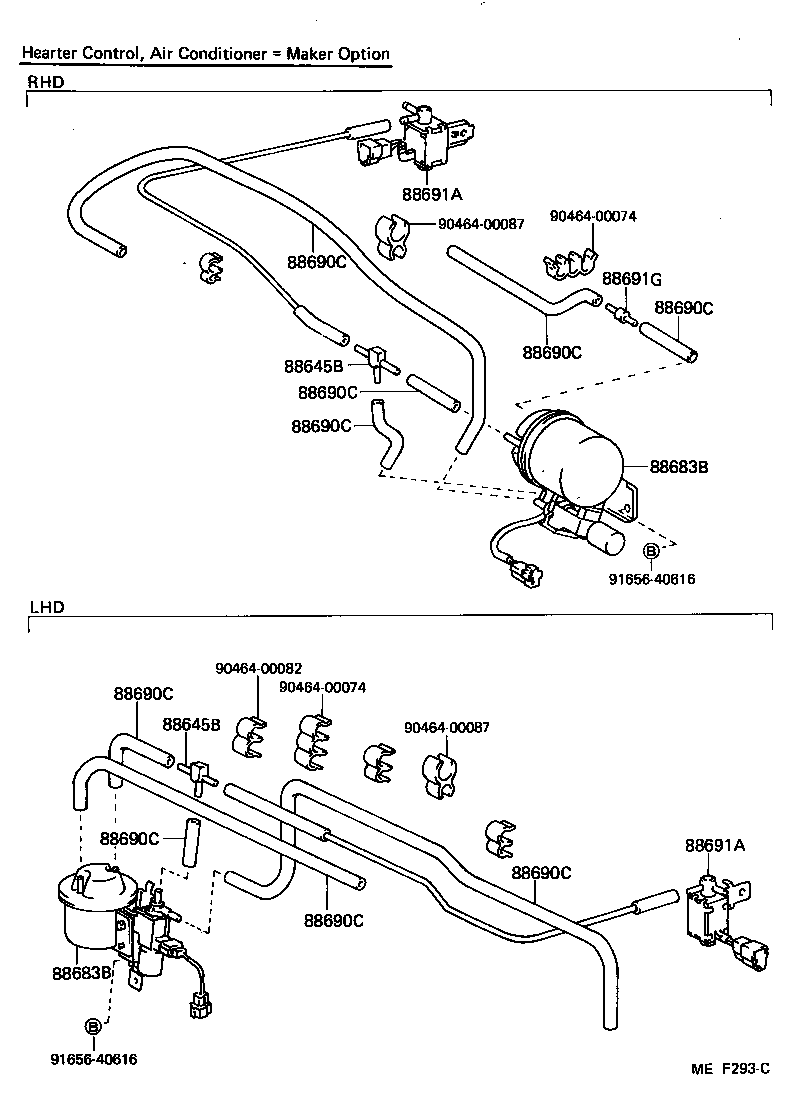

ILLUST NO. 1 OF 2(8411-8608)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 88645B - JOINT, NO.1 (FOR IDLE UP DIVICE) | ||||
| 90413-04005 |
AW11..GEN |
1 | ||
| 88645B - JOINT, NO.1 (FOR IDLE UP DIVICE) | ||||
| 90413-04005 |
AW11..GEN |
1 | ||
| 88683B - TANK, VACUUM | ||||
| 88683-17041 |
AW11..LHD..GEN |
1 | ||
| 88683-17040 |
AW11..LHD..GEN |
1 | ||
| 88683B - TANK, VACUUM | ||||
| 88683-17041 |
AW11..LHD..GEN |
1 | ||
| 88683-17040 |
AW11..LHD..GEN |
1 | ||
| 88690C - HOSE, VACUUM, NO.1 (FOR HEATER OR AIR CONDITIONER) | ||||
| 95411-10230 |
AW11..GEN *H,L=40,MARK=#2 |
1 | ||
| 95411-10130 |
AW11..LHD..GEN *H,L=300,MARK=#1 |
1 | ||
| 95411-10360 |
AW11..GEN MARK=#3,*H,L=450 |
1 | ||
| 95411-10360 |
AW11..LHD..GEN *H,L=510,MARK=#3 |
1 | ||
| 95411-10360 |
AW11..LHD..GEN *H,L=420,MARK=#3 |
1 | ||
| 95411-10230 |
AW11..LHD..GEN MARK=#2,*H,L=90 |
1 | ||
| 95411-10160 |
AW11..GEN *H,L=390,MARK=#1 |
1 | ||
| 95411-10230 |
AW11..LHD..GEN *H,L=80,MARK=#2 |
1 | ||
| 95411-10130 |
AW11..GEN *H,L=50,MARK=#1 |
1 | ||
| 88690C - HOSE, VACUUM, NO.1 (FOR HEATER OR AIR CONDITIONER) | ||||
| 95411-10230 |
AW11..GEN *H,L=40,MARK=#2 |
1 | ||
| 95411-10130 |
AW11..LHD..GEN *H,L=300,MARK=#1 |
1 | ||
| 95411-10360 |
AW11..GEN MARK=#3,*H,L=450 |
1 | ||
| 95411-10360 |
AW11..LHD..GEN *H,L=510,MARK=#3 |
1 | ||
| 95411-10360 |
AW11..LHD..GEN *H,L=420,MARK=#3 |
1 | ||
| 95411-10230 |
AW11..LHD..GEN MARK=#2,*H,L=90 |
1 | ||
| 95411-10160 |
AW11..GEN *H,L=390,MARK=#1 |
1 | ||
| 95411-10230 |
AW11..LHD..GEN *H,L=80,MARK=#2 |
1 | ||
| 95411-10130 |
AW11..GEN *H,L=50,MARK=#1 |
1 | ||
| 88690C - HOSE, VACUUM, NO.1 (FOR HEATER OR AIR CONDITIONER) | ||||
| 95411-10230 |
AW11..GEN *H,L=40,MARK=#2 |
1 | ||
| 95411-10130 |
AW11..LHD..GEN *H,L=300,MARK=#1 |
1 | ||
| 95411-10360 |
AW11..GEN MARK=#3,*H,L=450 |
1 | ||
| 95411-10360 |
AW11..LHD..GEN *H,L=510,MARK=#3 |
1 | ||
| 95411-10360 |
AW11..LHD..GEN *H,L=420,MARK=#3 |
1 | ||
| 95411-10230 |
AW11..LHD..GEN MARK=#2,*H,L=90 |
1 | ||
| 95411-10160 |
AW11..GEN *H,L=390,MARK=#1 |
1 | ||
| 95411-10230 |
AW11..LHD..GEN *H,L=80,MARK=#2 |
1 | ||
| 95411-10130 |
AW11..GEN *H,L=50,MARK=#1 |
1 | ||
| 88690C - HOSE, VACUUM, NO.1 (FOR HEATER OR AIR CONDITIONER) | ||||
| 95411-10230 |
AW11..GEN *H,L=40,MARK=#2 |
1 | ||
| 95411-10130 |
AW11..LHD..GEN *H,L=300,MARK=#1 |
1 | ||
| 95411-10360 |
AW11..GEN MARK=#3,*H,L=450 |
1 | ||
| 95411-10360 |
AW11..LHD..GEN *H,L=510,MARK=#3 |
1 | ||
| 95411-10360 |
AW11..LHD..GEN *H,L=420,MARK=#3 |
1 | ||
| 95411-10230 |
AW11..LHD..GEN MARK=#2,*H,L=90 |
1 | ||
| 95411-10160 |
AW11..GEN *H,L=390,MARK=#1 |
1 | ||
| 95411-10230 |
AW11..LHD..GEN *H,L=80,MARK=#2 |
1 | ||
| 95411-10130 |
AW11..GEN *H,L=50,MARK=#1 |
1 | ||
| 88690C - HOSE, VACUUM, NO.1 (FOR HEATER OR AIR CONDITIONER) | ||||
| 95411-10230 |
AW11..GEN *H,L=40,MARK=#2 |
1 | ||
| 95411-10130 |
AW11..LHD..GEN *H,L=300,MARK=#1 |
1 | ||
| 95411-10360 |
AW11..GEN MARK=#3,*H,L=450 |
1 | ||
| 95411-10360 |
AW11..LHD..GEN *H,L=510,MARK=#3 |
1 | ||
| 95411-10360 |
AW11..LHD..GEN *H,L=420,MARK=#3 |
1 | ||
| 95411-10230 |
AW11..LHD..GEN MARK=#2,*H,L=90 |
1 | ||
| 95411-10160 |
AW11..GEN *H,L=390,MARK=#1 |
1 | ||
| 95411-10230 |
AW11..LHD..GEN *H,L=80,MARK=#2 |
1 | ||
| 95411-10130 |
AW11..GEN *H,L=50,MARK=#1 |
1 | ||
| 88690C - HOSE, VACUUM, NO.1 (FOR HEATER OR AIR CONDITIONER) | ||||
| 95411-10230 |
AW11..GEN *H,L=40,MARK=#2 |
1 | ||
| 95411-10130 |
AW11..LHD..GEN *H,L=300,MARK=#1 |
1 | ||
| 95411-10360 |
AW11..GEN MARK=#3,*H,L=450 |
1 | ||
| 95411-10360 |
AW11..LHD..GEN *H,L=510,MARK=#3 |
1 | ||
| 95411-10360 |
AW11..LHD..GEN *H,L=420,MARK=#3 |
1 | ||
| 95411-10230 |
AW11..LHD..GEN MARK=#2,*H,L=90 |
1 | ||
| 95411-10160 |
AW11..GEN *H,L=390,MARK=#1 |
1 | ||
| 95411-10230 |
AW11..LHD..GEN *H,L=80,MARK=#2 |
1 | ||
| 95411-10130 |
AW11..GEN *H,L=50,MARK=#1 |
1 | ||
| 88690C - HOSE, VACUUM, NO.1 (FOR HEATER OR AIR CONDITIONER) | ||||
| 95411-10230 |
AW11..GEN *H,L=40,MARK=#2 |
1 | ||
| 95411-10130 |
AW11..LHD..GEN *H,L=300,MARK=#1 |
1 | ||
| 95411-10360 |
AW11..GEN MARK=#3,*H,L=450 |
1 | ||
| 95411-10360 |
AW11..LHD..GEN *H,L=510,MARK=#3 |
1 | ||
| 95411-10360 |
AW11..LHD..GEN *H,L=420,MARK=#3 |
1 | ||
| 95411-10230 |
AW11..LHD..GEN MARK=#2,*H,L=90 |
1 | ||
| 95411-10160 |
AW11..GEN *H,L=390,MARK=#1 |
1 | ||
| 95411-10230 |
AW11..LHD..GEN *H,L=80,MARK=#2 |
1 | ||
| 95411-10130 |
AW11..GEN *H,L=50,MARK=#1 |
1 | ||
| 88690C - HOSE, VACUUM, NO.1 (FOR HEATER OR AIR CONDITIONER) | ||||
| 95411-10230 |
AW11..GEN *H,L=40,MARK=#2 |
1 | ||
| 95411-10130 |
AW11..LHD..GEN *H,L=300,MARK=#1 |
1 | ||
| 95411-10360 |
AW11..GEN MARK=#3,*H,L=450 |
1 | ||
| 95411-10360 |
AW11..LHD..GEN *H,L=510,MARK=#3 |
1 | ||
| 95411-10360 |
AW11..LHD..GEN *H,L=420,MARK=#3 |
1 | ||
| 95411-10230 |
AW11..LHD..GEN MARK=#2,*H,L=90 |
1 | ||
| 95411-10160 |
AW11..GEN *H,L=390,MARK=#1 |
1 | ||
| 95411-10230 |
AW11..LHD..GEN *H,L=80,MARK=#2 |
1 | ||
| 95411-10130 |
AW11..GEN *H,L=50,MARK=#1 |
1 | ||
| 88690C - HOSE, VACUUM, NO.1 (FOR HEATER OR AIR CONDITIONER) | ||||
| 95411-10230 |
AW11..GEN *H,L=40,MARK=#2 |
1 | ||
| 95411-10130 |
AW11..LHD..GEN *H,L=300,MARK=#1 |
1 | ||
| 95411-10360 |
AW11..GEN MARK=#3,*H,L=450 |
1 | ||
| 95411-10360 |
AW11..LHD..GEN *H,L=510,MARK=#3 |
1 | ||
| 95411-10360 |
AW11..LHD..GEN *H,L=420,MARK=#3 |
1 | ||
| 95411-10230 |
AW11..LHD..GEN MARK=#2,*H,L=90 |
1 | ||
| 95411-10160 |
AW11..GEN *H,L=390,MARK=#1 |
1 | ||
| 95411-10230 |
AW11..LHD..GEN *H,L=80,MARK=#2 |
1 | ||
| 95411-10130 |
AW11..GEN *H,L=50,MARK=#1 |
1 | ||
| 88691A - VALVE, MAGNET (FOR BLOWER CHANGING-OVER DEVICE) | ||||
| 88690-17020 |
AW11..LHD..GEN W/COOLER |
1 | ||
| 88691A - VALVE, MAGNET (FOR BLOWER CHANGING-OVER DEVICE) | ||||
| 88690-17020 |
AW11..LHD..GEN W/COOLER |
1 | ||
| 88691G - VALVE, CHECK(FOR IDLE-UP DIVICE) | ||||
| 88684-22010 |
AW11..GEN |
1 | ||
| Common parts | ||||
| 90464-00074 | ||||
| 90464-00082 | ||||
| 90464-00087 | ||||
| 91656-40616 | ||||

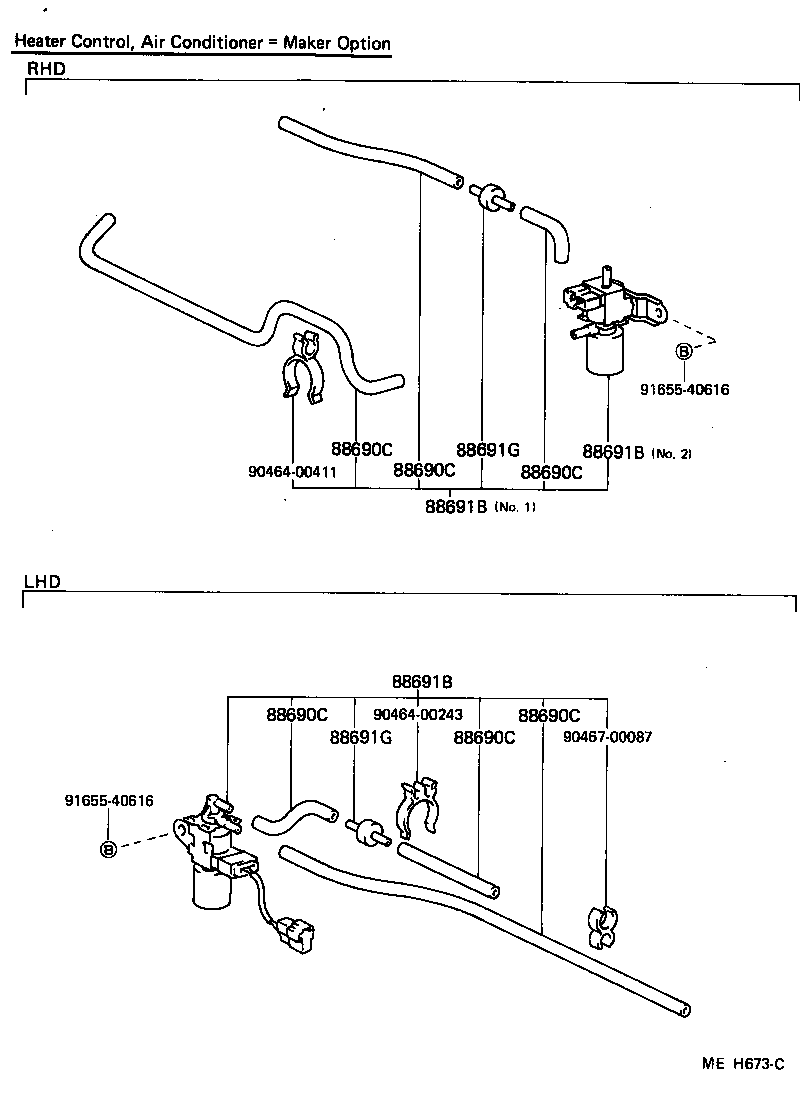

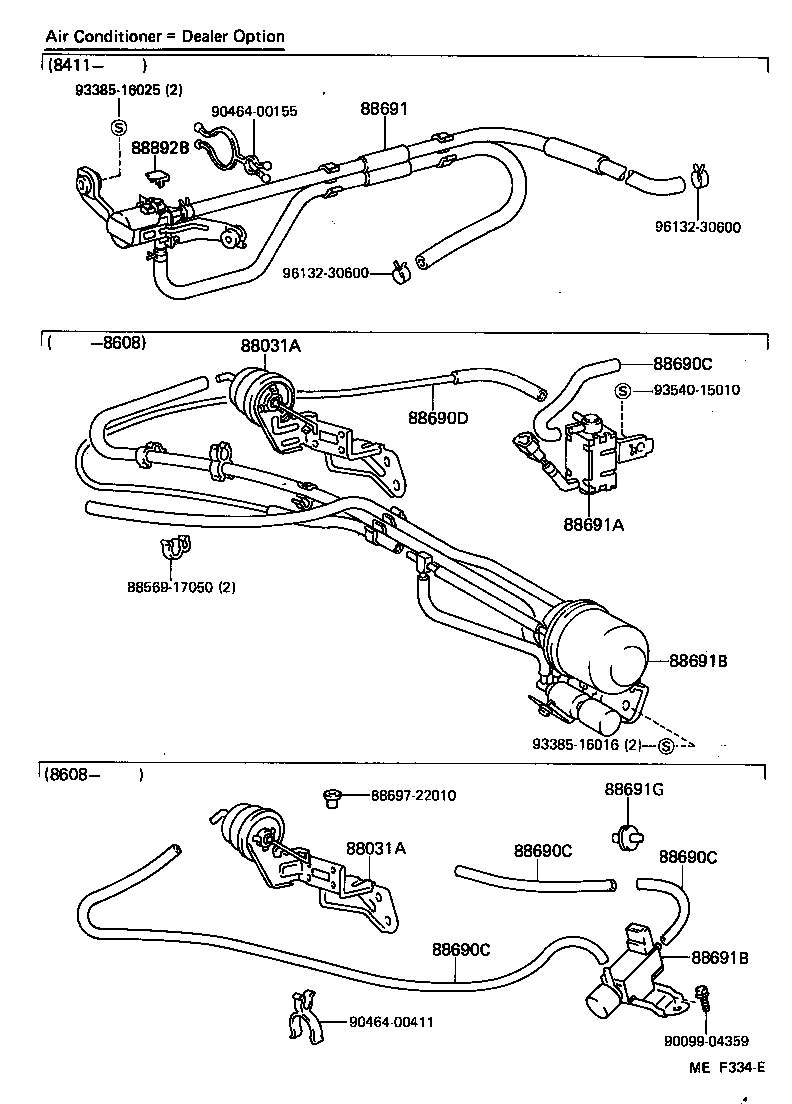

ILLUST NO. 2 OF 2(8411- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 88690C - HOSE, VACUUM, NO.1 (FOR HEATER OR AIR CONDITIONER) | ||||
| 95411-10230 |
AW11..GEN *H,L=40,MARK=#2 |
1 | ||
| 95411-10130 |
AW11..LHD..GEN *H,L=300,MARK=#1 |
1 | ||
| 95411-10360 |
AW11..GEN MARK=#3,*H,L=450 |
1 | ||
| 95411-10360 |
AW11..LHD..GEN *H,L=510,MARK=#3 |
1 | ||
| 95411-10360 |
AW11..LHD..GEN *H,L=420,MARK=#3 |
1 | ||
| 95411-10230 |
AW11..LHD..GEN MARK=#2,*H,L=90 |
1 | ||
| 95411-10160 |
AW11..GEN *H,L=390,MARK=#1 |
1 | ||
| 95411-10230 |
AW11..LHD..GEN *H,L=80,MARK=#2 |
1 | ||
| 95411-10130 |
AW11..GEN *H,L=50,MARK=#1 |
1 | ||
| 88690C - HOSE, VACUUM, NO.1 (FOR HEATER OR AIR CONDITIONER) | ||||
| 95411-10230 |
AW11..GEN *H,L=40,MARK=#2 |
1 | ||
| 95411-10130 |
AW11..LHD..GEN *H,L=300,MARK=#1 |
1 | ||
| 95411-10360 |
AW11..GEN MARK=#3,*H,L=450 |
1 | ||
| 95411-10360 |
AW11..LHD..GEN *H,L=510,MARK=#3 |
1 | ||
| 95411-10360 |
AW11..LHD..GEN *H,L=420,MARK=#3 |
1 | ||
| 95411-10230 |
AW11..LHD..GEN MARK=#2,*H,L=90 |
1 | ||
| 95411-10160 |
AW11..GEN *H,L=390,MARK=#1 |
1 | ||
| 95411-10230 |
AW11..LHD..GEN *H,L=80,MARK=#2 |
1 | ||
| 95411-10130 |
AW11..GEN *H,L=50,MARK=#1 |
1 | ||
| 88690C - HOSE, VACUUM, NO.1 (FOR HEATER OR AIR CONDITIONER) | ||||
| 95411-10230 |
AW11..GEN *H,L=40,MARK=#2 |
1 | ||
| 95411-10130 |
AW11..LHD..GEN *H,L=300,MARK=#1 |
1 | ||
| 95411-10360 |
AW11..GEN MARK=#3,*H,L=450 |
1 | ||
| 95411-10360 |
AW11..LHD..GEN *H,L=510,MARK=#3 |
1 | ||
| 95411-10360 |
AW11..LHD..GEN *H,L=420,MARK=#3 |
1 | ||
| 95411-10230 |
AW11..LHD..GEN MARK=#2,*H,L=90 |
1 | ||
| 95411-10160 |
AW11..GEN *H,L=390,MARK=#1 |
1 | ||
| 95411-10230 |
AW11..LHD..GEN *H,L=80,MARK=#2 |
1 | ||
| 95411-10130 |
AW11..GEN *H,L=50,MARK=#1 |
1 | ||
| 88690C - HOSE, VACUUM, NO.1 (FOR HEATER OR AIR CONDITIONER) | ||||
| 95411-10230 |
AW11..GEN *H,L=40,MARK=#2 |
1 | ||
| 95411-10130 |
AW11..LHD..GEN *H,L=300,MARK=#1 |
1 | ||
| 95411-10360 |
AW11..GEN MARK=#3,*H,L=450 |
1 | ||
| 95411-10360 |
AW11..LHD..GEN *H,L=510,MARK=#3 |
1 | ||
| 95411-10360 |
AW11..LHD..GEN *H,L=420,MARK=#3 |
1 | ||
| 95411-10230 |
AW11..LHD..GEN MARK=#2,*H,L=90 |
1 | ||
| 95411-10160 |
AW11..GEN *H,L=390,MARK=#1 |
1 | ||
| 95411-10230 |
AW11..LHD..GEN *H,L=80,MARK=#2 |
1 | ||
| 95411-10130 |
AW11..GEN *H,L=50,MARK=#1 |
1 | ||
| 88691 - VALVE, MAGNET (FOR IDLE UP DEVICE) | ||||
| 88691-17010 |
AW11..GEN COOLER=MAKER OPTION |
1 | ||
| 88691A - VALVE, MAGNET (FOR BLOWER CHANGING-OVER DEVICE) | ||||
| 88690-17020 |
AW11..LHD..GEN W/COOLER |
1 | ||
| 88691G - VALVE, CHECK(FOR IDLE-UP DIVICE) | ||||
| 88684-22010 |
AW11..GEN |
1 | ||
| 88892B - COVER, MAGNET VALVE | ||||
| 88891-17010 |
AW11..ARL,GEN |
1 | ||
| Common parts | ||||
| 88569-17050 | ||||
| 88697-22010 | ||||
| 90099-04359 | ||||
| 90464-00155 | ||||
| 90464-00411 | ||||
| 93385-16016 | ||||
| 93385-16025 | ||||
| 93540-15010 | ||||
| 96132-30600 | ||||

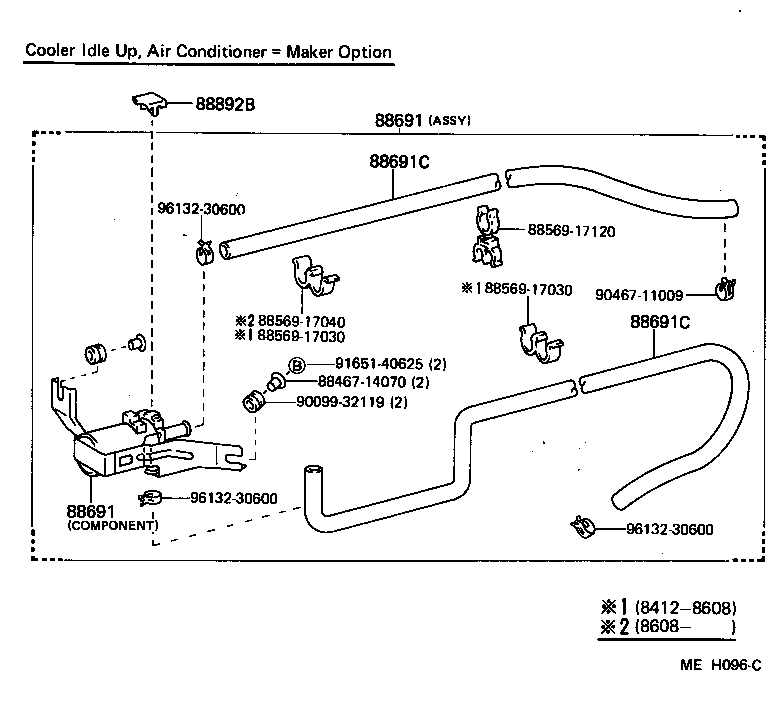

ILLUST NO. 1 OF 2(8411- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 88691 - VALVE, MAGNET (FOR IDLE UP DEVICE) | ||||
| 88691-17010 |
AW11..GEN COOLER=MAKER OPTION |
1 | ||
| 88691 - VALVE, MAGNET (FOR IDLE UP DEVICE) | ||||
| 88691-17010 |
AW11..GEN COOLER=MAKER OPTION |
1 | ||
| 88691C - HOSE, VACUUM (FOR IDLE UP DEVICE), NO.1 | ||||
| 88689-17030 |
AW11..GEN L=610 |
1 | ||
| 88689-17080 |
AW11..GEN L=660 |
1 | ||
| 88689-17070 |
AW11..GEN L=580 |
1 | ||
| 88689-17040 |
AW11..GEN L=490 |
1 | ||
| 88691C - HOSE, VACUUM (FOR IDLE UP DEVICE), NO.1 | ||||
| 88689-17030 |
AW11..GEN L=610 |
1 | ||
| 88689-17080 |
AW11..GEN L=660 |
1 | ||
| 88689-17070 |
AW11..GEN L=580 |
1 | ||
| 88689-17040 |
AW11..GEN L=490 |
1 | ||
| 88892B - COVER, MAGNET VALVE | ||||
| 88891-17010 |
AW11..ARL,GEN |
1 | ||
| Common parts | ||||
| 88467-14070 | ||||
| 88569-17030 | ||||
| 88569-17040 | ||||
| 88569-17120 | ||||
| 90099-32119 | ||||
| 90467-11009 | ||||
| 91651-40625 | ||||
| 96132-30600 | ||||
ILLUST NO. 1 OF 2(8608- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 88690C - HOSE, VACUUM, NO.1 (FOR HEATER OR AIR CONDITIONER) | ||||
| 95411-10230 |
AW11..GEN *H,L=40,MARK=#2 |
1 | ||
| 95411-10130 |
AW11..LHD..GEN *H,L=300,MARK=#1 |
1 | ||
| 95411-10360 |
AW11..GEN MARK=#3,*H,L=450 |
1 | ||
| 95411-10360 |
AW11..LHD..GEN *H,L=510,MARK=#3 |
1 | ||
| 95411-10360 |
AW11..LHD..GEN *H,L=420,MARK=#3 |
1 | ||
| 95411-10230 |
AW11..LHD..GEN MARK=#2,*H,L=90 |
1 | ||
| 95411-10160 |
AW11..GEN *H,L=390,MARK=#1 |
1 | ||
| 95411-10230 |
AW11..LHD..GEN *H,L=80,MARK=#2 |
1 | ||
| 95411-10130 |
AW11..GEN *H,L=50,MARK=#1 |
1 | ||
| 88690C - HOSE, VACUUM, NO.1 (FOR HEATER OR AIR CONDITIONER) | ||||
| 95411-10230 |
AW11..GEN *H,L=40,MARK=#2 |
1 | ||
| 95411-10130 |
AW11..LHD..GEN *H,L=300,MARK=#1 |
1 | ||
| 95411-10360 |
AW11..GEN MARK=#3,*H,L=450 |
1 | ||
| 95411-10360 |
AW11..LHD..GEN *H,L=510,MARK=#3 |
1 | ||
| 95411-10360 |
AW11..LHD..GEN *H,L=420,MARK=#3 |
1 | ||
| 95411-10230 |
AW11..LHD..GEN MARK=#2,*H,L=90 |
1 | ||
| 95411-10160 |
AW11..GEN *H,L=390,MARK=#1 |
1 | ||
| 95411-10230 |
AW11..LHD..GEN *H,L=80,MARK=#2 |
1 | ||
| 95411-10130 |
AW11..GEN *H,L=50,MARK=#1 |
1 | ||
| 88690C - HOSE, VACUUM, NO.1 (FOR HEATER OR AIR CONDITIONER) | ||||
| 95411-10230 |
AW11..GEN *H,L=40,MARK=#2 |
1 | ||
| 95411-10130 |
AW11..LHD..GEN *H,L=300,MARK=#1 |
1 | ||
| 95411-10360 |
AW11..GEN MARK=#3,*H,L=450 |
1 | ||
| 95411-10360 |
AW11..LHD..GEN *H,L=510,MARK=#3 |
1 | ||
| 95411-10360 |
AW11..LHD..GEN *H,L=420,MARK=#3 |
1 | ||
| 95411-10230 |
AW11..LHD..GEN MARK=#2,*H,L=90 |
1 | ||
| 95411-10160 |
AW11..GEN *H,L=390,MARK=#1 |
1 | ||
| 95411-10230 |
AW11..LHD..GEN *H,L=80,MARK=#2 |
1 | ||
| 95411-10130 |
AW11..GEN *H,L=50,MARK=#1 |
1 | ||
| 88690C - HOSE, VACUUM, NO.1 (FOR HEATER OR AIR CONDITIONER) | ||||
| 95411-10230 |
AW11..GEN *H,L=40,MARK=#2 |
1 | ||
| 95411-10130 |
AW11..LHD..GEN *H,L=300,MARK=#1 |
1 | ||
| 95411-10360 |
AW11..GEN MARK=#3,*H,L=450 |
1 | ||
| 95411-10360 |
AW11..LHD..GEN *H,L=510,MARK=#3 |
1 | ||
| 95411-10360 |
AW11..LHD..GEN *H,L=420,MARK=#3 |
1 | ||
| 95411-10230 |
AW11..LHD..GEN MARK=#2,*H,L=90 |
1 | ||
| 95411-10160 |
AW11..GEN *H,L=390,MARK=#1 |
1 | ||
| 95411-10230 |
AW11..LHD..GEN *H,L=80,MARK=#2 |
1 | ||
| 95411-10130 |
AW11..GEN *H,L=50,MARK=#1 |
1 | ||
| 88690C - HOSE, VACUUM, NO.1 (FOR HEATER OR AIR CONDITIONER) | ||||
| 95411-10230 |
AW11..GEN *H,L=40,MARK=#2 |
1 | ||
| 95411-10130 |
AW11..LHD..GEN *H,L=300,MARK=#1 |
1 | ||
| 95411-10360 |
AW11..GEN MARK=#3,*H,L=450 |
1 | ||
| 95411-10360 |
AW11..LHD..GEN *H,L=510,MARK=#3 |
1 | ||
| 95411-10360 |
AW11..LHD..GEN *H,L=420,MARK=#3 |
1 | ||
| 95411-10230 |
AW11..LHD..GEN MARK=#2,*H,L=90 |
1 | ||
| 95411-10160 |
AW11..GEN *H,L=390,MARK=#1 |
1 | ||
| 95411-10230 |
AW11..LHD..GEN *H,L=80,MARK=#2 |
1 | ||
| 95411-10130 |
AW11..GEN *H,L=50,MARK=#1 |
1 | ||
| 88690C - HOSE, VACUUM, NO.1 (FOR HEATER OR AIR CONDITIONER) | ||||
| 95411-10230 |
AW11..GEN *H,L=40,MARK=#2 |
1 | ||
| 95411-10130 |
AW11..LHD..GEN *H,L=300,MARK=#1 |
1 | ||
| 95411-10360 |
AW11..GEN MARK=#3,*H,L=450 |
1 | ||
| 95411-10360 |
AW11..LHD..GEN *H,L=510,MARK=#3 |
1 | ||
| 95411-10360 |
AW11..LHD..GEN *H,L=420,MARK=#3 |
1 | ||
| 95411-10230 |
AW11..LHD..GEN MARK=#2,*H,L=90 |
1 | ||
| 95411-10160 |
AW11..GEN *H,L=390,MARK=#1 |
1 | ||
| 95411-10230 |
AW11..LHD..GEN *H,L=80,MARK=#2 |
1 | ||
| 95411-10130 |
AW11..GEN *H,L=50,MARK=#1 |
1 | ||
| 88691G - VALVE, CHECK(FOR IDLE-UP DIVICE) | ||||
| 88684-22010 |
AW11..GEN |
1 | ||
| 88691G - VALVE, CHECK(FOR IDLE-UP DIVICE) | ||||
| 88684-22010 |
AW11..GEN |
1 | ||
| Common parts | ||||
| 90464-00243 | ||||
| 90464-00411 | ||||
| 90467-00087 | ||||
| 91655-40616 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
