AW11L-WCMQF (1984)
Toyota Mr2
Production
Nov 1984
-
Aug 1988
Engine
4AGEL
Transmission
5F MTM
Displacement
2500cc
Power
168 HP (125 kW)
(8411- )

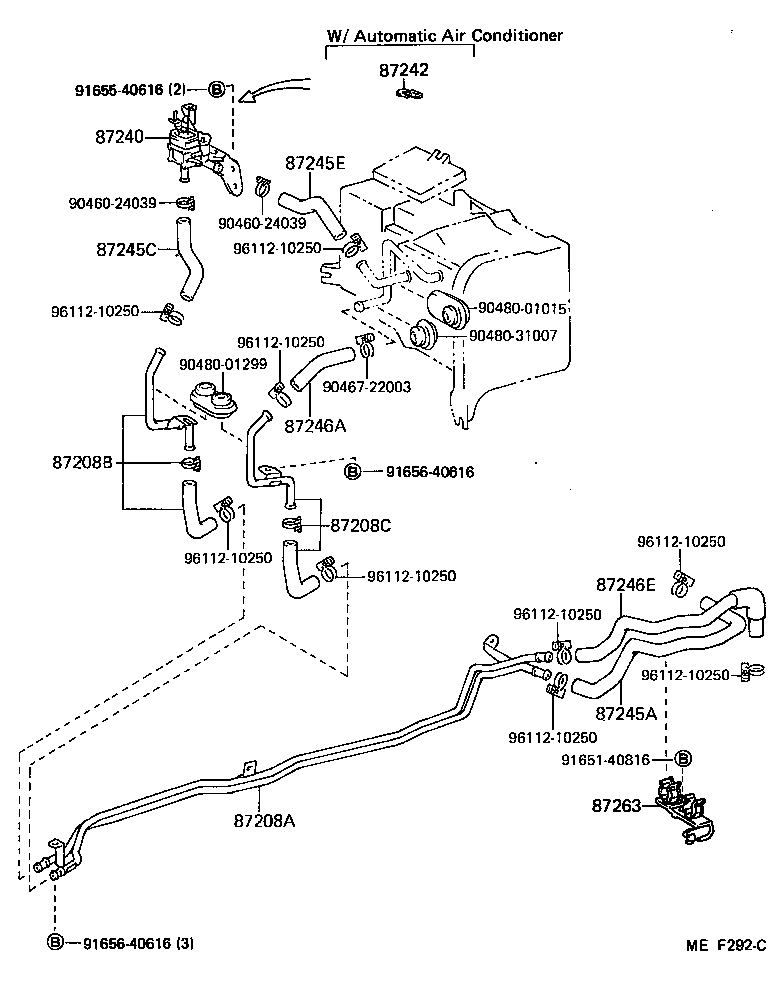

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 87208A - PIPE SUB-ASSY, HEATER WATER, A | ||||
| 87208-17030 |
AW11 |
1 | ||
| 87208B - PIPE SUB-ASSY, HEATER WATER, B | ||||
| 87208-17010 |
AW11 |
1 | ||
| 87208C - PIPE SUB-ASSY, HEATER WATER, C | ||||
| 87208-17020 |
AW11 |
1 | ||
| 87240 - VALVE ASSY, HEATER WATER | ||||
| 87240-17020 |
AW11..LHD |
1 | ||
| 87240-17040 |
AW11..LHD..GEN W/*AAC |
1 | ||
| 87245A - HOSE, HEATER WATER, INLET A | ||||
| 87245-17100 |
AW11..LHD |
1 | ||
| 87245C - HOSE, HEATER WATER ,INLET C | ||||
| 87245-17050 |
AW11..LHD |
1 | ||
| 87245E - HOSE, HEATER WATER, INLET E | ||||
| 87245-17040 |
AW11..LHD |
1 | ||
| 87246A - HOSE, HEATER WATER, OUTLET A | ||||
| 87245-17060 |
AW11..LHD |
1 | ||
| 87246E - HOSE, HEATER WATER, OUTLET E | ||||
| 87245-17111 |
AW11..LHD |
1 | ||
| 87245-17110 |
AW11..LHD |
1 | ||
| 87263 - BRACKET, HEATER WATER PIPE, NO.1 | ||||
| 87263-17011 |
AW11 |
1 | ||
| Common parts | ||||
| 90460-24039 | ||||
| 90467-22003 | ||||
| 90480-01015 | ||||
| 90480-01299 | ||||
| 90480-31007 | ||||
| 91651-40816 | ||||
| 91655-40616 | ||||
| 91656-40616 | ||||
| 96112-10250 | ||||
