AW11L-WCMQF (1984)

Toyota Mr2

Production Nov 1984 - Aug 1988
Engine 4AGEL
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

ILLUST NO. 1 OF 3(8411-8608)

Click highlighted areas on diagram

diagram 55905A 55905A 55905A 55906A 55907A 55908A 55909A 55910 55923 87284 9048013009 9356614512 9356614512 9356755016 9361014010
Part # Description Qty Price
55905A - KNOB, HEATER CONTROL
55905-89110

AW11..GEN

 3
55905A - KNOB, HEATER CONTROL
55905-89110

AW11..GEN

 3
55905A - KNOB, HEATER CONTROL
55905-89110

AW11..GEN

 3
55906A - CABLE SUB-ASSY, DEFROSTER DAMPER CONTROL
55906-17020

AW11..LHD

 1
55907A - CABLE SUB-ASSY, WATER VALVE CONTROL
55907-17021

AW11..LHD

W/O *AAC

 1
55907-17020

AW11..LHD

W/O *AAC

 1
55908A - CABLE SUB-ASSY, AIR INLET DAMPER CONTROL
55908-17020

AW11..LHD

 1
55909A - CABLE SUB-ASSY, AIRMIX DAMPER CONTROL
55909-17021

AW11..LHD

W/O *AAC

 1
55909-17020

AW11..LHD

W/O *AAC

 1
55910 - CONTROL ASSY, HEATER OR BOOST VENTILATOR
55910-17040

AW11..GEN

W/*AAC

 1
55910-17030

AW11

 1
55910-17010

AW11

 1
55923 - RETAINER, HEATER CONTROL, UPPER
55923-17010

AW11..GEN

W/*AAC

 1
87284 - RESISTOR SUB-ASSY, VARIABLE
88032-17020

AW11..LHD..GEN

W/*AAC

 1
88032-17011

AW11..GEN

 1
Common parts
90480-13009
93566-14512
93567-55016
93610-14010

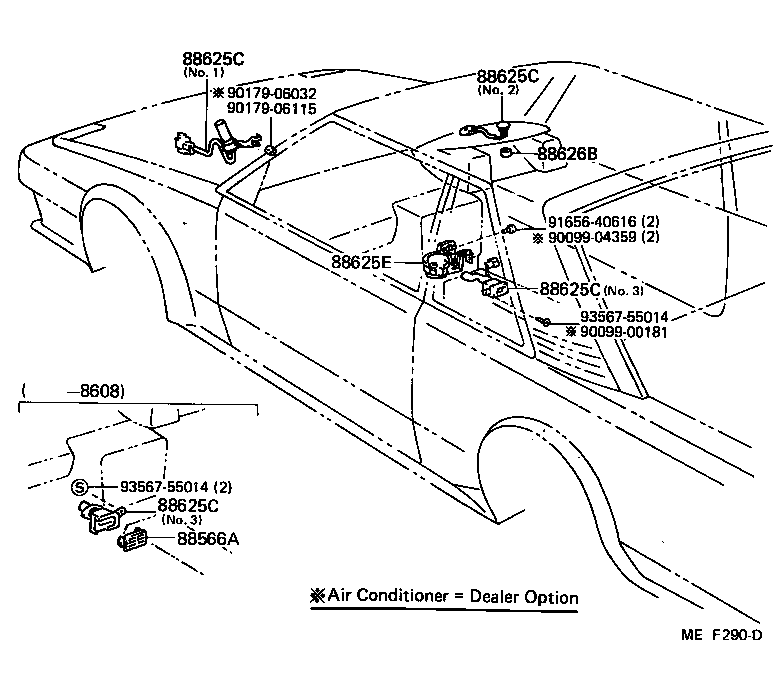

ILLUST NO. 2 OF 3(8411- )

Click highlighted areas on diagram

diagram 88566A 88625C 88625C 88625C 88625C 88625E 88626B 9009900181 9009904359 9017906032 9017906115 9165640616 9356755014 9356755014
Part # Description Qty Price
88566A - DUCT, COOLER AIR, NO.1
88566-1701001

AW11..GEN

BLACK,BLACK,TRIM2#

 1
88625C - THERMISTOR, COOLER
88625-17080

AW11..GEN

NO.1

 1
88625-17020

AW11..GEN

NO.1

 1
88625-17050

AW11..LHD..GEN

NO.3

 1
88625-17090

AW11..GEN

NO.3

 1
88625-1703001

AW11..GEN

NO.2,BLACK,BLACK,TRIM2#

 1
88625-1703005

AW11..LHD..GEN

DARK BEIGE,TRIM4#,NO.2

 1
88625C - THERMISTOR, COOLER
88625-17080

AW11..GEN

NO.1

 1
88625-17020

AW11..GEN

NO.1

 1
88625-17050

AW11..LHD..GEN

NO.3

 1
88625-17090

AW11..GEN

NO.3

 1
88625-1703001

AW11..GEN

NO.2,BLACK,BLACK,TRIM2#

 1
88625-1703005

AW11..LHD..GEN

DARK BEIGE,TRIM4#,NO.2

 1
88625C - THERMISTOR, COOLER
88625-17080

AW11..GEN

NO.1

 1
88625-17020

AW11..GEN

NO.1

 1
88625-17050

AW11..LHD..GEN

NO.3

 1
88625-17090

AW11..GEN

NO.3

 1
88625-1703001

AW11..GEN

NO.2,BLACK,BLACK,TRIM2#

 1
88625-1703005

AW11..LHD..GEN

DARK BEIGE,TRIM4#,NO.2

 1
88625C - THERMISTOR, COOLER
88625-17080

AW11..GEN

NO.1

 1
88625-17020

AW11..GEN

NO.1

 1
88625-17050

AW11..LHD..GEN

NO.3

 1
88625-17090

AW11..GEN

NO.3

 1
88625-1703001

AW11..GEN

NO.2,BLACK,BLACK,TRIM2#

 1
88625-1703005

AW11..LHD..GEN

DARK BEIGE,TRIM4#,NO.2

 1
88625E - MOTOR ASSY (FOR THERMISTOR)
88550-17010

AW11..GEN

 1
88626B - HOLDER, THERMISTOR
88626-17010

AW11..GEN

 1
Common parts
90099-00181
90099-04359
90179-06032
90179-06115
91656-40616
93567-55014

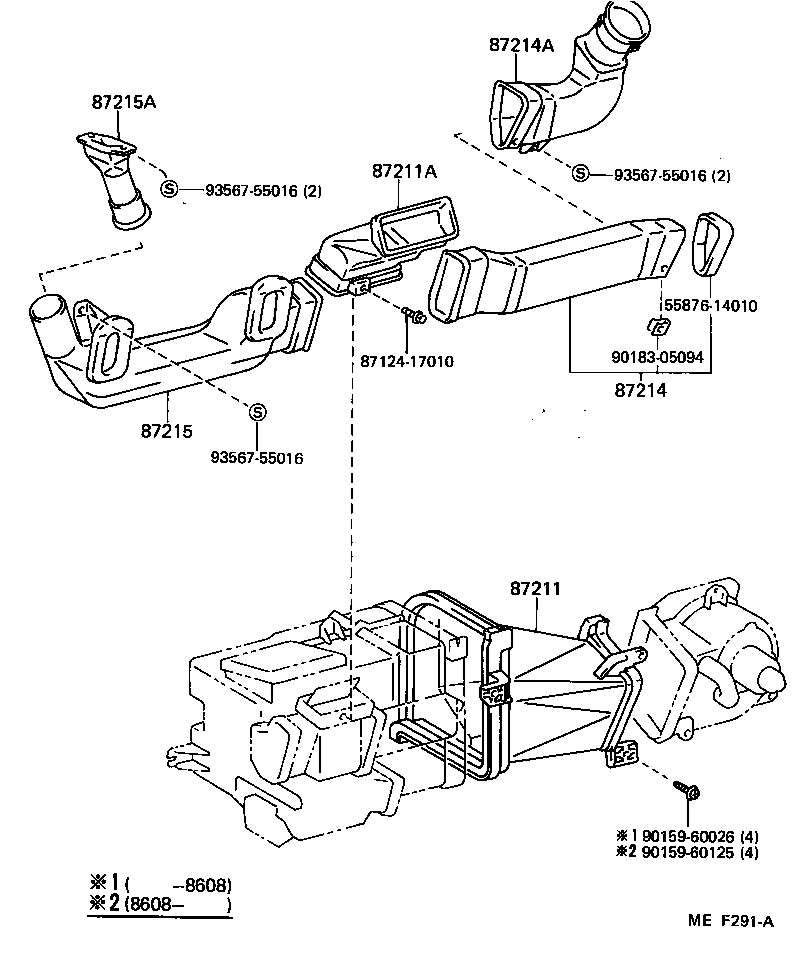

ILLUST NO. 3 OF 3(8411- )LHD

Click highlighted areas on diagram

diagram 5587614010 8712417010 87211 87211A 87214 87214A 87215 87215A 9015960026 9015960125 9018305094 9356755016 9356755016 9356755016
Part # Description Qty Price
87211 - DUCT, AIR, NO.1
87201-17020

AW11..LHD

 1
87211A - DUCT, AIR, NO.2
55847-17020

AW11..LHD

 1
87214 - DUCT, AIR, SIDE NO.1 RH
55831-17030

AW11..LHD

 1
87214A - DUCT, AIR, SIDE NO.2 RH
55848-17020

AW11..LHD

 1
87215 - DUCT, AIR, SIDE NO.1 LH
55844-17020

AW11..LHD

 1
87215A - DUCT, AIR, SIDE NO.2 LH
55843-17020

AW11..LHD

 1
Common parts
55876-14010
87124-17010
90159-60026
90159-60125
90183-05094
93567-55016

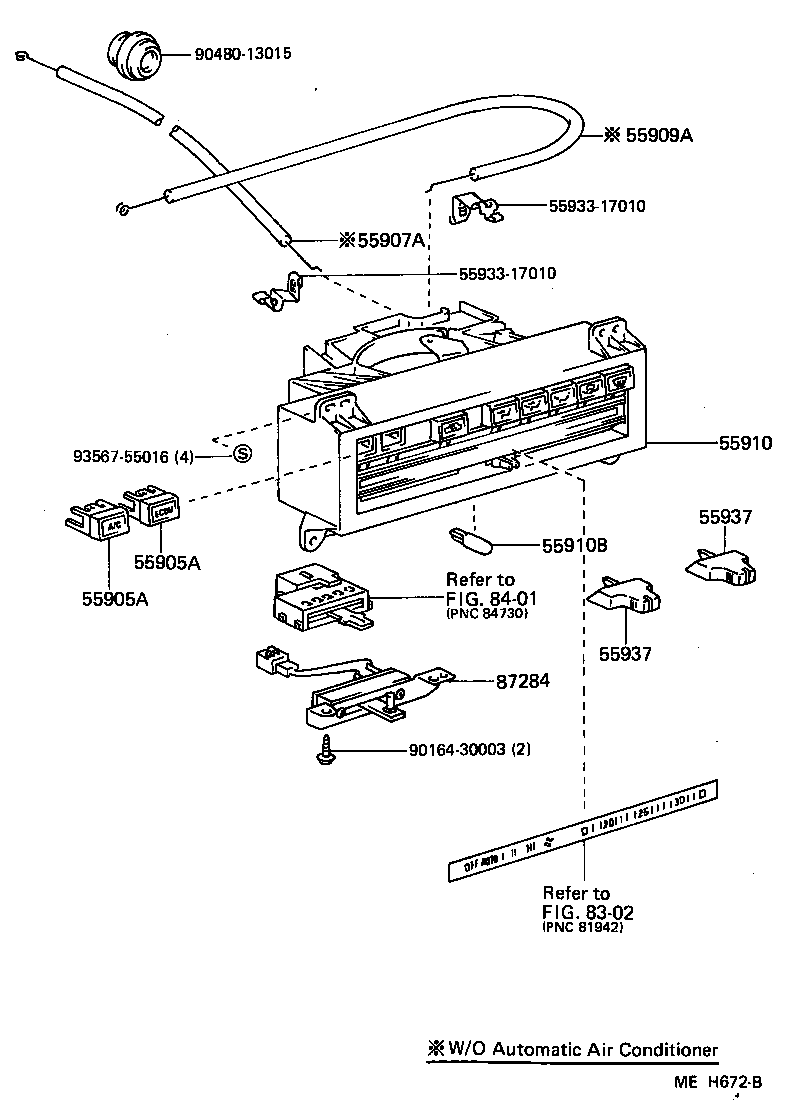

ILLUST NO. 1 OF 3(8608- )

Click highlighted areas on diagram

diagram 55905A 55905A 55907A 55909A 55910 55910B 5593317010 5593317010 55937 55937 8302 8401 87284 9016430003 9048013015 9356755016
Part # Description Qty Price
55905A - KNOB, HEATER CONTROL
55905-89110

AW11..GEN

 3
55905A - KNOB, HEATER CONTROL
55905-89110

AW11..GEN

 3
55907A - CABLE SUB-ASSY, WATER VALVE CONTROL
55907-17021

AW11..LHD

W/O *AAC

 1
55907-17020

AW11..LHD

W/O *AAC

 1
55909A - CABLE SUB-ASSY, AIRMIX DAMPER CONTROL
55909-17021

AW11..LHD

W/O *AAC

 1
55909-17020

AW11..LHD

W/O *AAC

 1
55910 - CONTROL ASSY, HEATER OR BOOST VENTILATOR
55910-17040

AW11..GEN

W/*AAC

 1
55910-17030

AW11

 1
55910-17010

AW11

 1
87284 - RESISTOR SUB-ASSY, VARIABLE
88032-17020

AW11..LHD..GEN

W/*AAC

 1
88032-17011

AW11..GEN

 1
Common parts
55933-17010
90164-30003
90480-13015
93567-55016
