AW11L-WCMQF (1984)

Toyota Mr2

Production Nov 1984 - Aug 1988
Engine 4AGEL
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(8411- )

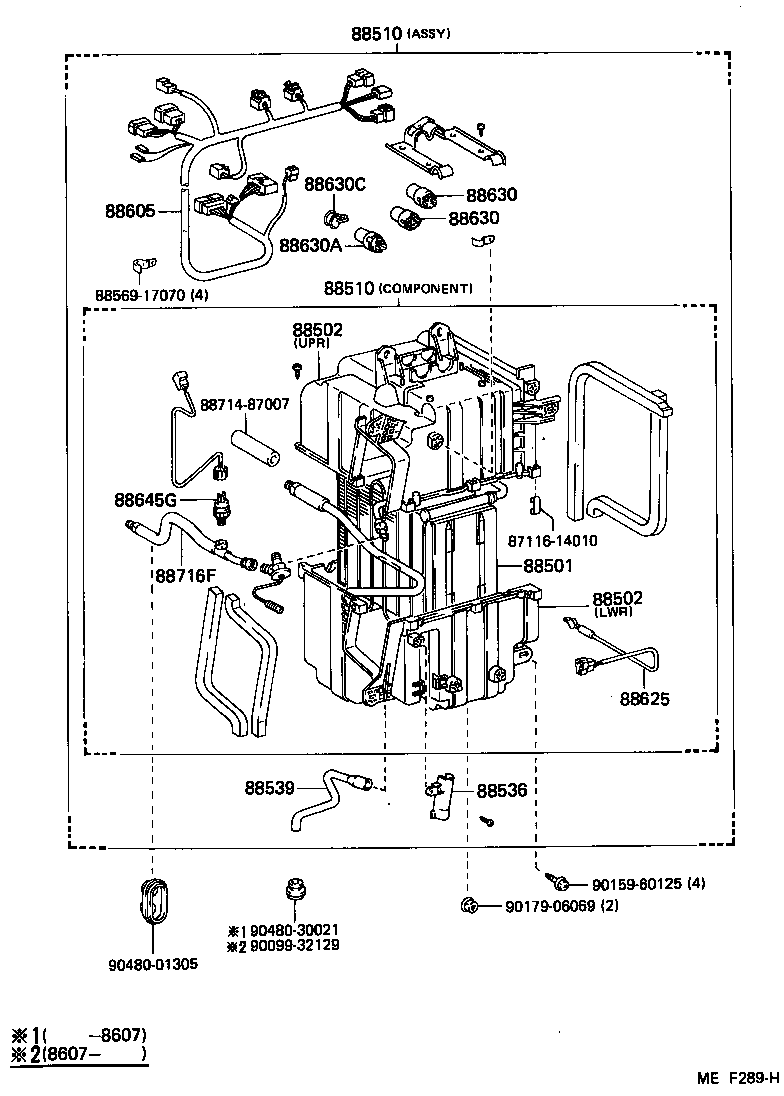

Click highlighted areas on diagram

AIR CONDITIONER=MAKER OPTION

diagram 8711614010 88501 88502 88502 88510 88510 88536 88539 8856917070 88605 88625 88630 88630 88630A 88630C 88645G 8871487007 88716F 9009932129 9015960125 9017906069 9048001305 9048030021
Part # Description Qty Price
88501 - EVAPORATOR SUB-ASSY, COOLER, NO.1
88501-17020

AW11..LHD..GEN

 1
88502 - CASE SUB-ASSY, COOLING UNIT
88502-17020

AW11..LHD..GEN

8411

 1
88502-17010

AW11..LHD..GEN

8411

 1
88502 - CASE SUB-ASSY, COOLING UNIT
88502-17020

AW11..LHD..GEN

8411

 1
88502-17010

AW11..LHD..GEN

8411

 1
88510 - UNIT ASSY, COOLER
88510-17070

AW11..LHD..GEN

COMPONENT

 1
88510-17090

AW11..LHD..GEN

ASSY

 1
88510 - UNIT ASSY, COOLER
88510-17070

AW11..LHD..GEN

COMPONENT

 1
88510-17090

AW11..LHD..GEN

ASSY

 1
88536 - BRACKET, COOLING UNIT, NO.1
88536-17010

AW11..ARL,GEN

 1
88539 - HOSE, COOLER UNIT DRAIN, NO.1
88539-17020

AW11..LHD..GEN

 1
88605 - HARNESS SUB-ASSY, COOLER WIRING, NO.1
88605-17080

AW11..LHD..GEN

 1
88625 - THERMISTOR, COOLER, NO.1
88625-12070

AW11..ARL,GEN

 1
88630 - RELAY ASSY, COOLER
90987-02004

AW11..GEN

 2
88630 - RELAY ASSY, COOLER
90987-02004

AW11..GEN

 2
88630A - RELAY ASSY, COOLER
90987-03001

AW11..ARL,GEN

 1
88630C - BRACKET, COOLER RELAY
88718-20430

AW11..ARL,GEN

 1
88645G - SWITCH, PRESSURE
88645-12020

AW11..GEN

 1
88645-10020

AW11..ARL,GEN

 1
Common parts
87116-14010
88569-17070
88714-87007
90099-32129
90159-60125
90179-06069
90480-01305
90480-30021

(8411- )

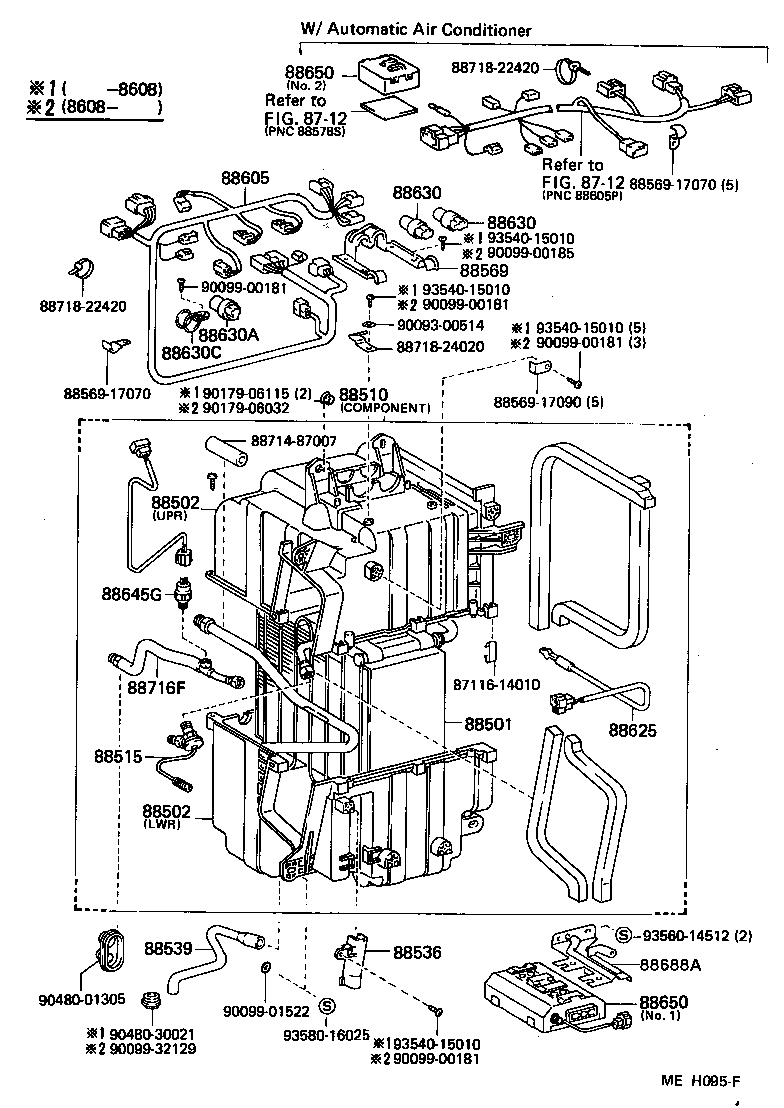

Click highlighted areas on diagram

AIR CONDITIONER=MAKER OPTION

diagram 8711614010 8712 8712 88501 88502 88502 88510 88515 88536 88539 88569 8856917070 8856917070 8856917090 88605 88625 88630 88630 88630A 88630C 88645G 88650 88650 88688A 8871487007 88716F 8871822420 8871822420 8871824020 9009300514 9009900181 9009900181 9009900181 9009900181 9009900185 9009901522 9009932129 9017906032 9017906115 9048001305 9048030021 9354015010 9354015010 9354015010 9354015010 9356014512 9358016025
Part # Description Qty Price
88501 - EVAPORATOR SUB-ASSY, COOLER, NO.1
88501-17020

AW11..LHD..GEN

 1
88502 - CASE SUB-ASSY, COOLING UNIT
88502-17020

AW11..LHD..GEN

8411

 1
88502-17010

AW11..LHD..GEN

8411

 1
88502 - CASE SUB-ASSY, COOLING UNIT
88502-17020

AW11..LHD..GEN

8411

 1
88502-17010

AW11..LHD..GEN

8411

 1
88510 - UNIT ASSY, COOLER
88510-17070

AW11..LHD..GEN

COMPONENT

 1
88510-17090

AW11..LHD..GEN

ASSY

 1
88515 - VALVE, COOLER EXPANSION
88515-16031

AW11..ARL,GEN

 1
88536 - BRACKET, COOLING UNIT, NO.1
88536-17010

AW11..ARL,GEN

 1
88539 - HOSE, COOLER UNIT DRAIN, NO.1
88539-17020

AW11..LHD..GEN

 1
88569 - CLAMP (FOR COOLER RELAY)
88569-17060

AW11..GEN

 1
88605 - HARNESS SUB-ASSY, COOLER WIRING, NO.1
88605-17080

AW11..LHD..GEN

 1
88625 - THERMISTOR, COOLER, NO.1
88625-12070

AW11..ARL,GEN

 1
88630 - RELAY ASSY, COOLER
90987-02004

AW11..GEN

 2
88630 - RELAY ASSY, COOLER
90987-02004

AW11..GEN

 2
88630A - RELAY ASSY, COOLER
90987-03001

AW11..ARL,GEN

 1
88630C - BRACKET, COOLER RELAY
88718-20430

AW11..ARL,GEN

 1
88645G - SWITCH, PRESSURE
88645-12020

AW11..GEN

 1
88645-10020

AW11..ARL,GEN

 1
88650 - AMPLIFIER ASSY, COOLER STABILIZER
88650-17050

AW11..GEN

W/*AAC,NO.1

 1
88650-17020

AW11..GEN

W/COOLER,NO.2

 1
88650-17090

AW11..GEN

W/*AAC,NO.2

 1
88650-17010

AW11..GEN

W/COOLER,NO.1

 1
88650 - AMPLIFIER ASSY, COOLER STABILIZER
88650-17050

AW11..GEN

W/*AAC,NO.1

 1
88650-17020

AW11..GEN

W/COOLER,NO.2

 1
88650-17090

AW11..GEN

W/*AAC,NO.2

 1
88650-17010

AW11..GEN

W/COOLER,NO.1

 1
Common parts
87116-14010
88569-17070
88569-17090
88714-87007
88718-22420
88718-24020
90093-00514
90099-00181
90099-00185
90099-01522
90099-32129
90179-06032
90179-06115
90480-01305
90480-30021
93540-15010
93560-14512
93580-16025
Linked diagrams
8712
