AW11L-WCMQF (1984)
Toyota Mr2

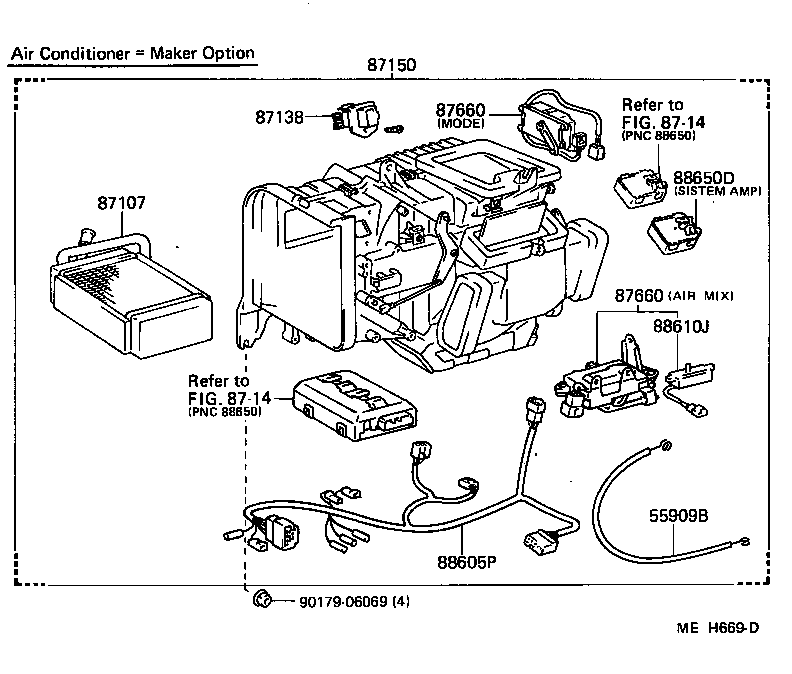

ILLUST NO. 1 OF 2(8411-8608)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 87107 - UNIT SUB-ASSY, HEATER RADIATOR | ||||
| 87107-17030 |
AW11..LHD |
1 | ||
| 87107 - UNIT SUB-ASSY, HEATER RADIATOR | ||||
| 87107-17030 |
AW11..LHD |
1 | ||
| 87138 - RESISTOR, HEATER BLOWER | ||||
| 88635-17010 |
AW11..LHD..GEN W/COOLER |
1 | ||
| 87138-17020 |
AW11..LHD |
1 | ||
| 88635-17040 |
AW11..LHD..GEN W/*AAC |
1 | ||
| 88635-17011 |
AW11..LHD..GEN W/COOLER |
1 | ||
| 87138 - RESISTOR, HEATER BLOWER | ||||
| 88635-17010 |
AW11..LHD..GEN W/COOLER |
1 | ||
| 87138-17020 |
AW11..LHD |
1 | ||
| 88635-17040 |
AW11..LHD..GEN W/*AAC |
1 | ||
| 88635-17011 |
AW11..LHD..GEN W/COOLER |
1 | ||
| 87150 - RADIATOR ASSY, HEATER | ||||
| 87150-17060 |
AW11..LHD..GEN W/COOLER |
1 | ||
| 87150-17170 |
AW11..LHD..GEN W/*AAC |
1 | ||
| 87150-17030 |
AW11..LHD |
1 | ||
| 87150 - RADIATOR ASSY, HEATER | ||||
| 87150-17060 |
AW11..LHD..GEN W/COOLER |
1 | ||
| 87150-17170 |
AW11..LHD..GEN W/*AAC |
1 | ||
| 87150-17030 |
AW11..LHD |
1 | ||
| 87660 - SERVO ASSY, AIR CONDITIONER | ||||
| 88660-17020 |
AW11..LHD..GEN W/COOLER |
1 | ||
| 87106-17040 |
AW11..LHD MODE |
1 | ||
| 87106-17020 |
AW11..LHD AIR INLET |
1 | ||
| 87106-17050 |
AW11..LHD..GEN W/*AAC,MODE |
1 | ||
| 87106-17070 |
AW11..LHD..GEN W/*AAC,AIR MIX |
1 | ||
| 88605P - HARNESS SUB-ASSY, AIR CONDITIONER WIRING | ||||
| 88605-17140 |
AW11..GEN W/*AAC |
1 | ||
| 88605-17020 |
AW11..GEN W/COOLER |
1 | ||
| Common parts | ||||
| 90179-06069 | ||||
| Linked diagrams | ||||
| 8714 | ||||
| 8717 | ||||

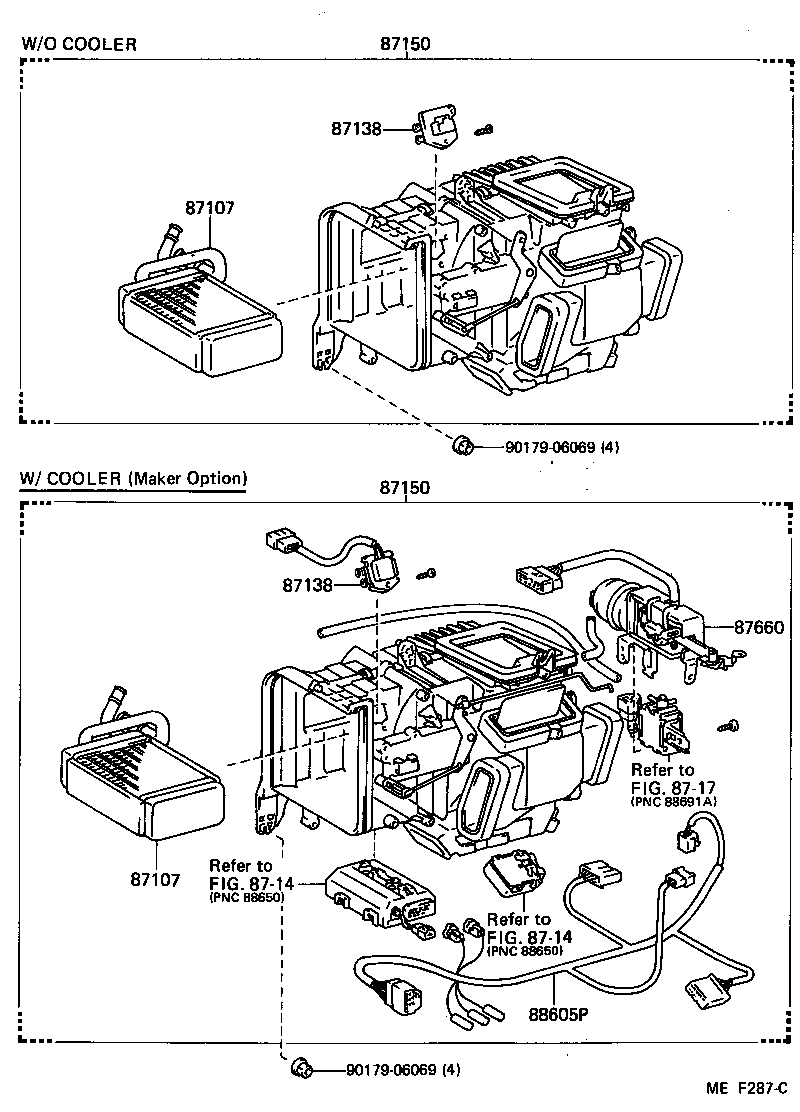

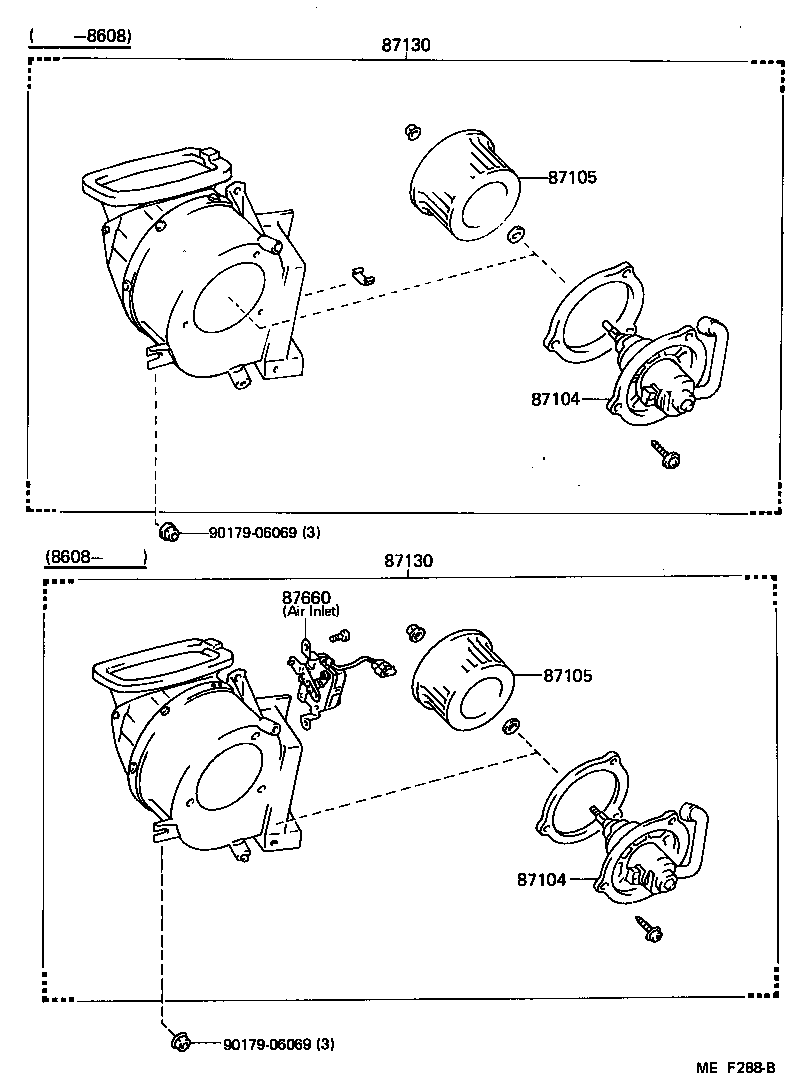

ILLUST NO. 2 OF 2(8411- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 87104 - MOTOR SUB-ASSY, HEATER BLOWER | ||||
| 87104-17040 |
AW11..LHD |
1 | ||
| 87104 - MOTOR SUB-ASSY, HEATER BLOWER | ||||
| 87104-17040 |
AW11..LHD |
1 | ||
| 87105 - FAN SUB-ASSY, HEATER BLOWER | ||||
| 87105-14020 |
AW11..LHD |
1 | ||
| 87105 - FAN SUB-ASSY, HEATER BLOWER | ||||
| 87105-14020 |
AW11..LHD |
1 | ||
| 87130 - BLOWER ASSY, HEATER, FRONT | ||||
| 87130-17040 |
AW11..LHD |
1 | ||
| 87104-17060 |
AW11..LHD |
1 | ||
| 87130 - BLOWER ASSY, HEATER, FRONT | ||||
| 87130-17040 |
AW11..LHD |
1 | ||
| 87104-17060 |
AW11..LHD |
1 | ||
| 87660 - SERVO ASSY, AIR CONDITIONER | ||||
| 88660-17020 |
AW11..LHD..GEN W/COOLER |
1 | ||
| 87106-17040 |
AW11..LHD MODE |
1 | ||
| 87106-17020 |
AW11..LHD AIR INLET |
1 | ||
| 87106-17050 |
AW11..LHD..GEN W/*AAC,MODE |
1 | ||
| 87106-17070 |
AW11..LHD..GEN W/*AAC,AIR MIX |
1 | ||
| Common parts | ||||
| 90179-06069 | ||||

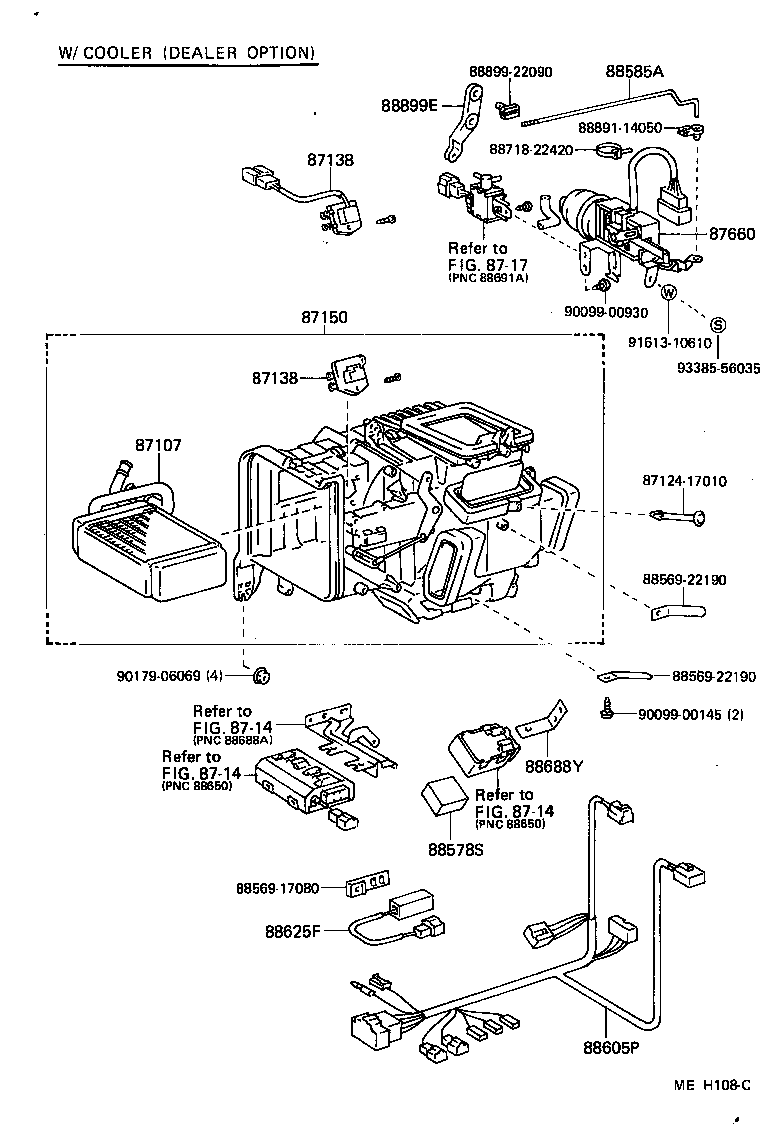

ILLUST NO. 1 OF 2(8411-8608)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 87107 - UNIT SUB-ASSY, HEATER RADIATOR | ||||
| 87107-17030 |
AW11..LHD |
1 | ||
| 87138 - RESISTOR, HEATER BLOWER | ||||
| 88635-17010 |
AW11..LHD..GEN W/COOLER |
1 | ||
| 87138-17020 |
AW11..LHD |
1 | ||
| 88635-17040 |
AW11..LHD..GEN W/*AAC |
1 | ||
| 88635-17011 |
AW11..LHD..GEN W/COOLER |
1 | ||
| 87138 - RESISTOR, HEATER BLOWER | ||||
| 88635-17010 |
AW11..LHD..GEN W/COOLER |
1 | ||
| 87138-17020 |
AW11..LHD |
1 | ||
| 88635-17040 |
AW11..LHD..GEN W/*AAC |
1 | ||
| 88635-17011 |
AW11..LHD..GEN W/COOLER |
1 | ||
| 87150 - RADIATOR ASSY, HEATER | ||||
| 87150-17060 |
AW11..LHD..GEN W/COOLER |
1 | ||
| 87150-17170 |
AW11..LHD..GEN W/*AAC |
1 | ||
| 87150-17030 |
AW11..LHD |
1 | ||
| 87660 - SERVO ASSY, AIR CONDITIONER | ||||
| 88660-17020 |
AW11..LHD..GEN W/COOLER |
1 | ||
| 87106-17040 |
AW11..LHD MODE |
1 | ||
| 87106-17020 |
AW11..LHD AIR INLET |
1 | ||
| 87106-17050 |
AW11..LHD..GEN W/*AAC,MODE |
1 | ||
| 87106-17070 |
AW11..LHD..GEN W/*AAC,AIR MIX |
1 | ||
| 88605P - HARNESS SUB-ASSY, AIR CONDITIONER WIRING | ||||
| 88605-17140 |
AW11..GEN W/*AAC |
1 | ||
| 88605-17020 |
AW11..GEN W/COOLER |
1 | ||
| Common parts | ||||
| 87124-17010 | ||||
| 88569-17080 | ||||
| 88569-22190 | ||||
| 88718-22420 | ||||
| 88891-14050 | ||||
| 88899-22090 | ||||
| 90099-00145 | ||||
| 90099-00930 | ||||
| 90179-06069 | ||||
| 91613-10610 | ||||
| 93385-56035 | ||||
| Linked diagrams | ||||
| 8714 | ||||
| 8717 | ||||

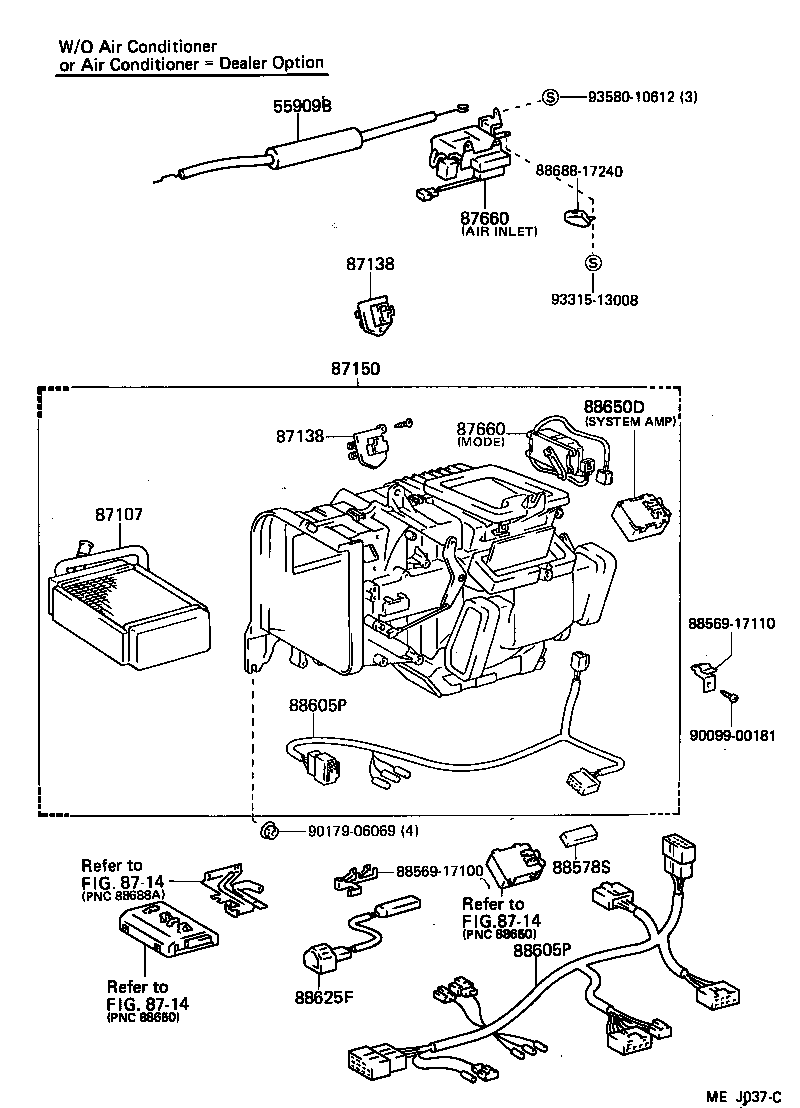

ILLUST NO. 1 OF 2(8608- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 55909B - CABLE SUB-ASSY, AIRMIX DAMPER CONTROL | ||||
| 55909-17030 |
AW11..GEN W/*AAC |
1 | ||
| 87107 - UNIT SUB-ASSY, HEATER RADIATOR | ||||
| 87107-17030 |
AW11..LHD |
1 | ||
| 87138 - RESISTOR, HEATER BLOWER | ||||
| 88635-17010 |
AW11..LHD..GEN W/COOLER |
1 | ||
| 87138-17020 |
AW11..LHD |
1 | ||
| 88635-17040 |
AW11..LHD..GEN W/*AAC |
1 | ||
| 88635-17011 |
AW11..LHD..GEN W/COOLER |
1 | ||
| 87150 - RADIATOR ASSY, HEATER | ||||
| 87150-17060 |
AW11..LHD..GEN W/COOLER |
1 | ||
| 87150-17170 |
AW11..LHD..GEN W/*AAC |
1 | ||
| 87150-17030 |
AW11..LHD |
1 | ||
| 87660 - SERVO ASSY, AIR CONDITIONER | ||||
| 88660-17020 |
AW11..LHD..GEN W/COOLER |
1 | ||
| 87106-17040 |
AW11..LHD MODE |
1 | ||
| 87106-17020 |
AW11..LHD AIR INLET |
1 | ||
| 87106-17050 |
AW11..LHD..GEN W/*AAC,MODE |
1 | ||
| 87106-17070 |
AW11..LHD..GEN W/*AAC,AIR MIX |
1 | ||
| 87660 - SERVO ASSY, AIR CONDITIONER | ||||
| 88660-17020 |
AW11..LHD..GEN W/COOLER |
1 | ||
| 87106-17040 |
AW11..LHD MODE |
1 | ||
| 87106-17020 |
AW11..LHD AIR INLET |
1 | ||
| 87106-17050 |
AW11..LHD..GEN W/*AAC,MODE |
1 | ||
| 87106-17070 |
AW11..LHD..GEN W/*AAC,AIR MIX |
1 | ||
| 88605P - HARNESS SUB-ASSY, AIR CONDITIONER WIRING | ||||
| 88605-17140 |
AW11..GEN W/*AAC |
1 | ||
| 88605-17020 |
AW11..GEN W/COOLER |
1 | ||
| 88650D - AMPLIFIER ASSY | ||||
| 87161-17010 |
AW11 SISTEM AMP |
1 | ||
| Common parts | ||||
| 90179-06069 | ||||
| Linked diagrams | ||||
| 8714 | ||||
ILLUST NO. 1 OF 2(8608- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 55909B - CABLE SUB-ASSY, AIRMIX DAMPER CONTROL | ||||
| 55909-17030 |
AW11..GEN W/*AAC |
1 | ||
| 87107 - UNIT SUB-ASSY, HEATER RADIATOR | ||||
| 87107-17030 |
AW11..LHD |
1 | ||
| 87138 - RESISTOR, HEATER BLOWER | ||||
| 88635-17010 |
AW11..LHD..GEN W/COOLER |
1 | ||
| 87138-17020 |
AW11..LHD |
1 | ||
| 88635-17040 |
AW11..LHD..GEN W/*AAC |
1 | ||
| 88635-17011 |
AW11..LHD..GEN W/COOLER |
1 | ||
| 87138 - RESISTOR, HEATER BLOWER | ||||
| 88635-17010 |
AW11..LHD..GEN W/COOLER |
1 | ||
| 87138-17020 |
AW11..LHD |
1 | ||
| 88635-17040 |
AW11..LHD..GEN W/*AAC |
1 | ||
| 88635-17011 |
AW11..LHD..GEN W/COOLER |
1 | ||
| 87150 - RADIATOR ASSY, HEATER | ||||
| 87150-17060 |
AW11..LHD..GEN W/COOLER |
1 | ||
| 87150-17170 |
AW11..LHD..GEN W/*AAC |
1 | ||
| 87150-17030 |
AW11..LHD |
1 | ||
| 87660 - SERVO ASSY, AIR CONDITIONER | ||||
| 88660-17020 |
AW11..LHD..GEN W/COOLER |
1 | ||
| 87106-17040 |
AW11..LHD MODE |
1 | ||
| 87106-17020 |
AW11..LHD AIR INLET |
1 | ||
| 87106-17050 |
AW11..LHD..GEN W/*AAC,MODE |
1 | ||
| 87106-17070 |
AW11..LHD..GEN W/*AAC,AIR MIX |
1 | ||
| 87660 - SERVO ASSY, AIR CONDITIONER | ||||
| 88660-17020 |
AW11..LHD..GEN W/COOLER |
1 | ||
| 87106-17040 |
AW11..LHD MODE |
1 | ||
| 87106-17020 |
AW11..LHD AIR INLET |
1 | ||
| 87106-17050 |
AW11..LHD..GEN W/*AAC,MODE |
1 | ||
| 87106-17070 |
AW11..LHD..GEN W/*AAC,AIR MIX |
1 | ||
| 88605P - HARNESS SUB-ASSY, AIR CONDITIONER WIRING | ||||
| 88605-17140 |
AW11..GEN W/*AAC |
1 | ||
| 88605-17020 |
AW11..GEN W/COOLER |
1 | ||
| 88605P - HARNESS SUB-ASSY, AIR CONDITIONER WIRING | ||||
| 88605-17140 |
AW11..GEN W/*AAC |
1 | ||
| 88605-17020 |
AW11..GEN W/COOLER |
1 | ||
| 88650D - AMPLIFIER ASSY | ||||
| 87161-17010 |
AW11 SISTEM AMP |
1 | ||
| Common parts | ||||
| 88569-17100 | ||||
| 88569-17110 | ||||
| 88688-17240 | ||||
| 90099-00181 | ||||
| 90179-06069 | ||||
| 93315-13008 | ||||
| 93580-10612 | ||||
| Linked diagrams | ||||
| 8714 | ||||
