AW11L-WCMQF (1984)

Toyota Mr2

Production Nov 1984 - Aug 1988
Engine 4AGEL
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(8411- )

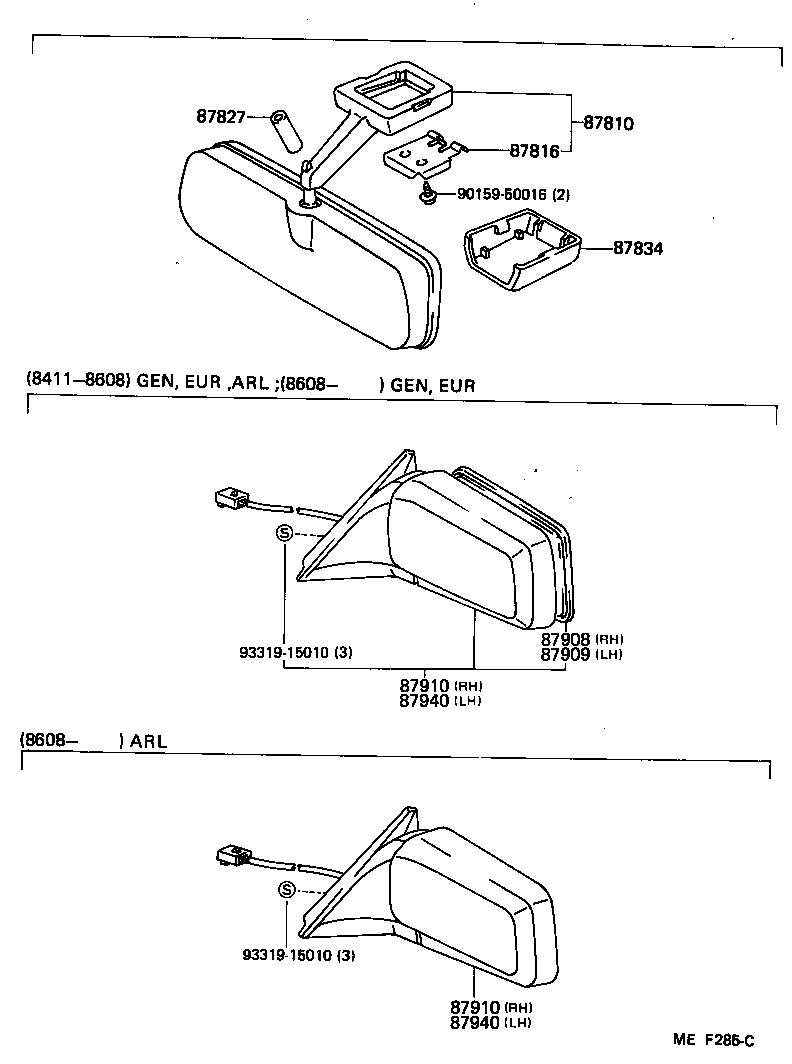

Click highlighted areas on diagram

diagram 87810 87816 87827 87834 87908 87909 87910 87910 87940 87940 9015950016 9331915010 9331915010
Part # Description Qty Price
87810 - MIRROR ASSY, INNER REAR VIEW
87810-1702001

AW11

BLACK,BLACK,TRIM2#

 1
87810-1702104

AW11

BLUE,DARK BLUE,TRIM8#

 1
87810-1702105

AW11

BEIGE,DARK BEIGE,TRIM4#

 1
87810-1702105

AW11..EUR,GEN

DARK BEIGE,TRIM4#

 1
87810-1702101

AW11

BLACK,BLACK,TRIM2#

 1
87816 - SPRING, INNER REAR VIEW MIRROR
74372-30030

AW11

 1
87827 - ABSORBER, INNER REAR VIEW MIRROR
87828-30010

AW11

L=44

 1
87828-32010

AW11

L=47

 1
87834 - COVER, INNER REAR VIEW MIRROR STAY HOLDER
87834-2008044

AW11

BLUE,DARK BLUE,TRIM8#

 1
87834-2008055

AW11..EUR,GEN

DARK BEIGE,TRIM4#

 1
87834-2008055

AW11

BEIGE,DARK BEIGE,TRIM4#

 1
87834-2008033

AW11

LIGHT GRAY,GRAY,TRIM2#

 1
87834-2008011

AW11

BLACK,TRIM2#

 1
87834-2008011

AW11

BLACK,BLACK,TRIM2#

 1
87908 - ACTUATOR ASSY, OUTER MIRROR, RH
87931-17030

AW11

 1
87909 - ACTUATOR ASSY, OUTER MIRROR, LH
87961-17060

AW11

 1
87910 - MIRROR ASSY, OUTER REAR VIEW, RH
87910-80144

AW11..LHD

 1
87910 - MIRROR ASSY, OUTER REAR VIEW, RH
87910-80144

AW11..LHD

 1
87940 - MIRROR ASSY, OUTER REAR VIEW, LH
87940-80144

AW11..LHD

 1
87940 - MIRROR ASSY, OUTER REAR VIEW, LH
87940-80144

AW11..LHD

 1
Common parts
90159-50016
93319-15010
