AW11L-WCMQF (1984)

Toyota Mr2

Production Nov 1984 - Aug 1988
Engine 4AGEL
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

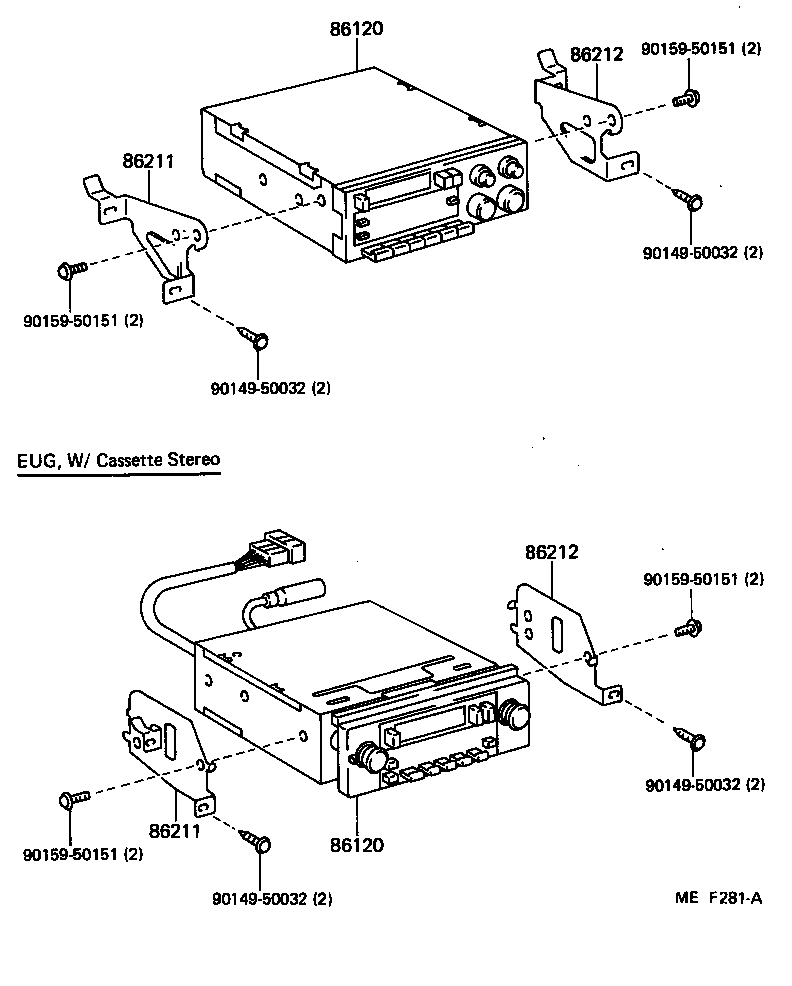

ILLUST NO. 1 OF 2(8411-8608)

Click highlighted areas on diagram

diagram 86120 86120 86211 86211 86212 86212 9014950032 9014950032 9014950032 9014950032 9015950151 9015950151 9015950151 9015950151
Part # Description Qty Price
86120 - RECEIVER ASSY, RADIO
86120-17010

AW11..GEN

AM

 1
86120-22600

AW11..GEN

MW/SW

 1
86120-14581

AW11..GEN

MW/SW

 1
86120-14530

AW11..GEN

AM/FM

 1
86120-17150

AW11..GEN

MATSUSHITA,*36,*ELT

 1
86120-22760

AW11..GEN

AM/FM/SW

 1
86120-17080

AW11..GEN

*36

 1
86120 - RECEIVER ASSY, RADIO
86120-17010

AW11..GEN

AM

 1
86120-22600

AW11..GEN

MW/SW

 1
86120-14581

AW11..GEN

MW/SW

 1
86120-14530

AW11..GEN

AM/FM

 1
86120-17150

AW11..GEN

MATSUSHITA,*36,*ELT

 1
86120-22760

AW11..GEN

AM/FM/SW

 1
86120-17080

AW11..GEN

*36

 1
86211 - BRACKET, RADIO, NO.1
86211-17010

AW11..GEN;AW11..FRG

 1
86211 - BRACKET, RADIO, NO.1
86211-17010

AW11..GEN;AW11..FRG

 1
86212 - BRACKET, RADIO, NO.2
86212-17010

AW11..GEN;AW11..FRG

 1
86212 - BRACKET, RADIO, NO.2
86212-17010

AW11..GEN;AW11..FRG

 1
Common parts
90149-50032
90159-50151

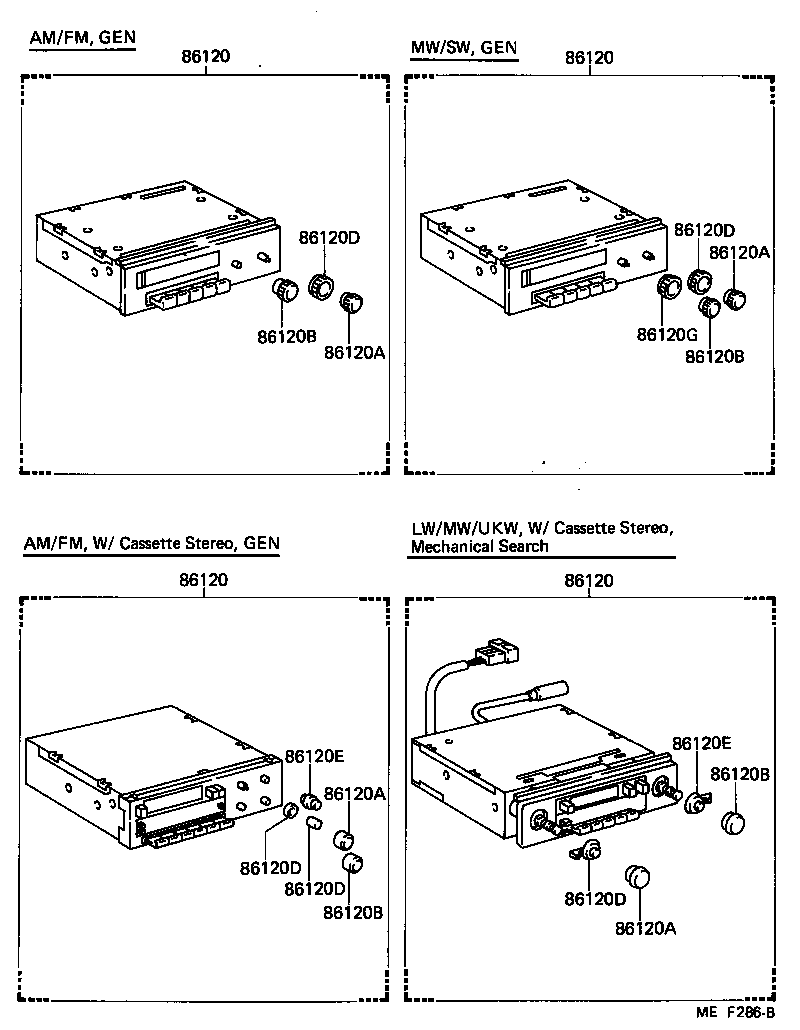

ILLUST NO. 2 OF 2(8411-8608)

Click highlighted areas on diagram

diagram 86120 86120 86120 86120 86120A 86120A 86120A 86120A 86120B 86120B 86120B 86120B 86120D 86120D 86120D 86120D 86120D 86120E 86120E 86120G
Part # Description Qty Price
86120 - RECEIVER ASSY, RADIO
86120-17010

AW11..GEN

AM

 1
86120-22600

AW11..GEN

MW/SW

 1
86120-14581

AW11..GEN

MW/SW

 1
86120-14530

AW11..GEN

AM/FM

 1
86120-17150

AW11..GEN

MATSUSHITA,*36,*ELT

 1
86120-22760

AW11..GEN

AM/FM/SW

 1
86120-17080

AW11..GEN

*36

 1
86120 - RECEIVER ASSY, RADIO
86120-17010

AW11..GEN

AM

 1
86120-22600

AW11..GEN

MW/SW

 1
86120-14581

AW11..GEN

MW/SW

 1
86120-14530

AW11..GEN

AM/FM

 1
86120-17150

AW11..GEN

MATSUSHITA,*36,*ELT

 1
86120-22760

AW11..GEN

AM/FM/SW

 1
86120-17080

AW11..GEN

*36

 1
86120 - RECEIVER ASSY, RADIO
86120-17010

AW11..GEN

AM

 1
86120-22600

AW11..GEN

MW/SW

 1
86120-14581

AW11..GEN

MW/SW

 1
86120-14530

AW11..GEN

AM/FM

 1
86120-17150

AW11..GEN

MATSUSHITA,*36,*ELT

 1
86120-22760

AW11..GEN

AM/FM/SW

 1
86120-17080

AW11..GEN

*36

 1
86120 - RECEIVER ASSY, RADIO
86120-17010

AW11..GEN

AM

 1
86120-22600

AW11..GEN

MW/SW

 1
86120-14581

AW11..GEN

MW/SW

 1
86120-14530

AW11..GEN

AM/FM

 1
86120-17150

AW11..GEN

MATSUSHITA,*36,*ELT

 1
86120-22760

AW11..GEN

AM/FM/SW

 1
86120-17080

AW11..GEN

*36

 1
86120A - KNOB, RADIO RECEIVER SWITCH
86128-14010

AW11..GEN

AM/FM,MW/SW

 1
86128-32070

AW11..GEN

*36

 1
86128-14130

AW11..GEN

MW/SW

 1
86128-14010

AW11..GEN

AM/FM

 1
86120A - KNOB, RADIO RECEIVER SWITCH
86128-14010

AW11..GEN

AM/FM,MW/SW

 1
86128-32070

AW11..GEN

*36

 1
86128-14130

AW11..GEN

MW/SW

 1
86128-14010

AW11..GEN

AM/FM

 1
86120A - KNOB, RADIO RECEIVER SWITCH
86128-14010

AW11..GEN

AM/FM,MW/SW

 1
86128-32070

AW11..GEN

*36

 1
86128-14130

AW11..GEN

MW/SW

 1
86128-14010

AW11..GEN

AM/FM

 1
86120A - KNOB, RADIO RECEIVER SWITCH
86128-14010

AW11..GEN

AM/FM,MW/SW

 1
86128-32070

AW11..GEN

*36

 1
86128-14130

AW11..GEN

MW/SW

 1
86128-14010

AW11..GEN

AM/FM

 1
86120B - KNOB, RADIO RECEIVER TUNING, NO.1
86128-32090

AW11..GEN

*36

 1
86128-14050

AW11..GEN

AM/FM

 1
86128-14070

AW11..GEN

MW/SW

 1
86120B - KNOB, RADIO RECEIVER TUNING, NO.1
86128-32090

AW11..GEN

*36

 1
86128-14050

AW11..GEN

AM/FM

 1
86128-14070

AW11..GEN

MW/SW

 1
86120B - KNOB, RADIO RECEIVER TUNING, NO.1
86128-32090

AW11..GEN

*36

 1
86128-14050

AW11..GEN

AM/FM

 1
86128-14070

AW11..GEN

MW/SW

 1
86120B - KNOB, RADIO RECEIVER TUNING, NO.1
86128-32090

AW11..GEN

*36

 1
86128-14050

AW11..GEN

AM/FM

 1
86128-14070

AW11..GEN

MW/SW

 1
86120D - KNOB, RADIO RECEIVER TONE
86128-32130

AW11..GEN

*36,TRE

 1
86128-32110

AW11..GEN

*36,BASS

 1
86128-14030

AW11..GEN

AM/FM,MW/SW

 1
86120D - KNOB, RADIO RECEIVER TONE
86128-32130

AW11..GEN

*36,TRE

 1
86128-32110

AW11..GEN

*36,BASS

 1
86128-14030

AW11..GEN

AM/FM,MW/SW

 1
86120D - KNOB, RADIO RECEIVER TONE
86128-32130

AW11..GEN

*36,TRE

 1
86128-32110

AW11..GEN

*36,BASS

 1
86128-14030

AW11..GEN

AM/FM,MW/SW

 1
86120D - KNOB, RADIO RECEIVER TONE
86128-32130

AW11..GEN

*36,TRE

 1
86128-32110

AW11..GEN

*36,BASS

 1
86128-14030

AW11..GEN

AM/FM,MW/SW

 1
86120D - KNOB, RADIO RECEIVER TONE
86128-32130

AW11..GEN

*36,TRE

 1
86128-32110

AW11..GEN

*36,BASS

 1
86128-14030

AW11..GEN

AM/FM,MW/SW

 1
86120E - KNOB, RADIO RECEIVER BALANCE
86128-32150

AW11..GEN

*36

 1
86120E - KNOB, RADIO RECEIVER BALANCE
86128-32150

AW11..GEN

*36

 1
86120G - KNOB, RADIO RECEIVER BAND
86128-14030

AW11..GEN

MW/SW

 1

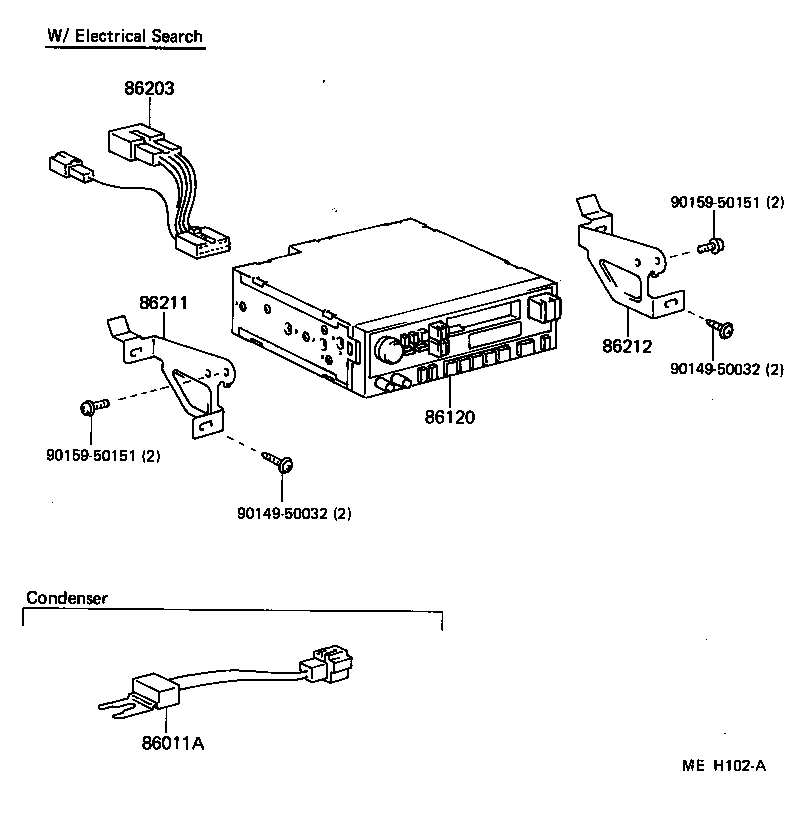

ILLUST NO. 1 OF 2(8411-8608)

Click highlighted areas on diagram

diagram 86011A 86120 86203 86211 86212 9014950032 9014950032 9015950151 9015950151
Part # Description Qty Price
86011A - CONDENSER, RADIO SETTING
90980-04041

AW11

 1
86120 - RECEIVER ASSY, RADIO
86120-17010

AW11..GEN

AM

 1
86120-22600

AW11..GEN

MW/SW

 1
86120-14581

AW11..GEN

MW/SW

 1
86120-14530

AW11..GEN

AM/FM

 1
86120-17150

AW11..GEN

MATSUSHITA,*36,*ELT

 1
86120-22760

AW11..GEN

AM/FM/SW

 1
86120-17080

AW11..GEN

*36

 1
86211 - BRACKET, RADIO, NO.1
86211-17010

AW11..GEN;AW11..FRG

 1
86212 - BRACKET, RADIO, NO.2
86212-17010

AW11..GEN;AW11..FRG

 1
Common parts
90149-50032
90159-50151

(8608-8803)

Click highlighted areas on diagram

diagram 86011A 86120 86120 86120 86120A 86120B 86120D 86120D 86120E 86203 86211 86211 86211 86212 86212 86212 86260 9014950032 9014950032 9014950032 9015950173 9015950173 9015950173 9015950173 9015950173
Part # Description Qty Price
86011A - CONDENSER, RADIO SETTING
90980-04041

AW11

 1
86120 - RECEIVER ASSY, RADIO
86120-17010

AW11..GEN

AM

 1
86120-22600

AW11..GEN

MW/SW

 1
86120-14581

AW11..GEN

MW/SW

 1
86120-14530

AW11..GEN

AM/FM

 1
86120-17150

AW11..GEN

MATSUSHITA,*36,*ELT

 1
86120-22760

AW11..GEN

AM/FM/SW

 1
86120-17080

AW11..GEN

*36

 1
86120 - RECEIVER ASSY, RADIO
86120-17010

AW11..GEN

AM

 1
86120-22600

AW11..GEN

MW/SW

 1
86120-14581

AW11..GEN

MW/SW

 1
86120-14530

AW11..GEN

AM/FM

 1
86120-17150

AW11..GEN

MATSUSHITA,*36,*ELT

 1
86120-22760

AW11..GEN

AM/FM/SW

 1
86120-17080

AW11..GEN

*36

 1
86120 - RECEIVER ASSY, RADIO
86120-17010

AW11..GEN

AM

 1
86120-22600

AW11..GEN

MW/SW

 1
86120-14581

AW11..GEN

MW/SW

 1
86120-14530

AW11..GEN

AM/FM

 1
86120-17150

AW11..GEN

MATSUSHITA,*36,*ELT

 1
86120-22760

AW11..GEN

AM/FM/SW

 1
86120-17080

AW11..GEN

*36

 1
86120A - KNOB, RADIO RECEIVER SWITCH
86128-14010

AW11..GEN

AM/FM,MW/SW

 1
86128-32070

AW11..GEN

*36

 1
86128-14130

AW11..GEN

MW/SW

 1
86128-14010

AW11..GEN

AM/FM

 1
86120B - KNOB, RADIO RECEIVER TUNING, NO.1
86128-32090

AW11..GEN

*36

 1
86128-14050

AW11..GEN

AM/FM

 1
86128-14070

AW11..GEN

MW/SW

 1
86120D - KNOB, RADIO RECEIVER TONE
86128-32130

AW11..GEN

*36,TRE

 1
86128-32110

AW11..GEN

*36,BASS

 1
86128-14030

AW11..GEN

AM/FM,MW/SW

 1
86120D - KNOB, RADIO RECEIVER TONE
86128-32130

AW11..GEN

*36,TRE

 1
86128-32110

AW11..GEN

*36,BASS

 1
86128-14030

AW11..GEN

AM/FM,MW/SW

 1
86120E - KNOB, RADIO RECEIVER BALANCE
86128-32150

AW11..GEN

*36

 1
86211 - BRACKET, RADIO, NO.1
86211-17010

AW11..GEN;AW11..FRG

 1
86211 - BRACKET, RADIO, NO.1
86211-17010

AW11..GEN;AW11..FRG

 1
86211 - BRACKET, RADIO, NO.1
86211-17010

AW11..GEN;AW11..FRG

 1
86212 - BRACKET, RADIO, NO.2
86212-17010

AW11..GEN;AW11..FRG

 1
86212 - BRACKET, RADIO, NO.2
86212-17010

AW11..GEN;AW11..FRG

 1
86212 - BRACKET, RADIO, NO.2
86212-17010

AW11..GEN;AW11..FRG

 1
86260 - TAPE PLAYER ASSY
86260-17010

AW11..GEN

 1
Common parts
90149-50032
90159-50173

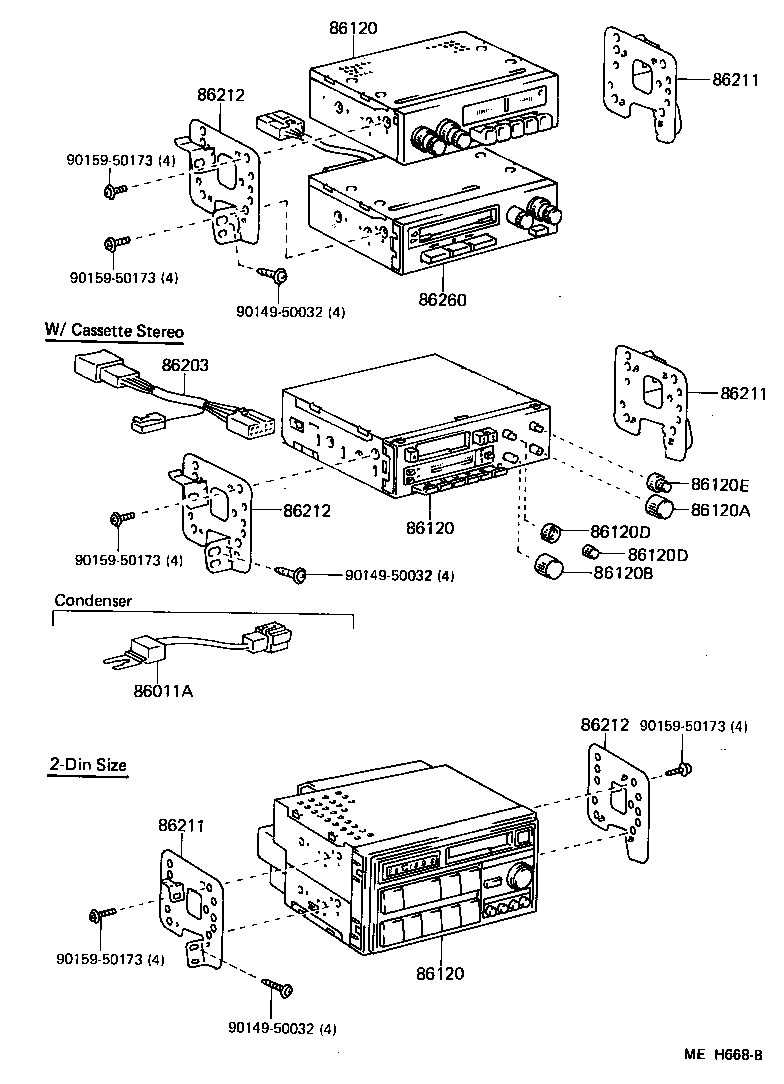

ILLUST NO. 1 OF 2(8803- )

Click highlighted areas on diagram

diagram 86011A 86120 86120 86120 86203 86211 86211 86211 86212 86212 86212 86260 9014950032 9014950032 9014950032 9014950032 9014950032 9014950032 9015950173 9015950173 9015950173 9015950173 9015950173 9015950173
Part # Description Qty Price
86011A - CONDENSER, RADIO SETTING
90980-04041

AW11

 1
86120 - RECEIVER ASSY, RADIO
86120-17010

AW11..GEN

AM

 1
86120-22600

AW11..GEN

MW/SW

 1
86120-14581

AW11..GEN

MW/SW

 1
86120-14530

AW11..GEN

AM/FM

 1
86120-17150

AW11..GEN

MATSUSHITA,*36,*ELT

 1
86120-22760

AW11..GEN

AM/FM/SW

 1
86120-17080

AW11..GEN

*36

 1
86120 - RECEIVER ASSY, RADIO
86120-17010

AW11..GEN

AM

 1
86120-22600

AW11..GEN

MW/SW

 1
86120-14581

AW11..GEN

MW/SW

 1
86120-14530

AW11..GEN

AM/FM

 1
86120-17150

AW11..GEN

MATSUSHITA,*36,*ELT

 1
86120-22760

AW11..GEN

AM/FM/SW

 1
86120-17080

AW11..GEN

*36

 1
86120 - RECEIVER ASSY, RADIO
86120-17010

AW11..GEN

AM

 1
86120-22600

AW11..GEN

MW/SW

 1
86120-14581

AW11..GEN

MW/SW

 1
86120-14530

AW11..GEN

AM/FM

 1
86120-17150

AW11..GEN

MATSUSHITA,*36,*ELT

 1
86120-22760

AW11..GEN

AM/FM/SW

 1
86120-17080

AW11..GEN

*36

 1
86211 - BRACKET, RADIO, NO.1
86211-17010

AW11..GEN;AW11..FRG

 1
86211 - BRACKET, RADIO, NO.1
86211-17010

AW11..GEN;AW11..FRG

 1
86211 - BRACKET, RADIO, NO.1
86211-17010

AW11..GEN;AW11..FRG

 1
86212 - BRACKET, RADIO, NO.2
86212-17010

AW11..GEN;AW11..FRG

 1
86212 - BRACKET, RADIO, NO.2
86212-17010

AW11..GEN;AW11..FRG

 1
86212 - BRACKET, RADIO, NO.2
86212-17010

AW11..GEN;AW11..FRG

 1
86260 - TAPE PLAYER ASSY
86260-17010

AW11..GEN

 1
Common parts
90149-50032
90159-50173

ILLUST NO. 2 OF 2(8803- )

Click highlighted areas on diagram

diagram 8612017080 8612017150 8612022760 8612032102 8612032111 8612032241 86128 8612817070 8612817070 8612817090 8612817090 8612820010 8612820010 8612820030 8612820030 8612832060 8612832060 8612832070 8612832080 8612832080 8612832090 8612832110 8612832130 8612832150 8612832310 8612832330 8612832410
Part # Description Qty Price
Common parts
86120-17080
86120-17150
86120-22760
86120-32102
86120-32111
86120-32241
86128-17070
86128-17090
86128-20010
86128-20030
86128-32060
86128-32070
86128-32080
86128-32090
86128-32110
86128-32130
86128-32150
86128-32310
86128-32330
86128-32410

ILLUST NO. 2 OF 2(8803- )

Click highlighted areas on diagram

diagram 8612032261 8612032270 86128 8612820010 8612820030 8612820050 8612822690 8612822850 8612822850 8612822850 8612822850 8612832310 8612832310 8612832330 8612832330 8626017011
Part # Description Qty Price
Common parts
86120-32261
86120-32270
86128-20010
86128-20030
86128-20050
86128-22690
86128-22850
86128-32310
86128-32330
86260-17011
