AW11L-WCMQF (1984)

Toyota Mr2

Production Nov 1984 - Aug 1988
Engine 4AGEL
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(8411- )

Click highlighted areas on diagram

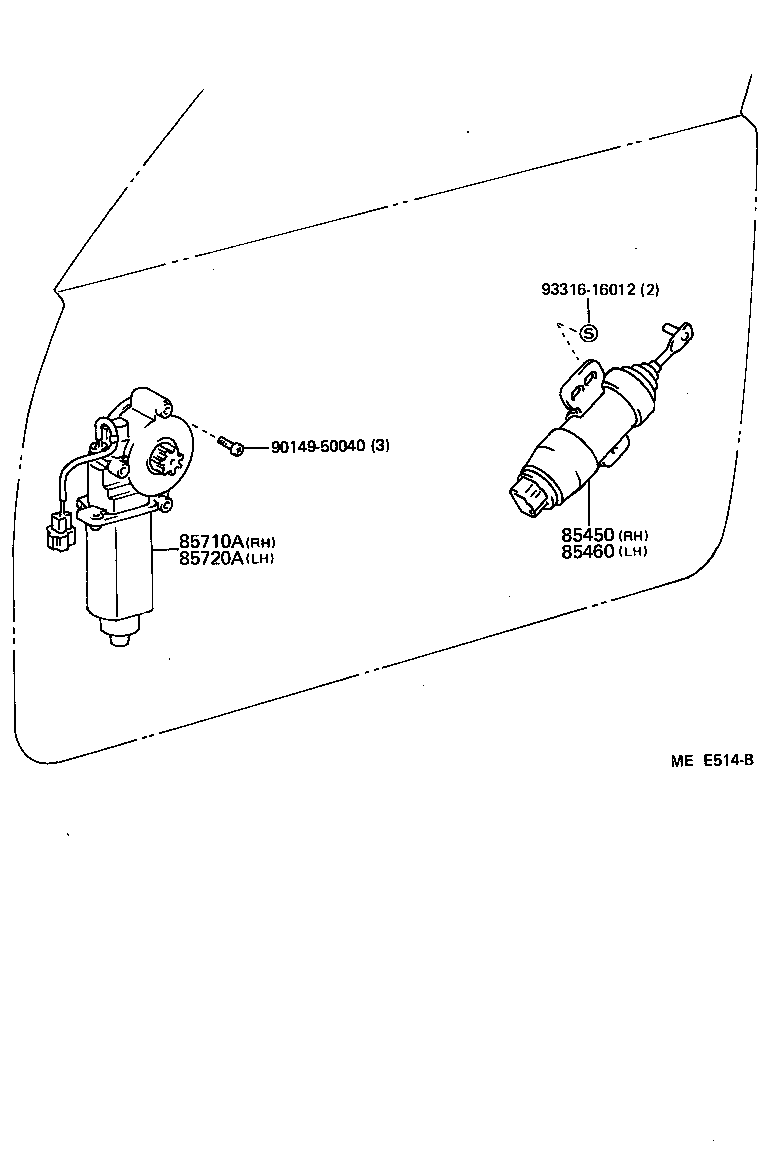

diagram 85450 85460 85710A 85720A 9014950040 9331616012
Part # Description Qty Price
85450 - SOLENOID ASSY, DOOR CONTROL, FRONT RH
85450-17030

AW11..LHD

 1
85450-17010

AW11..EUR,GEN

 1
85460 - SOLENOID ASSY, DOOR CONTROL, FRONT LH
85450-17040

AW11..LHD

 1
85710A - MOTOR ASSY, POWER WINDOW REGULATOR, FRONT RH
85710-17010

AW11

 1
85720A - MOTOR ASSY, POWER WINDOW REGULATOR, FRONT LH
85720-17010

AW11

 1
Common parts
90149-50040
93316-16012
