AW11L-WCMQF (1984)

Toyota Mr2

Production Nov 1984 - Aug 1988
Engine 4AGEL
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(8411- )

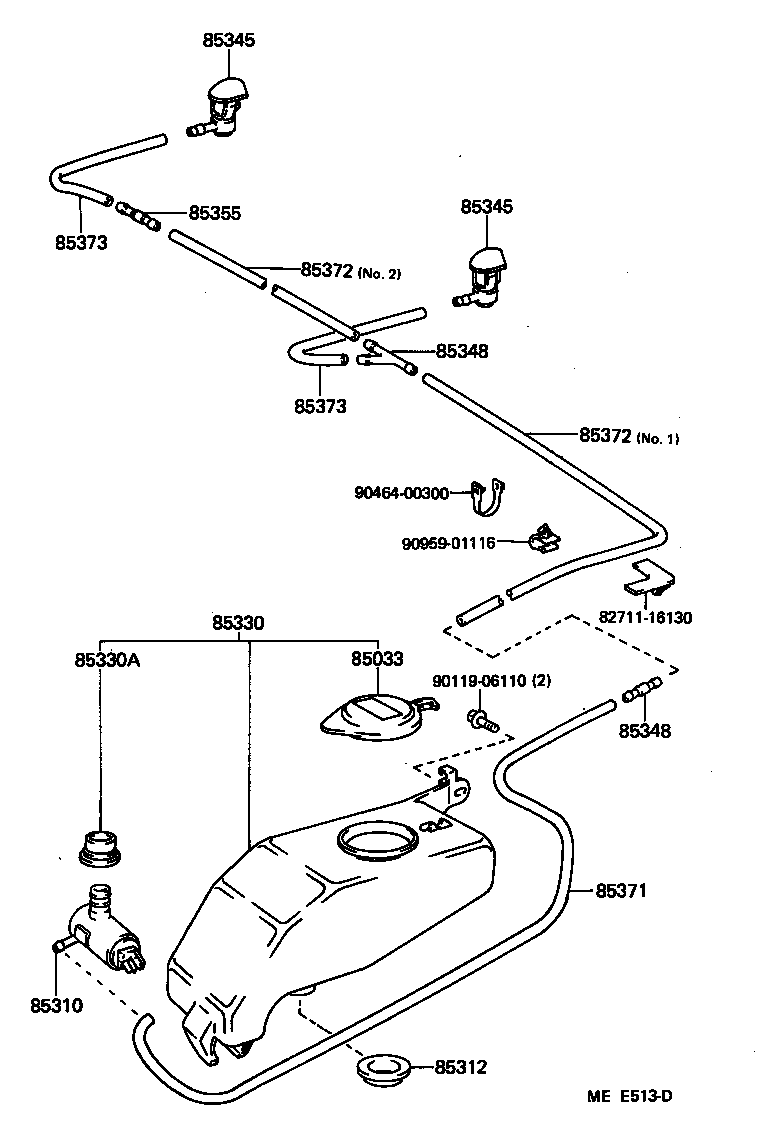

Click highlighted areas on diagram

diagram 8271116130 85033 85310 85312 85330 85330A 85345 85345 85348 85348 85355 85371 85372 85372 85373 85373 9011906110 9046400300 9095901116
Part # Description Qty Price
85033 - CAP ASSY, WINDSHIELD WASHER
85332-17020

AW11

 1
85310 - MOTOR AND PUMP ASSY, WINDSHIELD WASHER
85310-22080

AW11

 1
85312 - PACKING, WINDSHIELD WASHER TANK
85312-32010

AW11

 1
85330 - JAR ASSY, WINDSHIELD WASHER
85331-17010

AW11..ARL,GEN

 1
85330A - BUSH, WINDSHIELD WASHER JAR
90099-32089

AW11

 1
85345 - NOZZLE, WINDSHIELD WASHER
85035-17030

AW11..LHD

 2
85345 - NOZZLE, WINDSHIELD WASHER
85035-17030

AW11..LHD

 2
85348 - JOINT, WINDSHIELD WASHER HOSE, NO.1
85348-12250

AW11

3-WAY

 1
85355-87201

AW11

2-WAY

 1
85349-89122

AW11..ARL,GEN

2-WAY

 1
85348 - JOINT, WINDSHIELD WASHER HOSE, NO.1
85348-12250

AW11

3-WAY

 1
85355-87201

AW11

2-WAY

 1
85349-89122

AW11..ARL,GEN

2-WAY

 1
85355 - VALVE, WINDSHIELD WASHER HOSE
85031-12250

AW11

 1
85371 - HOSE, WINDSHIELD WASHER (FROM MOTOR TO JOINT)
90446-06013

AW11..GEN

*H,L=420

 1
90099-33249

AW11..ARL,GEN

*H,L=455

 1
85372 - HOSE, WINDSHIELD WASHER (FROM JOINT TO JOINT), NO.1
90446-06013

AW11

*H,L=615,NO.2

 1
90099-33299

AW11

*H,L=630,NO.1

 1
85372 - HOSE, WINDSHIELD WASHER (FROM JOINT TO JOINT), NO.1
90446-06013

AW11

*H,L=615,NO.2

 1
90099-33299

AW11

*H,L=630,NO.1

 1
85373 - HOSE, WINDSHIELD WASHER (FROM JOINT TO NOZZLE)
90099-33081

AW11

*H,L=110

 2
85373 - HOSE, WINDSHIELD WASHER (FROM JOINT TO NOZZLE)
90099-33081

AW11

*H,L=110

 2
Common parts
82711-16130
90119-06110
90464-00300
90959-01116
