AW11L-WCMQF (1984)
Toyota Mr2
Production
Nov 1984
-
Aug 1988
Engine
4AGEL
Transmission
5F MTM
Displacement
2500cc
Power
168 HP (125 kW)
(8411- )

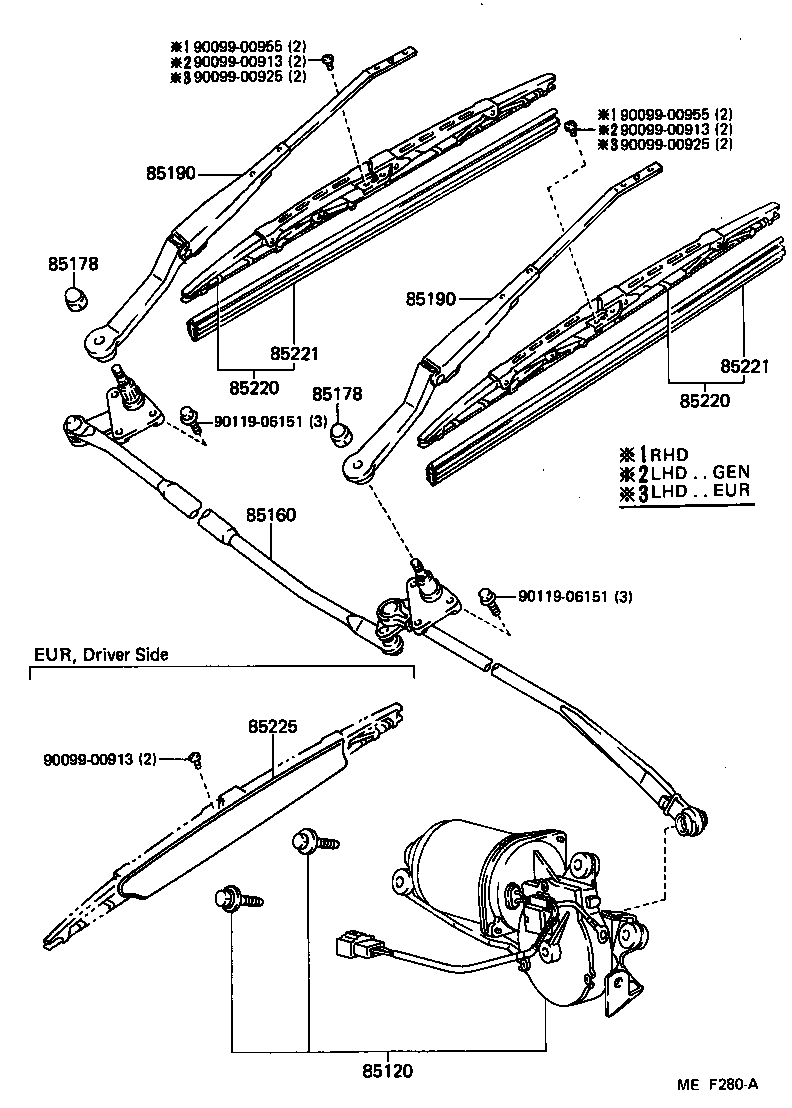

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 85120 - MOTOR AND BRACKET ASSY, WINDSHIELD WIPER | ||||
| 85120-17020 |
AW11..LHD..GEN |
1 | ||
| 85160 - LINK ASSY, WINDSHIELD WIPER | ||||
| 85160-17020 |
AW11..LHD..GEN |
1 | ||
| 85178 - NUT (FOR FRONT WIPER ARM SETTING) | ||||
| 90176-08029 |
AW11 |
2 | ||
| 90176-08033 |
AW11 |
2 | ||
| 85178 - NUT (FOR FRONT WIPER ARM SETTING) | ||||
| 90176-08029 |
AW11 |
2 | ||
| 90176-08033 |
AW11 |
2 | ||
| 85190 - ARM ASSY, WINDSHIELD WIPER | ||||
| 85210-17021 |
AW11..LHD RH |
1 | ||
| 85190-17020 |
AW11..LHD..GEN LH |
1 | ||
| 85190-17021 |
AW11..LHD..GEN LH |
1 | ||
| 85210-17020 |
AW11..LHD RH |
1 | ||
| 85190 - ARM ASSY, WINDSHIELD WIPER | ||||
| 85210-17021 |
AW11..LHD RH |
1 | ||
| 85190-17020 |
AW11..LHD..GEN LH |
1 | ||
| 85190-17021 |
AW11..LHD..GEN LH |
1 | ||
| 85210-17020 |
AW11..LHD RH |
1 | ||
| 85220 - BLADE ASSY, WINDSHIELD WIPER | ||||
| 85220-16270 |
AW11..LHD LH |
1 | ||
| 85220-16630 |
AW11..LHD LH |
1 | ||
| 85220-16640 |
AW11..LHD RH |
1 | ||
| 85220-16340 |
AW11..LHD RH |
1 | ||
| 85220 - BLADE ASSY, WINDSHIELD WIPER | ||||
| 85220-16270 |
AW11..LHD LH |
1 | ||
| 85220-16630 |
AW11..LHD LH |
1 | ||
| 85220-16640 |
AW11..LHD RH |
1 | ||
| 85220-16340 |
AW11..LHD RH |
1 | ||
| 85221 - BLADE, WINDSHIELD WIPER | ||||
| 85221-30100 |
AW11..LHD |
2 | ||
| 85221 - BLADE, WINDSHIELD WIPER | ||||
| 85221-30100 |
AW11..LHD |
2 | ||
| Common parts | ||||
| 90099-00913 | ||||
| 90099-00925 | ||||
| 90099-00955 | ||||
| 90119-06151 | ||||
