AW11L-WCMQF (1984)
Toyota Mr2
(8411- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 28515 - RESISTOR, SOLENOID | ||||
| 28515-11010 |
4AGEL..AW11 |
1 | ||
| 28519 - BRACKET, SOLENOID RESISTOR | ||||
| 28519-16020 |
4AGEL..AW11 |
1 | ||
| 85910A - RELAY ASSY, CIRCUIT OPENING (FOR EFI) | ||||
| 85910-17010 |
AW11 |
1 | ||
| 85910-12010 |
AW11..LHD..EUG;AW11..LHD..GEN;AW11..RHD..(EUR,GEN) |
1 | ||
| 85910-30050 |
AW11 |
1 | ||
| 85915A - RELAY, MAIN | ||||
| 90987-02004 |
AW11 |
1 | ||
| 89421 - SENSOR ASSY, VACUUM (FOR E.F.I.) | ||||
| 89421-17020 |
AW11..RHD;AW11..LHD..EUG;AW11..LHD..GEN |
1 | ||
| 89420-17020 |
AW11..LHD..EUG;AW11..LHD..GEN;AW11..RHD..(EUR,GEN) |
1 | ||
| 89421 - SENSOR ASSY, VACUUM (FOR E.F.I.) | ||||
| 89421-17020 |
AW11..RHD;AW11..LHD..EUG;AW11..LHD..GEN |
1 | ||
| 89420-17020 |
AW11..LHD..EUG;AW11..LHD..GEN;AW11..RHD..(EUR,GEN) |
1 | ||
| 89422 - SENSOR, WATER TEMPERATURE (FOR E.F.I.) | ||||
| 89422-30020 |
AW11 |
1 | ||
| 89422 - SENSOR, WATER TEMPERATURE (FOR E.F.I.) | ||||
| 89422-30020 |
AW11 |
1 | ||
| 89424 - SENSOR, INLET AIR TEMPERATURE (FOR E.F.I.) | ||||
| 89424-12010 |
AW11..LHD..EUG;AW11..LHD..GEN;AW11..RHD..(EUR,GEN) |
1 | ||
| 89424-28010 |
AW11..RHD;AW11..LHD..EUG;AW11..LHD..GEN |
1 | ||
| 89452 - SENSOR, THROTTLE POSITION (FOR E.F.I.) | ||||
| 89452-20070 |
AW11 |
1 | ||
| 89452-28010 |
AW11 |
1 | ||
| 89452-12050 |
AW11..LHD..EUG;AW11..LHD..GEN;AW11..RHD..(EUR,GEN) AISIN |
1 | ||
| 89452-12040 |
AW11 DENSO |
1 | ||
| 89456 - RESISTOR, VARIABLE | ||||
| 89456-20010 |
AW11..LHD..EUG;AW11..LHD..GEN;AW11..RHD..(EUR,GEN) |
1 | ||
| 89462 - SWITCH, START INJECTOR TIME | ||||
| 89462-30011 |
AW11 |
1 | ||
| 89462 - SWITCH, START INJECTOR TIME | ||||
| 89462-30011 |
AW11 |
1 | ||
| 89661 - COMPUTER, ENGINE CONTROL | ||||
| 89661-17080 |
AW11..GEN |
1 | ||
| 89661-17040 |
AW11..GEN |
1 | ||
| 89667 - BRACKET, ENGINE CONTROL COMPUTER | ||||
| 89667-17010 |
AW11 |
1 | ||
| 89668 - BRACKET, ENGINE CONTROL COMPUTER, NO.2 | ||||
| 89668-17030 |
AW11..LHD..EUG;AW11..LHD..GEN;AW11..RHD..(EUR,GEN) |
1 | ||
| 89668-17010 |
AW11 |
1 | ||
| 89669 - BRACKET, ENGINE CONTROL COMPUTER, NO.3 | ||||
| 89669-17010 |
AW11 |
1 | ||
| 89669-17040 |
AW11..LHD..EUG;AW11..LHD..GEN;AW11..RHD..(EUR,GEN) |
1 | ||
| Common parts | ||||
| 82711-14110 | ||||
| 82711-14560 | ||||
| 90179-06069 | ||||
| 90201-12109 | ||||
| 90339-06007 | ||||
| 91651-40612 | ||||
| 91656-40616 | ||||
| 93319-15008 | ||||
| 93319-15010 | ||||
| 93319-15012 | ||||

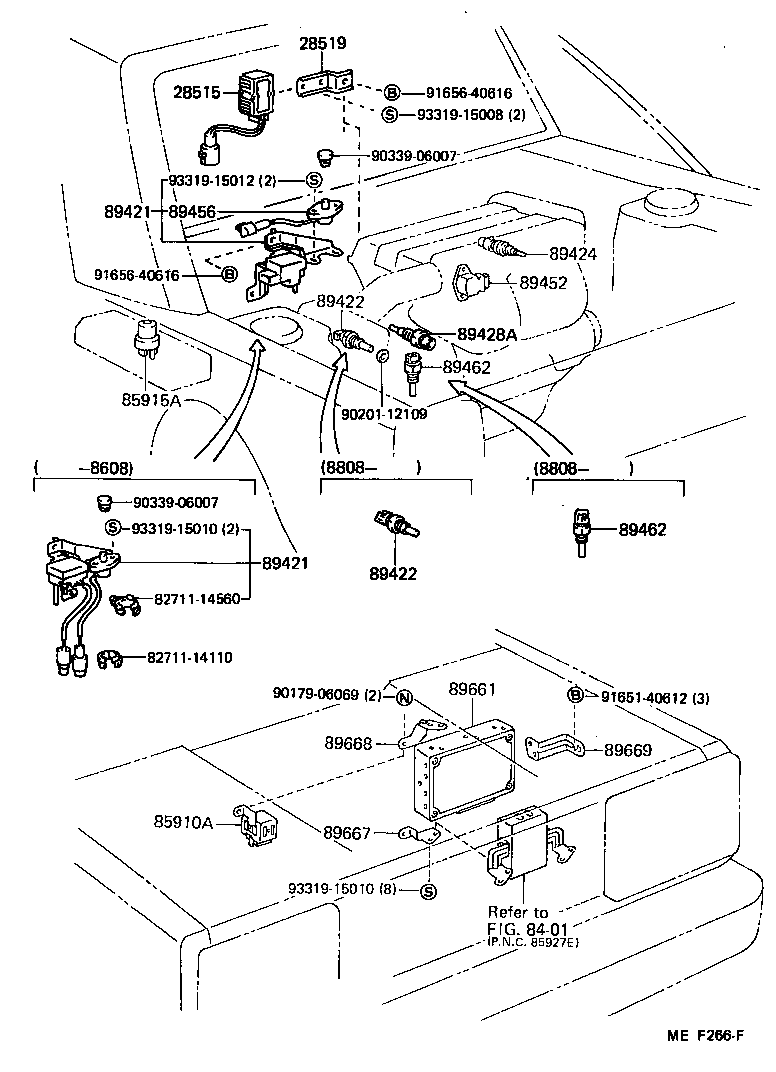

| Linked diagrams | ||||
| 8401 | ||||
