AW11L-WCMQF (1984)
Toyota Mr2

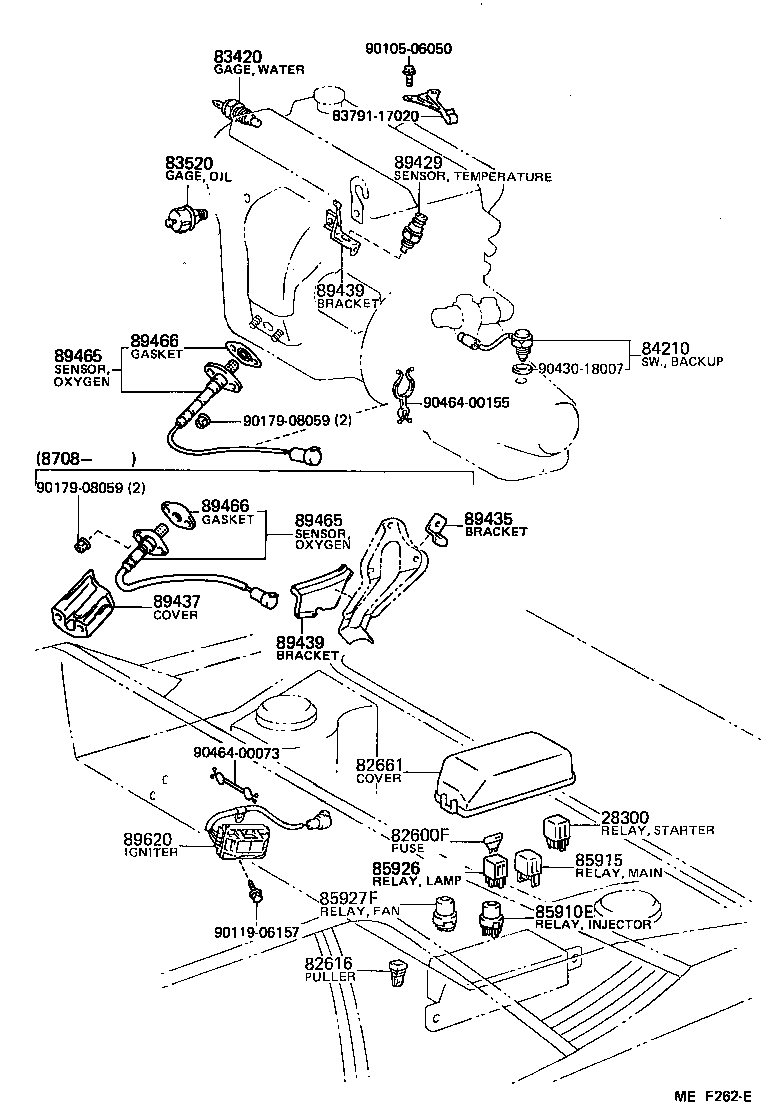

ILLUST NO. 1 OF 4(8411- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 28300 - RELAY ASSY, STARTER | ||||
| 28300-24031 |
4AG#..AW11 |
1 | ||
| 82600F - FUSE, FUSE BLOCK | ||||
| 90982-09001 |
AW11 5A,5A |
33 | ||
| 90982-07011 |
AW11 30A,GREEN,30A |
33 | ||
| 90982-09002 |
AW11 10A,10A |
33 | ||
| 90982-09005 |
AW11 7.5A,7.5A |
33 | ||
| 90982-09004 |
AW11 20A,YELLOW,20A |
33 | ||
| 90982-09003 |
AW11 15A,15A |
33 | ||
| 82616 - PULLER, FUSE | ||||
| 82616-12010 |
AW11 |
1 | ||
| 82661 - COVER, RELAY BLOCK, NO.1 | ||||
| 82661-17020 |
AW11..LHD |
1 | ||
| 82661-17021 |
AW11..LHD..EUG;AW11..LHD..GEN |
1 | ||
| 83420 - GAGE ASSY, WATER TEMPERATURE SENDER | ||||
| 83420-20020 |
AW11 |
1 | ||
| 83520 - GAGE ASSY,OIL PRESSURE SENDER | ||||
| 83520-14022 |
AW11 |
1 | ||
| 84210 - SWITCH ASSY, BACK-UP LAMP | ||||
| 84210-60021 |
AW11 |
1 | ||
| 85910E - RELAY, INJECTOR | ||||
| 90987-02004 |
AW11 |
1 | ||
| 85915 - RELAY, MAIN | ||||
| 90987-04002 |
AW11 |
1 | ||
| 85927F - RELAY, COOLING FAN, NO.7 | ||||
| 90987-03001 |
AW11 |
1 | ||
| 89429 - SENSOR, OIL TEMPERATURE | ||||
| 89429-17010 |
AW11 |
1 | ||
| 89439 - BRACKET, SENSOR | ||||
| 89439-17011 |
AW11 TEMPERATURE |
1 | ||
| 89439 - BRACKET, SENSOR | ||||
| 89439-17011 |
AW11 TEMPERATURE |
1 | ||
| 89620 - IGNITER ASSY | ||||
| 89620-32030 |
AW11..LHD..EUG;AW11..LHD..GEN;AW11..RHD..(EUR,GEN) |
1 | ||
| Common parts | ||||
| 83791-17020 | ||||
| 90105-06050 | ||||
| 90119-06157 | ||||
| 90179-08059 | ||||
| 90430-18007 | ||||
| 90464-00073 | ||||
| 90464-00155 | ||||

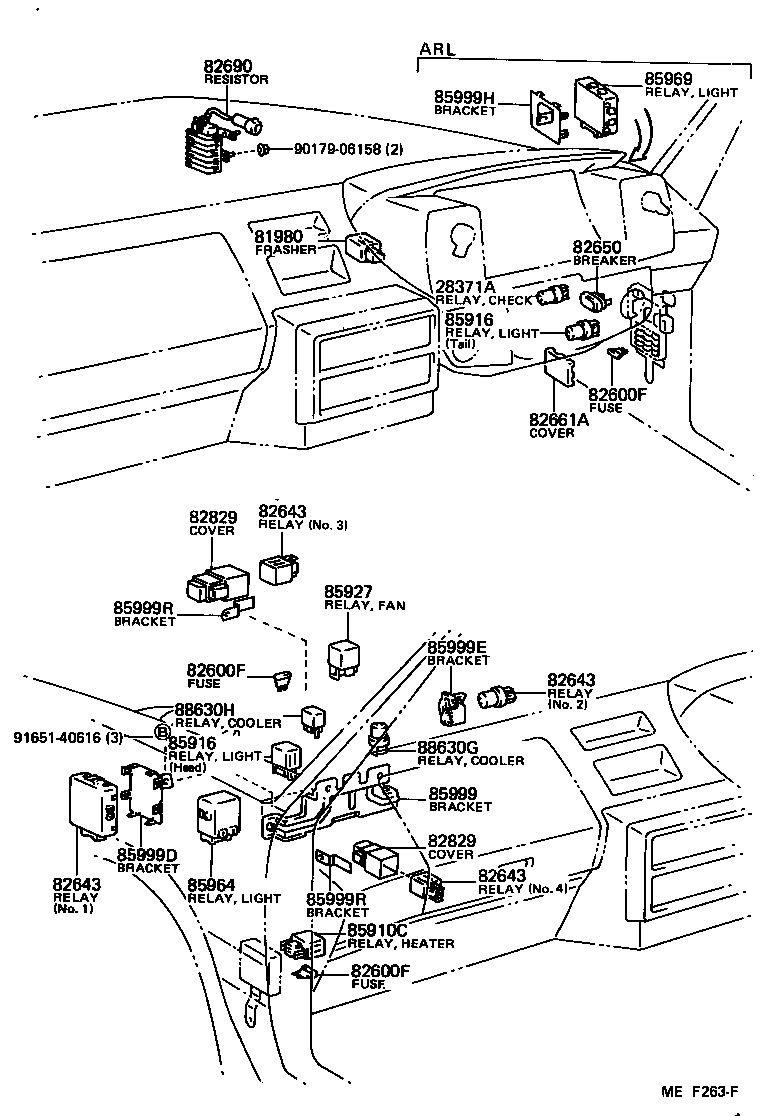

ILLUST NO. 2 OF 4(8411- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 81980 - FLASHER ASSY, TURN SIGNAL | ||||
| 81980-22070 |
AW11 |
1 | ||
| 82600F - FUSE, FUSE BLOCK | ||||
| 90982-09001 |
AW11 5A,5A |
33 | ||
| 90982-07011 |
AW11 30A,GREEN,30A |
33 | ||
| 90982-09002 |
AW11 10A,10A |
33 | ||
| 90982-09005 |
AW11 7.5A,7.5A |
33 | ||
| 90982-09004 |
AW11 20A,YELLOW,20A |
33 | ||
| 90982-09003 |
AW11 15A,15A |
33 | ||
| 82600F - FUSE, FUSE BLOCK | ||||
| 90982-09001 |
AW11 5A,5A |
33 | ||
| 90982-07011 |
AW11 30A,GREEN,30A |
33 | ||
| 90982-09002 |
AW11 10A,10A |
33 | ||
| 90982-09005 |
AW11 7.5A,7.5A |
33 | ||
| 90982-09004 |
AW11 20A,YELLOW,20A |
33 | ||
| 90982-09003 |
AW11 15A,15A |
33 | ||
| 82600F - FUSE, FUSE BLOCK | ||||
| 90982-09001 |
AW11 5A,5A |
33 | ||
| 90982-07011 |
AW11 30A,GREEN,30A |
33 | ||
| 90982-09002 |
AW11 10A,10A |
33 | ||
| 90982-09005 |
AW11 7.5A,7.5A |
33 | ||
| 90982-09004 |
AW11 20A,YELLOW,20A |
33 | ||
| 90982-09003 |
AW11 15A,15A |
33 | ||
| 82650 - BREAKER ASSY, WIRING CIRCUIT, NO.1 | ||||
| 82650-12020 |
AW11 14A |
1 | ||
| 82661A - COVER, RELAY BLOCK, NO.2 | ||||
| 82661-17060 |
AW11..LHD..GEN |
1 | ||
| 85910C - RELAY ASSY (FOR HEATER BLOWER MOTOR) | ||||
| 90987-04002 |
AW11 |
1 | ||
| 85916 - RELAY, LIGHT CONTROL | ||||
| 90987-02006 |
AW11 HEADLAMP |
1 | ||
| 90987-02002 |
AW11 TAIL LAMP,MARUKO |
1 | ||
| 90987-02004 |
AW11 HEADLAMP,DENSO |
1 | ||
| 90987-02004 |
AW11 TAIL LAMP |
1 | ||
| 85916 - RELAY, LIGHT CONTROL | ||||
| 90987-02006 |
AW11 HEADLAMP |
1 | ||
| 90987-02002 |
AW11 TAIL LAMP,MARUKO |
1 | ||
| 90987-02004 |
AW11 HEADLAMP,DENSO |
1 | ||
| 90987-02004 |
AW11 TAIL LAMP |
1 | ||
| 85927 - RELAY, COOLING FAN | ||||
| 90987-04002 |
AW11 |
1 | ||
| 85964 - RELAY, LIGHT RETRACTOR | ||||
| 85964-17010 |
AW11 |
1 | ||
| 88630G - RELAY ASSY, COOLER | ||||
| 90987-02004 |
AW11..ARL,GEN |
1 | ||
| 88630H - RELAY ASSY, COOLER | ||||
| 88630-17010 |
AW11..ARL,GEN |
1 | ||
| Common parts | ||||
| 90179-06158 | ||||
| 91651-40616 | ||||

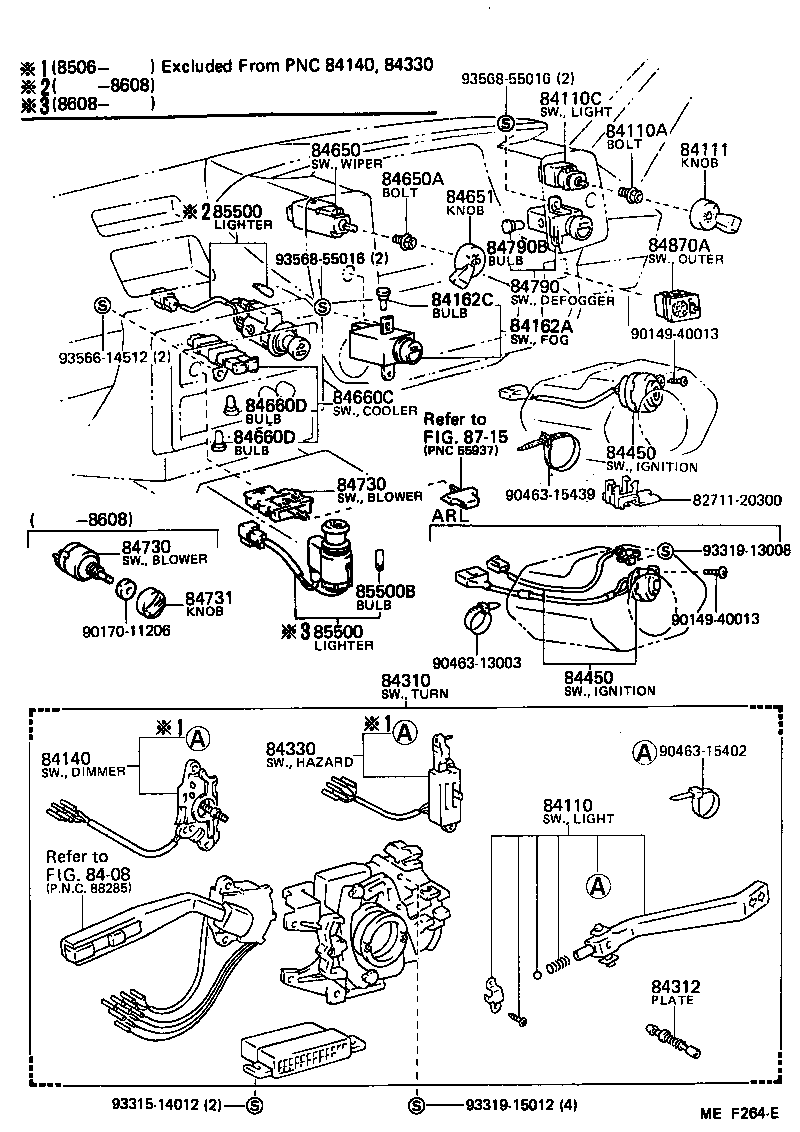

ILLUST NO. 3 OF 4(8411- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 84110 - SWITCH ASSY, LIGHT CONTROL, NO.1 | ||||
| 84112-19645 |
AW11..LHD |
1 | ||
| 84110A - BOLT OR NUT, LIGHT CONTROL SWITCH SET | ||||
| 84117-17010 |
AW11 |
1 | ||
| 84110C - SWITCH ASSY, LIGHT CONTROL, NO.2 | ||||
| 84110-17060 |
AW11..LHD |
1 | ||
| 84111 - KNOB, LIGHT CONTROL SWITCH | ||||
| 84111-17020 |
AW11..LHD |
1 | ||
| 84140 - SWITCH ASSY, HEADLAMP DIMMER | ||||
| 84140-19295 |
AW11..LHD |
1 | ||
| 84140-17030 |
AW11..LHD |
1 | ||
| 84310 - SWITCH ASSY, TURN SIGNAL | ||||
| 84310-17070 |
AW11..LHD..EUG;AW11..LHD..GEN W/*CRC |
1 | ||
| 84310-17030 |
AW11..LHD |
1 | ||
| 84310-17070 |
AW11..LHD W/*CRC |
1 | ||
| 84312 - PLATE, HORN CONTACT | ||||
| 84312-32010 |
AW11..LHD |
1 | ||
| 84330 - SWITCH ASSY, HAZARD WARNING SIGNAL | ||||
| 84332-17020 |
AW11..LHD |
1 | ||
| 84332-19265 |
AW11..LHD |
1 | ||
| 84450 - SWITCH ASSY, IGNITION OR STARTER | ||||
| 84450-12120 |
AW11 |
1 | ||
| 84450 - SWITCH ASSY, IGNITION OR STARTER | ||||
| 84450-12120 |
AW11 |
1 | ||
| 84650 - SWITCH ASSY, WINDSHIELD WIPER | ||||
| 84650-17020 |
AW11..LHD |
1 | ||
| 84650A - BOLT OR NUT, WINDSHIELD WIPER SWITCH SET | ||||
| 84117-17010 |
AW11 |
1 | ||
| 84651 - KNOB, WINDSHIELD WIPER SWITCH | ||||
| 84651-17020 |
AW11..LHD |
1 | ||
| 84660C - SWITCH, COOLER | ||||
| 84660-17010 |
AW11..GEN |
1 | ||
| 84660D - BULB(FOR COOLER SWITCH) | ||||
| 88607-12010 |
AW11..GEN |
2 | ||
| 84660D - BULB(FOR COOLER SWITCH) | ||||
| 88607-12010 |
AW11..GEN |
2 | ||
| 84730 - SWITCH ASSY, HEATER BLOWER | ||||
| 84732-17010 |
AW11 |
1 | ||
| 84732-17020 |
AW11..GEN W/*AAC |
1 | ||
| 84730 - SWITCH ASSY, HEATER BLOWER | ||||
| 84732-17010 |
AW11 |
1 | ||
| 84732-17020 |
AW11..GEN W/*AAC |
1 | ||
| 84731 - KNOB, HEATER BLOWER SWITCH | ||||
| 84731-12010 |
AW11 |
1 | ||
| 84790 - SWITCH ASSY, REAR WINDOW DEFOGGER | ||||
| 84790-17010 |
AW11 |
1 | ||
| 84790B - BULB(FOR REAR WINDOW DEFOGGER SWITCH) | ||||
| 84999-10170 |
AW11 12V 1.12W |
2 | ||
| 84870A - SWITCH ASSY, OUTER MIRROR | ||||
| 84870-17010 |
AW11 |
1 | ||
| 85500 - LIGHTER ASSY, CIGARETTE | ||||
| 85500-30360 |
AW11 |
1 | ||
| 85500-17010 |
AW11 |
1 | ||
| 85500 - LIGHTER ASSY, CIGARETTE | ||||
| 85500-30360 |
AW11 |
1 | ||
| 85500-17010 |
AW11 |
1 | ||
| Common parts | ||||
| 82711-20300 | ||||
| 90149-40013 | ||||
| 90170-11206 | ||||
| 90463-13003 | ||||
| 90463-15402 | ||||
| 90463-15439 | ||||
| 93315-14012 | ||||
| 93319-13008 | ||||
| 93319-15012 | ||||
| 93566-14512 | ||||
| 93568-55016 | ||||
| Linked diagrams | ||||
| 8408 | ||||
| 8715 | ||||

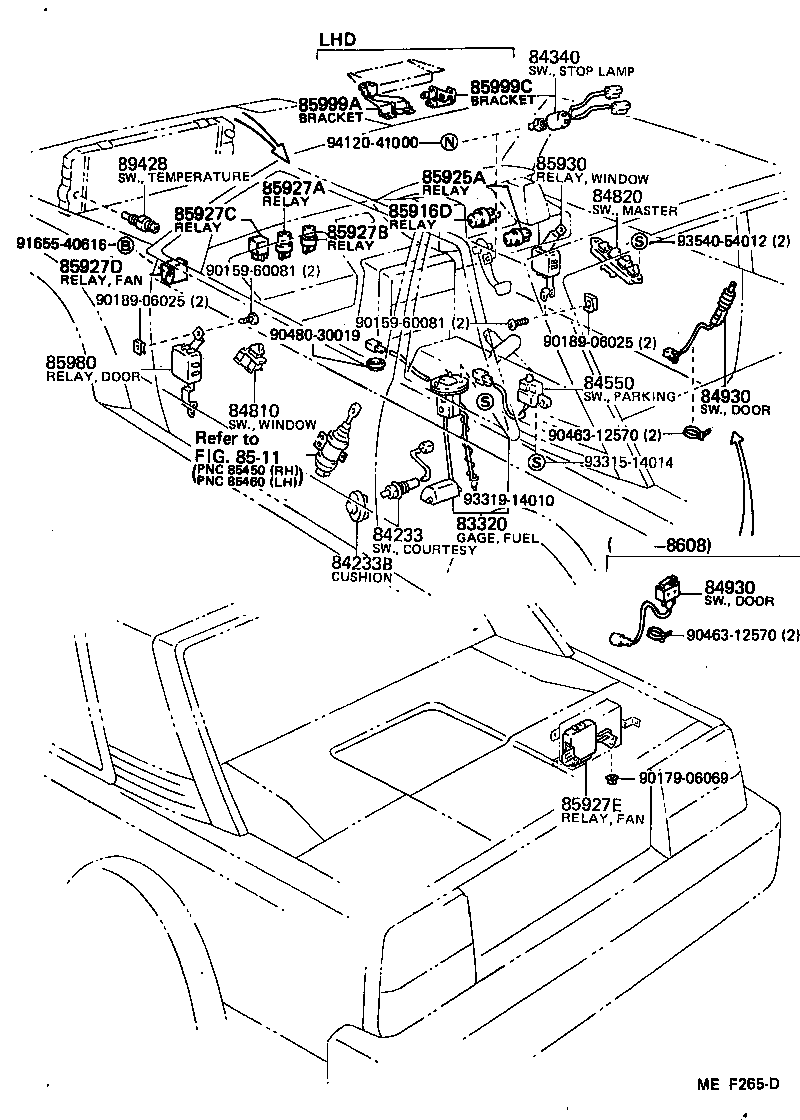

ILLUST NO. 4 OF 4(8411- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 83320 - GAGE ASSY, FUEL SENDER | ||||
| 83320-19895 |
AW11 |
1 | ||
| 84233 - SWITCH ASSY, COURTESY LAMP (FOR FRONT DOOR) | ||||
| 84230-95501 |
AW11 |
2 | ||
| 84233B - CUSHION, COURTESY SWITCH (FOR FRONT DOOR) | ||||
| 84234-14020 |
AW11 |
2 | ||
| 84340 - SWITCH ASSY, STOP LAMP | ||||
| 84340-24010 |
AW11..RHD;AW11..LHD..EUG;AW11..LHD..GEN W/*CRC |
1 | ||
| 84340-24010 |
AW11 W/*CRC |
1 | ||
| 84340-22072 |
AW11 |
1 | ||
| 84550 - SWITCH ASSY, PARKING BRAKE | ||||
| 84550-24010 |
AW11 |
1 | ||
| 84810 - SWITCH ASSY, POWER WINDOW REGULATOR | ||||
| 84810-17010 |
AW11 |
1 | ||
| 84820 - MASTER SWITCH ASSY, POWER WINDOW REGULATOR | ||||
| 84820-17020 |
AW11 |
1 | ||
| 84930 - SWITCH ASSY, DOOR CONTROL | ||||
| 84931-17010 |
AW11..LHD |
2 | ||
| 84930 - SWITCH ASSY, DOOR CONTROL | ||||
| 84931-17010 |
AW11..LHD |
2 | ||
| 85927A - RELAY, COOLING FAN, NO.2 | ||||
| 90987-03001 |
AW11 |
1 | ||
| 85927E - RELAY, COOLING FAN, NO.6 | ||||
| 85927-17011 |
AW11..GEN |
1 | ||
| 85930 - RELAY ASSY, POWER WINDOW | ||||
| 85930-17020 |
AW11..LHD |
1 | ||
| 85980 - RELAY ASSY, DOOR CONTROL | ||||
| 85980-17010 |
AW11..LHD |
1 | ||
| 85999A - BRACKET, RELAY, NO.2 | ||||
| 85999-17020 |
AW11..LHD |
1 | ||
| 85999C - BRACKET, RELAY, NO.3 | ||||
| 85999-17030 |
AW11..LHD |
1 | ||
| 89428 - SWITCH, TEMPERATURE DETECT, NO.2 | ||||
| 88625-17010 |
AW11..ARL,GEN W/COOLER |
1 | ||
| 89428-15030 |
AW11..ARL,GEN |
1 | ||
| Common parts | ||||
| 90159-60081 | ||||
| 90179-06069 | ||||
| 90189-06025 | ||||
| 90463-12570 | ||||
| 90480-30019 | ||||
| 91655-40616 | ||||
| 93315-14014 | ||||
| 93319-14010 | ||||
| 93540-54012 | ||||
| 94120-41000 | ||||
| Linked diagrams | ||||
| 8511 | ||||
