AW11L-WCMQF (1984)
Toyota Mr2

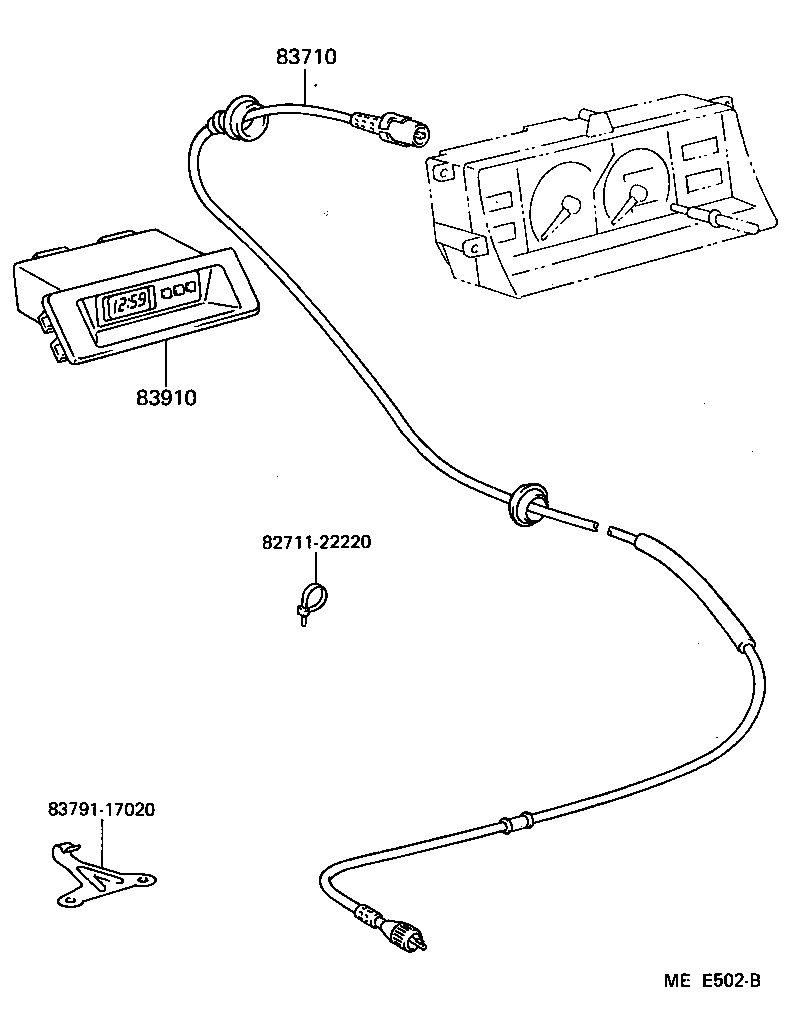

ILLUST NO. 2 OF 3(8411- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 83710 - CABLE ASSY, SPEEDOMETER DRIVE, NO.1 | ||||
| 83710-17051 |
AW11..CP..FRG;AW11..LHD..GEN;AW11..LHD..EUG |
1 | ||
| 83710-17050 |
AW11..CP..FRG;AW11..LHD..GEN;AW11..LHD..EUG |
1 | ||
| 83910 - CLOCK ASSY | ||||
| 83910-1702005 |
AW11..LHD BEIGE,DARK BEIGE,TRIM4# |
1 | ||
| 83910-1702001 |
AW11..LHD BLACK,BLACK,TRIM2# |
1 | ||
| 83910-1702004 |
AW11..LHD BLUE,DARK BLUE,TRIM8# |
1 | ||
| 83910-1702001 |
AW11..LHD BLACK,TRIM2# |
1 | ||
| 83910-1702005 |
AW11..LHD DARK BEIGE,TRIM4# |
1 | ||
| Common parts | ||||
| 82711-22220 | ||||
| 83791-17020 | ||||

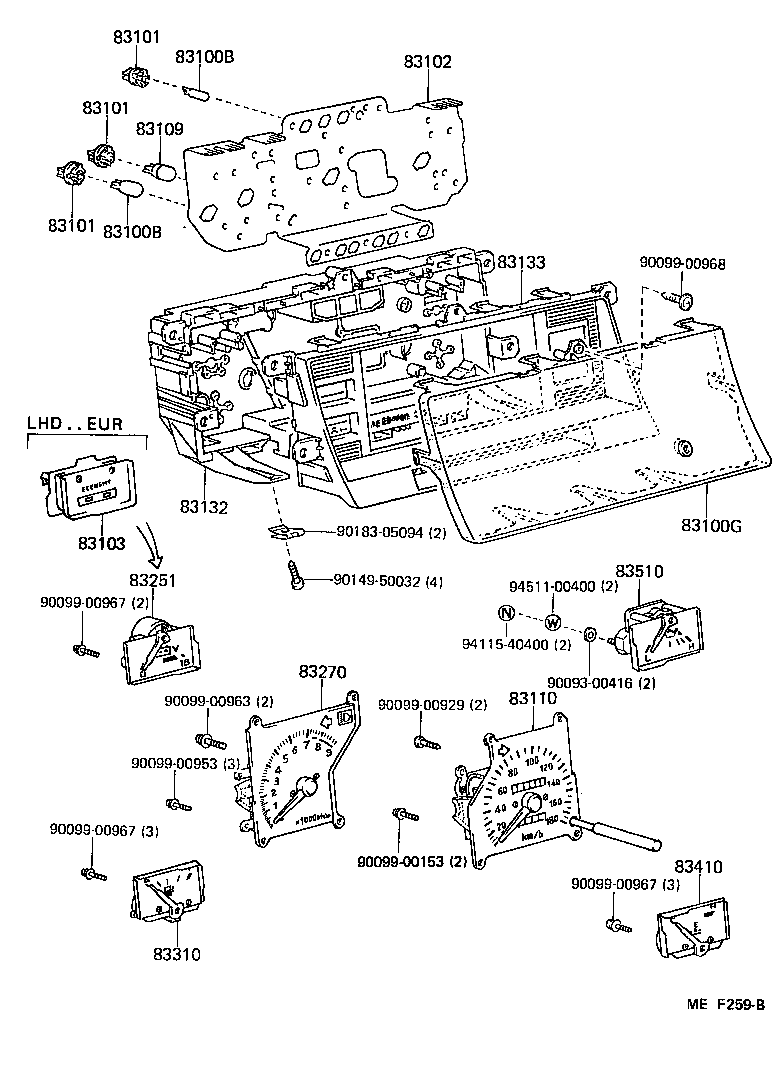

ILLUST NO. 1 OF 3(8411- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 83100B - BULB, COMBINATION METER, NO.1 | ||||
| 90981-11018 |
AW11 12V 1.2W W/O SOCKET |
5 | ||
| 99132-12034 |
AW11 12V 3.4W |
4 | ||
| 83100B - BULB, COMBINATION METER, NO.1 | ||||
| 90981-11018 |
AW11 12V 1.2W W/O SOCKET |
5 | ||
| 99132-12034 |
AW11 12V 3.4W |
4 | ||
| 83100G - GLASS, COMBINATION METER | ||||
| 83138-17010 |
AW11 |
1 | ||
| 83101 - SOCKET SUB-ASSY, COMBINATION METER BULB | ||||
| 83101-14040 |
AW11 12V 1.4W |
5 | ||
| 83101-14030 |
AW11 12V 3.4W |
7 | ||
| 83101 - SOCKET SUB-ASSY, COMBINATION METER BULB | ||||
| 83101-14040 |
AW11 12V 1.4W |
5 | ||
| 83101-14030 |
AW11 12V 3.4W |
7 | ||
| 83101 - SOCKET SUB-ASSY, COMBINATION METER BULB | ||||
| 83101-14040 |
AW11 12V 1.4W |
5 | ||
| 83101-14030 |
AW11 12V 3.4W |
7 | ||
| 83102 - PLATE SUB-ASSY, COMBINATION METER CIRCUIT, NO.1 | ||||
| 83247-17190 |
AW11..GEN |
1 | ||
| 83247-17290 |
AW11..GEN SPEEDOMETER;KM & MILE |
1 | ||
| 83247-17290 |
AW11..GEN |
1 | ||
| 83247-17190 |
AW11..GEN SPEEDOMETER;KM |
1 | ||
| 83109 - BULB, COMBINATION METER, NO.2 | ||||
| 83109-24030 |
AW11 12V3.4W W(GREEN CAP) |
3 | ||
| 83110 - SPEEDOMETER ASSY | ||||
| 83110-17050 |
AW11..GEN KM |
1 | ||
| 83110-17051 |
AW11..GEN KM |
1 | ||
| 83110-17060 |
AW11..GEN KM & MILE |
1 | ||
| 83110-17061 |
AW11..GEN KM & MILE |
1 | ||
| 83132 - CASE, COMBINATION METER | ||||
| 83132-17130 |
AW11..GEN SPEEDOMETER;KM & MILE |
1 | ||
| 83132-17110 |
AW11..GEN |
1 | ||
| 83132-17110 |
AW11..GEN SPEEDOMETER;KM |
1 | ||
| 83132-17130 |
AW11..GEN |
1 | ||
| 83133 - PLATE, COMBINATION METER, NO.1 | ||||
| 83133-17010 |
AW11 |
1 | ||
| 83251 - METER, VOLTAGE | ||||
| 83251-17010 |
AW11..GEN |
1 | ||
| 83251-17030 |
AW11..ARL,GEN |
1 | ||
| 83270 - TACHOMETER ASSY, ENGINE | ||||
| 83242-17150 |
AW11 |
1 | ||
| 83242-17030 |
AW11..RHD;AW11..LHD..EUG;AW11..LHD..GEN |
1 | ||
| 83310 - GAGE ASSY, FUEL RECEIVER | ||||
| 83243-17010 |
AW11 |
1 | ||
| 83410 - GAGE ASSY, WATER TEMPERATURE RECEIVER | ||||
| 83244-17010 |
AW11 |
1 | ||
| 83510 - GAGE ASSY, OIL PRESSURE RECEIVER | ||||
| 83246-17010 |
AW11 |
1 | ||
| Common parts | ||||
| 90093-00416 | ||||
| 90099-00153 | ||||
| 90099-00929 | ||||
| 90099-00953 | ||||
| 90099-00963 | ||||
| 90099-00967 | ||||
| 90099-00968 | ||||
| 90149-50032 | ||||
| 90183-05094 | ||||
| 94115-40400 | ||||
| 94511-00400 | ||||
