AW11L-WCMQF (1984)

Toyota Mr2

Production Nov 1984 - Aug 1988
Engine 4AGEL
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(8411- )

Click highlighted areas on diagram

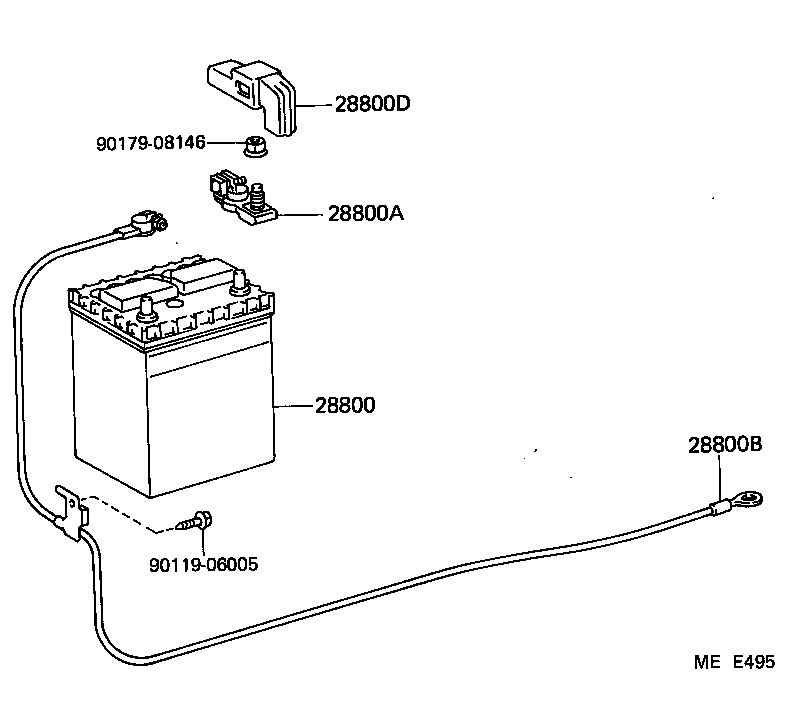

diagram 28800 28800A 28800B 28800D 9011906005 9017908146
Part # Description Qty Price
28800 - BATTERY
28800-31210

4AG#..AW11

50D20L,50D20L-MF

 1
28800-31200

4AG#..AW11..EUR,GEN

50D20L,50D20L-MF

 1
28800-31080

4AGEL..AW11..GEN

34B19L(S),34B19L(NS40ZAL)

 1
28800A - TERMINAL, BATTERY POSITIVE
90982-05029

4AG#..AW11

 1
28800B - CABLE, BATTERY TO GROUND
82123-17010

4AG#..AW11

 1
28800D - COVER, CONNECTOR(FOR BATTERY TERMINAL)
82821-24010

4AG#..AW11

 1
Common parts
90119-06005
90179-08146
