AW11L-WCMQF (1984)

Toyota Mr2

Production Nov 1984 - Aug 1988
Engine 4AGEL
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(8411- )

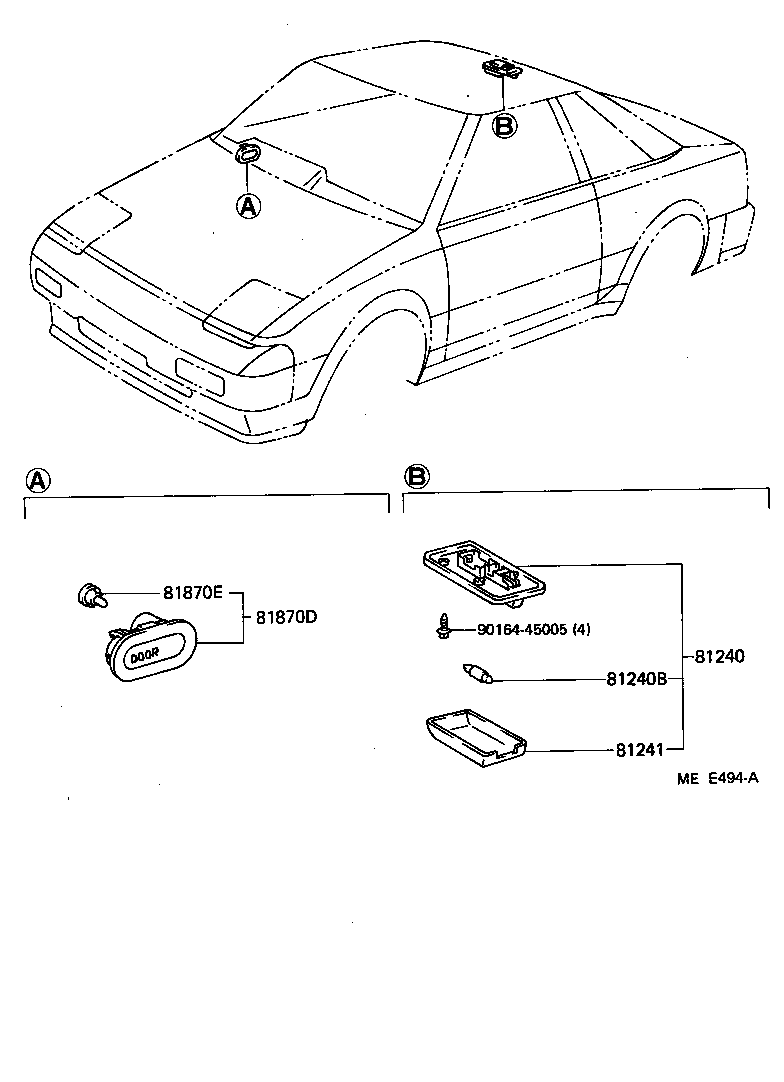

Click highlighted areas on diagram

diagram 81240 81240B 81241 81870D 81870E 9016445005
Part # Description Qty Price
81240 - LAMP ASSY, ROOM, NO.1
81240-2208001

AW11

BLACK,BLACK,TRIM2#

 1
81240-2208101

AW11

BLACK,BLACK,TRIM2#

 1
81240-2208145

AW11..EUR,GEN

DARK BEIGE,TRIM4#

 1
81240-2208135

AW11

BEIGE,DARK BEIGE,TRIM4#

 1
81240-2208124

AW11

BLUE,DARK BLUE,TRIM8#

 1
81240-2208101

AW11

BLACK,TRIM2#

 1
81240B - BULB, ROOM LAMP, NO.1
99132-12100

AW11

12V 10W,12V 10W

 1
81241 - LENS, ROOM LAMP, NO.1
81241-20060

AW11

 1
81870D - LAMP ASSY, KEY CYLINDER
81850-17010

AW11

 1
81870E - BULB, KEY CYLINDER LAMP
81856-17010

AW11

 1
Common parts
90164-45005
