AW11L-WCMQF (1984)
Toyota Mr2
Production
Nov 1984
-
Aug 1988
Engine
4AGEL
Transmission
5F MTM
Displacement
2500cc
Power
168 HP (125 kW)
(8411- )

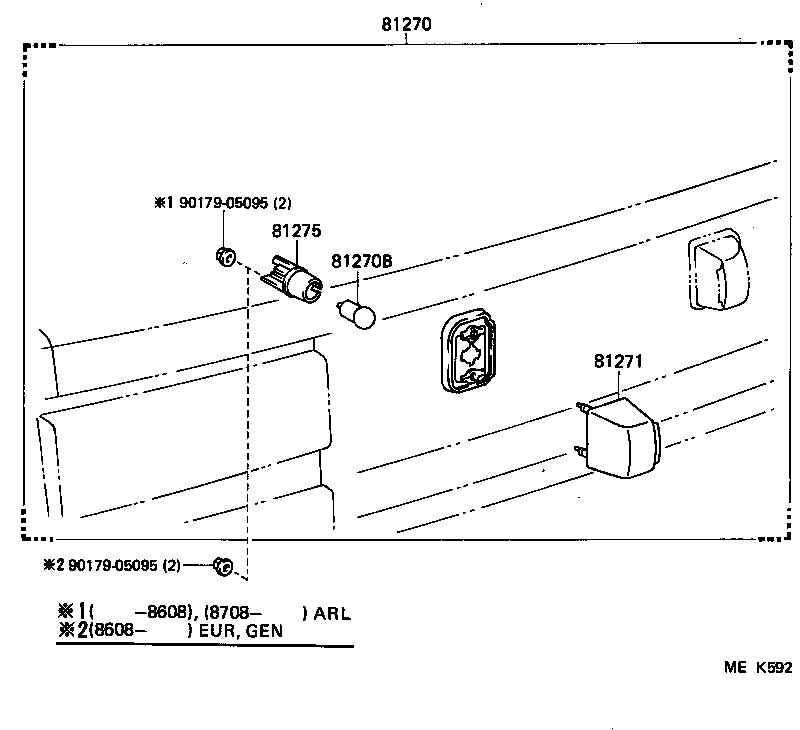

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 81270 - LAMP ASSY, LICENSE PLATE | ||||
| 81270-17020 |
AW11..EUR,GEN |
2 | ||
| 81270-17020 |
AW11 |
2 | ||
| 81270-80030 |
AW11 |
2 | ||
| 81270B - BULB (FOR LICENSE PLATE LAMP) | ||||
| 90981-12013 |
AW11 12V 10W,12V 10W |
2 | ||
| 90981-12013 |
AW11..EUR,GEN 12V 10W,12V 10W |
2 | ||
| 81271 - LENS, LICENSE PLATE LAMP | ||||
| 81271-17020 |
AW11..EUR,GEN |
2 | ||
| 81271-17020 |
AW11 |
2 | ||
| 81275 - SOCKET AND WIRE, LICENSE PLATE LAMP | ||||
| 81275-12240 |
AW11 |
2 | ||
| Common parts | ||||
| 90179-05095 | ||||
