AW11L-WCMQF (1984)

Toyota Mr2

Production Nov 1984 - Aug 1988
Engine 4AGEL
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(8411- )

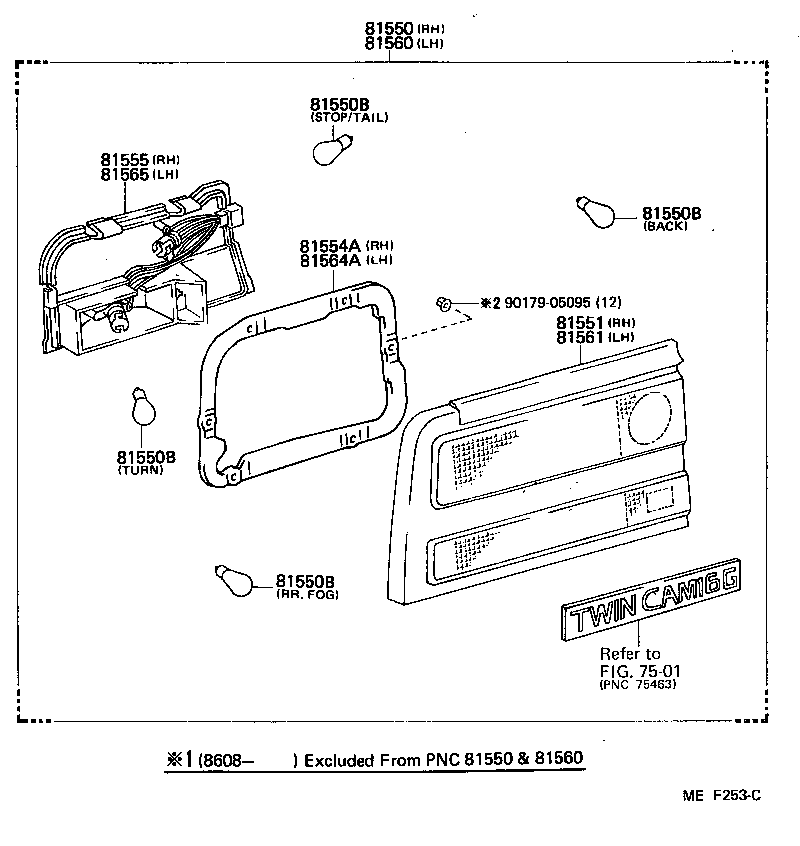

Click highlighted areas on diagram

diagram 7501 81550 81550B 81550B 81550B 81550B 81551 81554A 81555 81560 81561 81564A 81565 9017905095
Part # Description Qty Price
81550 - LAMP ASSY, REAR COMBINATION, RH
81550-80220

AW11..GEN

 1
81550B - BULB(FOR REAR COMBINATION LAMP)
99132-11230

AW11..ARL,GEN

12V 23W,12V 23W(TURN & BACK)

 4
99132-11210

AW11..GEN

12V 21W,*SA,12V 21W(TURN & BACK)

 4
99132-21210

AW11

12V 21/5W,12V 21/5W(STOP/TAIL)

 2
81550B - BULB(FOR REAR COMBINATION LAMP)
99132-11230

AW11..ARL,GEN

12V 23W,12V 23W(TURN & BACK)

 4
99132-11210

AW11..GEN

12V 21W,*SA,12V 21W(TURN & BACK)

 4
99132-21210

AW11

12V 21/5W,12V 21/5W(STOP/TAIL)

 2
81550B - BULB(FOR REAR COMBINATION LAMP)
99132-11230

AW11..ARL,GEN

12V 23W,12V 23W(TURN & BACK)

 4
99132-11210

AW11..GEN

12V 21W,*SA,12V 21W(TURN & BACK)

 4
99132-21210

AW11

12V 21/5W,12V 21/5W(STOP/TAIL)

 2
81550B - BULB(FOR REAR COMBINATION LAMP)
99132-11230

AW11..ARL,GEN

12V 23W,12V 23W(TURN & BACK)

 4
99132-11210

AW11..GEN

12V 21W,*SA,12V 21W(TURN & BACK)

 4
99132-21210

AW11

12V 21/5W,12V 21/5W(STOP/TAIL)

 2
81551 - LENS, REAR COMBINATION LAMP, RH
81551-17010

AW11..ARL,GEN

 1
81554A - GASKET, REAR COMBINATION LAMP BODY, NO.1 RH
81554-17010

AW11

 1
81555 - SOCKET & WIRE SUB-ASSY, REAR COMBINATION LAMP, RH
81555-17010

AW11..ARL,GEN

 1
81560 - LAMP ASSY, REAR COMBINATION, LH
81560-17070

AW11..GEN

*SA

 1
81560-80255

AW11..GEN

 1
81561 - LENS, REAR COMBINATION LAMP, LH
81561-17060

AW11..GEN

 1
81564A - GASKET, REAR COMBINATION LAMP BODY, NO.1 LH
81554-17010

AW11

 1
81565 - SOCKET & WIRE SUB-ASSY, REAR COMBINATION LAMP, LH
81565-17060

AW11..GEN

 1
Common parts
90179-05095
Linked diagrams
7501
