AW11L-WCMQF (1984)

Toyota Mr2

Production Nov 1984 - Aug 1988
Engine 4AGEL
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(8411- )

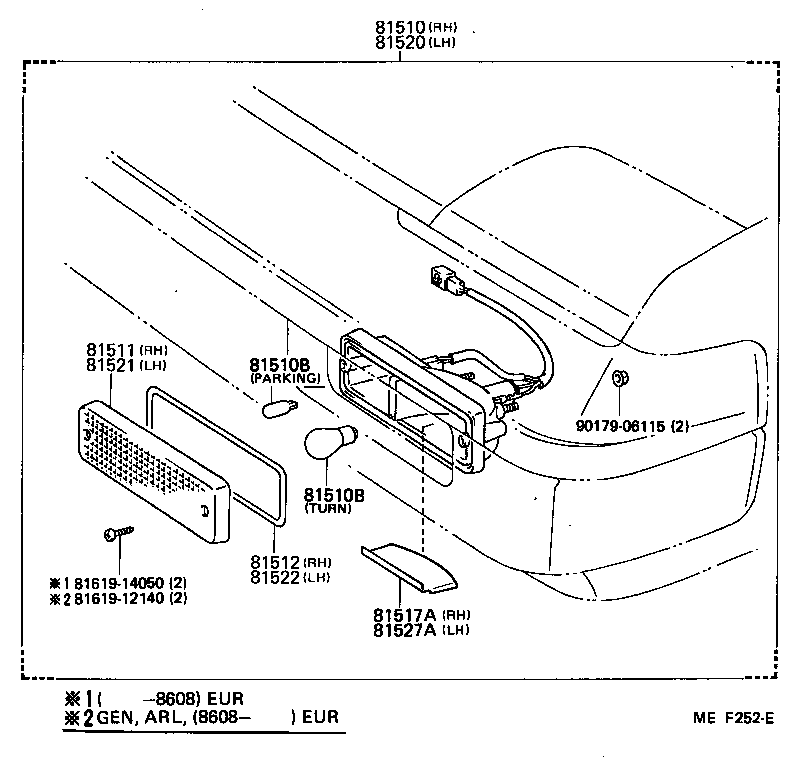

Click highlighted areas on diagram

diagram 81510 81510B 81510B 81511 81512 81517A 81520 81521 81522 81527A 8161912140 8161914050 9017906115
Part # Description Qty Price
81510 - LAMP ASSY, FRONT TURN SIGNAL, RH
81510-80012

AW11..GEN

AMBER-AMBER

 1
81510-80027

AW11..GEN

WHITE-AMBER

 1
81510B - BULB (FOR FRONT TURN SIGNAL LAMP)
99132-11230

AW11..GEN

12V 23W,12V 23W(TURN)

 2
99132-11210

AW11

12V 21W,12V 21W(TURN)

 2
99132-12050

AW11

12V 5W,12V 5W(PARKING)

 2
81510B - BULB (FOR FRONT TURN SIGNAL LAMP)
99132-11230

AW11..GEN

12V 23W,12V 23W(TURN)

 2
99132-11210

AW11

12V 21W,12V 21W(TURN)

 2
99132-12050

AW11

12V 5W,12V 5W(PARKING)

 2
81511 - LENS, FRONT TURN SIGNAL LAMP, RH
81511-17030

AW11..GEN

WHITE-AMBER

 1
81511-22221

AW11..GEN

AMBER-AMBER

 1
81512 - GASKET, FRONT TURN SIGNAL LAMP LENS, RH
81512-14140

AW11

 1
81517A - PROTECTOR, FRONT TURN SIGNAL LAMP, RH
81517-22220

AW11..GEN

 1
81520 - LAMP ASSY, FRONT TURN SIGNAL, LH
81520-80027

AW11..GEN

WHITE-AMBER

 1
81520-80012

AW11..GEN

AMBER-AMBER

 1
81521 - LENS, FRONT TURN SIGNAL LAMP, LH
81521-22221

AW11..GEN

AMBER-AMBER

 1
81521-17030

AW11..GEN

WHITE-AMBER

 1
81522 - GASKET, FRONT TURN SIGNAL LAMP LENS, LH
81512-14140

AW11

 1
81527A - PROTECTOR, FRONT TURN SIGNAL LAMP, LH
81517-22220

AW11..GEN

 1
Common parts
81619-12140
81619-14050
90179-06115
