AW11L-WCMQF (1984)
Toyota Mr2
Production
Nov 1984
-
Aug 1988
Engine
4AGEL
Transmission
5F MTM
Displacement
2500cc
Power
168 HP (125 kW)
(8411- )

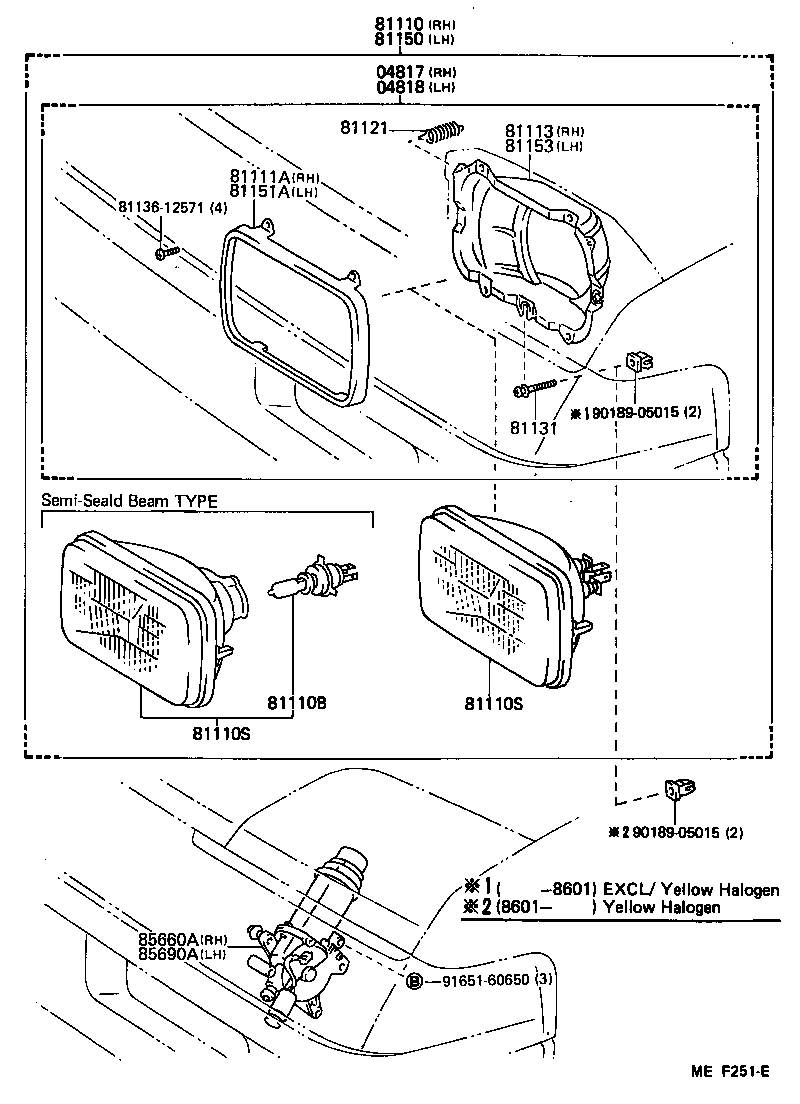

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 04817 - HEADLAMP KIT, W/O SEALED BEAM, RH | ||||
| 04817-17010 |
AW11 |
1 | ||
| 04818 - HEADLAMP KIT, W/O SEALED BEAM, LH | ||||
| 04818-17010 |
AW11 |
1 | ||
| 81110 - HEADLAMP ASSY, RH | ||||
| 81110-80391 |
AW11..LHD..GEN |
1 | ||
| 81110-17030 |
AW11..LHD..GEN |
1 | ||
| 81110-17040 |
AW11..LHD..GEN |
1 | ||
| 81110B - BULB(FOR HEADLAMP, NO.1) | ||||
| 90981-13015 |
AW11 12V 60/55W,*HAL *WH,12V 60/55W |
2 | ||
| 81110S - SEALED BEAM UNIT, NO.1 | ||||
| 90981-04020 |
AW11..LHD..GEN 12V 65/35W,*HAL,*WB,12V 65/35W |
2 | ||
| 90981-04025 |
AW11..LHD..GEN 12V 60/55W,*HWS,12V 60/55W |
2 | ||
| 81110S - SEALED BEAM UNIT, NO.1 | ||||
| 90981-04020 |
AW11..LHD..GEN 12V 65/35W,*HAL,*WB,12V 65/35W |
2 | ||
| 90981-04025 |
AW11..LHD..GEN 12V 60/55W,*HWS,12V 60/55W |
2 | ||
| 81111A - RING, SEALED BEAM RETAINING, NO.1 RH | ||||
| 81111-17010 |
AW11 |
1 | ||
| 81113 - RING, SEALED BEAM MOUNTING, NO.1 RH | ||||
| 81113-17010 |
AW11 |
1 | ||
| 81121 - SPRING, HEADLAMP TENSION | ||||
| 81121-14670 |
AW11 |
2 | ||
| 81131 - SCREW, HEADLAMP ADJUSTING | ||||
| 81131-17010 |
AW11 |
2 | ||
| 81150 - HEADLAMP ASSY, LH | ||||
| 81150-17030 |
AW11..LHD..GEN |
1 | ||
| 81150-20860 |
AW11..LHD HALOGEN,YELLOW |
1 | ||
| 81150-80383 |
AW11..LHD..GEN |
1 | ||
| 81151A - RING, SEALED BEAM RETAINING, NO.1 LH | ||||
| 81111-17010 |
AW11 |
1 | ||
| 81153 - RING, SEALED BEAM MOUNTING, NO.1 LH | ||||
| 81153-17010 |
AW11 |
1 | ||
| 85660A - MOTOR ASSY, LIGHT RETRACTOR, RH | ||||
| 85660-17010 |
AW11 |
1 | ||
| 85690A - MOTOR ASSY, LIGHT RETRACTOR, LH | ||||
| 85690-17010 |
AW11 |
1 | ||
| Common parts | ||||
| 81136-12571 | ||||
| 90189-05015 | ||||
| 91651-60650 | ||||
