AW11L-WCMQF (1984)
Toyota Mr2
Production
Nov 1984
-
Aug 1988
Engine
4AGEL
Transmission
5F MTM
Displacement
2500cc
Power
168 HP (125 kW)
(8411- )LHD

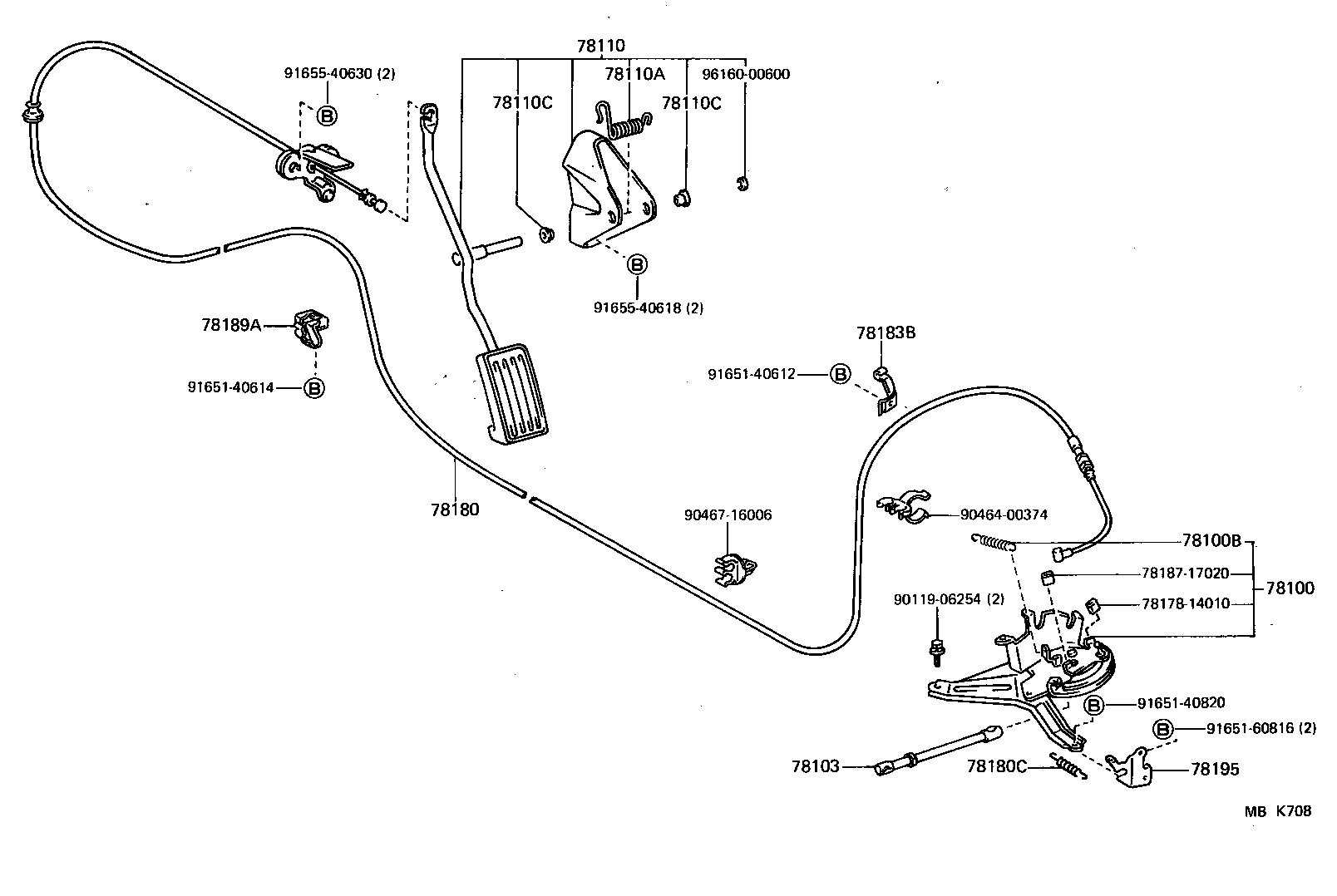

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 78100 - LINK ASSY, ACCELERATOR | ||||
| 78100-17010 |
AW11 |
1 | ||
| 78100-17021 |
AW11 W/*CRC |
1 | ||
| 78100-17020 |
AW11 W/*CRC |
1 | ||
| 78100B - SPRING (FOR ACCELERATOR LINK) | ||||
| 90507-10014 |
AW11 W/*CRC |
1 | ||
| 78103 - ROD SUB-ASSY, ACCELERATOR CONNECTING, NO.1 | ||||
| 78103-17010 |
AW11 |
1 | ||
| 78110 - ROD ASSY, ACCELERATOR PEDAL | ||||
| 78120-17020 |
AW11..LHD |
1 | ||
| 78110A - SPRING (FOR ACCELERATOR PEDAL ROD) | ||||
| 90508-18058 |
AW11..LHD |
1 | ||
| 78110C - BUSH (FOR ACCELERATOR PEDAL ROD) | ||||
| 90386-08003 |
AW11..LHD |
2 | ||
| 78110C - BUSH (FOR ACCELERATOR PEDAL ROD) | ||||
| 90386-08003 |
AW11..LHD |
2 | ||
| 78180 - WIRE ASSY, ACCELERATOR | ||||
| 78180-17030 |
AW11..LHD |
1 | ||
| 78180C - SPRING, TENSION (FOR ACCELERATOR WIRE) | ||||
| 90507-10016 |
AW11 |
1 | ||
| 78183B - CLAMP, ACCELERATOR CONTROL CABLE | ||||
| 78183-17010 |
AW11 |
1 | ||
| 78189A - SUPPORT, ACCELERATOR CONTROL CABLE, NO.2 | ||||
| 78189-17010 |
AW11 |
1 | ||
| 78195 - BRACKET, ACCELERATOR LINK | ||||
| 78195-17010 |
AW11 |
1 | ||
| Common parts | ||||
| 78178-14010 | ||||
| 78187-17020 | ||||
| 90119-06254 | ||||
| 90464-00374 | ||||
| 90467-16006 | ||||
| 91651-40612 | ||||
| 91651-40614 | ||||
| 91651-40820 | ||||
| 91651-60816 | ||||
| 91655-40618 | ||||
| 91655-40630 | ||||
| 96160-00600 | ||||
