AW11L-WCMQF (1984)

Toyota Mr2

Production Nov 1984 - Aug 1988
Engine 4AGEL
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(8411- )

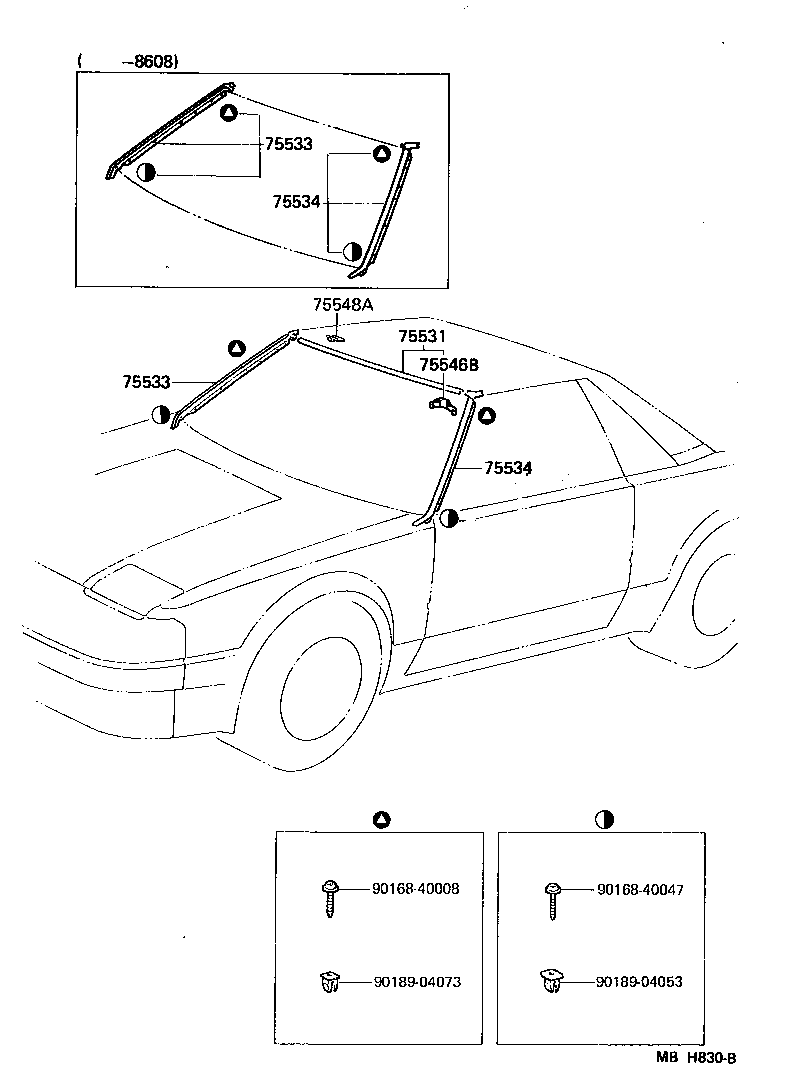

Click highlighted areas on diagram

diagram 75531 75533 75533 75534 75534 75546B 75548A 9016840008 9016840047 9018904053 9018904073
Part # Description Qty Price
75531 - MOULDING, WINDSHIELD, OUTER UPPER
75531-17010

AW11

 1
75533 - MOULDING, WINDSHIELD, OUTSIDE RH
75533-19015

AW11

 1
75533 - MOULDING, WINDSHIELD, OUTSIDE RH
75533-19015

AW11

 1
75534 - MOULDING, WINDSHIELD, OUTSIDE LH
75534-19015

AW11

 1
75534 - MOULDING, WINDSHIELD, OUTSIDE LH
75534-19015

AW11

 1
75546B - CLIP, WINDSHIELD OUTSIDE MOULDING, NO.2
75546-17010

AW11

 5
75548A - FASTENER, WINDSHIELD OUTSIDE MOULDING, NO.1
75548-17020

AW11

 6
Common parts
90168-40008
90168-40047
90189-04053
90189-04073
