AW11L-WCMQF (1984)

Toyota Mr2

Production Nov 1984 - Aug 1988
Engine 4AGEL
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(8411- )

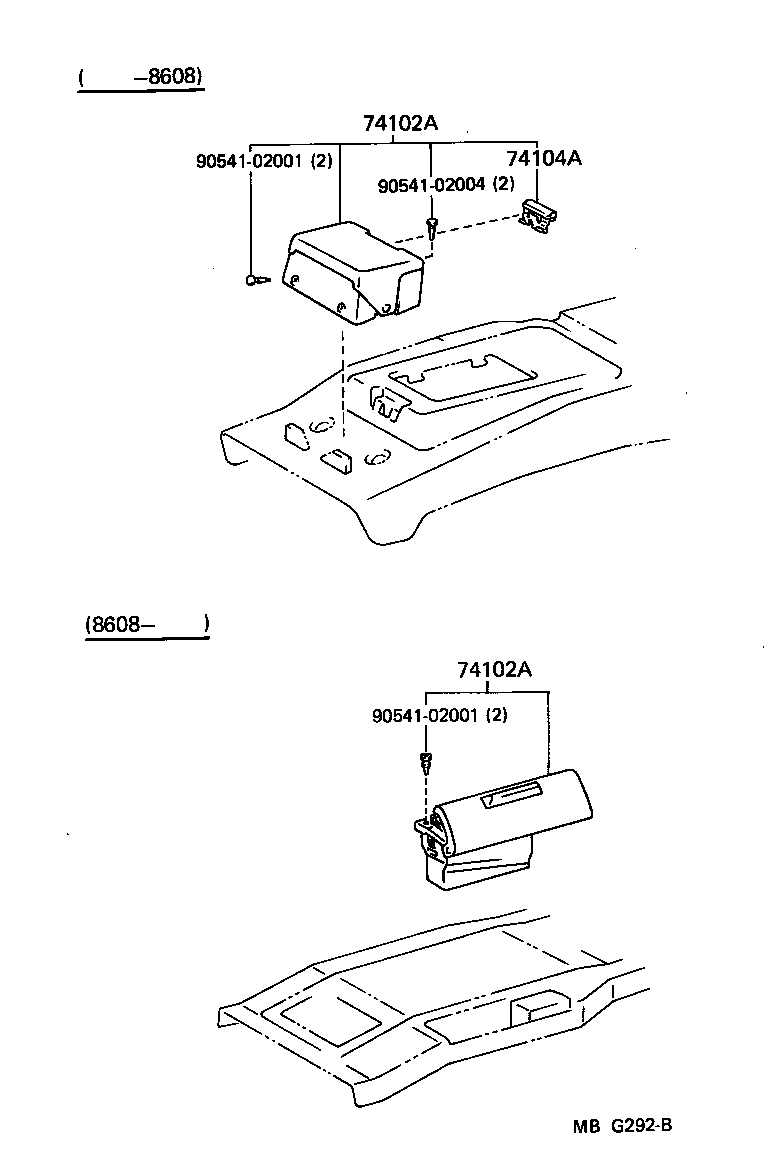

Click highlighted areas on diagram

diagram 74102A 74102A 74104A 9054102001 9054102001 9054102004
Part # Description Qty Price
74102A - RECEPTACLE ASSY, FRONT ASH
74102-1702001

AW11

BLACK,BLACK,TRIM2#

 1
74102-1702005

AW11..EUR,GEN

DARK BEIGE,TRIM4#

 1
74102-1702001

AW11

BLACK,TRIM2#

 1
74102-1701001

AW11

BLACK,BLACK,TRIM2#

 1
74102-1702005

AW11..EUR,GEN

BEIGE,DARK BEIGE,TRIM4#

 1
74102-1702004

AW11

BLUE,DARK BLUE,TRIM8#

 1
74102A - RECEPTACLE ASSY, FRONT ASH
74102-1702001

AW11

BLACK,BLACK,TRIM2#

 1
74102-1702005

AW11..EUR,GEN

DARK BEIGE,TRIM4#

 1
74102-1702001

AW11

BLACK,TRIM2#

 1
74102-1701001

AW11

BLACK,BLACK,TRIM2#

 1
74102-1702005

AW11..EUR,GEN

BEIGE,DARK BEIGE,TRIM4#

 1
74102-1702004

AW11

BLUE,DARK BLUE,TRIM8#

 1
74104A - RETAINER SUB-ASSY, FRONT ASH RECEPTACLE
74104-1701001

AW11

BLACK,BLACK,TRIM2#

 1
Common parts
90541-02001
90541-02004
