AW11L-WCMQF (1984)
Toyota Mr2
Production
Nov 1984
-
Aug 1988
Engine
4AGEL
Transmission
5F MTM
Displacement
2500cc
Power
168 HP (125 kW)
(8411- )

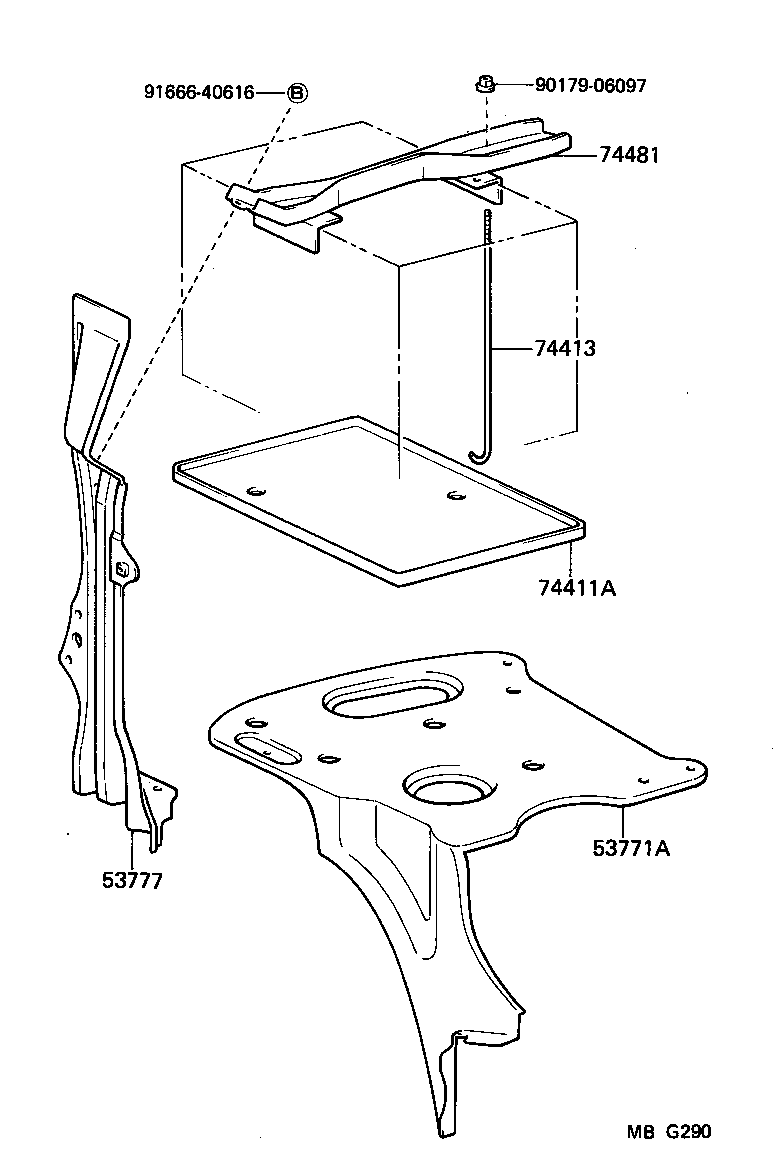

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 53771A - SUPPORT, BATTERY CARRIER | ||||
| 53771-17010 |
AW11 |
1 | ||
| 53777 - SUPPORT, BATTERY CARRIER, NO.2 | ||||
| 53777-17010 |
AW11 |
1 | ||
| 74411A - TRAY, BATTERY | ||||
| 74431-14030 |
AW11..EUR,GEN W/50D20 |
1 | ||
| 74431-14050 |
AW11..GEN W/34B19L |
1 | ||
| 74431-14050 |
AW11..GEN W/NS40ZAL |
1 | ||
| 74413 - BOLT, BATTERY CLAMP | ||||
| 74451-16010 |
AW11 |
1 | ||
| 74481 - CLAMP, BATTERY HOLD DOWN | ||||
| 74404-17010 |
AW11..GEN W/34B19L |
1 | ||
| 74404-17030 |
AW11..EUR,GEN W/50D20L |
1 | ||
| 74404-17010 |
AW11..GEN W/NS40ZAL |
1 | ||
| Common parts | ||||
| 90179-06097 | ||||
| 91666-40616 | ||||
