AW11L-WCMQF (1984)

Toyota Mr2

Production Nov 1984 - Aug 1988
Engine 4AGEL
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(8411- )

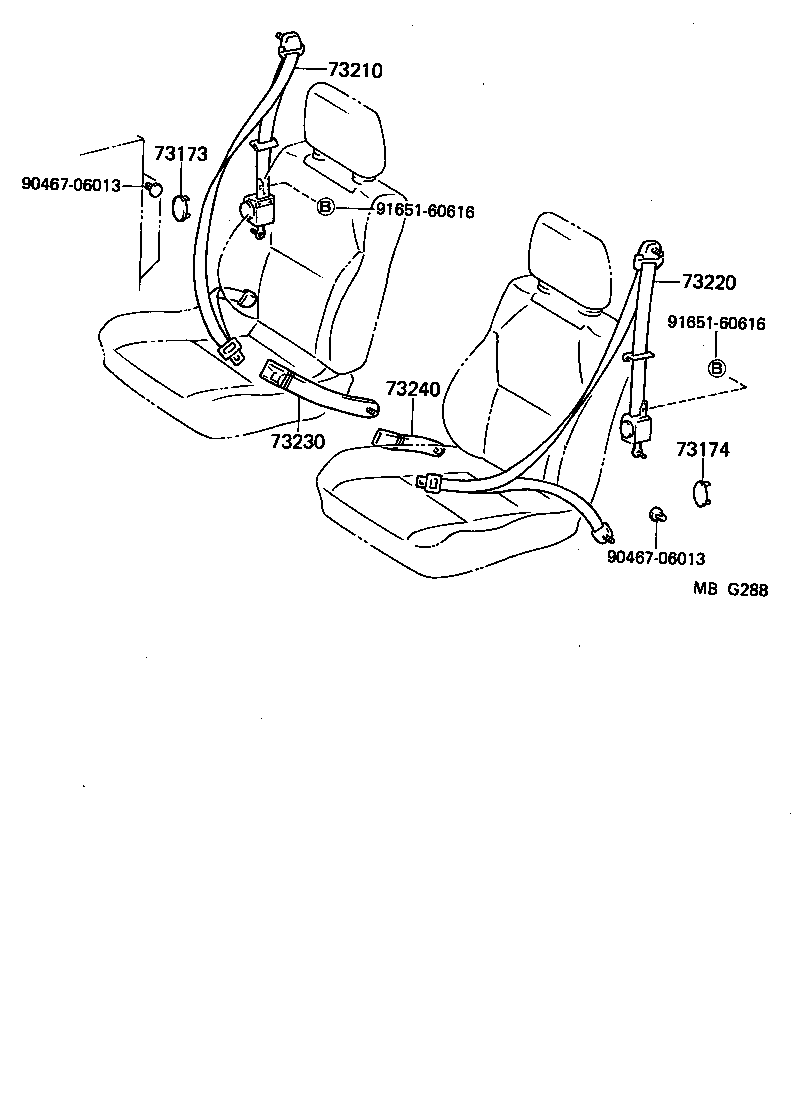

Click highlighted areas on diagram

diagram 73173 73174 73210 73220 73230 73240 9046706013 9046706013 9165160616 9165160616
Part # Description Qty Price
73173 - COVER, FRONT SEAT BELT HOLE, RH
73173-14010

AW11

 1
73174 - COVER, FRONT SEAT BELT HOLE, LH
73173-14010

AW11

 1
73210 - BELT ASSY, FRONT SEAT OUTER, RH
73210-1704001

AW11

BLACK,BLACK,TRIM2#

 1
73210-1705005

AW11..EUR,GEN

BEIGE,DARK BEIGE,TRIM4#

 1
73210-1705001

AW11..EUR,GEN

BLACK,BLACK,TRIM2#

 1
73210-1705004

AW11..EUR,GEN

BLUE,DARK BLUE,TRIM8#

 1
73210-1704101

AW11

BLACK,BLACK,TRIM2#

 1
73210-1705001

AW11..EUR,GEN

BLACK,TRIM2#

 1
73210-1705005

AW11..EUR,GEN

DARK BEIGE,TRIM4#

 1
73220 - BELT ASSY, FRONT SEAT OUTER, LH
73220-1704101

AW11

BLACK,BLACK,TRIM2#

 1
73220-1704001

AW11

BLACK,BLACK,TRIM2#

 1
73220-1705004

AW11..EUR,GEN

BLUE,DARK BLUE,TRIM8#

 1
73220-1705001

AW11..EUR,GEN

BLACK,BLACK,TRIM2#

 1
73220-1705005

AW11..EUR,GEN

DARK BEIGE,TRIM4#

 1
73220-1705005

AW11..EUR,GEN

BEIGE,DARK BEIGE,TRIM4#

 1
73220-1705001

AW11..EUR,GEN

BLACK,TRIM2#

 1
73230 - BELT ASSY, FRONT SEAT INNER, RH
73230-1704105

AW11..EUR,GEN

BEIGE,DARK BEIGE,TRIM4#

 1
73230-1704101

AW11..EUR,GEN

BLACK,TRIM2#

 1
73230-1704101

AW11..EUR,GEN

BLACK,BLACK,TRIM2#

 1
73230-1704105

AW11..EUR,GEN

DARK BEIGE,TRIM4#

 1
73230-1704104

AW11..EUR,GEN

BLUE,DARK BLUE,TRIM8#

 1
73240 - BELT ASSY, FRONT SEAT INNER, LH
73230-1704101

AW11..EUR,GEN

BLACK,BLACK,TRIM2#

 1
73230-1704104

AW11..EUR,GEN

BLUE,DARK BLUE,TRIM8#

 1
73230-1704101

AW11..EUR,GEN

BLACK,TRIM2#

 1
73230-1704105

AW11..EUR,GEN

DARK BEIGE,TRIM4#

 1
73230-1704105

AW11..EUR,GEN

BEIGE,DARK BEIGE,TRIM4#

 1
Common parts
90467-06013
91651-60616
