AW11L-WCMQF (1984)
Toyota Mr2
(8411- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 71071S - COVER, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE) | ||||
| 71071-1705004 |
AW11..LHD *SPS,FB,BLACK & SKY BLUE,BLACK/SKY BLUE,TRIM2# |
1 | ||
| 71071-1705002 |
AW11..LHD *SPS,FB,BLACK & RED,BLACK/RED,TRIM2# |
1 | ||
| 71071-1705003 |
AW11..LHD *SPS,FB,BLACK & GRAY,BLACK/GRAY,TRIM2# |
1 | ||
| 71071-1704001 |
AW11..LHD..EUG;AW11..LHD..GEN FB,BLACK,BLACK,TRIM2# |
1 | ||
| 71071-1713004 |
AW11..LHD *SPS,FB,BLUE,DARK BLUE,TRIM8# |
1 | ||
| 71071-1705005 |
AW11..LHD *SPS,FB,BLACK & BEIGE,BLACK/BEIGE,TRIM2# |
1 | ||
| 71071-1711004 |
AW11..LHD FB,BLUE,DARK BLUE,TRIM8# |
1 | ||
| 71071-1711001 |
AW11..LHD FB,BLACK,BLACK,TRIM2# |
1 | ||
| 71071-1713001 |
AW11..LHD *SPS,FB,BLACK,BLACK,TRIM2# |
1 | ||
| 71071-1711001 |
AW11..LHD BLACK,TRIM2# |
1 | ||
| 71071-1713005 |
AW11..LHD *SPS,FB,BEIGE,DARK BEIGE,TRIM4# |
1 | ||
| 71071-1711005 |
AW11..LHD FB,BEIGE,DARK BEIGE,TRIM4# |
1 | ||
| 71071-1711004 |
AW11..LHD DARK BLUE,TRIM8# |
1 | ||
| 71071-1713005 |
AW11..LHD W(SPORTS SEAT),DARK BEIGE,TRIM4# |
1 | ||
| 71071-1713004 |
AW11..LHD W(SPORTS SEAT),DARK BLUE,TRIM8# |
1 | ||
| 71071-1713001 |
AW11..LHD W(SPORTS SEAT),BLACK,TRIM2# |
1 | ||
| 71071-1711005 |
AW11..LHD DARK BEIGE,TRIM4# |
1 | ||
| 71072S - COVER, FRONT SEAT CUSHION, LH(FOR SEPARATE TYPE) | ||||
| 71072-1705003 |
AW11..LHD *SPS,FB,BLACK & GRAY,BLACK/GRAY,TRIM2# |
1 | ||
| 71072-1705004 |
AW11..LHD *SPS,FB,BLACK & SKY BLUE,BLACK/SKY BLUE,TRIM2# |
1 | ||
| 71072-1704001 |
AW11..LHD..EUG;AW11..LHD..GEN FB,BLACK,BLACK,TRIM2# |
1 | ||
| 71072-1711005 |
AW11..LHD FB,BEIGE,DARK BEIGE,TRIM4# |
1 | ||
| 71072-1711001 |
AW11..LHD FB,BLACK,BLACK,TRIM2# |
1 | ||
| 71072-1705002 |
AW11..LHD *SPS,FB,BLACK & RED,BLACK/RED,TRIM2# |
1 | ||
| 71072-1705005 |
AW11..LHD *SPS,FB,BLACK & BEIGE,BLACK/BEIGE,TRIM2# |
1 | ||
| 71072-1711004 |
AW11..LHD FB,BLUE,DARK BLUE,TRIM8# |
1 | ||
| 71072-1713005 |
AW11..LHD *SPS,FB,BEIGE,DARK BEIGE,TRIM4# |
1 | ||
| 71072-1713001 |
AW11..LHD *SPS,FB,BLACK,BLACK,TRIM2# |
1 | ||
| 71072-1713004 |
AW11..LHD *SPS,FB,BLUE,DARK BLUE,TRIM8# |
1 | ||
| 71072-1713001 |
AW11..LHD W(SPORTS SEAT),BLACK,TRIM2# |
1 | ||
| 71072-1711001 |
AW11..LHD BLACK,TRIM2# |
1 | ||
| 71072-1711005 |
AW11..LHD DARK BEIGE,TRIM4# |
1 | ||
| 71072-1713004 |
AW11..LHD W(SPORTS SEAT),DARK BLUE,TRIM8# |
1 | ||
| 71072-1713005 |
AW11..LHD W(SPORTS SEAT),DARK BEIGE,TRIM4# |
1 | ||
| 71072-1711004 |
AW11..LHD DARK BLUE,TRIM8# |
1 | ||
| 71073S - COVER, FRONT SEAT BACK, RH(FOR SEPARATE TYPE) | ||||
| 71073-1705002 |
AW11..LHD *SPS,FB,BLACK & RED,BLACK/RED,TRIM2# |
1 | ||
| 71073-1705003 |
AW11..LHD *SPS,FB,BLACK & GRAY,BLACK/GRAY,TRIM2# |
1 | ||
| 71073-1704001 |
AW11..RHD;AW11..LHD..EUG;AW11..LHD..GEN FB,BLACK,BLACK,TRIM2# |
1 | ||
| 71073-1705005 |
AW11..LHD *SPS,FB,BLACK & BEIGE,BLACK/BEIGE,TRIM2# |
1 | ||
| 71073-1712004 |
AW11..CP..LHD FB,BLUE,DARK BLUE,TRIM8# |
1 | ||
| 71073-1712001 |
AW11..CP..LHD FB,BLACK,BLACK,TRIM2# |
1 | ||
| 71073-1712005 |
AW11..CP..LHD FB,BEIGE,DARK BEIGE,TRIM4# |
1 | ||
| 71073-1705004 |
AW11..LHD *SPS,FB,BLACK & SKY BLUE,BLACK/SKY BLUE,TRIM2# |
1 | ||
| 71073-1714001 |
AW11..CP..LHD *SPS,FB,BLACK,BLACK,TRIM2# |
1 | ||
| 71073-1714005 |
AW11..CP..LHD *SPS,FB,BEIGE,DARK BEIGE,TRIM4# |
1 | ||
| 71073-1714004 |
AW11..CP..LHD *SPS,FB,BLUE,DARK BLUE,TRIM8# |
1 | ||
| 71073-1712005 |
AW11..CP..LHD DARK BEIGE,TRIM4# |
1 | ||
| 71073-1714004 |
AW11..CP..LHD W(SPORTS SEAT),DARK BLUE,TRIM8# |
1 | ||
| 71073-1714001 |
AW11..CP..LHD W(SPORTS SEAT),BLACK,TRIM2# |
1 | ||
| 71073-1714005 |
AW11..CP..LHD W(SPORTS SEAT),DARK BEIGE,TRIM4# |
1 | ||
| 71073-1712001 |
AW11..CP..LHD BLACK,TRIM2# |
1 | ||
| 71073-1712004 |
AW11..CP..LHD DARK BLUE,TRIM8# |
1 | ||
| 71074S - COVER, FRONT SEAT BACK, LH(FOR SEPARATE TYPE) | ||||
| 71074-1705002 |
AW11..LHD *SPS,FB,BLACK & RED,BLACK/RED,TRIM2# |
1 | ||
| 71074-1704001 |
AW11..RHD;AW11..LHD..EUG;AW11..LHD..GEN FB,BLACK,BLACK,TRIM2# |
1 | ||
| 71074-1705004 |
AW11..LHD *SPS,FB,BLACK & SKY BLUE,BLACK/SKY BLUE,TRIM2# |
1 | ||
| 71074-1712005 |
AW11..CP..LHD FB,BEIGE,DARK BEIGE,TRIM4# |
1 | ||
| 71074-1712004 |
AW11..CP..LHD FB,BLUE,DARK BLUE,TRIM8# |
1 | ||
| 71074-1705003 |
AW11..LHD *SPS,FB,BLACK & GRAY,BLACK/GRAY,TRIM2# |
1 | ||
| 71074-1714005 |
AW11..CP..LHD *SPS,FB,BEIGE,DARK BEIGE,TRIM4# |
1 | ||
| 71074-1712001 |
AW11..CP..LHD FB,BLACK,BLACK,TRIM2# |
1 | ||
| 71074-1705005 |
AW11..LHD *SPS,FB,BLACK & BEIGE,BLACK/BEIGE,TRIM2# |
1 | ||
| 71074-1714004 |
AW11..CP..LHD *SPS,FB,BLUE,DARK BLUE,TRIM8# |
1 | ||
| 71074-1714001 |
AW11..CP..LHD *SPS,FB,BLACK,BLACK,TRIM2# |
1 | ||
| 71074-1712001 |
AW11..CP..LHD BLACK,TRIM2# |
1 | ||
| 71074-1712004 |
AW11..CP..LHD DARK BLUE,TRIM8# |
1 | ||
| 71074-1712005 |
AW11..CP..LHD DARK BEIGE,TRIM4# |
1 | ||
| 71074-1714005 |
AW11..CP..LHD W(SPORTS SEAT),DARK BEIGE,TRIM4# |
1 | ||
| 71074-1714001 |
AW11..CP..LHD W(SPORTS SEAT),BLACK,TRIM2# |
1 | ||
| 71074-1714004 |
AW11..CP..LHD W(SPORTS SEAT),DARK BLUE,TRIM8# |
1 | ||
| 71311B - BUSH (FOR FRONT SEAT HINGE PIN) | ||||
| 90386-12027 |
AW11 |
2 | ||
| 71311B - BUSH (FOR FRONT SEAT HINGE PIN) | ||||
| 90386-12027 |
AW11 |
2 | ||
| 71410S - CUSHION ASSY, FRONT SEAT, RH(FOR SEPARATE TYPE) | ||||
| 71410-1707003 |
AW11..LHD *SPS,FB,BLACK & GRAY,BLACK/GRAY,TRIM2# |
1 | ||
| 71410-1707004 |
AW11..LHD *SPS,FB,BLACK & SKY BLUE,BLACK/SKY BLUE,TRIM2# |
1 | ||
| 71410-1706001 |
AW11..LHD..EUG;AW11..LHD..GEN FB,BLACK,BLACK,TRIM2# |
1 | ||
| 71410-1707005 |
AW11..LHD *SPS,FB,BLACK & BEIGE,BLACK/BEIGE,TRIM2# |
1 | ||
| 71410-1716004 |
AW11..LHD FB,BLUE,DARK BLUE,TRIM8# |
1 | ||
| 71410-1716001 |
AW11..LHD FB,BLACK,BLACK,TRIM2# |
1 | ||
| 71410-1716005 |
AW11..LHD FB,BEIGE,DARK BEIGE,TRIM4# |
1 | ||
| 71410-1707002 |
AW11..LHD *SPS,FB,BLACK & RED,BLACK/RED,TRIM2# |
1 | ||
| 71410-1718004 |
AW11..LHD *SPS,FB,BLUE,DARK BLUE,TRIM8# |
1 | ||
| 71410-1718001 |
AW11..LHD *SPS,FB,BLACK,BLACK,TRIM2# |
1 | ||
| 71410-1716004 |
AW11..LHD DARK BLUE,TRIM8# |
1 | ||
| 71410-1716001 |
AW11..LHD BLACK,TRIM2# |
1 | ||
| 71410-1718005 |
AW11..LHD *SPS,FB,BEIGE,DARK BEIGE,TRIM4# |
1 | ||
| 71410-1718005 |
AW11..LHD W(SPORTS SEAT),DARK BEIGE,TRIM4# |
1 | ||
| 71410-1716005 |
AW11..LHD DARK BEIGE,TRIM4# |
1 | ||
| 71410-1718001 |
AW11..LHD W(SPORTS SEAT),BLACK,TRIM2# |
1 | ||
| 71410-1718004 |
AW11..LHD W(SPORTS SEAT),DARK BLUE,TRIM8# |
1 | ||
| 71420S - CUSHION ASSY, FRONT SEAT, LH (FOR SEPARATE TYPE) | ||||
| 71420-1707002 |
AW11..LHD *SPS,FB,BLACK & RED,BLACK/RED,TRIM2# |
1 | ||
| 71420-1706001 |
AW11..LHD..EUG;AW11..LHD..GEN FB,BLACK,BLACK,TRIM2# |
1 | ||
| 71420-1707004 |
AW11..LHD *SPS,FB,BLACK & SKY BLUE,BLACK/SKY BLUE,TRIM2# |
1 | ||
| 71420-1707003 |
AW11..LHD *SPS,FB,BLACK & GRAY,BLACK/GRAY,TRIM2# |
1 | ||
| 71420-1716001 |
AW11..LHD FB,BLACK,BLACK,TRIM2# |
1 | ||
| 71420-1716004 |
AW11..LHD FB,BLUE,DARK BLUE,TRIM8# |
1 | ||
| 71420-1707005 |
AW11..LHD *SPS,FB,BLACK & BEIGE,BLACK/BEIGE,TRIM2# |
1 | ||
| 71420-1718005 |
AW11..LHD *SPS,FB,BEIGE,DARK BEIGE,TRIM4# |
1 | ||
| 71420-1718004 |
AW11..LHD *SPS,FB,BLUE,DARK BLUE,TRIM8# |
1 | ||
| 71420-1716005 |
AW11..LHD FB,BEIGE,DARK BEIGE,TRIM4# |
1 | ||
| 71420-1716004 |
AW11..LHD DARK BLUE,TRIM8# |
1 | ||
| 71420-1716001 |
AW11..LHD BLACK,TRIM2# |
1 | ||
| 71420-1718005 |
AW11..LHD W(SPORTS SEAT),DARK BEIGE,TRIM4# |
1 | ||
| 71420-1718004 |
AW11..LHD W(SPORTS SEAT),DARK BLUE,TRIM8# |
1 | ||
| 71420-1718001 |
AW11..LHD W(SPORTS SEAT),BLACK,TRIM2# |
1 | ||
| 71420-1716005 |
AW11..LHD DARK BEIGE,TRIM4# |
1 | ||
| 71420-1718001 |
AW11..LHD *SPS,FB,BLACK,BLACK,TRIM2# |
1 | ||
| 71430S - BACK ASSY, FRONT SEAT, RH(FOR SEPARATE TYPE) | ||||
| 71430-1705004 |
AW11..LHD *SPS,FB,BLACK & SKY BLUE,BLACK/SKY BLUE,TRIM2# |
1 | ||
| 71430-1718001 |
AW11..CP..LHD *SPS,FB,BLACK,BLACK,TRIM2# |
1 | ||
| 71430-1705002 |
AW11..LHD *SPS,FB,BLACK & RED,BLACK/RED,TRIM2# |
1 | ||
| 71430-1705003 |
AW11..LHD *SPS,FB,BLACK & GRAY,BLACK/GRAY,TRIM2# |
1 | ||
| 71430-1705005 |
AW11..LHD *SPS,FB,BLACK & BEIGE,BLACK/BEIGE,TRIM2# |
1 | ||
| 71430-1718005 |
AW11..CP..LHD *SPS,FB,BEIGE,DARK BEIGE,TRIM4# |
1 | ||
| 71430-1721004 |
AW11..CP..LHD FB,BLUE,DARK BLUE,TRIM8# |
1 | ||
| 71430-1706001 |
AW11..RHD;AW11..LHD..EUG;AW11..LHD..GEN FB,BLACK,BLACK,TRIM2# |
1 | ||
| 71430-1721005 |
AW11..CP..LHD FB,BEIGE,DARK BEIGE,TRIM4# |
1 | ||
| 71430-1718004 |
AW11..CP..LHD *SPS,FB,BLUE,DARK BLUE,TRIM8# |
1 | ||
| 71430-1721001 |
AW11..CP..LHD FB,BLACK,BLACK,TRIM2# |
1 | ||
| 71430-1718004 |
AW11..CP..LHD W(SPORTS SEAT),DARK BLUE,TRIM8# |
1 | ||
| 71430-1718005 |
AW11..CP..LHD W(SPORTS SEAT),DARK BEIGE,TRIM4# |
1 | ||
| 71430-1721001 |
AW11..CP..LHD BLACK,TRIM2# |
1 | ||
| 71430-1721004 |
AW11..CP..LHD DARK BLUE,TRIM8# |
1 | ||
| 71430-1718001 |
AW11..CP..LHD W(SPORTS SEAT),BLACK,TRIM2# |
1 | ||
| 71430-1721005 |
AW11..CP..LHD DARK BEIGE,TRIM4# |
1 | ||
| 71440S - BACK ASSY, FRONT SEAT, LH(FOR SEPARATE TYPE) | ||||
| 71440-1705004 |
AW11..LHD *SPS,FB,BLACK & SKY BLUE,BLACK/SKY BLUE,TRIM2# |
1 | ||
| 71440-1705003 |
AW11..LHD *SPS,FB,BLACK & GRAY,BLACK/GRAY,TRIM2# |
1 | ||
| 71440-1718004 |
AW11..CP..LHD *SPS,FB,BLUE,DARK BLUE,TRIM8# |
1 | ||
| 71440-1706001 |
AW11..RHD;AW11..LHD..EUG;AW11..LHD..GEN FB,BLACK,BLACK,TRIM2# |
1 | ||
| 71440-1705005 |
AW11..LHD *SPS,FB,BLACK & BEIGE,BLACK/BEIGE,TRIM2# |
1 | ||
| 71440-1705002 |
AW11..LHD *SPS,FB,BLACK & RED,BLACK/RED,TRIM2# |
1 | ||
| 71440-1721001 |
AW11..CP..LHD FB,BLACK,BLACK,TRIM2# |
1 | ||
| 71440-1718001 |
AW11..CP..LHD *SPS,FB,BLACK,BLACK,TRIM2# |
1 | ||
| 71440-1721005 |
AW11..CP..LHD FB,BEIGE,DARK BEIGE,TRIM4# |
1 | ||
| 71440-1718005 |
AW11..CP..LHD *SPS,FB,BEIGE,DARK BEIGE,TRIM4# |
1 | ||
| 71440-1721004 |
AW11..CP..LHD FB,BLUE,DARK BLUE,TRIM8# |
1 | ||
| 71440-1718004 |
AW11..CP..LHD W(SPORTS SEAT),DARK BLUE,TRIM8# |
1 | ||
| 71440-1721004 |
AW11..CP..LHD DARK BLUE,TRIM8# |
1 | ||
| 71440-1718001 |
AW11..CP..LHD W(SPORTS SEAT),BLACK,TRIM2# |
1 | ||
| 71440-1718005 |
AW11..CP..LHD DARK BEIGE,TRIM8# |
1 | ||
| 71440-1721005 |
AW11..CP..LHD DARK BEIGE,TRIM4# |
1 | ||
| 71440-1721001 |
AW11..CP..LHD BLACK,TRIM2# |
1 | ||
| 71505 - PAD SUB-ASSY, FRONT SEAT BACK W/FRAME, RH | ||||
| 71505-17030 |
AW11..LHD *SPS |
1 | ||
| 71505-17010 |
AW11..RHD;AW11..LHD..EUG;AW11..LHD..GEN |
1 | ||
| 71506 - PAD SUB-ASSY, FRONT SEAT BACK W/FRAME, LH | ||||
| 71506-17010 |
AW11..RHD;AW11..LHD..EUG;AW11..LHD..GEN |
1 | ||
| 71506-17040 |
AW11..LHD *SPS |
1 | ||
| 71511S - PAD, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE) | ||||
| 71511-17050 |
AW11..LHD *SPS |
1 | ||
| 71511-17020 |
AW11..LHD..EUG;AW11..LHD..GEN |
1 | ||
| 71511-17070 |
AW11..LHD *SPS |
1 | ||
| 71512S - PAD, FRONT SEAT CUSHION, LH (FOR SEPARATE TYPE) | ||||
| 71512-17020 |
AW11..LHD..EUG;AW11..LHD..GEN |
1 | ||
| 71512-17050 |
AW11..LHD *SPS |
1 | ||
| 71610S - SPRING ASSY, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE) | ||||
| 71610-17020 |
AW11..LHD |
1 | ||
| 71620S - SPRING ASSY, FRONT SEAT CUSHION, LH(FOR SEPARATE TYPE) | ||||
| 71620-12170 |
AW11..LHD |
1 | ||
| 71811D - SHIELD, FRONT SEAT CUSHION, RH | ||||
| 71811-1406005 |
AW11..LHD DARK BEIGE,TRIM4# |
1 | ||
| 71811-1406001 |
AW11..LHD BLACK,TRIM2# |
1 | ||
| 71811-1406005 |
AW11..LHD BEIGE,DARK BEIGE,TRIM4# |
1 | ||
| 71811-1406001 |
AW11..LHD BLACK,BLACK,TRIM2# |
1 | ||
| 71811-1406014 |
AW11..LHD BLUE,DARK BLUE,TRIM8# |
1 | ||
| 71812A - RING, HOG, SMALL (FOR FRONT SEAT) | ||||
| 90468-18071 |
AW11 |
33 | ||
| 71812A - RING, HOG, SMALL (FOR FRONT SEAT) | ||||
| 90468-18071 |
AW11 |
33 | ||
| 71812A - RING, HOG, SMALL (FOR FRONT SEAT) | ||||
| 90468-18071 |
AW11 |
33 | ||
| 71812A - RING, HOG, SMALL (FOR FRONT SEAT) | ||||
| 90468-18071 |
AW11 |
33 | ||
| 71812D - SHIELD, FRONT SEAT CUSHION, LH | ||||
| 71812-1701004 |
AW11..LHD BLUE,DARK BEIGE,TRIM8# |
1 | ||
| 71812-1701001 |
AW11..LHD BLACK,BLACK,TRIM2# |
1 | ||
| 71812-1701005 |
AW11..LHD BEIGE,DARK BLUE,TRIM4# |
1 | ||
| 71812-1701001 |
AW11..LHD BLACK,TRIM2# |
1 | ||
| 71812-1701005 |
AW11..LHD DARK BLUE,TRIM4# |
1 | ||
| 72011 - ADJUSTER SUB-ASSY, FRONT SEAT, OUTER RH | ||||
| 72010-17020 |
AW11..LHD |
1 | ||
| 72011A - SPRING, TENSION (FOR FRONT SEAT ADJUSTER OUTER) | ||||
| 90506-18015 |
AW11 |
2 | ||
| 72011A - SPRING, TENSION (FOR FRONT SEAT ADJUSTER OUTER) | ||||
| 90506-18015 |
AW11 |
2 | ||
| 72012 - ADJUSTER SUB-ASSY, FRONT SEAT, OUTER LH | ||||
| 72020-17030 |
AW11..LHD |
1 | ||
| 72110E - SPRING, TENSION, NO.1 (FOR SEAT TRACK) | ||||
| 90506-18020 |
AW11 |
2 | ||
| 72110E - SPRING, TENSION, NO.1 (FOR SEAT TRACK) | ||||
| 90506-18020 |
AW11 |
2 | ||
| 72130 - TRACK ASSY, RH SEAT, INNER | ||||
| 72130-17020 |
AW11..LHD |
1 | ||
| 72140 - TRACK ASSY, LH SEAT, INNER | ||||
| 72140-17030 |
AW11..LHD |
1 | ||
| 72301 - WIRE SUB-ASSY, SEAT TRACK EQUALIZING | ||||
| 72301-14050 |
AW11 |
1 | ||
| 72457A - KNOB, SEAT ADJUSTER | ||||
| 72457-1701014 |
AW11 BLUE,DARK BLUE,TRIM8# |
1 | ||
| 72457-1701001 |
AW11 BLACK,BLACK,TRIM2# |
1 | ||
| 72457-1701015 |
AW11..EUR,GEN DARK BEIGE,TRIM4# |
1 | ||
| 72457-1701001 |
AW11 BLACK,TRIM2# |
1 | ||
| 72457-1701015 |
AW11..EUR,GEN BEIGE,DARK BEIGE,TRIM4# |
1 | ||
| 72524 - HANDLE, RECLINING ADJUSTER RELEASE | ||||
| 72525-1209025 |
AW11..EUR,GEN DARK BEIGE,TRIM4#,RH |
1 | ||
| 72525-1209001 |
AW11 BLACK,TRIM2#,RH |
1 | ||
| 72525-1209034 |
AW11 RH,BLUE,DARK BLUE,TRIM8# |
1 | ||
| 72525-1209001 |
AW11 RH,BLACK,BLACK,TRIM2# |
1 | ||
| 72525-1209025 |
AW11..EUR,GEN RH,BEIGE,DARK BEIGE,TRIM4# |
1 | ||
| 72526-1203025 |
AW11..EUR,GEN DARK BEIGE,TRIM4#,LH |
1 | ||
| 72526-1203001 |
AW11 BLACK,TRIM2#,LH |
1 | ||
| 72526-1203034 |
AW11 LH,BLUE,DARK BLUE,TRIM8# |
1 | ||
| 72526-1203025 |
AW11..EUR,GEN LH,BEIGE,DARK BEIGE,TRIM4# |
1 | ||
| 72526-1203001 |
AW11 LH,BLACK,BLACK,TRIM2# |
1 | ||
| 72524 - HANDLE, RECLINING ADJUSTER RELEASE | ||||
| 72525-1209025 |
AW11..EUR,GEN DARK BEIGE,TRIM4#,RH |
1 | ||
| 72525-1209001 |
AW11 BLACK,TRIM2#,RH |
1 | ||
| 72525-1209034 |
AW11 RH,BLUE,DARK BLUE,TRIM8# |
1 | ||
| 72525-1209001 |
AW11 RH,BLACK,BLACK,TRIM2# |
1 | ||
| 72525-1209025 |
AW11..EUR,GEN RH,BEIGE,DARK BEIGE,TRIM4# |
1 | ||
| 72526-1203025 |
AW11..EUR,GEN DARK BEIGE,TRIM4#,LH |
1 | ||
| 72526-1203001 |
AW11 BLACK,TRIM2#,LH |
1 | ||
| 72526-1203034 |
AW11 LH,BLUE,DARK BLUE,TRIM8# |
1 | ||
| 72526-1203025 |
AW11..EUR,GEN LH,BEIGE,DARK BEIGE,TRIM4# |
1 | ||
| 72526-1203001 |
AW11 LH,BLACK,BLACK,TRIM2# |
1 | ||
| Common parts | ||||
| 90105-08085 | ||||
| 90119-08080 | ||||
| 90119-10185 | ||||
| 90119-10547 | ||||
| 90154-80002 | ||||
| 90168-40045 | ||||
| 93249-54006 | ||||
| 93560-55014 | ||||
| 96160-00800 | ||||

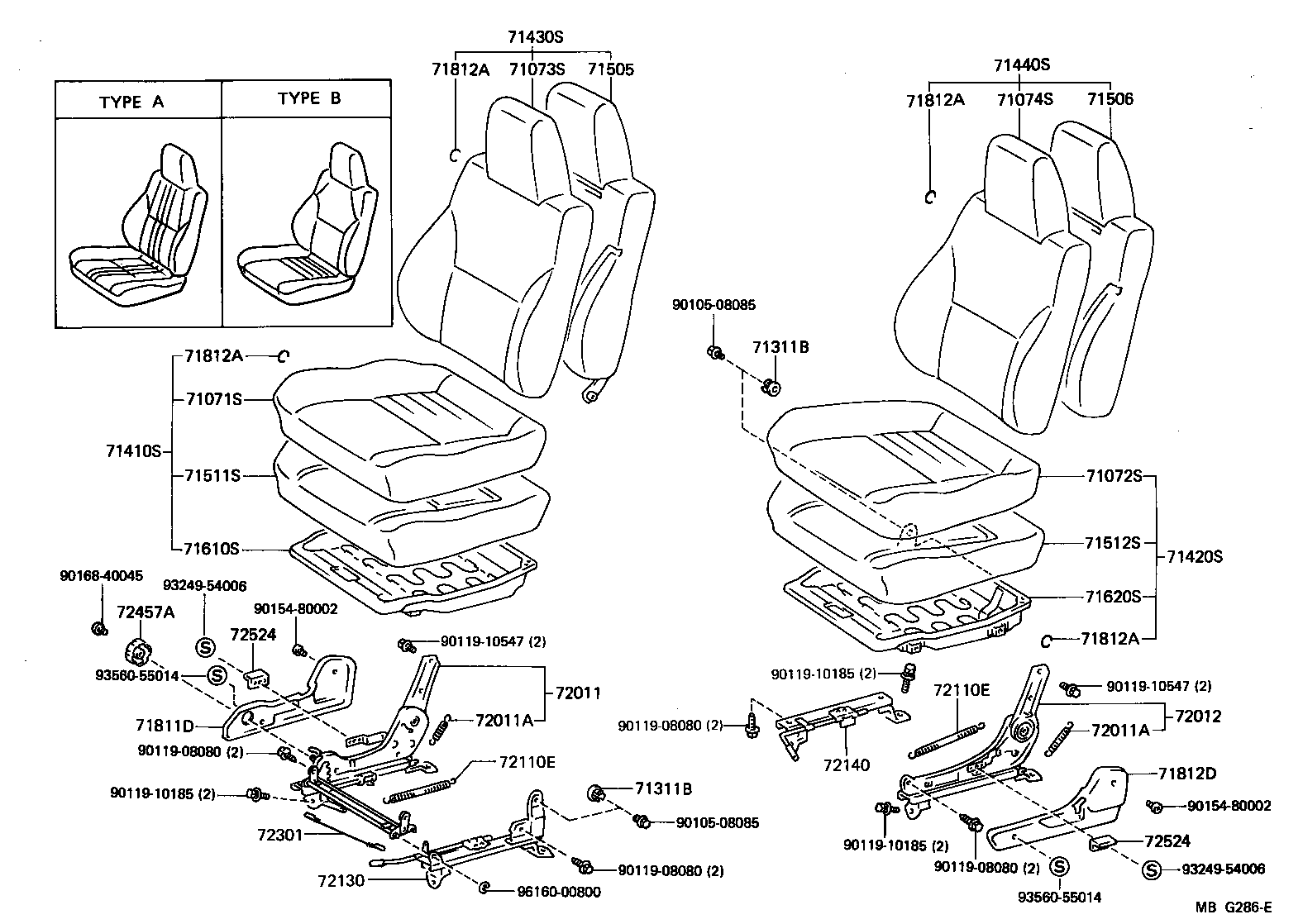

(8411- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 71071S - COVER, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE) | ||||
| 71071-1705004 |
AW11..LHD *SPS,FB,BLACK & SKY BLUE,BLACK/SKY BLUE,TRIM2# |
1 | ||
| 71071-1705002 |
AW11..LHD *SPS,FB,BLACK & RED,BLACK/RED,TRIM2# |
1 | ||
| 71071-1705003 |
AW11..LHD *SPS,FB,BLACK & GRAY,BLACK/GRAY,TRIM2# |
1 | ||
| 71071-1704001 |
AW11..LHD..EUG;AW11..LHD..GEN FB,BLACK,BLACK,TRIM2# |
1 | ||
| 71071-1713004 |
AW11..LHD *SPS,FB,BLUE,DARK BLUE,TRIM8# |
1 | ||
| 71071-1705005 |
AW11..LHD *SPS,FB,BLACK & BEIGE,BLACK/BEIGE,TRIM2# |
1 | ||
| 71071-1711004 |
AW11..LHD FB,BLUE,DARK BLUE,TRIM8# |
1 | ||
| 71071-1711001 |
AW11..LHD FB,BLACK,BLACK,TRIM2# |
1 | ||
| 71071-1713001 |
AW11..LHD *SPS,FB,BLACK,BLACK,TRIM2# |
1 | ||
| 71071-1711001 |
AW11..LHD BLACK,TRIM2# |
1 | ||
| 71071-1713005 |
AW11..LHD *SPS,FB,BEIGE,DARK BEIGE,TRIM4# |
1 | ||
| 71071-1711005 |
AW11..LHD FB,BEIGE,DARK BEIGE,TRIM4# |
1 | ||
| 71071-1711004 |
AW11..LHD DARK BLUE,TRIM8# |
1 | ||
| 71071-1713005 |
AW11..LHD W(SPORTS SEAT),DARK BEIGE,TRIM4# |
1 | ||
| 71071-1713004 |
AW11..LHD W(SPORTS SEAT),DARK BLUE,TRIM8# |
1 | ||
| 71071-1713001 |
AW11..LHD W(SPORTS SEAT),BLACK,TRIM2# |
1 | ||
| 71071-1711005 |
AW11..LHD DARK BEIGE,TRIM4# |
1 | ||
| 71072S - COVER, FRONT SEAT CUSHION, LH(FOR SEPARATE TYPE) | ||||
| 71072-1705003 |
AW11..LHD *SPS,FB,BLACK & GRAY,BLACK/GRAY,TRIM2# |
1 | ||
| 71072-1705004 |
AW11..LHD *SPS,FB,BLACK & SKY BLUE,BLACK/SKY BLUE,TRIM2# |
1 | ||
| 71072-1704001 |
AW11..LHD..EUG;AW11..LHD..GEN FB,BLACK,BLACK,TRIM2# |
1 | ||
| 71072-1711005 |
AW11..LHD FB,BEIGE,DARK BEIGE,TRIM4# |
1 | ||
| 71072-1711001 |
AW11..LHD FB,BLACK,BLACK,TRIM2# |
1 | ||
| 71072-1705002 |
AW11..LHD *SPS,FB,BLACK & RED,BLACK/RED,TRIM2# |
1 | ||
| 71072-1705005 |
AW11..LHD *SPS,FB,BLACK & BEIGE,BLACK/BEIGE,TRIM2# |
1 | ||
| 71072-1711004 |
AW11..LHD FB,BLUE,DARK BLUE,TRIM8# |
1 | ||
| 71072-1713005 |
AW11..LHD *SPS,FB,BEIGE,DARK BEIGE,TRIM4# |
1 | ||
| 71072-1713001 |
AW11..LHD *SPS,FB,BLACK,BLACK,TRIM2# |
1 | ||
| 71072-1713004 |
AW11..LHD *SPS,FB,BLUE,DARK BLUE,TRIM8# |
1 | ||
| 71072-1713001 |
AW11..LHD W(SPORTS SEAT),BLACK,TRIM2# |
1 | ||
| 71072-1711001 |
AW11..LHD BLACK,TRIM2# |
1 | ||
| 71072-1711005 |
AW11..LHD DARK BEIGE,TRIM4# |
1 | ||
| 71072-1713004 |
AW11..LHD W(SPORTS SEAT),DARK BLUE,TRIM8# |
1 | ||
| 71072-1713005 |
AW11..LHD W(SPORTS SEAT),DARK BEIGE,TRIM4# |
1 | ||
| 71072-1711004 |
AW11..LHD DARK BLUE,TRIM8# |
1 | ||
| 71073S - COVER, FRONT SEAT BACK, RH(FOR SEPARATE TYPE) | ||||
| 71073-1705002 |
AW11..LHD *SPS,FB,BLACK & RED,BLACK/RED,TRIM2# |
1 | ||
| 71073-1705003 |
AW11..LHD *SPS,FB,BLACK & GRAY,BLACK/GRAY,TRIM2# |
1 | ||
| 71073-1704001 |
AW11..RHD;AW11..LHD..EUG;AW11..LHD..GEN FB,BLACK,BLACK,TRIM2# |
1 | ||
| 71073-1705005 |
AW11..LHD *SPS,FB,BLACK & BEIGE,BLACK/BEIGE,TRIM2# |
1 | ||
| 71073-1712004 |
AW11..CP..LHD FB,BLUE,DARK BLUE,TRIM8# |
1 | ||
| 71073-1712001 |
AW11..CP..LHD FB,BLACK,BLACK,TRIM2# |
1 | ||
| 71073-1712005 |
AW11..CP..LHD FB,BEIGE,DARK BEIGE,TRIM4# |
1 | ||
| 71073-1705004 |
AW11..LHD *SPS,FB,BLACK & SKY BLUE,BLACK/SKY BLUE,TRIM2# |
1 | ||
| 71073-1714001 |
AW11..CP..LHD *SPS,FB,BLACK,BLACK,TRIM2# |
1 | ||
| 71073-1714005 |
AW11..CP..LHD *SPS,FB,BEIGE,DARK BEIGE,TRIM4# |
1 | ||
| 71073-1714004 |
AW11..CP..LHD *SPS,FB,BLUE,DARK BLUE,TRIM8# |
1 | ||
| 71073-1712005 |
AW11..CP..LHD DARK BEIGE,TRIM4# |
1 | ||
| 71073-1714004 |
AW11..CP..LHD W(SPORTS SEAT),DARK BLUE,TRIM8# |
1 | ||
| 71073-1714001 |
AW11..CP..LHD W(SPORTS SEAT),BLACK,TRIM2# |
1 | ||
| 71073-1714005 |
AW11..CP..LHD W(SPORTS SEAT),DARK BEIGE,TRIM4# |
1 | ||
| 71073-1712001 |
AW11..CP..LHD BLACK,TRIM2# |
1 | ||
| 71073-1712004 |
AW11..CP..LHD DARK BLUE,TRIM8# |
1 | ||
| 71074S - COVER, FRONT SEAT BACK, LH(FOR SEPARATE TYPE) | ||||
| 71074-1705002 |
AW11..LHD *SPS,FB,BLACK & RED,BLACK/RED,TRIM2# |
1 | ||
| 71074-1704001 |
AW11..RHD;AW11..LHD..EUG;AW11..LHD..GEN FB,BLACK,BLACK,TRIM2# |
1 | ||
| 71074-1705004 |
AW11..LHD *SPS,FB,BLACK & SKY BLUE,BLACK/SKY BLUE,TRIM2# |
1 | ||
| 71074-1712005 |
AW11..CP..LHD FB,BEIGE,DARK BEIGE,TRIM4# |
1 | ||
| 71074-1712004 |
AW11..CP..LHD FB,BLUE,DARK BLUE,TRIM8# |
1 | ||
| 71074-1705003 |
AW11..LHD *SPS,FB,BLACK & GRAY,BLACK/GRAY,TRIM2# |
1 | ||
| 71074-1714005 |
AW11..CP..LHD *SPS,FB,BEIGE,DARK BEIGE,TRIM4# |
1 | ||
| 71074-1712001 |
AW11..CP..LHD FB,BLACK,BLACK,TRIM2# |
1 | ||
| 71074-1705005 |
AW11..LHD *SPS,FB,BLACK & BEIGE,BLACK/BEIGE,TRIM2# |
1 | ||
| 71074-1714004 |
AW11..CP..LHD *SPS,FB,BLUE,DARK BLUE,TRIM8# |
1 | ||
| 71074-1714001 |
AW11..CP..LHD *SPS,FB,BLACK,BLACK,TRIM2# |
1 | ||
| 71074-1712001 |
AW11..CP..LHD BLACK,TRIM2# |
1 | ||
| 71074-1712004 |
AW11..CP..LHD DARK BLUE,TRIM8# |
1 | ||
| 71074-1712005 |
AW11..CP..LHD DARK BEIGE,TRIM4# |
1 | ||
| 71074-1714005 |
AW11..CP..LHD W(SPORTS SEAT),DARK BEIGE,TRIM4# |
1 | ||
| 71074-1714001 |
AW11..CP..LHD W(SPORTS SEAT),BLACK,TRIM2# |
1 | ||
| 71074-1714004 |
AW11..CP..LHD W(SPORTS SEAT),DARK BLUE,TRIM8# |
1 | ||
| 71311B - BUSH (FOR FRONT SEAT HINGE PIN) | ||||
| 90386-12027 |
AW11 |
2 | ||
| 71311B - BUSH (FOR FRONT SEAT HINGE PIN) | ||||
| 90386-12027 |
AW11 |
2 | ||
| 71410S - CUSHION ASSY, FRONT SEAT, RH(FOR SEPARATE TYPE) | ||||
| 71410-1707003 |
AW11..LHD *SPS,FB,BLACK & GRAY,BLACK/GRAY,TRIM2# |
1 | ||
| 71410-1707004 |
AW11..LHD *SPS,FB,BLACK & SKY BLUE,BLACK/SKY BLUE,TRIM2# |
1 | ||
| 71410-1706001 |
AW11..LHD..EUG;AW11..LHD..GEN FB,BLACK,BLACK,TRIM2# |
1 | ||
| 71410-1707005 |
AW11..LHD *SPS,FB,BLACK & BEIGE,BLACK/BEIGE,TRIM2# |
1 | ||
| 71410-1716004 |
AW11..LHD FB,BLUE,DARK BLUE,TRIM8# |
1 | ||
| 71410-1716001 |
AW11..LHD FB,BLACK,BLACK,TRIM2# |
1 | ||
| 71410-1716005 |
AW11..LHD FB,BEIGE,DARK BEIGE,TRIM4# |
1 | ||
| 71410-1707002 |
AW11..LHD *SPS,FB,BLACK & RED,BLACK/RED,TRIM2# |
1 | ||
| 71410-1718004 |
AW11..LHD *SPS,FB,BLUE,DARK BLUE,TRIM8# |
1 | ||
| 71410-1718001 |
AW11..LHD *SPS,FB,BLACK,BLACK,TRIM2# |
1 | ||
| 71410-1716004 |
AW11..LHD DARK BLUE,TRIM8# |
1 | ||
| 71410-1716001 |
AW11..LHD BLACK,TRIM2# |
1 | ||
| 71410-1718005 |
AW11..LHD *SPS,FB,BEIGE,DARK BEIGE,TRIM4# |
1 | ||
| 71410-1718005 |
AW11..LHD W(SPORTS SEAT),DARK BEIGE,TRIM4# |
1 | ||
| 71410-1716005 |
AW11..LHD DARK BEIGE,TRIM4# |
1 | ||
| 71410-1718001 |
AW11..LHD W(SPORTS SEAT),BLACK,TRIM2# |
1 | ||
| 71410-1718004 |
AW11..LHD W(SPORTS SEAT),DARK BLUE,TRIM8# |
1 | ||
| 71420S - CUSHION ASSY, FRONT SEAT, LH (FOR SEPARATE TYPE) | ||||
| 71420-1707002 |
AW11..LHD *SPS,FB,BLACK & RED,BLACK/RED,TRIM2# |
1 | ||
| 71420-1706001 |
AW11..LHD..EUG;AW11..LHD..GEN FB,BLACK,BLACK,TRIM2# |
1 | ||
| 71420-1707004 |
AW11..LHD *SPS,FB,BLACK & SKY BLUE,BLACK/SKY BLUE,TRIM2# |
1 | ||
| 71420-1707003 |
AW11..LHD *SPS,FB,BLACK & GRAY,BLACK/GRAY,TRIM2# |
1 | ||
| 71420-1716001 |
AW11..LHD FB,BLACK,BLACK,TRIM2# |
1 | ||
| 71420-1716004 |
AW11..LHD FB,BLUE,DARK BLUE,TRIM8# |
1 | ||
| 71420-1707005 |
AW11..LHD *SPS,FB,BLACK & BEIGE,BLACK/BEIGE,TRIM2# |
1 | ||
| 71420-1718005 |
AW11..LHD *SPS,FB,BEIGE,DARK BEIGE,TRIM4# |
1 | ||
| 71420-1718004 |
AW11..LHD *SPS,FB,BLUE,DARK BLUE,TRIM8# |
1 | ||
| 71420-1716005 |
AW11..LHD FB,BEIGE,DARK BEIGE,TRIM4# |
1 | ||
| 71420-1716004 |
AW11..LHD DARK BLUE,TRIM8# |
1 | ||
| 71420-1716001 |
AW11..LHD BLACK,TRIM2# |
1 | ||
| 71420-1718005 |
AW11..LHD W(SPORTS SEAT),DARK BEIGE,TRIM4# |
1 | ||
| 71420-1718004 |
AW11..LHD W(SPORTS SEAT),DARK BLUE,TRIM8# |
1 | ||
| 71420-1718001 |
AW11..LHD W(SPORTS SEAT),BLACK,TRIM2# |
1 | ||
| 71420-1716005 |
AW11..LHD DARK BEIGE,TRIM4# |
1 | ||
| 71420-1718001 |
AW11..LHD *SPS,FB,BLACK,BLACK,TRIM2# |
1 | ||
| 71430S - BACK ASSY, FRONT SEAT, RH(FOR SEPARATE TYPE) | ||||
| 71430-1705004 |
AW11..LHD *SPS,FB,BLACK & SKY BLUE,BLACK/SKY BLUE,TRIM2# |
1 | ||
| 71430-1718001 |
AW11..CP..LHD *SPS,FB,BLACK,BLACK,TRIM2# |
1 | ||
| 71430-1705002 |
AW11..LHD *SPS,FB,BLACK & RED,BLACK/RED,TRIM2# |
1 | ||
| 71430-1705003 |
AW11..LHD *SPS,FB,BLACK & GRAY,BLACK/GRAY,TRIM2# |
1 | ||
| 71430-1705005 |
AW11..LHD *SPS,FB,BLACK & BEIGE,BLACK/BEIGE,TRIM2# |
1 | ||
| 71430-1718005 |
AW11..CP..LHD *SPS,FB,BEIGE,DARK BEIGE,TRIM4# |
1 | ||
| 71430-1721004 |
AW11..CP..LHD FB,BLUE,DARK BLUE,TRIM8# |
1 | ||
| 71430-1706001 |
AW11..RHD;AW11..LHD..EUG;AW11..LHD..GEN FB,BLACK,BLACK,TRIM2# |
1 | ||
| 71430-1721005 |
AW11..CP..LHD FB,BEIGE,DARK BEIGE,TRIM4# |
1 | ||
| 71430-1718004 |
AW11..CP..LHD *SPS,FB,BLUE,DARK BLUE,TRIM8# |
1 | ||
| 71430-1721001 |
AW11..CP..LHD FB,BLACK,BLACK,TRIM2# |
1 | ||
| 71430-1718004 |
AW11..CP..LHD W(SPORTS SEAT),DARK BLUE,TRIM8# |
1 | ||
| 71430-1718005 |
AW11..CP..LHD W(SPORTS SEAT),DARK BEIGE,TRIM4# |
1 | ||
| 71430-1721001 |
AW11..CP..LHD BLACK,TRIM2# |
1 | ||
| 71430-1721004 |
AW11..CP..LHD DARK BLUE,TRIM8# |
1 | ||
| 71430-1718001 |
AW11..CP..LHD W(SPORTS SEAT),BLACK,TRIM2# |
1 | ||
| 71430-1721005 |
AW11..CP..LHD DARK BEIGE,TRIM4# |
1 | ||
| 71440S - BACK ASSY, FRONT SEAT, LH(FOR SEPARATE TYPE) | ||||
| 71440-1705004 |
AW11..LHD *SPS,FB,BLACK & SKY BLUE,BLACK/SKY BLUE,TRIM2# |
1 | ||
| 71440-1705003 |
AW11..LHD *SPS,FB,BLACK & GRAY,BLACK/GRAY,TRIM2# |
1 | ||
| 71440-1718004 |
AW11..CP..LHD *SPS,FB,BLUE,DARK BLUE,TRIM8# |
1 | ||
| 71440-1706001 |
AW11..RHD;AW11..LHD..EUG;AW11..LHD..GEN FB,BLACK,BLACK,TRIM2# |
1 | ||
| 71440-1705005 |
AW11..LHD *SPS,FB,BLACK & BEIGE,BLACK/BEIGE,TRIM2# |
1 | ||
| 71440-1705002 |
AW11..LHD *SPS,FB,BLACK & RED,BLACK/RED,TRIM2# |
1 | ||
| 71440-1721001 |
AW11..CP..LHD FB,BLACK,BLACK,TRIM2# |
1 | ||
| 71440-1718001 |
AW11..CP..LHD *SPS,FB,BLACK,BLACK,TRIM2# |
1 | ||
| 71440-1721005 |
AW11..CP..LHD FB,BEIGE,DARK BEIGE,TRIM4# |
1 | ||
| 71440-1718005 |
AW11..CP..LHD *SPS,FB,BEIGE,DARK BEIGE,TRIM4# |
1 | ||
| 71440-1721004 |
AW11..CP..LHD FB,BLUE,DARK BLUE,TRIM8# |
1 | ||
| 71440-1718004 |
AW11..CP..LHD W(SPORTS SEAT),DARK BLUE,TRIM8# |
1 | ||
| 71440-1721004 |
AW11..CP..LHD DARK BLUE,TRIM8# |
1 | ||
| 71440-1718001 |
AW11..CP..LHD W(SPORTS SEAT),BLACK,TRIM2# |
1 | ||
| 71440-1718005 |
AW11..CP..LHD DARK BEIGE,TRIM8# |
1 | ||
| 71440-1721005 |
AW11..CP..LHD DARK BEIGE,TRIM4# |
1 | ||
| 71440-1721001 |
AW11..CP..LHD BLACK,TRIM2# |
1 | ||
| 71505 - PAD SUB-ASSY, FRONT SEAT BACK W/FRAME, RH | ||||
| 71505-17030 |
AW11..LHD *SPS |
1 | ||
| 71505-17010 |
AW11..RHD;AW11..LHD..EUG;AW11..LHD..GEN |
1 | ||
| 71506 - PAD SUB-ASSY, FRONT SEAT BACK W/FRAME, LH | ||||
| 71506-17010 |
AW11..RHD;AW11..LHD..EUG;AW11..LHD..GEN |
1 | ||
| 71506-17040 |
AW11..LHD *SPS |
1 | ||
| 71511S - PAD, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE) | ||||
| 71511-17050 |
AW11..LHD *SPS |
1 | ||
| 71511-17020 |
AW11..LHD..EUG;AW11..LHD..GEN |
1 | ||
| 71511-17070 |
AW11..LHD *SPS |
1 | ||
| 71512S - PAD, FRONT SEAT CUSHION, LH (FOR SEPARATE TYPE) | ||||
| 71512-17020 |
AW11..LHD..EUG;AW11..LHD..GEN |
1 | ||
| 71512-17050 |
AW11..LHD *SPS |
1 | ||
| 71610S - SPRING ASSY, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE) | ||||
| 71610-17020 |
AW11..LHD |
1 | ||
| 71620S - SPRING ASSY, FRONT SEAT CUSHION, LH(FOR SEPARATE TYPE) | ||||
| 71620-12170 |
AW11..LHD |
1 | ||
| 71811D - SHIELD, FRONT SEAT CUSHION, RH | ||||
| 71811-1406005 |
AW11..LHD DARK BEIGE,TRIM4# |
1 | ||
| 71811-1406001 |
AW11..LHD BLACK,TRIM2# |
1 | ||
| 71811-1406005 |
AW11..LHD BEIGE,DARK BEIGE,TRIM4# |
1 | ||
| 71811-1406001 |
AW11..LHD BLACK,BLACK,TRIM2# |
1 | ||
| 71811-1406014 |
AW11..LHD BLUE,DARK BLUE,TRIM8# |
1 | ||
| 71812A - RING, HOG, SMALL (FOR FRONT SEAT) | ||||
| 90468-18071 |
AW11 |
33 | ||
| 71812A - RING, HOG, SMALL (FOR FRONT SEAT) | ||||
| 90468-18071 |
AW11 |
33 | ||
| 71812A - RING, HOG, SMALL (FOR FRONT SEAT) | ||||
| 90468-18071 |
AW11 |
33 | ||
| 71812A - RING, HOG, SMALL (FOR FRONT SEAT) | ||||
| 90468-18071 |
AW11 |
33 | ||
| 71812D - SHIELD, FRONT SEAT CUSHION, LH | ||||
| 71812-1701004 |
AW11..LHD BLUE,DARK BEIGE,TRIM8# |
1 | ||
| 71812-1701001 |
AW11..LHD BLACK,BLACK,TRIM2# |
1 | ||
| 71812-1701005 |
AW11..LHD BEIGE,DARK BLUE,TRIM4# |
1 | ||
| 71812-1701001 |
AW11..LHD BLACK,TRIM2# |
1 | ||
| 71812-1701005 |
AW11..LHD DARK BLUE,TRIM4# |
1 | ||
| 71950 - HEADREST ASSY, FRONT SEAT | ||||
| 71910-1702003 |
AW11 *SPS,BLACK & GRAY,BLACK/GRAY,TRIM2# |
2 | ||
| 71910-1707001 |
AW11 FB,BLACK,BLACK,TRIM2# |
2 | ||
| 71910-1702004 |
AW11 *SPS,BLACK & SKY BLUE,BLACK/SKY BLUE,TRIM2# |
2 | ||
| 71910-1707005 |
AW11 FB,BEIGE,DARK BEIGE,TRIM4# |
2 | ||
| 71910-1707001 |
AW11 BLACK,TRIM2# |
2 | ||
| 71910-1702002 |
AW11 *SPS,BLACK & RED,BLACK/RED,TRIM2# |
2 | ||
| 71910-1707004 |
AW11..EUR,GEN FB,BLUE,DARK BLUE,TRIM8# |
2 | ||
| 71910-1707004 |
AW11 DARK BLUE,TRIM8# |
2 | ||
| 71910-1707005 |
AW11..EUR,GEN DARK BEIGE,TRIM4# |
2 | ||
| 71910-1702005 |
AW11 *SPS,BLACK & BEIGE,BLACK/BEIGE,TRIM2# |
2 | ||
| 71956A - SUPPORT, FRONT SEAT HEADREST | ||||
| 71930-17010 |
AW11 W(LOCK),W/LOCK |
2 | ||
| 71931-1001001 |
AW11 W/O(LOCK),W/O LOCK,BLACK,BLACK,TRIM2# |
2 | ||
| 71930-1701001 |
AW11 W(LOCK),W/LOCK,BLACK,BLACK,TRIM2# |
2 | ||
| 71956A - SUPPORT, FRONT SEAT HEADREST | ||||
| 71930-17010 |
AW11 W(LOCK),W/LOCK |
2 | ||
| 71931-1001001 |
AW11 W/O(LOCK),W/O LOCK,BLACK,BLACK,TRIM2# |
2 | ||
| 71930-1701001 |
AW11 W(LOCK),W/LOCK,BLACK,BLACK,TRIM2# |
2 | ||
| 71960A - BASE ASSY, HEADREST SUPPORT | ||||
| 71960-1701001 |
AW11 BLACK,BLACK,TRIM2# |
2 | ||
| 71960-1701004 |
AW11 BLUE,DARK BLUE,TRIM8# |
2 | ||
| 71960-1701005 |
AW11..EUR,GEN BEIGE,DARK BEIGE,TRIM4# |
2 | ||
| 71960-1701001 |
AW11 W(MOQUETTE),BLACK,TRIM2# |
2 | ||
| 71960-1701005 |
AW11..EUR,GEN W(MOQUETTE),DARK BEIGE,TRIM4# |
2 | ||
| 71995A - CLAMP, HEADREST BOOT | ||||
| 71995-17010 |
AW11 |
4 | ||
| 71995A - CLAMP, HEADREST BOOT | ||||
| 71995-17010 |
AW11 |
4 | ||
| 72011 - ADJUSTER SUB-ASSY, FRONT SEAT, OUTER RH | ||||
| 72010-17020 |
AW11..LHD |
1 | ||
| 72011A - SPRING, TENSION (FOR FRONT SEAT ADJUSTER OUTER) | ||||
| 90506-18015 |
AW11 |
2 | ||
| 72011A - SPRING, TENSION (FOR FRONT SEAT ADJUSTER OUTER) | ||||
| 90506-18015 |
AW11 |
2 | ||
| 72012 - ADJUSTER SUB-ASSY, FRONT SEAT, OUTER LH | ||||
| 72020-17030 |
AW11..LHD |
1 | ||
| 72110E - SPRING, TENSION, NO.1 (FOR SEAT TRACK) | ||||
| 90506-18020 |
AW11 |
2 | ||
| 72110E - SPRING, TENSION, NO.1 (FOR SEAT TRACK) | ||||
| 90506-18020 |
AW11 |
2 | ||
| 72130 - TRACK ASSY, RH SEAT, INNER | ||||
| 72130-17020 |
AW11..LHD |
1 | ||
| 72140 - TRACK ASSY, LH SEAT, INNER | ||||
| 72140-17030 |
AW11..LHD |
1 | ||
| 72301 - WIRE SUB-ASSY, SEAT TRACK EQUALIZING | ||||
| 72301-14050 |
AW11 |
1 | ||
| 72457A - KNOB, SEAT ADJUSTER | ||||
| 72457-1701014 |
AW11 BLUE,DARK BLUE,TRIM8# |
1 | ||
| 72457-1701001 |
AW11 BLACK,BLACK,TRIM2# |
1 | ||
| 72457-1701015 |
AW11..EUR,GEN DARK BEIGE,TRIM4# |
1 | ||
| 72457-1701001 |
AW11 BLACK,TRIM2# |
1 | ||
| 72457-1701015 |
AW11..EUR,GEN BEIGE,DARK BEIGE,TRIM4# |
1 | ||
| 72457C - KNOB, SIDE SUPPORT ADJUSTER | ||||
| 72457-1403001 |
AW11 *SPS,BLACK,BLACK,TRIM2# |
1 | ||
| 72457-1403020 |
AW11 *SPS,BLUE,DARK BLUE,TRIM8# |
1 | ||
| 72457-1403001 |
AW11..ARL,GEN BLACK,TRIM2# |
1 | ||
| 72457-1403055 |
AW11..GEN DARK BEIGE,TRIM4# |
1 | ||
| 72457-1403055 |
AW11..EUR,GEN *SPS,BEIGE,DARK BEIGE,TRIM4# |
1 | ||
| 72524 - HANDLE, RECLINING ADJUSTER RELEASE | ||||
| 72525-1209025 |
AW11..EUR,GEN DARK BEIGE,TRIM4#,RH |
1 | ||
| 72525-1209001 |
AW11 BLACK,TRIM2#,RH |
1 | ||
| 72525-1209034 |
AW11 RH,BLUE,DARK BLUE,TRIM8# |
1 | ||
| 72525-1209001 |
AW11 RH,BLACK,BLACK,TRIM2# |
1 | ||
| 72525-1209025 |
AW11..EUR,GEN RH,BEIGE,DARK BEIGE,TRIM4# |
1 | ||
| 72526-1203025 |
AW11..EUR,GEN DARK BEIGE,TRIM4#,LH |
1 | ||
| 72526-1203001 |
AW11 BLACK,TRIM2#,LH |
1 | ||
| 72526-1203034 |
AW11 LH,BLUE,DARK BLUE,TRIM8# |
1 | ||
| 72526-1203025 |
AW11..EUR,GEN LH,BEIGE,DARK BEIGE,TRIM4# |
1 | ||
| 72526-1203001 |
AW11 LH,BLACK,BLACK,TRIM2# |
1 | ||
| 72524 - HANDLE, RECLINING ADJUSTER RELEASE | ||||
| 72525-1209025 |
AW11..EUR,GEN DARK BEIGE,TRIM4#,RH |
1 | ||
| 72525-1209001 |
AW11 BLACK,TRIM2#,RH |
1 | ||
| 72525-1209034 |
AW11 RH,BLUE,DARK BLUE,TRIM8# |
1 | ||
| 72525-1209001 |
AW11 RH,BLACK,BLACK,TRIM2# |
1 | ||
| 72525-1209025 |
AW11..EUR,GEN RH,BEIGE,DARK BEIGE,TRIM4# |
1 | ||
| 72526-1203025 |
AW11..EUR,GEN DARK BEIGE,TRIM4#,LH |
1 | ||
| 72526-1203001 |
AW11 BLACK,TRIM2#,LH |
1 | ||
| 72526-1203034 |
AW11 LH,BLUE,DARK BLUE,TRIM8# |
1 | ||
| 72526-1203025 |
AW11..EUR,GEN LH,BEIGE,DARK BEIGE,TRIM4# |
1 | ||
| 72526-1203001 |
AW11 LH,BLACK,BLACK,TRIM2# |
1 | ||
| 72760A - ADJUSTER ASSY, LUMBAR SUPPORT | ||||
| 72760-17010 |
AW11..LHD *SPS |
1 | ||
| 72791 - LEVER, LUMBAR SUPPORT | ||||
| 72791-3001054 |
AW11 *SPS,BLUE,DARK BLUE,TRIM8# |
1 | ||
| 72791-3001055 |
AW11..EUR,GEN *SPS,BEIGE,DARK BEIGE,TRIM4# |
1 | ||
| 72791-3001001 |
AW11 *SPS,BLACK,BLACK,TRIM2# |
1 | ||
| 72791-3001055 |
AW11..GEN DARK BEIGE,TRIM4# |
1 | ||
| 72791-3001001 |
AW11..ARL,GEN BLACK,TRIM2# |
1 | ||
| 72791A - RING, SHAFT SNAP(FOR LUMBER SUPPORT LEVER) | ||||
| 90520-01002 |
AW11 *SPS |
1 | ||
| Common parts | ||||
| 90105-08085 | ||||
| 90119-08080 | ||||
| 90119-10185 | ||||
| 90119-10547 | ||||
| 90154-80002 | ||||
| 90168-40045 | ||||
| 90520-01002 | ||||
| 93249-54006 | ||||
| 93385-16016 | ||||
| 93560-55014 | ||||
| 96160-00800 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
