AW11L-WCMQF (1984)

Toyota Mr2

Production Nov 1984 - Aug 1988
Engine 4AGEL
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(8411-8608)

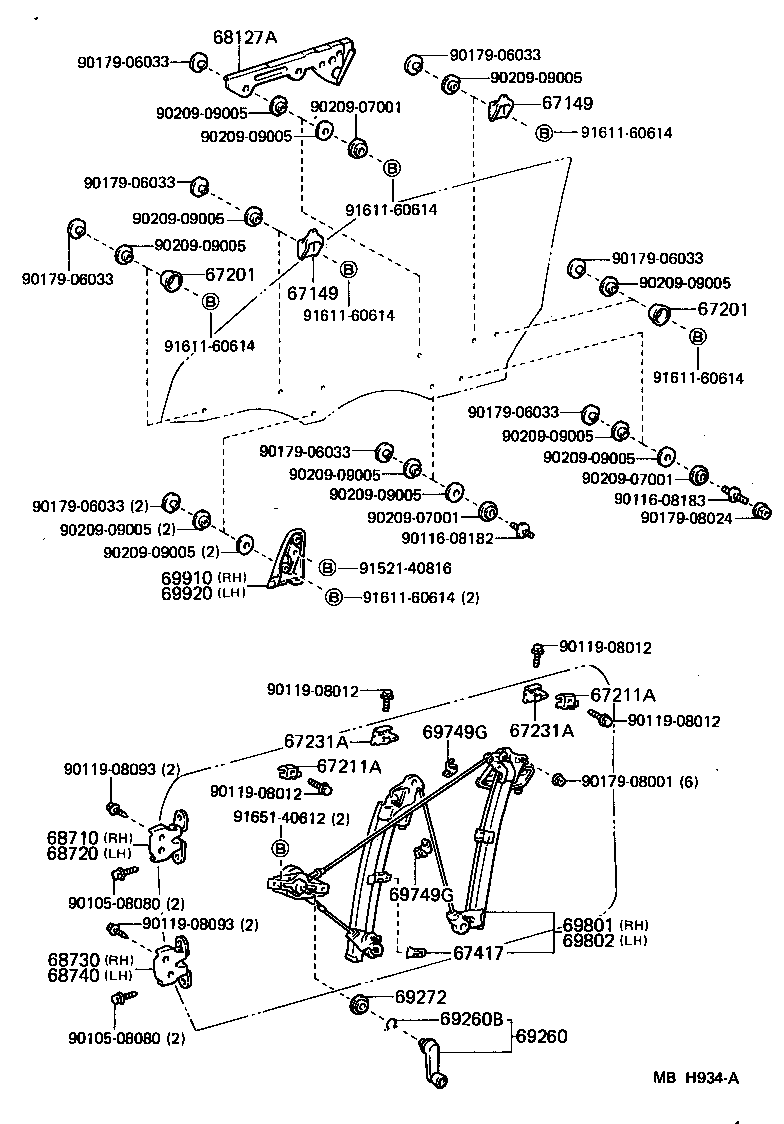

Click highlighted areas on diagram

diagram 67149 67149 67201 67201 67211A 67211A 67231A 67231A 67417 68710 68720 68730 68740 69260 69260B 69272 69749G 69749G 69801 69802 69910 69920 9010508080 9010508080 9011608182 9011608183 9011908012 9011908012 9011908012 9011908012 9011908093 9011908093 9017906033 9017906033 9017906033 9017906033 9017906033 9017906033 9017906033 9017908001 9017908024 9020907001 9020907001 9020909005 9020909005 9020909005 9020909005 9020909005 9020909005 9020909005 9020909005 9020909005 9020909005 9152140816 9161160614 9161160614 9161160614 9161160614 9161160614 9165140612
Part # Description Qty Price
67149 - STABILIZER, FRONT DOOR GLASS
68149-14010

AW11

 4
67149 - STABILIZER, FRONT DOOR GLASS
68149-14010

AW11

 4
67201 - STOPPER ASSY, DOOR GLASS(FOR FRONT DOOR)
68147-14010

AW11

 4
67201 - STOPPER ASSY, DOOR GLASS(FOR FRONT DOOR)
68147-14010

AW11

 4
67211A - STOP, FRONT DOOR WINDOW, UPPER
67211-17010

AW11

 4
67211A - STOP, FRONT DOOR WINDOW, UPPER
67211-17010

AW11

 4
67231A - SUPPORT, FRONT DOOR TRIM
67231-14030

AW11

 4
67231A - SUPPORT, FRONT DOOR TRIM
67231-14030

AW11

 4
68710 - HINGE ASSY, FRONT DOOR, UPPER RH
68710-17010

AW11

 1
68720 - HINGE ASSY, FRONT DOOR, UPPER LH
68720-17010

AW11

 1
68730 - HINGE ASSY, FRONT DOOR, LOWER RH
68730-17010

AW11

 1
68740 - HINGE ASSY, FRONT DOOR, LOWER LH
68740-17010

AW11

 1
69260 - HANDLE ASSY, FRONT DOOR WINDOW REGULATOR
69260-1004001

AW11..ARL,GEN

BLACK,BLACK,TRIM2#

 2
69260-1004055

AW11..GEN

DARK BEIGE,TRIM4#

 2
69260-1004055

AW11..GEN

BEIGE,DARK BEIGE,TRIM4#

 2
69260-1004058

AW11..ARL,GEN

BLUE,DARK BLUE,TRIM8#

 2
69260-1004001

AW11..ARL,GEN

BLACK,TRIM2#

 2
69260B - RING, SHAFT SNAP(FOR FRONT DOOR WINDOW REGULATOR HANDLE
90520-01002

AW11

 2
69272 - PLATE, FRONT DOOR REGULATOR INSIDE HANDLE
69268-17010

AW11

 2
69268-1701005

AW11..EUR,GEN

DARK BEIGE,TRIM4#

 2
69268-1701001

AW11

BLACK,BLACK,TRIM2#,4#

 2
69268-1701001

AW11

BLACK,TRIM2#,8#

 2
69268-1701005

AW11..EUR,GEN

BEIGE,DARK BEIGE,TRIM4#

 2
69749G - CLAMP(FOR FRONT DOOR WINDOW REGULATOR)
90467-09049

AW11

 4
69749G - CLAMP(FOR FRONT DOOR WINDOW REGULATOR)
90467-09049

AW11

 4
69801 - REGULATOR SUB-ASSY, FRONT DOOR WINDOW, RH
69810-17010

AW11

 1
69801-17030

AW11

W/POWER WINDOW

 1
69801-17031

AW11

W/POWER WINDOW

 1
69802 - REGULATOR SUB-ASSY, FRONT DOOR WINDOW, LH
69802-17031

AW11

W/POWER WINDOW

 1
69802-17030

AW11

W/POWER WINDOW

 1
69820-17010

AW11

 1
69910 - BRACKET ASSY, FRONT DOOR GLASS, RH
69951-17010

AW11

 1
69920 - BRACKET ASSY, FRONT DOOR GLASS, LH
69952-17010

AW11

 1
Common parts
90105-08080
90116-08182
90116-08183
90119-08012
90119-08093
90179-06033
90179-08001
90179-08024
90209-07001
90209-09005
91521-40816
91611-60614
91651-40612

(8608- )

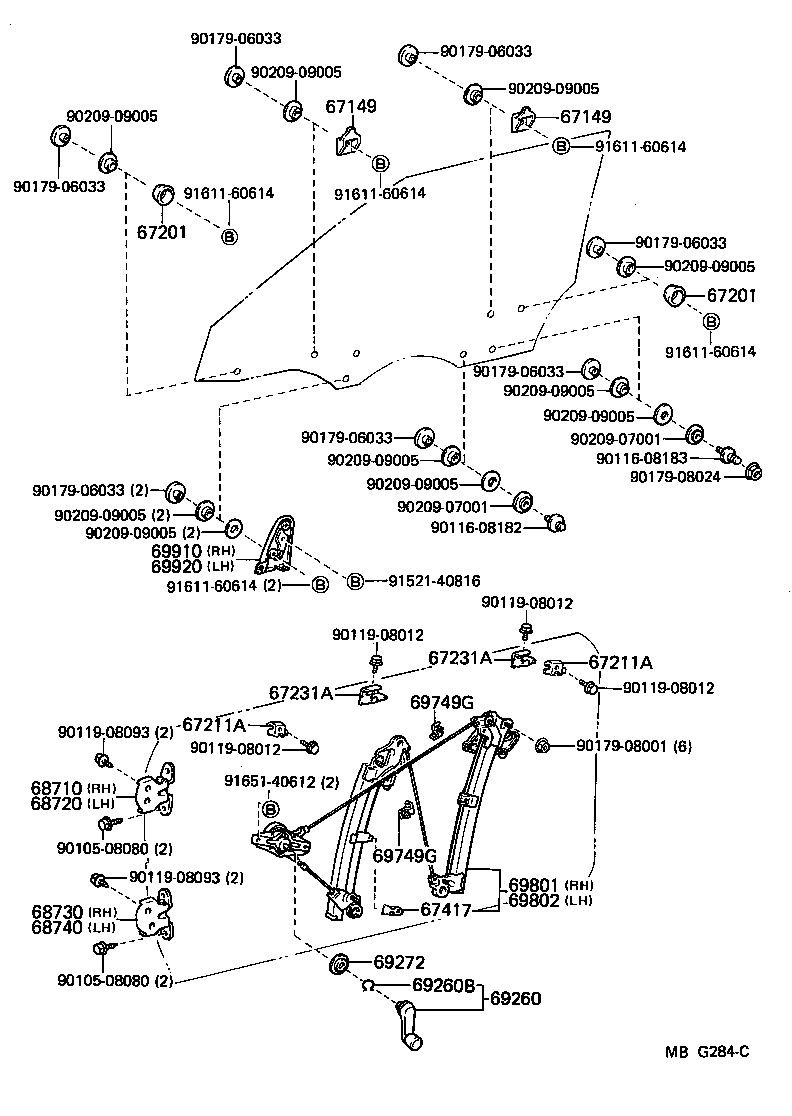

Click highlighted areas on diagram

diagram 67149 67149 67201 67201 67211A 67211A 67231A 67231A 67417 68127A 68710 68720 68730 68740 69260 69260B 69272 69749G 69749G 69801 69802 69910 69920 9010508080 9010508080 9011608182 9011608183 9011908012 9011908012 9011908012 9011908012 9011908093 9011908093 9017906033 9017906033 9017906033 9017906033 9017906033 9017906033 9017906033 9017906033 9017908001 9017908024 9020907001 9020907001 9020907001 9020909005 9020909005 9020909005 9020909005 9020909005 9020909005 9020909005 9020909005 9020909005 9020909005 9020909005 9020909005 9152140816 9161160614 9161160614 9161160614 9161160614 9161160614 9161160614 9165140612
Part # Description Qty Price
67149 - STABILIZER, FRONT DOOR GLASS
68149-14010

AW11

 4
67149 - STABILIZER, FRONT DOOR GLASS
68149-14010

AW11

 4
67201 - STOPPER ASSY, DOOR GLASS(FOR FRONT DOOR)
68147-14010

AW11

 4
67201 - STOPPER ASSY, DOOR GLASS(FOR FRONT DOOR)
68147-14010

AW11

 4
67211A - STOP, FRONT DOOR WINDOW, UPPER
67211-17010

AW11

 4
67211A - STOP, FRONT DOOR WINDOW, UPPER
67211-17010

AW11

 4
67231A - SUPPORT, FRONT DOOR TRIM
67231-14030

AW11

 4
67231A - SUPPORT, FRONT DOOR TRIM
67231-14030

AW11

 4
68127A - PLATE, FRONT DOOR GLASS, REAR
68128-17010

AW11

LH

 1
68127-17010

AW11

RH

 1
68710 - HINGE ASSY, FRONT DOOR, UPPER RH
68710-17010

AW11

 1
68720 - HINGE ASSY, FRONT DOOR, UPPER LH
68720-17010

AW11

 1
68730 - HINGE ASSY, FRONT DOOR, LOWER RH
68730-17010

AW11

 1
68740 - HINGE ASSY, FRONT DOOR, LOWER LH
68740-17010

AW11

 1
69260 - HANDLE ASSY, FRONT DOOR WINDOW REGULATOR
69260-1004001

AW11..ARL,GEN

BLACK,BLACK,TRIM2#

 2
69260-1004055

AW11..GEN

DARK BEIGE,TRIM4#

 2
69260-1004055

AW11..GEN

BEIGE,DARK BEIGE,TRIM4#

 2
69260-1004058

AW11..ARL,GEN

BLUE,DARK BLUE,TRIM8#

 2
69260-1004001

AW11..ARL,GEN

BLACK,TRIM2#

 2
69260B - RING, SHAFT SNAP(FOR FRONT DOOR WINDOW REGULATOR HANDLE
90520-01002

AW11

 2
69272 - PLATE, FRONT DOOR REGULATOR INSIDE HANDLE
69268-17010

AW11

 2
69268-1701005

AW11..EUR,GEN

DARK BEIGE,TRIM4#

 2
69268-1701001

AW11

BLACK,BLACK,TRIM2#,4#

 2
69268-1701001

AW11

BLACK,TRIM2#,8#

 2
69268-1701005

AW11..EUR,GEN

BEIGE,DARK BEIGE,TRIM4#

 2
69749G - CLAMP(FOR FRONT DOOR WINDOW REGULATOR)
90467-09049

AW11

 4
69749G - CLAMP(FOR FRONT DOOR WINDOW REGULATOR)
90467-09049

AW11

 4
69801 - REGULATOR SUB-ASSY, FRONT DOOR WINDOW, RH
69810-17010

AW11

 1
69801-17030

AW11

W/POWER WINDOW

 1
69801-17031

AW11

W/POWER WINDOW

 1
69802 - REGULATOR SUB-ASSY, FRONT DOOR WINDOW, LH
69802-17031

AW11

W/POWER WINDOW

 1
69802-17030

AW11

W/POWER WINDOW

 1
69820-17010

AW11

 1
69910 - BRACKET ASSY, FRONT DOOR GLASS, RH
69951-17010

AW11

 1
69920 - BRACKET ASSY, FRONT DOOR GLASS, LH
69952-17010

AW11

 1
Common parts
90105-08080
90116-08182
90116-08183
90119-08012
90119-08093
90179-06033
90179-08001
90179-08024
90209-07001
90209-09005
91521-40816
91611-60614
91651-40612
