AW11L-WCMQF (1984)

Toyota Mr2

Production Nov 1984 - Aug 1988
Engine 4AGEL
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(8411- )

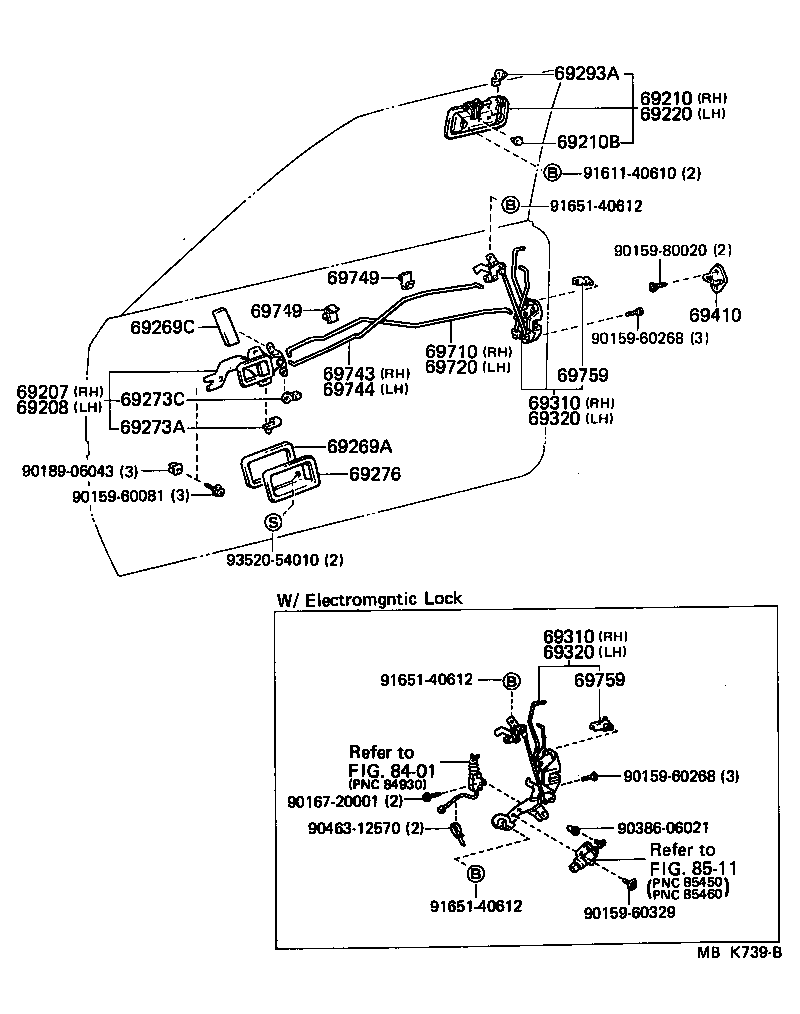

Click highlighted areas on diagram

diagram 69207 69208 69210 69210B 69220 69269A 69269C 69273A 69273C 69276 69293A 69310 69310 69320 69320 69410 69710 69720 69743 69744 69749 69749 69759 69759 8401 8511 9015960081 9015960268 9015960268 9015960329 9015980020 9016720001 9018906043 9038606021 9046312570 9161140610 9165140612 9165140612 9165140612 9352054010
Part # Description Qty Price
69207 - HANDLE SUB-ASSY, FRONT DOOR INSIDE, RH
69206-1208001

AW11

BLACK,BLACK,TRIM2#

 1
69206-1208001

AW11

BLACK,TRIM2#

 1
69206-1208005

AW11..EUR,GEN

BEIGE,DARK BEIGE,TRIM4#

 1
69206-1208014

AW11

BLUE,DARK BLUE,TRIM8#

 1
69206-1208005

AW11..EUR,GEN

DARK BEIGE,TRIM4#

 1
69208 - HANDLE SUB-ASSY, FRONT DOOR INSIDE, LH
69205-1208001

AW11

BLACK,TRIM2#

 1
69205-1208005

AW11..EUR,GEN

DARK BEIGE,TRIM4#

 1
69205-1208014

AW11

BLUE,DARK BLUE,TRIM8#

 1
69205-1208001

AW11

BLACK,BLACK,TRIM2#

 1
69205-1208014

AW11

DARK BLUE,TRIM8#

 1
69205-1208005

AW11..EUR,GEN

BEIGE,DARK BEIGE,TRIM4#

 1
69210 - HANDLE ASSY, FRONT DOOR, OUTSIDE RH
69210-14080

AW11

 1
69210B - CUSHION(FOR FRONT DOOR OUTSIDE HANDLE)
90541-03021

AW11

 4
69220 - HANDLE ASSY, FRONT DOOR OUTSIDE, LH
69220-14080

AW11

 1
69269A - SEAL, DOOR INSIDE HANDLE NO.1(FOR FRONT DOOR)
69269-17010

AW11..GEN

COLD SPEC

 2
69269C - SEAL, DOOR INSIDE HANDLE NO.2(FOR FRONT DOOR)
69289-12010

AW11..GEN

COLD SPEC

 2
69289-17010

AW11..GEN

COLD SPEC

 2
69273A - SNAP, DOOR INSIDE HANDLE ROD(FOR FRONT DOOR)
69759-20030

AW11

RH

 1
69759-20020

AW11

LH

 1
69273C - SNAP, DOOR INSIDE HANDLE LINK
69759-20060

AW11

RH

 1
69759-20070

AW11

LH

 1
69276 - BEZEL, FRONT DOOR INSIDE HANDLE
69277-1403004

AW11

BLUE,BLUE,TRIM8#

 2
69277-1403001

AW11

BLACK,BLACK,TRIM2#

 2
69277-1403015

AW11..EUR,GEN

DARK BEIGE,TRIM4#

 2
69277-1403005

AW11..EUR,GEN

BEIGE,BEIGE,TRIM4#

 2
69277-1403001

AW11

BLACK,TRIM2#

 2
69293A - SNAP, FRONT DOOR OUTSIDE HANDLE
69293-12040

AW11

LH

 1
69293-12030

AW11

RH

 1
69310 - LOCK ASSY, FRONT DOOR, RH
69310-17070

AW11..LHD

W/*EL

 1
69310-17050

AW11..EUR,GEN

 1
69310-17071

AW11..EUR,GEN

W/*EL

 1
69310-17010

AW11

 1
69310 - LOCK ASSY, FRONT DOOR, RH
69310-17070

AW11..LHD

W/*EL

 1
69310-17050

AW11..EUR,GEN

 1
69310-17071

AW11..EUR,GEN

W/*EL

 1
69310-17010

AW11

 1
69320 - LOCK ASSY, FRONT DOOR, LH
69320-17010

AW11

 1
69320-17071

AW11..EUR,GEN

W/*EL

 1
69320-17070

AW11..LHD

W/*EL

 1
69320-17050

AW11..EUR,GEN

 1
69320 - LOCK ASSY, FRONT DOOR, LH
69320-17010

AW11

 1
69320-17071

AW11..EUR,GEN

W/*EL

 1
69320-17070

AW11..LHD

W/*EL

 1
69320-17050

AW11..EUR,GEN

 1
69410 - PLATE ASSY, FRONT DOOR LOCK STRIKER
69410-87001

AW11

 2
69710 - LINK ASSY, FRONT DOOR OPEN CONTROL, RH
69711-17010

AW11

 1
69720 - LINK ASSY, FRONT DOOR OPEN CONTROL, LH
69712-17010

AW11

 1
69743 - LINK, FRONT DOOR LOCKING CONTROL, NO.1 RH
69733-17010

AW11

 1
69744 - LINK, FRONT DOOR LOCKING CONTROL, NO.1 LH
69734-17010

AW11

 1
69749 - CLAMP, FRONT DOOR LOCK LINK
69749-20010

AW11

 4
69749 - CLAMP, FRONT DOOR LOCK LINK
69749-20010

AW11

 4
69759 - SNAP, DOOR LOCK CONTROL LINK, NO.1
69759-20020

AW11

RH,LOCKING LINK

 1
69759-20050

AW11

RH,OPEN LING

 1
69759-20040

AW11

LH,OPEN LINK

 1
69759-20030

AW11

LH,LOCKING LINK

 1
69759 - SNAP, DOOR LOCK CONTROL LINK, NO.1
69759-20020

AW11

RH,LOCKING LINK

 1
69759-20050

AW11

RH,OPEN LING

 1
69759-20040

AW11

LH,OPEN LINK

 1
69759-20030

AW11

LH,LOCKING LINK

 1
Common parts
90159-60081
90159-60268
90159-60329
90159-80020
90167-20001
90189-06043
90386-06021
90463-12570
91611-40610
91651-40612
93520-54010
