AW11L-WCMQF (1984)
Toyota Mr2

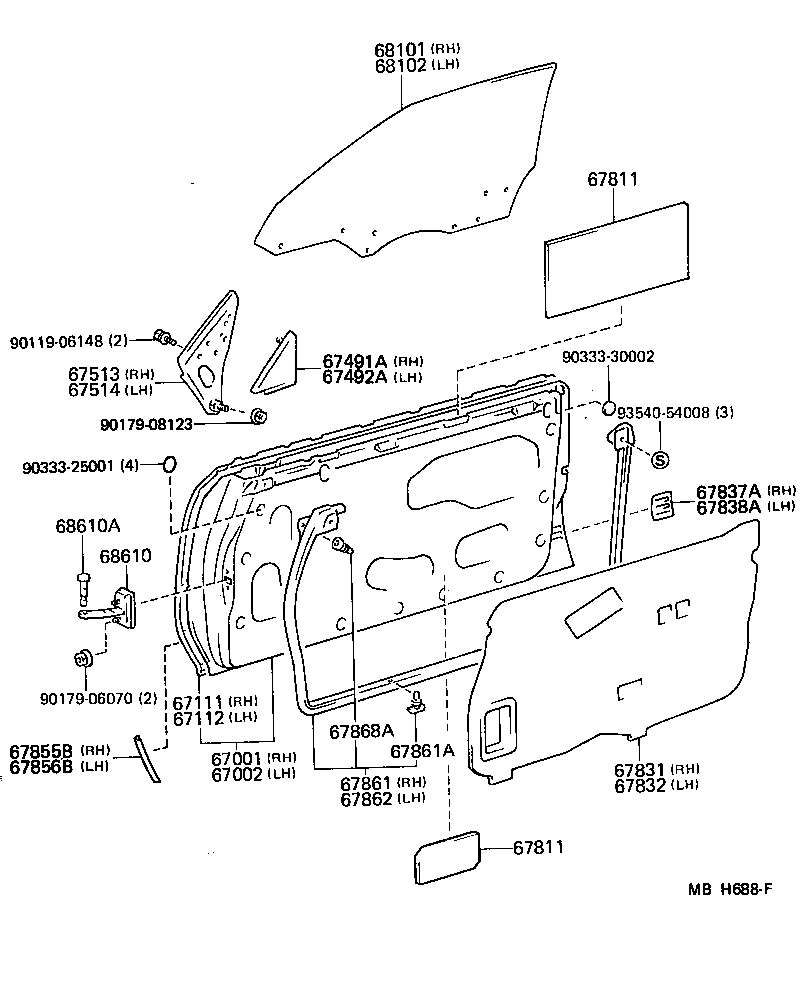

ILLUST NO. 1 OF 2(8411- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 67001 - PANEL SUB-ASSY, FRONT DOOR, RH | ||||
| 67001-17040 |
AW11..EUR,GEN |
1 | ||
| 67001-17010 |
AW11..GEN |
1 | ||
| 67002 - PANEL SUB-ASSY, FRONT DOOR, LH | ||||
| 67002-17040 |
AW11..EUR,GEN |
1 | ||
| 67002-17010 |
AW11..GEN |
1 | ||
| 67111 - PANEL, FRONT DOOR, OUTER RH | ||||
| 67111-17010 |
AW11..GEN |
1 | ||
| 67112 - PANEL, FRONT DOOR, OUTER LH | ||||
| 67112-17010 |
AW11..GEN |
1 | ||
| 67491A - GARNISH, FRONT DOOR LOWER FRAME BRACKET, RH | ||||
| 67491-17010 |
AW11 |
1 | ||
| 67492A - GARNISH, FRONT DOOR LOWER FRAME BRACKET, LH | ||||
| 67492-17010 |
AW11 |
1 | ||
| 67513 - BRACKET, FRONT DOOR MIRROR, RH | ||||
| 67513-17010 |
AW11 |
1 | ||
| 67514 - BRACKET, FRONT DOOR MIRROR, LH | ||||
| 67514-17010 |
AW11 |
1 | ||
| 67811 - PAD, FRONT DOOR SILENCER | ||||
| 67812-12010 |
AW11..EUR,GEN 350X200 |
2 | ||
| 67811-17010 |
AW11 200 X 110 |
2 | ||
| 67812-12010 |
AW11 350X200 |
1 | ||
| 67811 - PAD, FRONT DOOR SILENCER | ||||
| 67812-12010 |
AW11..EUR,GEN 350X200 |
2 | ||
| 67811-17010 |
AW11 200 X 110 |
2 | ||
| 67812-12010 |
AW11 350X200 |
1 | ||
| 67831 - COVER, FRONT DOOR SERVICE HOLE, RH | ||||
| 67831-17010 |
AW11..EUR,GEN |
1 | ||
| 67832 - COVER, FRONT DOOR SERVICE HOLE, LH | ||||
| 67832-17010 |
AW11..EUR,GEN |
1 | ||
| 67861 - WEATHERSTRIP, FRONT DOOR, RH | ||||
| 67861-17010 |
AW11 |
1 | ||
| 67861A - RETAINER(FOR FRONT DOOR WEATHERSTRIP) | ||||
| 67868-30040 |
AW11 |
42 | ||
| 67862 - WEATHERSTRIP, FRONT DOOR, LH | ||||
| 67862-17010 |
AW11 |
1 | ||
| 67868A - CLIP, DOOR GLASS WEATHERSTRIP(FOR FRONT DOOR) | ||||
| 67869-30020 |
AW11 |
2 | ||
| 68101 - GLASS SUB-ASSY, FRONT DOOR, RH | ||||
| 68111-17010 |
AW11 *TT,T=5.0,*TT,T=5.0 |
1 | ||
| 68102 - GLASS SUB-ASSY, FRONT DOOR, LH | ||||
| 68112-17010 |
AW11 *TT,T=5.0,*TT,T=5.0 |
1 | ||
| 68610 - CHECK ASSY, FRONT DOOR | ||||
| 68610-24010 |
AW11 |
2 | ||
| 68610A - PIN(FOR FRONT DOOR CHECK) | ||||
| 68617-30010 |
AW11 |
2 | ||
| Common parts | ||||
| 90119-06148 | ||||
| 90179-06070 | ||||
| 90179-08123 | ||||
| 90333-25001 | ||||
| 90333-30002 | ||||
| 93540-54008 | ||||

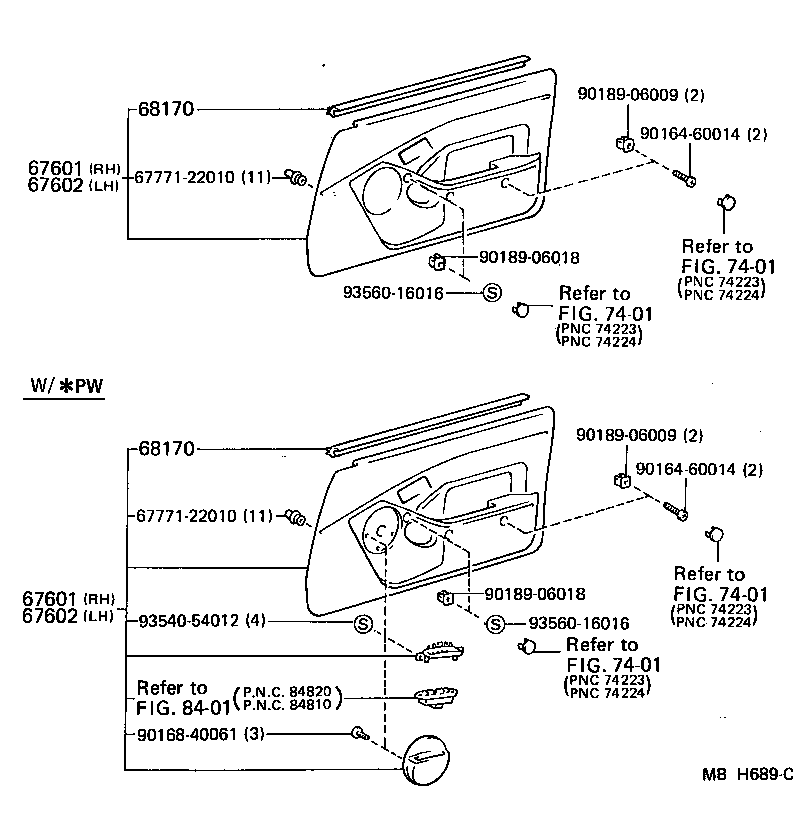

ILLUST NO. 2 OF 2(8411-8608)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 67601 - BOARD SUB-ASSY, FRONT DOOR TRIM, RH | ||||
| 67610-1718001 |
AW11..LHD W/*PW,CUT PILE CARPET,BLACK,BLACK,TRIM2# |
1 | ||
| 67610-1723005 |
AW11..EUR,GEN W/*PW,BEIGE,DARK BEIGE,TRIM4# |
1 | ||
| 67610-1723001 |
AW11 W/*PW,BLACK,BLACK,TRIM2# |
1 | ||
| 67610-1723004 |
AW11 W/*PW,BLUE,DARK BLUE,TRIM8# |
1 | ||
| 67610-1715001 |
AW11 BLACK,BLACK,TRIM2# |
1 | ||
| 67610-1717001 |
AW11 W/CUT PILE CARPET,BLACK,BLACK,TRIM2# |
1 | ||
| 67610-1724004 |
AW11 W/CUT PILE CARPET,BLUE,DARK BLUE,TRIM8# |
1 | ||
| 67610-1724005 |
AW11..EUR,GEN W/CUT PILE CARPET,BEIGE,DARK BEIGE,TRIM4# |
1 | ||
| 67610-1722001 |
AW11 BLACK,TRIM2# |
1 | ||
| 67610-1716001 |
AW11..LHD W/*PW,BLACK,BLACK,TRIM2# |
1 | ||
| 67610-1724001 |
AW11 W/CUT PILE CARPET,BLACK,BLACK,TRIM2# |
1 | ||
| 67610-1725004 |
AW11 W/*PW,CUT PILE CARPET,BLUE,DARK BLUE,TRIM8# |
1 | ||
| 67610-1722005 |
AW11..EUR,GEN BEIGE,DARK BEIGE,TRIM4# |
1 | ||
| 67610-1723001 |
AW11 W(POWER WINDOW),BLACK,TRIM2# |
1 | ||
| 67610-1722004 |
AW11 DARK BLUE,TRIM8# |
1 | ||
| 67610-1724001 |
AW11 W(SPORTS SEAT),BLACK,TRIM2# |
1 | ||
| 67610-1725001 |
AW11 W(POWER WINDOW & SPORTS SEAT),BLACK,TRIM2# |
1 | ||
| 67610-1724004 |
AW11 W(SPORTS SEAT),DARK BLUE,TRIM8# |
1 | ||
| 67610-1724005 |
AW11..EUR,GEN W(SPORTS SEAT),DARK BEIGE,TRIM4# |
1 | ||
| 67610-1725005 |
AW11..EUR,GEN W/*PW,CUT PILE CARPET,BEIGE,DARK BEIGE,TRIM4# |
1 | ||
| 67610-1722001 |
AW11 BLACK,BLACK,TRIM2# |
1 | ||
| 67610-1725001 |
AW11 W/*PW,CUT PILE CARPET,BLACK,BLACK,TRIM2# |
1 | ||
| 67610-1723004 |
AW11 W(POWER WINDOW),DARK BLUE,TRIM8# |
1 | ||
| 67610-1722004 |
AW11 BLUE,DARK BLUE,TRIM8# |
1 | ||
| 67610-1723005 |
AW11 DARK BEIGE,TRIM8# |
1 | ||
| 67610-1725005 |
AW11..EUR,GEN W(POWER WINDOW & SPORTS SEAT),DARK BEIGE,TRIM4# |
1 | ||
| 67610-1725004 |
AW11 W(POWER WINDOW & SPORTS SEAT),DARK BLUE,TRIM8# |
1 | ||
| 67610-1722005 |
AW11..EUR,GEN DARK BEIGE,TRIM4# |
1 | ||
| 67601 - BOARD SUB-ASSY, FRONT DOOR TRIM, RH | ||||
| 67610-1718001 |
AW11..LHD W/*PW,CUT PILE CARPET,BLACK,BLACK,TRIM2# |
1 | ||
| 67610-1723005 |
AW11..EUR,GEN W/*PW,BEIGE,DARK BEIGE,TRIM4# |
1 | ||
| 67610-1723001 |
AW11 W/*PW,BLACK,BLACK,TRIM2# |
1 | ||
| 67610-1723004 |
AW11 W/*PW,BLUE,DARK BLUE,TRIM8# |
1 | ||
| 67610-1715001 |
AW11 BLACK,BLACK,TRIM2# |
1 | ||
| 67610-1717001 |
AW11 W/CUT PILE CARPET,BLACK,BLACK,TRIM2# |
1 | ||
| 67610-1724004 |
AW11 W/CUT PILE CARPET,BLUE,DARK BLUE,TRIM8# |
1 | ||
| 67610-1724005 |
AW11..EUR,GEN W/CUT PILE CARPET,BEIGE,DARK BEIGE,TRIM4# |
1 | ||
| 67610-1722001 |
AW11 BLACK,TRIM2# |
1 | ||
| 67610-1716001 |
AW11..LHD W/*PW,BLACK,BLACK,TRIM2# |
1 | ||
| 67610-1724001 |
AW11 W/CUT PILE CARPET,BLACK,BLACK,TRIM2# |
1 | ||
| 67610-1725004 |
AW11 W/*PW,CUT PILE CARPET,BLUE,DARK BLUE,TRIM8# |
1 | ||
| 67610-1722005 |
AW11..EUR,GEN BEIGE,DARK BEIGE,TRIM4# |
1 | ||
| 67610-1723001 |
AW11 W(POWER WINDOW),BLACK,TRIM2# |
1 | ||
| 67610-1722004 |
AW11 DARK BLUE,TRIM8# |
1 | ||
| 67610-1724001 |
AW11 W(SPORTS SEAT),BLACK,TRIM2# |
1 | ||
| 67610-1725001 |
AW11 W(POWER WINDOW & SPORTS SEAT),BLACK,TRIM2# |
1 | ||
| 67610-1724004 |
AW11 W(SPORTS SEAT),DARK BLUE,TRIM8# |
1 | ||
| 67610-1724005 |
AW11..EUR,GEN W(SPORTS SEAT),DARK BEIGE,TRIM4# |
1 | ||
| 67610-1725005 |
AW11..EUR,GEN W/*PW,CUT PILE CARPET,BEIGE,DARK BEIGE,TRIM4# |
1 | ||
| 67610-1722001 |
AW11 BLACK,BLACK,TRIM2# |
1 | ||
| 67610-1725001 |
AW11 W/*PW,CUT PILE CARPET,BLACK,BLACK,TRIM2# |
1 | ||
| 67610-1723004 |
AW11 W(POWER WINDOW),DARK BLUE,TRIM8# |
1 | ||
| 67610-1722004 |
AW11 BLUE,DARK BLUE,TRIM8# |
1 | ||
| 67610-1723005 |
AW11 DARK BEIGE,TRIM8# |
1 | ||
| 67610-1725005 |
AW11..EUR,GEN W(POWER WINDOW & SPORTS SEAT),DARK BEIGE,TRIM4# |
1 | ||
| 67610-1725004 |
AW11 W(POWER WINDOW & SPORTS SEAT),DARK BLUE,TRIM8# |
1 | ||
| 67610-1722005 |
AW11..EUR,GEN DARK BEIGE,TRIM4# |
1 | ||
| 67602 - BOARD SUB-ASSY, FRONT DOOR TRIM, LH | ||||
| 67620-1714001 |
AW11..LHD W/*PW,BLACK,BLACK,TRIM2# |
1 | ||
| 67620-1715001 |
AW11 W/CUT PILE CARPET,BLACK,BLACK,TRIM2# |
1 | ||
| 67620-1722001 |
AW11 W/CUT PILE CARPET,BLACK,BLACK,TRIM2# |
1 | ||
| 67620-1720005 |
AW11..EUR,GEN BEIGE,DARK BEIGE,TRIM4# |
1 | ||
| 67620-1720001 |
AW11 BLACK,BLACK,TRIM2# |
1 | ||
| 67620-1720004 |
AW11 BLUE,DARK BLUE,TRIM8# |
1 | ||
| 67620-1721004 |
AW11 W/*PW,BLUE,DARK BLUE,TRIM8# |
1 | ||
| 67620-1721001 |
AW11 W/*PW,BLACK,BLACK,TRIM2# |
1 | ||
| 67620-1713001 |
AW11 BLACK,BLACK,TRIM2# |
1 | ||
| 67620-1723004 |
AW11 W/*PW,CUT PILE CARPET,BLUE,DARK BLUE,TRIM8# |
1 | ||
| 67620-1721005 |
AW11..EUR,GEN W/*PW,BEIGE,DARK BEIGE,TRIM4# |
1 | ||
| 67620-1723005 |
AW11..EUR,GEN W/*PW,CUT PILE CARPET,BEIGE,DARK BEIGE,TRIM4# |
1 | ||
| 67620-1722005 |
AW11..EUR,GEN W/CUT PILE CARPET,BEIGE,DARK BEIGE,TRIM4# |
1 | ||
| 67620-1723001 |
AW11 W/*PW,CUT PILE CARPET,BLACK,BLACK,TRIM2# |
1 | ||
| 67620-1720001 |
AW11 BLACK,TRIM2# |
1 | ||
| 67620-1716001 |
AW11..LHD W/*PW,CUT PILE CARPET,BLACK,BLACK,TRIM2# |
1 | ||
| 67620-1722001 |
AW11 W(SPORTS SEAT),BLACK,TRIM2# |
1 | ||
| 67620-1722004 |
AW11 W/CUT PILE CARPET,BLUE,DARK BEIGE,TRIM8# |
1 | ||
| 67620-1721001 |
AW11 W(POWER WINDOW),BLACK,TRIM2# |
1 | ||
| 67620-1720004 |
AW11 DARK BLUE,TRIM8# |
1 | ||
| 67620-1721004 |
AW11 W(POWER WINDOW),DARK BLUE,TRIM8# |
1 | ||
| 67620-1723005 |
AW11..EUR,GEN W(POWER WINDOW & SPORTS SEAT),DARK BEIGE,TRIM4# |
1 | ||
| 67620-1720005 |
AW11..EUR,GEN DARK BEIGE,TRIM4# |
1 | ||
| 67620-1721005 |
AW11..EUR,GEN W(POWER WINDOW),DARK BEIGE,TRIM4# |
1 | ||
| 67620-1722005 |
AW11..EUR,GEN W(SPORTS SEAT),DARK BEIGE,TRIM4# |
1 | ||
| 67620-1723004 |
AW11 W(POWER WINDOW & SPORTS SEAT),DARK BLUE,TRIM8# |
1 | ||
| 67620-1722004 |
AW11 W(SPORTS SEAT),DARK BLUE,TRIM8# |
1 | ||
| 67620-1723001 |
AW11 W(POWER WINDOW & SPORTS SEAT),BLACK,TRIM2# |
1 | ||
| 67602 - BOARD SUB-ASSY, FRONT DOOR TRIM, LH | ||||
| 67620-1714001 |
AW11..LHD W/*PW,BLACK,BLACK,TRIM2# |
1 | ||
| 67620-1715001 |
AW11 W/CUT PILE CARPET,BLACK,BLACK,TRIM2# |
1 | ||
| 67620-1722001 |
AW11 W/CUT PILE CARPET,BLACK,BLACK,TRIM2# |
1 | ||
| 67620-1720005 |
AW11..EUR,GEN BEIGE,DARK BEIGE,TRIM4# |
1 | ||
| 67620-1720001 |
AW11 BLACK,BLACK,TRIM2# |
1 | ||
| 67620-1720004 |
AW11 BLUE,DARK BLUE,TRIM8# |
1 | ||
| 67620-1721004 |
AW11 W/*PW,BLUE,DARK BLUE,TRIM8# |
1 | ||
| 67620-1721001 |
AW11 W/*PW,BLACK,BLACK,TRIM2# |
1 | ||
| 67620-1713001 |
AW11 BLACK,BLACK,TRIM2# |
1 | ||
| 67620-1723004 |
AW11 W/*PW,CUT PILE CARPET,BLUE,DARK BLUE,TRIM8# |
1 | ||
| 67620-1721005 |
AW11..EUR,GEN W/*PW,BEIGE,DARK BEIGE,TRIM4# |
1 | ||
| 67620-1723005 |
AW11..EUR,GEN W/*PW,CUT PILE CARPET,BEIGE,DARK BEIGE,TRIM4# |
1 | ||
| 67620-1722005 |
AW11..EUR,GEN W/CUT PILE CARPET,BEIGE,DARK BEIGE,TRIM4# |
1 | ||
| 67620-1723001 |
AW11 W/*PW,CUT PILE CARPET,BLACK,BLACK,TRIM2# |
1 | ||
| 67620-1720001 |
AW11 BLACK,TRIM2# |
1 | ||
| 67620-1716001 |
AW11..LHD W/*PW,CUT PILE CARPET,BLACK,BLACK,TRIM2# |
1 | ||
| 67620-1722001 |
AW11 W(SPORTS SEAT),BLACK,TRIM2# |
1 | ||
| 67620-1722004 |
AW11 W/CUT PILE CARPET,BLUE,DARK BEIGE,TRIM8# |
1 | ||
| 67620-1721001 |
AW11 W(POWER WINDOW),BLACK,TRIM2# |
1 | ||
| 67620-1720004 |
AW11 DARK BLUE,TRIM8# |
1 | ||
| 67620-1721004 |
AW11 W(POWER WINDOW),DARK BLUE,TRIM8# |
1 | ||
| 67620-1723005 |
AW11..EUR,GEN W(POWER WINDOW & SPORTS SEAT),DARK BEIGE,TRIM4# |
1 | ||
| 67620-1720005 |
AW11..EUR,GEN DARK BEIGE,TRIM4# |
1 | ||
| 67620-1721005 |
AW11..EUR,GEN W(POWER WINDOW),DARK BEIGE,TRIM4# |
1 | ||
| 67620-1722005 |
AW11..EUR,GEN W(SPORTS SEAT),DARK BEIGE,TRIM4# |
1 | ||
| 67620-1723004 |
AW11 W(POWER WINDOW & SPORTS SEAT),DARK BLUE,TRIM8# |
1 | ||
| 67620-1722004 |
AW11 W(SPORTS SEAT),DARK BLUE,TRIM8# |
1 | ||
| 67620-1723001 |
AW11 W(POWER WINDOW & SPORTS SEAT),BLACK,TRIM2# |
1 | ||
| 68170 - WEATHERSTRIP ASSY, FRONT DOOR GLASS, INNER | ||||
| 68170-17010 |
AW11 RH |
1 | ||
| 68220-17011 |
AW11 LH |
1 | ||
| 68170-17011 |
AW11 RH |
1 | ||
| 68220-17010 |
AW11 LH |
1 | ||
| 68170 - WEATHERSTRIP ASSY, FRONT DOOR GLASS, INNER | ||||
| 68170-17010 |
AW11 RH |
1 | ||
| 68220-17011 |
AW11 LH |
1 | ||
| 68170-17011 |
AW11 RH |
1 | ||
| 68220-17010 |
AW11 LH |
1 | ||
| Common parts | ||||
| 67771-22010 | ||||
| 90164-60014 | ||||
| 90168-40061 | ||||
| 90189-06009 | ||||
| 90189-06018 | ||||
| 93540-54012 | ||||
| 93560-16016 | ||||
| Linked diagrams | ||||
| 7401 | ||||
| 8401 | ||||

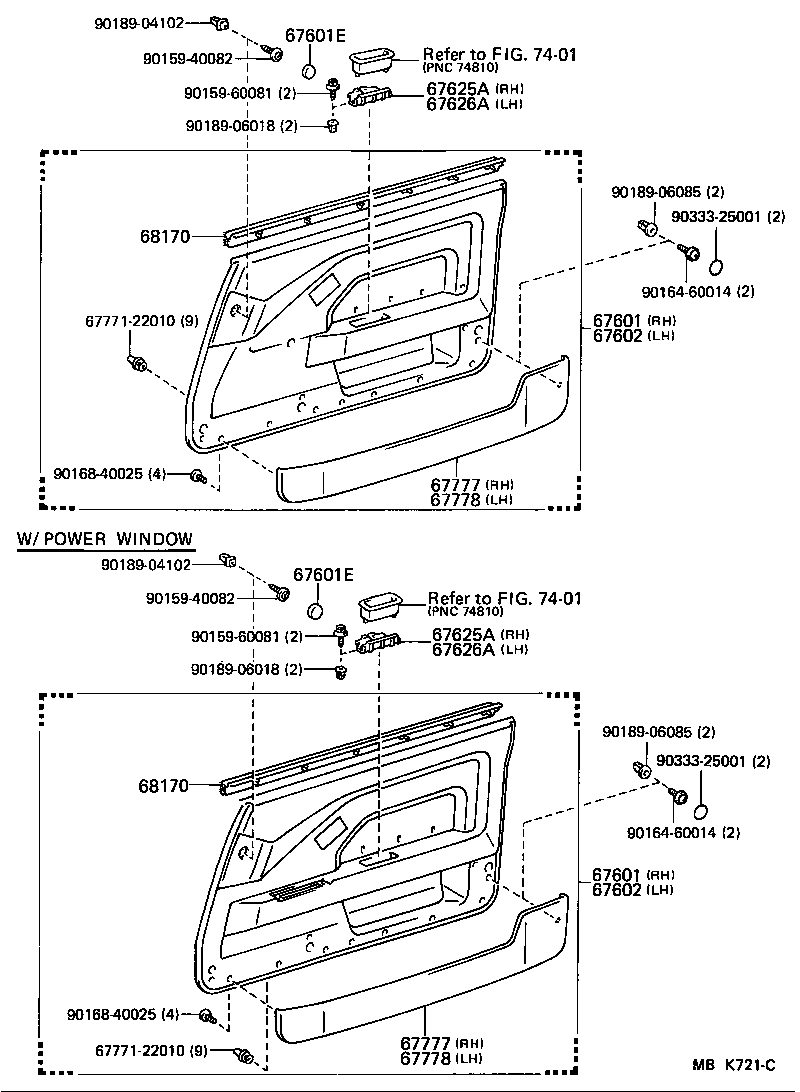

ILLUST NO. 2 OF 2(8608- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 67601 - BOARD SUB-ASSY, FRONT DOOR TRIM, RH | ||||
| 67610-1718001 |
AW11..LHD W/*PW,CUT PILE CARPET,BLACK,BLACK,TRIM2# |
1 | ||
| 67610-1723005 |
AW11..EUR,GEN W/*PW,BEIGE,DARK BEIGE,TRIM4# |
1 | ||
| 67610-1723001 |
AW11 W/*PW,BLACK,BLACK,TRIM2# |
1 | ||
| 67610-1723004 |
AW11 W/*PW,BLUE,DARK BLUE,TRIM8# |
1 | ||
| 67610-1715001 |
AW11 BLACK,BLACK,TRIM2# |
1 | ||
| 67610-1717001 |
AW11 W/CUT PILE CARPET,BLACK,BLACK,TRIM2# |
1 | ||
| 67610-1724004 |
AW11 W/CUT PILE CARPET,BLUE,DARK BLUE,TRIM8# |
1 | ||
| 67610-1724005 |
AW11..EUR,GEN W/CUT PILE CARPET,BEIGE,DARK BEIGE,TRIM4# |
1 | ||
| 67610-1722001 |
AW11 BLACK,TRIM2# |
1 | ||
| 67610-1716001 |
AW11..LHD W/*PW,BLACK,BLACK,TRIM2# |
1 | ||
| 67610-1724001 |
AW11 W/CUT PILE CARPET,BLACK,BLACK,TRIM2# |
1 | ||
| 67610-1725004 |
AW11 W/*PW,CUT PILE CARPET,BLUE,DARK BLUE,TRIM8# |
1 | ||
| 67610-1722005 |
AW11..EUR,GEN BEIGE,DARK BEIGE,TRIM4# |
1 | ||
| 67610-1723001 |
AW11 W(POWER WINDOW),BLACK,TRIM2# |
1 | ||
| 67610-1722004 |
AW11 DARK BLUE,TRIM8# |
1 | ||
| 67610-1724001 |
AW11 W(SPORTS SEAT),BLACK,TRIM2# |
1 | ||
| 67610-1725001 |
AW11 W(POWER WINDOW & SPORTS SEAT),BLACK,TRIM2# |
1 | ||
| 67610-1724004 |
AW11 W(SPORTS SEAT),DARK BLUE,TRIM8# |
1 | ||
| 67610-1724005 |
AW11..EUR,GEN W(SPORTS SEAT),DARK BEIGE,TRIM4# |
1 | ||
| 67610-1725005 |
AW11..EUR,GEN W/*PW,CUT PILE CARPET,BEIGE,DARK BEIGE,TRIM4# |
1 | ||
| 67610-1722001 |
AW11 BLACK,BLACK,TRIM2# |
1 | ||
| 67610-1725001 |
AW11 W/*PW,CUT PILE CARPET,BLACK,BLACK,TRIM2# |
1 | ||
| 67610-1723004 |
AW11 W(POWER WINDOW),DARK BLUE,TRIM8# |
1 | ||
| 67610-1722004 |
AW11 BLUE,DARK BLUE,TRIM8# |
1 | ||
| 67610-1723005 |
AW11 DARK BEIGE,TRIM8# |
1 | ||
| 67610-1725005 |
AW11..EUR,GEN W(POWER WINDOW & SPORTS SEAT),DARK BEIGE,TRIM4# |
1 | ||
| 67610-1725004 |
AW11 W(POWER WINDOW & SPORTS SEAT),DARK BLUE,TRIM8# |
1 | ||
| 67610-1722005 |
AW11..EUR,GEN DARK BEIGE,TRIM4# |
1 | ||
| 67601 - BOARD SUB-ASSY, FRONT DOOR TRIM, RH | ||||
| 67610-1718001 |
AW11..LHD W/*PW,CUT PILE CARPET,BLACK,BLACK,TRIM2# |
1 | ||
| 67610-1723005 |
AW11..EUR,GEN W/*PW,BEIGE,DARK BEIGE,TRIM4# |
1 | ||
| 67610-1723001 |
AW11 W/*PW,BLACK,BLACK,TRIM2# |
1 | ||
| 67610-1723004 |
AW11 W/*PW,BLUE,DARK BLUE,TRIM8# |
1 | ||
| 67610-1715001 |
AW11 BLACK,BLACK,TRIM2# |
1 | ||
| 67610-1717001 |
AW11 W/CUT PILE CARPET,BLACK,BLACK,TRIM2# |
1 | ||
| 67610-1724004 |
AW11 W/CUT PILE CARPET,BLUE,DARK BLUE,TRIM8# |
1 | ||
| 67610-1724005 |
AW11..EUR,GEN W/CUT PILE CARPET,BEIGE,DARK BEIGE,TRIM4# |
1 | ||
| 67610-1722001 |
AW11 BLACK,TRIM2# |
1 | ||
| 67610-1716001 |
AW11..LHD W/*PW,BLACK,BLACK,TRIM2# |
1 | ||
| 67610-1724001 |
AW11 W/CUT PILE CARPET,BLACK,BLACK,TRIM2# |
1 | ||
| 67610-1725004 |
AW11 W/*PW,CUT PILE CARPET,BLUE,DARK BLUE,TRIM8# |
1 | ||
| 67610-1722005 |
AW11..EUR,GEN BEIGE,DARK BEIGE,TRIM4# |
1 | ||
| 67610-1723001 |
AW11 W(POWER WINDOW),BLACK,TRIM2# |
1 | ||
| 67610-1722004 |
AW11 DARK BLUE,TRIM8# |
1 | ||
| 67610-1724001 |
AW11 W(SPORTS SEAT),BLACK,TRIM2# |
1 | ||
| 67610-1725001 |
AW11 W(POWER WINDOW & SPORTS SEAT),BLACK,TRIM2# |
1 | ||
| 67610-1724004 |
AW11 W(SPORTS SEAT),DARK BLUE,TRIM8# |
1 | ||
| 67610-1724005 |
AW11..EUR,GEN W(SPORTS SEAT),DARK BEIGE,TRIM4# |
1 | ||
| 67610-1725005 |
AW11..EUR,GEN W/*PW,CUT PILE CARPET,BEIGE,DARK BEIGE,TRIM4# |
1 | ||
| 67610-1722001 |
AW11 BLACK,BLACK,TRIM2# |
1 | ||
| 67610-1725001 |
AW11 W/*PW,CUT PILE CARPET,BLACK,BLACK,TRIM2# |
1 | ||
| 67610-1723004 |
AW11 W(POWER WINDOW),DARK BLUE,TRIM8# |
1 | ||
| 67610-1722004 |
AW11 BLUE,DARK BLUE,TRIM8# |
1 | ||
| 67610-1723005 |
AW11 DARK BEIGE,TRIM8# |
1 | ||
| 67610-1725005 |
AW11..EUR,GEN W(POWER WINDOW & SPORTS SEAT),DARK BEIGE,TRIM4# |
1 | ||
| 67610-1725004 |
AW11 W(POWER WINDOW & SPORTS SEAT),DARK BLUE,TRIM8# |
1 | ||
| 67610-1722005 |
AW11..EUR,GEN DARK BEIGE,TRIM4# |
1 | ||
| 67601E - CAP(FOR FRONT DOOR TRIM BOARD) | ||||
| 90339-1000111 |
AW11 BLACK,BLACK,TRIM2# |
2 | ||
| 90339-1000145 |
AW11..EUR,GEN BEIGE,DARK BEIGE,TRIM4# |
2 | ||
| 90339-1000124 |
AW11 DARK BLUE,TRIM8# |
2 | ||
| 90339-1000145 |
AW11..EUR,GEN DARK BEIGE,TRIM4# |
2 | ||
| 90339-1000111 |
AW11 BLACK,TRIM2# |
2 | ||
| 90339-1000124 |
AW11 BLUE,DARK BLUE,TRIM8# |
2 | ||
| 67601E - CAP(FOR FRONT DOOR TRIM BOARD) | ||||
| 90339-1000111 |
AW11 BLACK,BLACK,TRIM2# |
2 | ||
| 90339-1000145 |
AW11..EUR,GEN BEIGE,DARK BEIGE,TRIM4# |
2 | ||
| 90339-1000124 |
AW11 DARK BLUE,TRIM8# |
2 | ||
| 90339-1000145 |
AW11..EUR,GEN DARK BEIGE,TRIM4# |
2 | ||
| 90339-1000111 |
AW11 BLACK,TRIM2# |
2 | ||
| 90339-1000124 |
AW11 BLUE,DARK BLUE,TRIM8# |
2 | ||
| 67602 - BOARD SUB-ASSY, FRONT DOOR TRIM, LH | ||||
| 67620-1714001 |
AW11..LHD W/*PW,BLACK,BLACK,TRIM2# |
1 | ||
| 67620-1715001 |
AW11 W/CUT PILE CARPET,BLACK,BLACK,TRIM2# |
1 | ||
| 67620-1722001 |
AW11 W/CUT PILE CARPET,BLACK,BLACK,TRIM2# |
1 | ||
| 67620-1720005 |
AW11..EUR,GEN BEIGE,DARK BEIGE,TRIM4# |
1 | ||
| 67620-1720001 |
AW11 BLACK,BLACK,TRIM2# |
1 | ||
| 67620-1720004 |
AW11 BLUE,DARK BLUE,TRIM8# |
1 | ||
| 67620-1721004 |
AW11 W/*PW,BLUE,DARK BLUE,TRIM8# |
1 | ||
| 67620-1721001 |
AW11 W/*PW,BLACK,BLACK,TRIM2# |
1 | ||
| 67620-1713001 |
AW11 BLACK,BLACK,TRIM2# |
1 | ||
| 67620-1723004 |
AW11 W/*PW,CUT PILE CARPET,BLUE,DARK BLUE,TRIM8# |
1 | ||
| 67620-1721005 |
AW11..EUR,GEN W/*PW,BEIGE,DARK BEIGE,TRIM4# |
1 | ||
| 67620-1723005 |
AW11..EUR,GEN W/*PW,CUT PILE CARPET,BEIGE,DARK BEIGE,TRIM4# |
1 | ||
| 67620-1722005 |
AW11..EUR,GEN W/CUT PILE CARPET,BEIGE,DARK BEIGE,TRIM4# |
1 | ||
| 67620-1723001 |
AW11 W/*PW,CUT PILE CARPET,BLACK,BLACK,TRIM2# |
1 | ||
| 67620-1720001 |
AW11 BLACK,TRIM2# |
1 | ||
| 67620-1716001 |
AW11..LHD W/*PW,CUT PILE CARPET,BLACK,BLACK,TRIM2# |
1 | ||
| 67620-1722001 |
AW11 W(SPORTS SEAT),BLACK,TRIM2# |
1 | ||
| 67620-1722004 |
AW11 W/CUT PILE CARPET,BLUE,DARK BEIGE,TRIM8# |
1 | ||
| 67620-1721001 |
AW11 W(POWER WINDOW),BLACK,TRIM2# |
1 | ||
| 67620-1720004 |
AW11 DARK BLUE,TRIM8# |
1 | ||
| 67620-1721004 |
AW11 W(POWER WINDOW),DARK BLUE,TRIM8# |
1 | ||
| 67620-1723005 |
AW11..EUR,GEN W(POWER WINDOW & SPORTS SEAT),DARK BEIGE,TRIM4# |
1 | ||
| 67620-1720005 |
AW11..EUR,GEN DARK BEIGE,TRIM4# |
1 | ||
| 67620-1721005 |
AW11..EUR,GEN W(POWER WINDOW),DARK BEIGE,TRIM4# |
1 | ||
| 67620-1722005 |
AW11..EUR,GEN W(SPORTS SEAT),DARK BEIGE,TRIM4# |
1 | ||
| 67620-1723004 |
AW11 W(POWER WINDOW & SPORTS SEAT),DARK BLUE,TRIM8# |
1 | ||
| 67620-1722004 |
AW11 W(SPORTS SEAT),DARK BLUE,TRIM8# |
1 | ||
| 67620-1723001 |
AW11 W(POWER WINDOW & SPORTS SEAT),BLACK,TRIM2# |
1 | ||
| 67602 - BOARD SUB-ASSY, FRONT DOOR TRIM, LH | ||||
| 67620-1714001 |
AW11..LHD W/*PW,BLACK,BLACK,TRIM2# |
1 | ||
| 67620-1715001 |
AW11 W/CUT PILE CARPET,BLACK,BLACK,TRIM2# |
1 | ||
| 67620-1722001 |
AW11 W/CUT PILE CARPET,BLACK,BLACK,TRIM2# |
1 | ||
| 67620-1720005 |
AW11..EUR,GEN BEIGE,DARK BEIGE,TRIM4# |
1 | ||
| 67620-1720001 |
AW11 BLACK,BLACK,TRIM2# |
1 | ||
| 67620-1720004 |
AW11 BLUE,DARK BLUE,TRIM8# |
1 | ||
| 67620-1721004 |
AW11 W/*PW,BLUE,DARK BLUE,TRIM8# |
1 | ||
| 67620-1721001 |
AW11 W/*PW,BLACK,BLACK,TRIM2# |
1 | ||
| 67620-1713001 |
AW11 BLACK,BLACK,TRIM2# |
1 | ||
| 67620-1723004 |
AW11 W/*PW,CUT PILE CARPET,BLUE,DARK BLUE,TRIM8# |
1 | ||
| 67620-1721005 |
AW11..EUR,GEN W/*PW,BEIGE,DARK BEIGE,TRIM4# |
1 | ||
| 67620-1723005 |
AW11..EUR,GEN W/*PW,CUT PILE CARPET,BEIGE,DARK BEIGE,TRIM4# |
1 | ||
| 67620-1722005 |
AW11..EUR,GEN W/CUT PILE CARPET,BEIGE,DARK BEIGE,TRIM4# |
1 | ||
| 67620-1723001 |
AW11 W/*PW,CUT PILE CARPET,BLACK,BLACK,TRIM2# |
1 | ||
| 67620-1720001 |
AW11 BLACK,TRIM2# |
1 | ||
| 67620-1716001 |
AW11..LHD W/*PW,CUT PILE CARPET,BLACK,BLACK,TRIM2# |
1 | ||
| 67620-1722001 |
AW11 W(SPORTS SEAT),BLACK,TRIM2# |
1 | ||
| 67620-1722004 |
AW11 W/CUT PILE CARPET,BLUE,DARK BEIGE,TRIM8# |
1 | ||
| 67620-1721001 |
AW11 W(POWER WINDOW),BLACK,TRIM2# |
1 | ||
| 67620-1720004 |
AW11 DARK BLUE,TRIM8# |
1 | ||
| 67620-1721004 |
AW11 W(POWER WINDOW),DARK BLUE,TRIM8# |
1 | ||
| 67620-1723005 |
AW11..EUR,GEN W(POWER WINDOW & SPORTS SEAT),DARK BEIGE,TRIM4# |
1 | ||
| 67620-1720005 |
AW11..EUR,GEN DARK BEIGE,TRIM4# |
1 | ||
| 67620-1721005 |
AW11..EUR,GEN W(POWER WINDOW),DARK BEIGE,TRIM4# |
1 | ||
| 67620-1722005 |
AW11..EUR,GEN W(SPORTS SEAT),DARK BEIGE,TRIM4# |
1 | ||
| 67620-1723004 |
AW11 W(POWER WINDOW & SPORTS SEAT),DARK BLUE,TRIM8# |
1 | ||
| 67620-1722004 |
AW11 W(SPORTS SEAT),DARK BLUE,TRIM8# |
1 | ||
| 67620-1723001 |
AW11 W(POWER WINDOW & SPORTS SEAT),BLACK,TRIM2# |
1 | ||
| 67777 - POCKET, FRONT DOOR TRIM, RH | ||||
| 67770-1701005 |
AW11..EUR,GEN BEIGE,DARK BEIGE,TRIM4# |
1 | ||
| 67770-1701001 |
AW11 BLACK,TRIM2# |
1 | ||
| 67770-1702001 |
AW11 W/CUT PILE CARPET,BLACK,BLACK,TRIM2# |
1 | ||
| 67770-1702004 |
AW11 W/CUT PILE CARPET,BLUE,DARK BLUE,TRIM8# |
1 | ||
| 67770-1701001 |
AW11 BLACK,BLACK,TRIM2# |
1 | ||
| 67770-1702005 |
AW11..EUR,GEN W/CUT PILE CARPET,BEIGE,DARK BEIGE,TRIM4# |
1 | ||
| 67770-1702005 |
AW11..GEN W(SPORTS SEAT),DARK BEIGE,TRIM4# |
1 | ||
| 67770-1701005 |
AW11..EUR,GEN DARK BEIGE,TRIM4# |
1 | ||
| 67770-1701004 |
AW11 BLUE,DARK BLUE,TRIM8# |
1 | ||
| 67770-1702001 |
AW11..ARL,GEN W(SPORTS SEAT),BLACK,TRIM2# |
1 | ||
| 67777 - POCKET, FRONT DOOR TRIM, RH | ||||
| 67770-1701005 |
AW11..EUR,GEN BEIGE,DARK BEIGE,TRIM4# |
1 | ||
| 67770-1701001 |
AW11 BLACK,TRIM2# |
1 | ||
| 67770-1702001 |
AW11 W/CUT PILE CARPET,BLACK,BLACK,TRIM2# |
1 | ||
| 67770-1702004 |
AW11 W/CUT PILE CARPET,BLUE,DARK BLUE,TRIM8# |
1 | ||
| 67770-1701001 |
AW11 BLACK,BLACK,TRIM2# |
1 | ||
| 67770-1702005 |
AW11..EUR,GEN W/CUT PILE CARPET,BEIGE,DARK BEIGE,TRIM4# |
1 | ||
| 67770-1702005 |
AW11..GEN W(SPORTS SEAT),DARK BEIGE,TRIM4# |
1 | ||
| 67770-1701005 |
AW11..EUR,GEN DARK BEIGE,TRIM4# |
1 | ||
| 67770-1701004 |
AW11 BLUE,DARK BLUE,TRIM8# |
1 | ||
| 67770-1702001 |
AW11..ARL,GEN W(SPORTS SEAT),BLACK,TRIM2# |
1 | ||
| 67778 - POCKET, FRONT DOOR TRIM, LH | ||||
| 67780-1701004 |
AW11 BLUE,DARK BLUE,TRIM8# |
1 | ||
| 67780-1702005 |
AW11..EUR,GEN W/CUT PILE CARPET,BEIGE,DARK BEIGE,TRIM4# |
1 | ||
| 67780-1702004 |
AW11 W/CUT PILE CARPET,BLUE,DARK BLUE,TRIM8# |
1 | ||
| 67780-1701001 |
AW11 BLACK,TRIM2# |
1 | ||
| 67780-1702001 |
AW11..ARL,GEN W(SPORTS SEAT),BLACK,TRIM2# |
1 | ||
| 67780-1701001 |
AW11 BLACK,BLACK,TRIM2# |
1 | ||
| 67780-1701005 |
AW11..EUR,GEN DARK BEIGE,TRIM4# |
1 | ||
| 67780-1702005 |
AW11..GEN W(SPORTS SEAT),DARK BEIGE,TRIM4# |
1 | ||
| 67780-1701005 |
AW11..EUR,GEN BEIGE,DARK BEIGE,TRIM4# |
1 | ||
| 67780-1702001 |
AW11 W/CUT PILE CARPET,BLACK,BLACK,TRIM2# |
1 | ||
| 67778 - POCKET, FRONT DOOR TRIM, LH | ||||
| 67780-1701004 |
AW11 BLUE,DARK BLUE,TRIM8# |
1 | ||
| 67780-1702005 |
AW11..EUR,GEN W/CUT PILE CARPET,BEIGE,DARK BEIGE,TRIM4# |
1 | ||
| 67780-1702004 |
AW11 W/CUT PILE CARPET,BLUE,DARK BLUE,TRIM8# |
1 | ||
| 67780-1701001 |
AW11 BLACK,TRIM2# |
1 | ||
| 67780-1702001 |
AW11..ARL,GEN W(SPORTS SEAT),BLACK,TRIM2# |
1 | ||
| 67780-1701001 |
AW11 BLACK,BLACK,TRIM2# |
1 | ||
| 67780-1701005 |
AW11..EUR,GEN DARK BEIGE,TRIM4# |
1 | ||
| 67780-1702005 |
AW11..GEN W(SPORTS SEAT),DARK BEIGE,TRIM4# |
1 | ||
| 67780-1701005 |
AW11..EUR,GEN BEIGE,DARK BEIGE,TRIM4# |
1 | ||
| 67780-1702001 |
AW11 W/CUT PILE CARPET,BLACK,BLACK,TRIM2# |
1 | ||
| 68170 - WEATHERSTRIP ASSY, FRONT DOOR GLASS, INNER | ||||
| 68170-17010 |
AW11 RH |
1 | ||
| 68220-17011 |
AW11 LH |
1 | ||
| 68170-17011 |
AW11 RH |
1 | ||
| 68220-17010 |
AW11 LH |
1 | ||
| 68170 - WEATHERSTRIP ASSY, FRONT DOOR GLASS, INNER | ||||
| 68170-17010 |
AW11 RH |
1 | ||
| 68220-17011 |
AW11 LH |
1 | ||
| 68170-17011 |
AW11 RH |
1 | ||
| 68220-17010 |
AW11 LH |
1 | ||
| Common parts | ||||
| 67771-22010 | ||||
| 90159-40082 | ||||
| 90159-60081 | ||||
| 90164-60014 | ||||
| 90168-40025 | ||||
| 90189-04102 | ||||
| 90189-06018 | ||||
| 90189-06085 | ||||
| 90333-25001 | ||||
| Linked diagrams | ||||
| 7401 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
