AW11L-WCMQF (1984)
Toyota Mr2

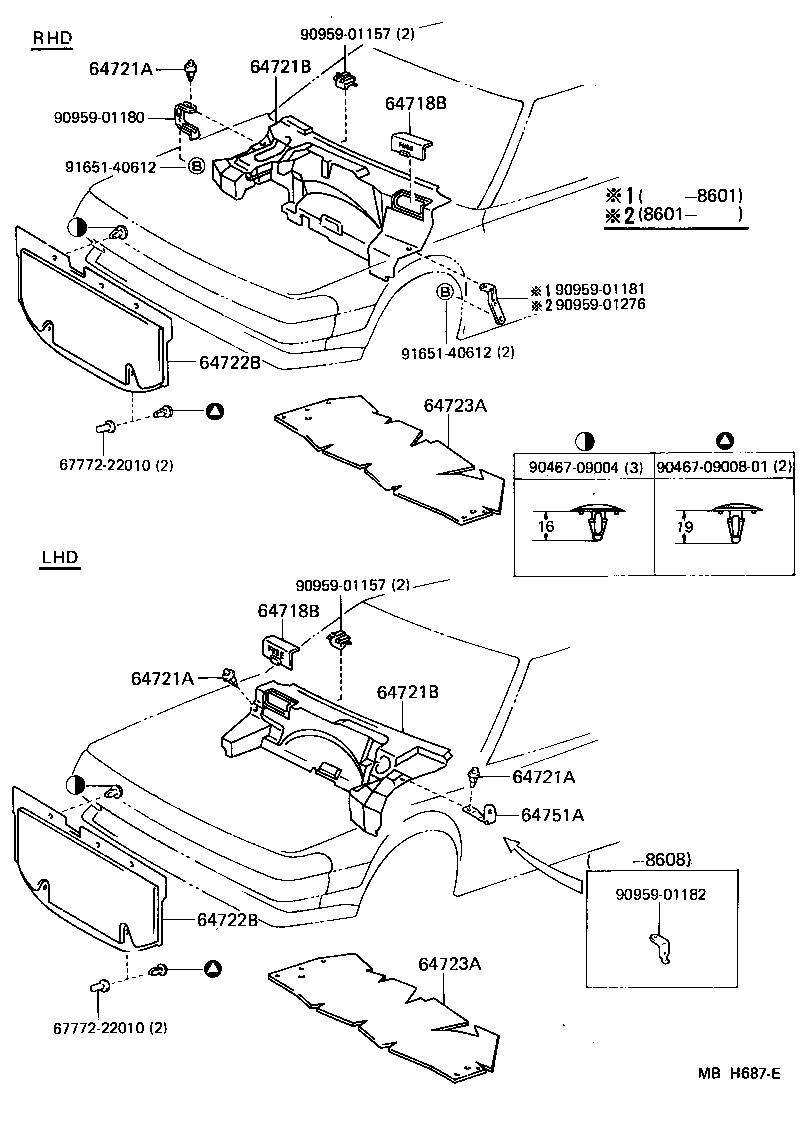

ILLUST NO. 1 OF 2(8411- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 64718B - COVER, LUGGAGE TRIM SERVICE HOLE | ||||
| 64718-17010 |
AW11..GEN |
1 | ||
| 64718-17011 |
AW11..GEN |
1 | ||
| 64718B - COVER, LUGGAGE TRIM SERVICE HOLE | ||||
| 64718-17010 |
AW11..GEN |
1 | ||
| 64718-17011 |
AW11..GEN |
1 | ||
| 64721A - CLIP(FOR LUGGAGE COMPARTMENT TRIM INNER COVER) | ||||
| 90467-0704101 |
AW11 BLACK,BLACK,TRIM2# |
2 | ||
| 90467-0704145 |
AW11..EUR,GEN DARK BEIGE,TRIM4# |
2 | ||
| 90467-0704101 |
AW11 BLACK,TRIM2# |
2 | ||
| 64721A - CLIP(FOR LUGGAGE COMPARTMENT TRIM INNER COVER) | ||||
| 90467-0704101 |
AW11 BLACK,BLACK,TRIM2# |
2 | ||
| 90467-0704145 |
AW11..EUR,GEN DARK BEIGE,TRIM4# |
2 | ||
| 90467-0704101 |
AW11 BLACK,TRIM2# |
2 | ||
| 64721A - CLIP(FOR LUGGAGE COMPARTMENT TRIM INNER COVER) | ||||
| 90467-0704101 |
AW11 BLACK,BLACK,TRIM2# |
2 | ||
| 90467-0704145 |
AW11..EUR,GEN DARK BEIGE,TRIM4# |
2 | ||
| 90467-0704101 |
AW11 BLACK,TRIM2# |
2 | ||
| 64721B - COVER, LUGGAGE COMPARTMENT TRIM, NO.1 | ||||
| 64721-17030 |
AW11..LHD |
1 | ||
| 64721-17070 |
AW11..LHD W/REMOVABLE ROOF |
1 | ||
| 64721B - COVER, LUGGAGE COMPARTMENT TRIM, NO.1 | ||||
| 64721-17030 |
AW11..LHD |
1 | ||
| 64721-17070 |
AW11..LHD W/REMOVABLE ROOF |
1 | ||
| 64722B - COVER, LUGGAGE COMPARTMENT TRIM, NO.2 | ||||
| 64722-17050 |
AW11 W/REMOVABLE ROOF |
1 | ||
| 64722-17050 |
AW11..GEN;AW11..FRG W/REMOVABLE ROOF |
1 | ||
| 64722-17030 |
AW11..GEN;AW11..FRG |
1 | ||
| 64722B - COVER, LUGGAGE COMPARTMENT TRIM, NO.2 | ||||
| 64722-17050 |
AW11 W/REMOVABLE ROOF |
1 | ||
| 64722-17050 |
AW11..GEN;AW11..FRG W/REMOVABLE ROOF |
1 | ||
| 64722-17030 |
AW11..GEN;AW11..FRG |
1 | ||
| 64723A - COVER, LUGGAGE COMPARTMENT TRIM, INNER LOWER | ||||
| 64723-17010 |
AW11..LHD |
1 | ||
| 64723A - COVER, LUGGAGE COMPARTMENT TRIM, INNER LOWER | ||||
| 64723-17010 |
AW11..LHD |
1 | ||
| Common parts | ||||
| 67772-22010 | ||||
| 90467-09004 | ||||
| 90467-0900801 | ||||
| 90959-01157 | ||||
| 90959-01180 | ||||
| 90959-01181 | ||||
| 90959-01182 | ||||
| 90959-01276 | ||||
| 91651-40612 | ||||

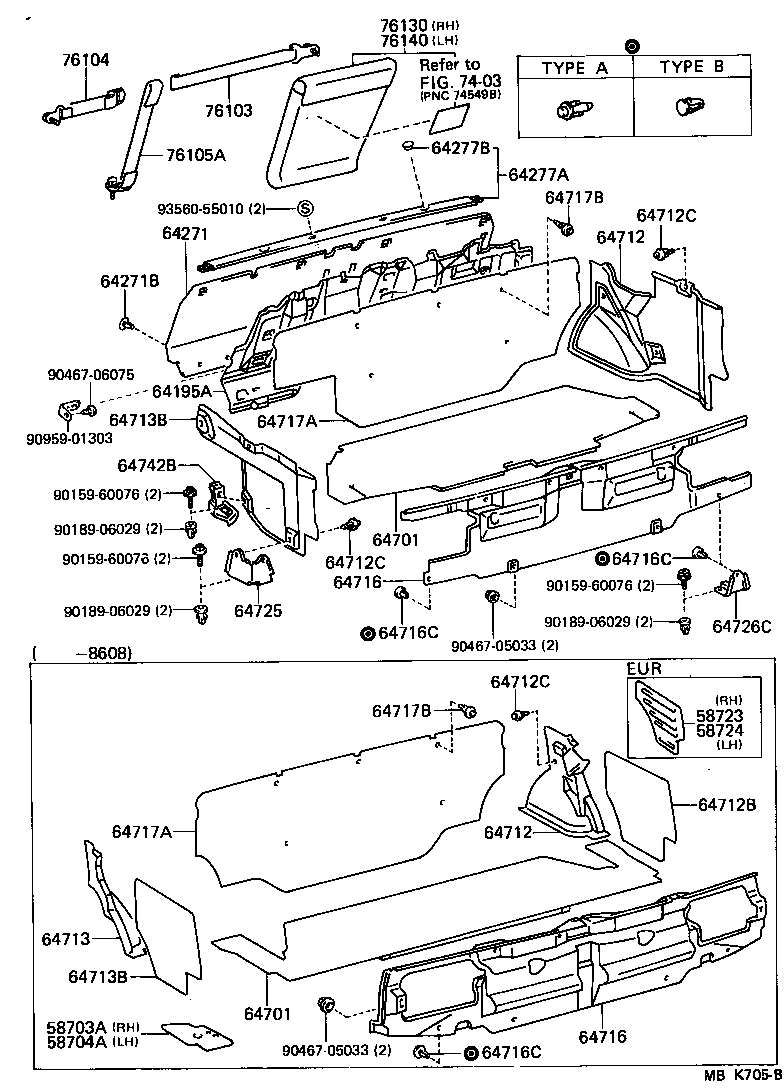

ILLUST NO. 2 OF 2(8411- )LHD
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 58703A - COVER SUB-ASSY, LUGGAGE COMPARTMENT SIDE, RH | ||||
| 58703-17010 |
AW11 |
1 | ||
| 58704A - COVER SUB-ASSY, LUGGAGE COMPARTMENT SIDE, LH | ||||
| 58704-17010 |
AW11 |
1 | ||
| 64195A - INSULATOR, ROOM PARTITION PANEL | ||||
| 64195-17010 |
AW11 |
1 | ||
| 64271 - BOARD, ROOM PARTITION, NO.1 | ||||
| 64270-1709001 |
AW11..LHD..EUG;AW11..LHD..GEN W/CUT PILE CARPET,BLACK,BLACK,TRIM2# |
1 | ||
| 64270-1712001 |
AW11..LHD W/RR CONSOLE,BLACK,BLACK,TRIM2# |
1 | ||
| 64270-1711001 |
AW11..LHD..EUG;AW11..LHD..GEN BLACK,BLACK,TRIM2# |
1 | ||
| 64270-1710001 |
AW11..LHD W/RR CONSOLE,CUT PILE CARPET,BLACK,BLACK,TRIM2# |
1 | ||
| 64270-1709001 |
AW11..LHD W/CUT PILE CARPET,BLACK,BLACK,TRIM2# |
1 | ||
| 64270-1709004 |
AW11..LHD W/CUT PILE CARPET,BLUE,DARK BLUE,TRIM8# |
1 | ||
| 64270-1710005 |
AW11..LHD W/RR CONSOLE,CUT PILE CARPET,BEIGE,DARK BEIGE,TRIM4# |
1 | ||
| 64270-1711004 |
AW11..LHD BLUE,DARK BLUE,TRIM8# |
1 | ||
| 64270-1712004 |
AW11..LHD W/RR CONSOLE,BLUE,DARK BLUE,TRIM8# |
1 | ||
| 64270-1710004 |
AW11..LHD W/RR CONSOLE,CUT PILE CARPET,BLUE,DARK BLUE,TRIM8# |
1 | ||
| 64270-1711001 |
AW11..LHD BLACK,BLACK,TRIM2# |
1 | ||
| 64270-1710005 |
AW11..LHD..GEN W(REAR CONSOLE BOX & SPORTS SEAT),DARK BEIGE,TRIM4# |
1 | ||
| 64270-1709005 |
AW11..LHD..GEN W(SPORTS SEAT),DARK BEIGE,TRIM4# |
1 | ||
| 64270-1709005 |
AW11..LHD W/CUT PILE CARPET,BEIGE,DARK BEIGE,TRIM4# |
1 | ||
| 64270-1712005 |
AW11..LHD W/RR CONSOLE,BEIGE,DARK BEIGE,TRIM4# |
1 | ||
| 64270-1711005 |
AW11..LHD BEIGE,DARK BEIGE,TRIM4# |
1 | ||
| 64270-1712005 |
AW11..LHD W(REAR CONSOLE BOX),DARK BEIGE,TRIM4# |
1 | ||
| 64270-1711005 |
AW11..LHD DARK BEIGE,TRIM4# |
1 | ||
| 64271B - CLIP(FOR ROOM PARTITION BOARD) | ||||
| 90467-0900804 |
AW11 BLUE,DARK BLUE,TRIM8# |
4 | ||
| 90467-0900805 |
AW11..EUR,GEN BEIGE,DARK BEIGE,TRIM4# |
4 | ||
| 90467-09008 |
AW11 BLACK |
4 | ||
| 90467-0900801 |
AW11 BLACK,BLACK,TRIM2# |
4 | ||
| 90467-0900805 |
AW11..EUR,GEN DARK BEIGE,TRIM4# |
4 | ||
| 64277A - MOULDING, ROOM PARTITION TRIM | ||||
| 64277-1702005 |
AW11..LHD BEIGE,DARK BEIGE,TRIM4# |
1 | ||
| 64277-1702004 |
AW11..LHD BLUE,DARK BLUE,TRIM8# |
1 | ||
| 64277-1702001 |
AW11..LHD BLACK,TRIM2# |
1 | ||
| 64277-1702001 |
AW11..LHD BLACK,BLACK,TRIM2# |
1 | ||
| 64277-1702005 |
AW11..LHD DARK BEIGE,TRIM4# |
1 | ||
| 64277B - PLUG, HOLE(FOR ROOM PARTITION TRIM MOULDING) | ||||
| 90950-0107604 |
AW11..LHD BLUE,DARK BLUE,TRIM8# |
1 | ||
| 90950-0107601 |
AW11..LHD BLACK,TRIM2# |
1 | ||
| 90950-0107601 |
AW11..LHD BLACK,BLACK,TRIM2# |
1 | ||
| 90950-0107605 |
AW11..LHD DARK BEIGE,TRIM4# |
1 | ||
| 90950-0107605 |
AW11..LHD BEIGE,DARK BEIGE,TRIM4# |
1 | ||
| 64701 - MAT SUB-ASSY, LUGGAGE COMPARTMENT | ||||
| 64711-17021 |
AW11 NEEDLE PUNCH |
1 | ||
| 64711-17031 |
AW11..RHD;AW11..LHD..EUG;AW11..LHD..GEN VINYL CHLORIDE |
1 | ||
| 64701 - MAT SUB-ASSY, LUGGAGE COMPARTMENT | ||||
| 64711-17021 |
AW11 NEEDLE PUNCH |
1 | ||
| 64711-17031 |
AW11..RHD;AW11..LHD..EUG;AW11..LHD..GEN VINYL CHLORIDE |
1 | ||
| 64712 - COVER, LUGGAGE COMPARTMENT TRIM, RH | ||||
| 64712-17020 |
AW11 NEEDLE PUNCH |
1 | ||
| 64712-1705003 |
AW11 GRAY,GRAY |
1 | ||
| 64712-17010 |
AW11..RHD;AW11..LHD..EUG;AW11..LHD..GEN VINYL CHLORIDE |
1 | ||
| 64712 - COVER, LUGGAGE COMPARTMENT TRIM, RH | ||||
| 64712-17020 |
AW11 NEEDLE PUNCH |
1 | ||
| 64712-1705003 |
AW11 GRAY,GRAY |
1 | ||
| 64712-17010 |
AW11..RHD;AW11..LHD..EUG;AW11..LHD..GEN VINYL CHLORIDE |
1 | ||
| 64712B - COVER, LUGGAGE COMPARTMENT TRIM, SIDE, RH | ||||
| 64714-17010 |
AW11..GEN VINYL CHLORIDE |
1 | ||
| 64714-17020 |
AW11..GEN NEEDLE PUNCH |
1 | ||
| 64712C - CLIP(FOR LUGGAGE COMPARTMENT TRIM COVER) | ||||
| 90467-0704113 |
AW11 GRAY,GRAY |
2 | ||
| 90467-0704113 |
AW11 GRAY,GRAY |
7 | ||
| 64712C - CLIP(FOR LUGGAGE COMPARTMENT TRIM COVER) | ||||
| 90467-0704113 |
AW11 GRAY,GRAY |
2 | ||
| 90467-0704113 |
AW11 GRAY,GRAY |
7 | ||
| 64712C - CLIP(FOR LUGGAGE COMPARTMENT TRIM COVER) | ||||
| 90467-0704113 |
AW11 GRAY,GRAY |
2 | ||
| 90467-0704113 |
AW11 GRAY,GRAY |
7 | ||
| 64713 - COVER, LUGGAGE COMPARTMENT TRIM, LH | ||||
| 64713-17020 |
AW11 NEEDLE PUNCH |
1 | ||
| 64713-17010 |
AW11..RHD;AW11..LHD..EUG;AW11..LHD..GEN VINYL CHLORIDE |
1 | ||
| 64713B - COVER, LUGGAGE COMPARTMENT TRIM, SIDE, LH | ||||
| 64715-17020 |
AW11..GEN NEEDLE PUNCH |
1 | ||
| 64715-17010 |
AW11..GEN VINYL CHLORIDE |
1 | ||
| 64715-1705003 |
AW11 GRAY,GRAY |
1 | ||
| 64713B - COVER, LUGGAGE COMPARTMENT TRIM, SIDE, LH | ||||
| 64715-17020 |
AW11..GEN NEEDLE PUNCH |
1 | ||
| 64715-17010 |
AW11..GEN VINYL CHLORIDE |
1 | ||
| 64715-1705003 |
AW11 GRAY,GRAY |
1 | ||
| 64716 - COVER, LUGGAGE COMPARTMENT, REAR CENTER | ||||
| 64716-1707003 |
AW11..EUR,GEN GRAY,GRAY |
1 | ||
| 64716-17030 |
AW11..RHD;AW11..LHD..EUG;AW11..LHD..GEN VINYL CHLORIDE |
1 | ||
| 64716-17040 |
AW11 NEEDLE PUNCH |
1 | ||
| 64716 - COVER, LUGGAGE COMPARTMENT, REAR CENTER | ||||
| 64716-1707003 |
AW11..EUR,GEN GRAY,GRAY |
1 | ||
| 64716-17030 |
AW11..RHD;AW11..LHD..EUG;AW11..LHD..GEN VINYL CHLORIDE |
1 | ||
| 64716-17040 |
AW11 NEEDLE PUNCH |
1 | ||
| 64716C - CLIP(FOR LUGGAGE COMPARTMENT TRIM REAR COVER) | ||||
| 90467-10032 |
AW11 TYPE B |
6 | ||
| 90467-10032 |
AW11 TYPE B |
7 | ||
| 90467-0704113 |
AW11 TYPE A,GRAY,GRAY |
2 | ||
| 64716C - CLIP(FOR LUGGAGE COMPARTMENT TRIM REAR COVER) | ||||
| 90467-10032 |
AW11 TYPE B |
6 | ||
| 90467-10032 |
AW11 TYPE B |
7 | ||
| 90467-0704113 |
AW11 TYPE A,GRAY,GRAY |
2 | ||
| 64716C - CLIP(FOR LUGGAGE COMPARTMENT TRIM REAR COVER) | ||||
| 90467-10032 |
AW11 TYPE B |
6 | ||
| 90467-10032 |
AW11 TYPE B |
7 | ||
| 90467-0704113 |
AW11 TYPE A,GRAY,GRAY |
2 | ||
| 64717A - COVER, LUGGAGE COMPARTMENT TRIM, FRONT | ||||
| 64717-17011 |
AW11..RHD;AW11..LHD..EUG;AW11..LHD..GEN VINYL CHLORIDE |
1 | ||
| 64717-1704003 |
AW11 GRAY,GRAY |
1 | ||
| 64717-17021 |
AW11 NEEDLE PUNCH |
1 | ||
| 64717A - COVER, LUGGAGE COMPARTMENT TRIM, FRONT | ||||
| 64717-17011 |
AW11..RHD;AW11..LHD..EUG;AW11..LHD..GEN VINYL CHLORIDE |
1 | ||
| 64717-1704003 |
AW11 GRAY,GRAY |
1 | ||
| 64717-17021 |
AW11 NEEDLE PUNCH |
1 | ||
| 64717B - CLIP(FOR LUGGAGE COMPARTMENT TRIM FRONT COVER) | ||||
| 90467-0704113 |
AW11 GRAY,GRAY |
5 | ||
| 64717B - CLIP(FOR LUGGAGE COMPARTMENT TRIM FRONT COVER) | ||||
| 90467-0704113 |
AW11 GRAY,GRAY |
5 | ||
| Common parts | ||||
| 90159-60076 | ||||
| 90189-06029 | ||||
| 90467-05033 | ||||
| 90467-06075 | ||||
| 90959-01303 | ||||
| 93560-55010 | ||||
| Linked diagrams | ||||
| 7403 | ||||
