AW11L-WCMQF (1984)
Toyota Mr2
Production
Nov 1984
-
Aug 1988
Engine
4AGEL
Transmission
5F MTM
Displacement
2500cc
Power
168 HP (125 kW)
(8411- )

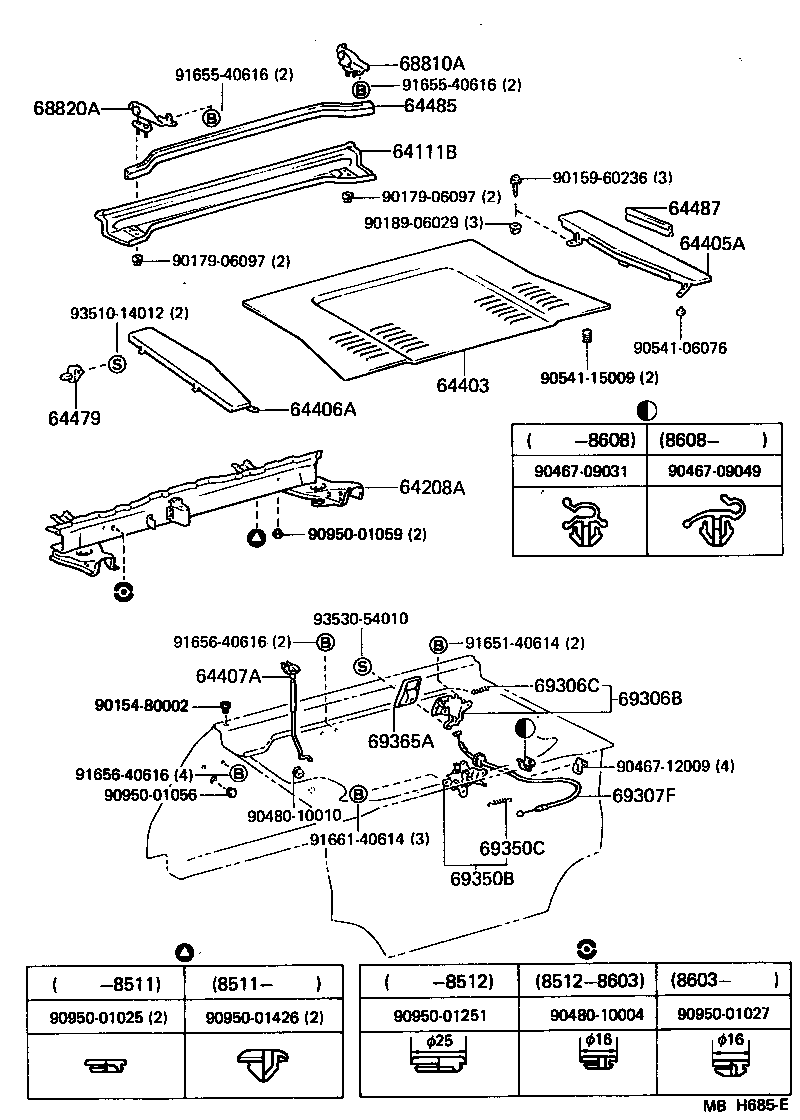

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 64111B - PANEL, UPPER BACK, OUTER | ||||
| 64111-17010 |
AW11 |
1 | ||
| 64208A - MEMBER SUB-ASSY, ROOM PARTITION CROSS | ||||
| 64208-17020 |
AW11..LHD..EUG;AW11..LHD..GEN;AW11..RHD..(EUR,GEN) |
1 | ||
| 64403 - HOOD SUB-ASSY, ENGINE | ||||
| 64403-17010 |
AW11 |
1 | ||
| 64405A - PANEL SUB-ASSY, ENGINE HOOD SIDE, RH | ||||
| 64405-17010 |
AW11 |
1 | ||
| 64406A - PANEL SUB-ASSY, ENGINE HOOD SIDE, LH | ||||
| 64406-17010 |
AW11 |
1 | ||
| 64407A - SUPPORT SUB-ASSY, ENGINE HOOD | ||||
| 64407-17010 |
AW11 |
1 | ||
| 64479 - CLIP, ENGINE HOOD SIDE PANEL | ||||
| 64479-17010 |
AW11 |
4 | ||
| 64485 - SEAL, ENGINE HOOD TO UPPER BACK | ||||
| 64485-17010 |
AW11 |
1 | ||
| 64487 - SEAL, ENGINE HOOD TO HOOD SIDE | ||||
| 64487-17010 |
AW11 |
1 | ||
| 68810A - HINGE ASSY, ENGINE HOOD, RH | ||||
| 68810-17010 |
AW11 |
1 | ||
| 68820A - HINGE ASSY, ENGINE HOOD, LH | ||||
| 68820-17010 |
AW11 |
1 | ||
| 69306B - LEVER SUB-ASSY, ENGINE HOOD LOCK CONTROL | ||||
| 69306-17010 |
AW11 |
1 | ||
| 69306C - SPRING, TORSION(FOR ENGINE HOOD LOCK CONTROL LEVER) | ||||
| 90508-10034 |
AW11 |
1 | ||
| 69307F - CABLE ASSY, ENGINE HOOD LOCK CONTROL | ||||
| 69307-17020 |
AW11..LHD |
1 | ||
| 69350B - LOCK ASSY, ENGINE HOOD | ||||
| 69350-17020 |
AW11..LHD |
1 | ||
| 69350C - SPRING, TENSION(FOR ENGINE HOOD LOCK) | ||||
| 90506-14043 |
AW11 |
1 | ||
| 69365A - BEZEL, ENGINE HOOD LOCK CONTROL | ||||
| 69365-1701004 |
AW11 BLUE,DARK BLUE,TRIM8# |
1 | ||
| 69365-1701001 |
AW11 BLACK,BLACK,TRIM2# |
1 | ||
| 69365-1701005 |
AW11..EUR,GEN DARK BEIGE,TRIM4# |
1 | ||
| 69365-1701001 |
AW11 BLACK,TRIM2# |
1 | ||
| 69365-1701005 |
AW11..EUR,GEN BEIGE,DARK BEIGE,TRIM4# |
1 | ||
| Common parts | ||||
| 90154-80002 | ||||
| 90159-60236 | ||||
| 90179-06097 | ||||
| 90189-06029 | ||||
| 90467-09031 | ||||
| 90467-09049 | ||||
| 90467-12009 | ||||
| 90480-10004 | ||||
| 90480-10010 | ||||
| 90541-06076 | ||||
| 90541-15009 | ||||
| 90950-01025 | ||||
| 90950-01027 | ||||
| 90950-01056 | ||||
| 90950-01059 | ||||
| 90950-01251 | ||||
| 90950-01426 | ||||
| 91651-40614 | ||||
| 91655-40616 | ||||
| 91656-40616 | ||||
| 91661-40614 | ||||
| 93510-14012 | ||||
| 93530-54010 | ||||
