AW11L-WCMQF (1984)

Toyota Mr2

Production Nov 1984 - Aug 1988
Engine 4AGEL
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(8411- )CP

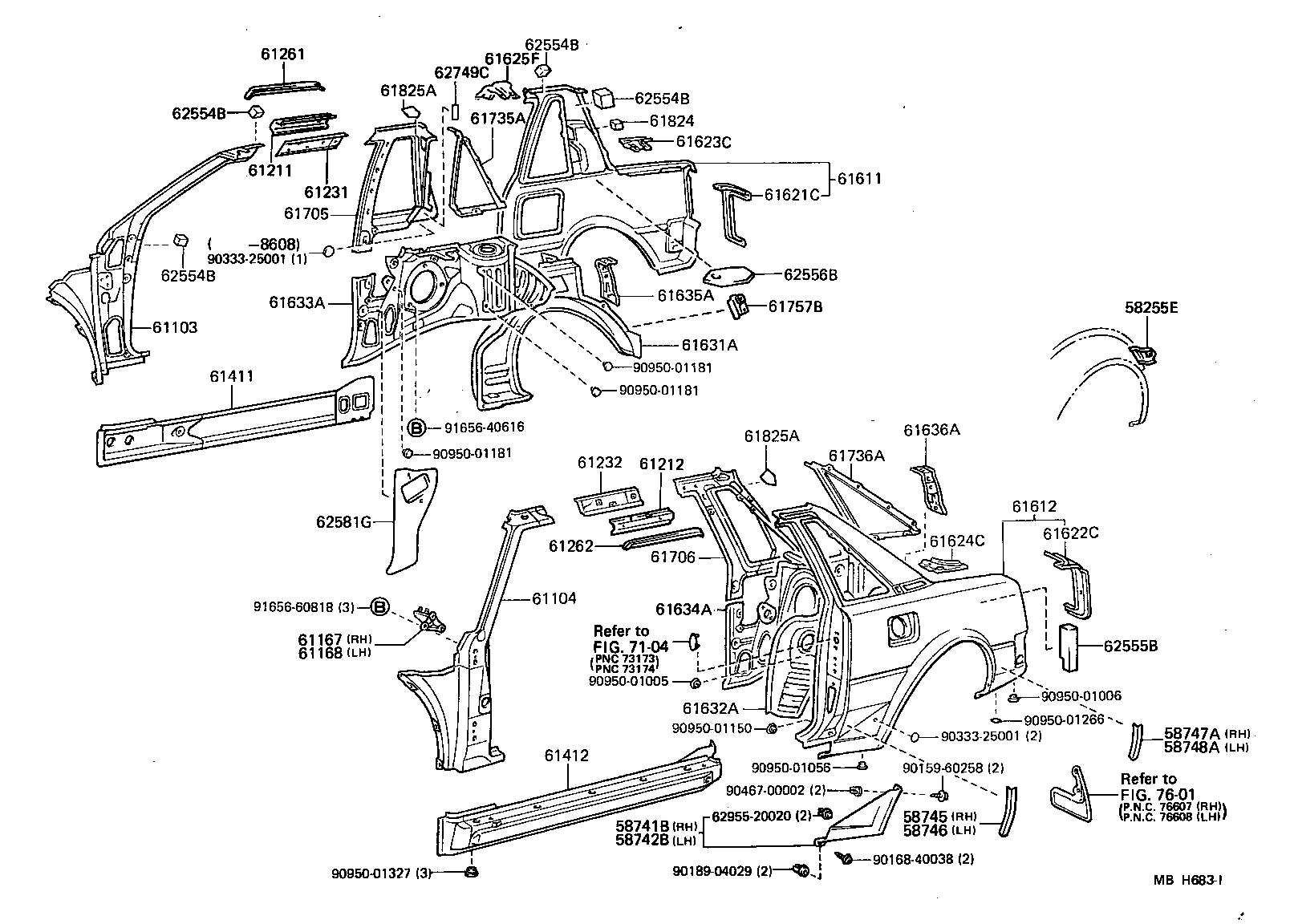

Click highlighted areas on diagram

diagram 58255E 58741B 58742B 58745 58746 58747A 58748A 61103 61104 61167 61168 61211 61212 61231 61232 61261 61262 61411 61412 61611 61612 61621C 61622C 61623C 61624C 61625F 61631A 61632A 61633A 61634A 61635A 61636A 61705 61706 61735A 61736A 61757B 61824 61825A 61825A 62554B 62554B 62554B 62554B 62555B 62556B 62581G 62749C 6295520020 7104 7601 9015960258 9016840038 9018904029 9033325001 9033325001 9046700002 9095001005 9095001006 9095001056 9095001150 9095001181 9095001181 9095001181 9095001266 9095001327 9165640616 9165660818
Part # Description Qty Price
58741B - PROTECTOR, QUARTER PANEL, RH
58741-17010

AW11

 1
58742B - PROTECTOR, QUARTER PANEL, LH
58742-17010

AW11

 1
61103 - PILLAR SUB-ASSY, FRONT BODY, RH
61021-17030

AW11..LHD

 1
61021-17040

AW11..CP..LHD

 1
61104 - PILLAR SUB-ASSY, FRONT BODY, LH
61022-17040

AW11..CP..LHD

 1
61167 - BRACKET, INSTRUMENT PANEL TO COWL SIDE, RH
61165-17010

AW11..LHD

 1
61211 - RAIL, ROOF SIDE, OUTER RH
61211-17010

AW11..CP

 1
61212 - RAIL, ROOF SIDE, OUTER LH
61212-17010

AW11..CP

 1
61231 - RAIL, ROOF SIDE, INNER RH
61231-17010

AW11..CP..(EUR,GEN)

 1
61232 - RAIL, ROOF SIDE, INNER LH
61232-17010

AW11..CP..(EUR,GEN)

 1
61261 - CHANNEL, ROOF DRIP, RH
61261-17010

AW11..CP

 1
61262 - CHANNEL, ROOF DRIP, LH
61262-17010

AW11..CP

 1
61411 - PANEL, ROCKER, OUTER RH
61401-17041

AW11..CP

W/ROCKER MOULDING

 1
61401-17010

AW11

 1
61401-17031

AW11

W/ROCKER MOULDING

 1
61412 - PANEL, ROCKER, OUTER LH
61402-17031

AW11

W/ROCKER MOULDING

 1
61402-17041

AW11..CP

W/ROCKER MOULDING

 1
61402-17010

AW11

 1
61611 - PANEL, QUARTER, RH
61601-17020

AW11

 1
61601-17905

AW11..CP

 1
61612 - PANEL, QUARTER, LH
61602-17902

AW11..CP

 1
61602-17030

AW11

 1
61621C - TROUGH, LUGGAGE COMPARTMENT OPENING, RH
61621-17010

AW11

 1
61622C - TROUGH, LUGGAGE COMPARTMENT OPENING, LH
61622-17010

AW11

 1
61623C - TROUGH, LUGGAGE COMPARTMENT DOOR OPENING, FRONT RH
61623-17010

AW11

 1
61624C - TROUGH, LUGGAGE COMPARTMENT DOOR OPENING, FRONT LH
61624-17010

AW11

 1
61625F - EXTENSION, QUARTER PANEL, UPPER RH
61625-17010

AW11..CP

 1
61631A - PANEL, QUARTER WHEEL HOUSE, OUTER RH
61631-17900

AW11

 1
61632A - PANEL, QUARTER WHEEL HOUSE, OUTER LH
61632-17900

AW11

 1
61633A - PANEL, QUARTER WHEEL HOUSE, INNER RH
61633-17900

AW11

 1
61634A - PANEL, QUARTER WHEEL HOUSE, INNER LH
61634-17900

AW11

 1
61635A - BRACE, QUARTER WHEEL HOUSE, RH
61635-17010

AW11

 1
61636A - BRACE, QUARTER WHEEL HOUSE, LH
61636-17010

AW11

 1
61705 - PANEL SUB-ASSY, ROOF SIDE, INNER RH
61705-17902

AW11..CP..(EUR,GEN)

 1
61705-17902

AW11

 1
61705-17900

AW11

 1
61706 - PANEL SUB-ASSY, ROOF SIDE, INNER LH
61706-17902

AW11..CP..(EUR,GEN)

 1
61706-17900

AW11

 1
61735A - PANEL, ROOF SIDE, INNER REAR RH
61735-17010

AW11

 1
61736A - PANEL, ROOF SIDE, INNER REAR LH
61736-17010

AW11

 1
61824 - PLATE, NOISE CONTROL, NO.1
61824-12010

AW11

 2
61825A - PLATE, NOISE CONTROL, NO.2
61825-17010

AW11

 2
61825-17010

AW11..EUR,GEN

 2
61825A - PLATE, NOISE CONTROL, NO.2
61825-17010

AW11

 2
61825-17010

AW11..EUR,GEN

 2
62554B - PAD, PILLAR, NO.4
62554-17010

AW11

100 X 100

 2
62554-30010

AW11..CP

65 X 65

 6
62554-17010

AW11..EUR,GEN

100 X 100

 2
62554B - PAD, PILLAR, NO.4
62554-17010

AW11

100 X 100

 2
62554-30010

AW11..CP

65 X 65

 6
62554-17010

AW11..EUR,GEN

100 X 100

 2
62554B - PAD, PILLAR, NO.4
62554-17010

AW11

100 X 100

 2
62554-30010

AW11..CP

65 X 65

 6
62554-17010

AW11..EUR,GEN

100 X 100

 2
62554B - PAD, PILLAR, NO.4
62554-17010

AW11

100 X 100

 2
62554-30010

AW11..CP

65 X 65

 6
62554-17010

AW11..EUR,GEN

100 X 100

 2
Common parts
62955-20020
90159-60258
90168-40038
90189-04029
90333-25001
90467-00002
90950-01005
90950-01006
90950-01056
90950-01150
90950-01181
90950-01266
90950-01327
91656-40616
91656-60818
Linked diagrams
7104
7601
