AW11L-WCMQF (1984)
Toyota Mr2

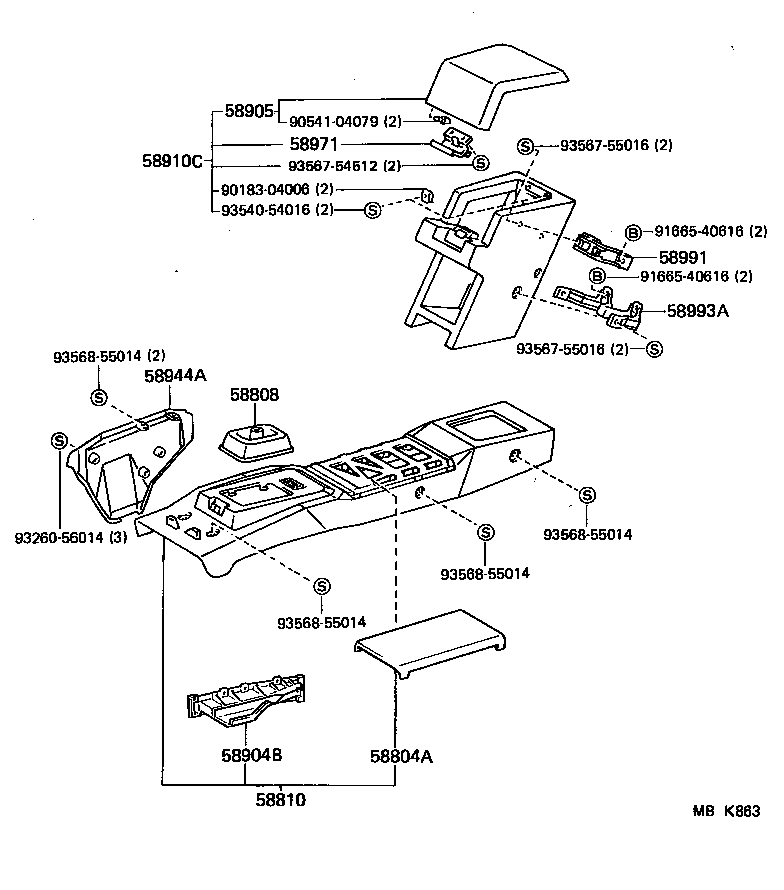

(8411-8608)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 58804A - PANEL SUB-ASSY, CONSOLE, UPPER | ||||
| 58804-1701001 |
AW11..LHD BLACK,BLACK,TRIM2# |
1 | ||
| 58804-1704005 |
AW11..EUR,GEN BEIGE,DARK BEIGE,TRIM4# |
1 | ||
| 58804-1704001 |
AW11 BLACK,TRIM2# |
1 | ||
| 58804-1704004 |
AW11 BLUE,DARK BLUE,TRIM8# |
1 | ||
| 58804-1704001 |
AW11 BLACK,BLACK,TRIM2# |
1 | ||
| 58804-1704005 |
AW11..EUR,GEN DARK BEIGE,TRIM4# |
1 | ||
| 58808 - COVER SUB-ASSY, SHIFTING HOLE | ||||
| 58808-1701001 |
AW11 BLACK,TRIM2# |
1 | ||
| 58808-1701004 |
AW11 BLUE,DARK BLUE,TRIM8# |
1 | ||
| 58808-1701005 |
AW11..EUR,GEN BEIGE,DARK BEIGE,TRIM4# |
1 | ||
| 58808-1701005 |
AW11..EUR,GEN DARK BEIGE,TRIM4# |
1 | ||
| 58808-17010 |
AW11 |
1 | ||
| 58808-1701001 |
AW11 BLACK,BLACK,TRIM2# |
1 | ||
| 58810 - CONSOLE ASSY | ||||
| 58801-1702001 |
AW11..LHD..EUG;AW11..LHD..GEN BLACK,BLACK,TRIM2# |
1 | ||
| 58801-1707001 |
AW11..EUR,GEN BLACK,BLACK,TRIM2# |
1 | ||
| 58801-1709005 |
AW11..EUR,GEN W/LEATHER,BEIGE,DARK BEIGE,TRIM4# |
1 | ||
| 58801-1709005 |
AW11..GEN W(LEATHER),DARK BEIGE,TRIM4# |
1 | ||
| 58801-1709001 |
AW11 W/LEATHER,BLACK,BLACK,TRIM2# |
1 | ||
| 58801-1709004 |
AW11 W/LEATHER,BLUE,DARK BLUE,TRIM8# |
1 | ||
| 58801-1707001 |
AW11..EUR,GEN BLACK,TRIM2# |
1 | ||
| 58801-1707004 |
AW11..EUR,GEN BLUE,DARK BLUE,TRIM8# |
1 | ||
| 58801-1704001 |
AW11..LHD W/LEATHER,BLACK,BLACK,TRIM2# |
1 | ||
| 58801-1707005 |
AW11..EUR,GEN BEIGE,DARK BEIGE,TRIM4# |
1 | ||
| 58801-1707005 |
AW11..EUR,GEN DARK BEIGE,TRIM4# |
1 | ||
| 58801-1709001 |
AW11..GEN W(LEATHER),BLACK,TRIM2# |
1 | ||
| 58904B - COVER SUB-ASSY, PARKING BRAKE HOLE | ||||
| 58904-17030 |
AW11..LHD |
1 | ||
| 58905 - DOOR SUB-ASSY, CONSOLE COMPARTMENT | ||||
| 58905-1702001 |
AW11 BLACK,BLACK,TRIM2# |
1 | ||
| 58905-1702105 |
AW11..EUR,GEN BEIGE,DARK BEIGE,TRIM4# |
1 | ||
| 58905-1702101 |
AW11 BLACK,BLACK,TRIM2# |
1 | ||
| 58905-1702105 |
AW11..EUR,GEN DARK BEIGE,TRIM4# |
1 | ||
| 58905-1702104 |
AW11 BLUE,DARK BLUE,TRIM8# |
1 | ||
| 58905-1702101 |
AW11..EUR,GEN BLACK,TRIM2# |
1 | ||
| 58910C - BOX ASSY, CONSOLE, REAR | ||||
| 58910-1701104 |
AW11 BLUE,DARK BLUE,TRIM8# |
1 | ||
| 58910-1701101 |
AW11 BLACK,BLACK,TRIM2# |
1 | ||
| 58910-1701105 |
AW11..EUR,GEN DARK BEIGE,TRIM4# |
1 | ||
| 58910-1701105 |
AW11..EUR,GEN BEIGE,DARK BEIGE,TRIM4# |
1 | ||
| 58910-1701001 |
AW11 BLACK,BLACK,TRIM2# |
1 | ||
| 58910-1701101 |
AW11..EUR,GEN BLACK,TRIM2# |
1 | ||
| 58944A - COVER, CONSOLE, REAR | ||||
| 58944-1703001 |
AW11 BLACK,BLACK,TRIM2# |
1 | ||
| 58944-1703004 |
AW11 BLUE,DARK BLUE,TRIM8# |
1 | ||
| 58944-1703001 |
AW11 BLACK,TRIM2# |
1 | ||
| 58944-1702001 |
AW11..LHD BLACK,BLACK,TRIM2# |
1 | ||
| 58944-1703005 |
AW11..EUR,GEN BEIGE,DARK BEIGE,TRIM4# |
1 | ||
| 58944-1703005 |
AW11..EUR,GEN DARK BEIGE,TRIM4# |
1 | ||
| 58971 - LOCK, CONSOLE COMPARTMENT DOOR | ||||
| 58971-1701001 |
AW11 BLACK,BLACK,TRIM2# |
1 | ||
| 58971-1701005 |
AW11..EUR,GEN DARK BEIGE,TRIM4# |
1 | ||
| 58971-1701001 |
AW11..EUR,GEN BLACK,TRIM2# |
1 | ||
| 58971-1701005 |
AW11..EUR,GEN BEIGE,DARK BEIGE,TRIM4# |
1 | ||
| 58971-1701004 |
AW11 BLUE,DARK BLUE,TRIM8# |
1 | ||
| 58991 - BRACKET, CONSOLE BOX MOUNTING, UPPER | ||||
| 58991-17010 |
AW11 |
1 | ||
| 58993A - BRACKET, CONSOLE BOX MOUNTING, LOWER | ||||
| 58993-17010 |
AW11 |
1 | ||
| Common parts | ||||
| 90183-04006 | ||||
| 90541-04079 | ||||
| 91665-40616 | ||||
| 93260-56014 | ||||
| 93540-54016 | ||||
| 93567-54512 | ||||
| 93567-55016 | ||||
| 93568-55014 | ||||

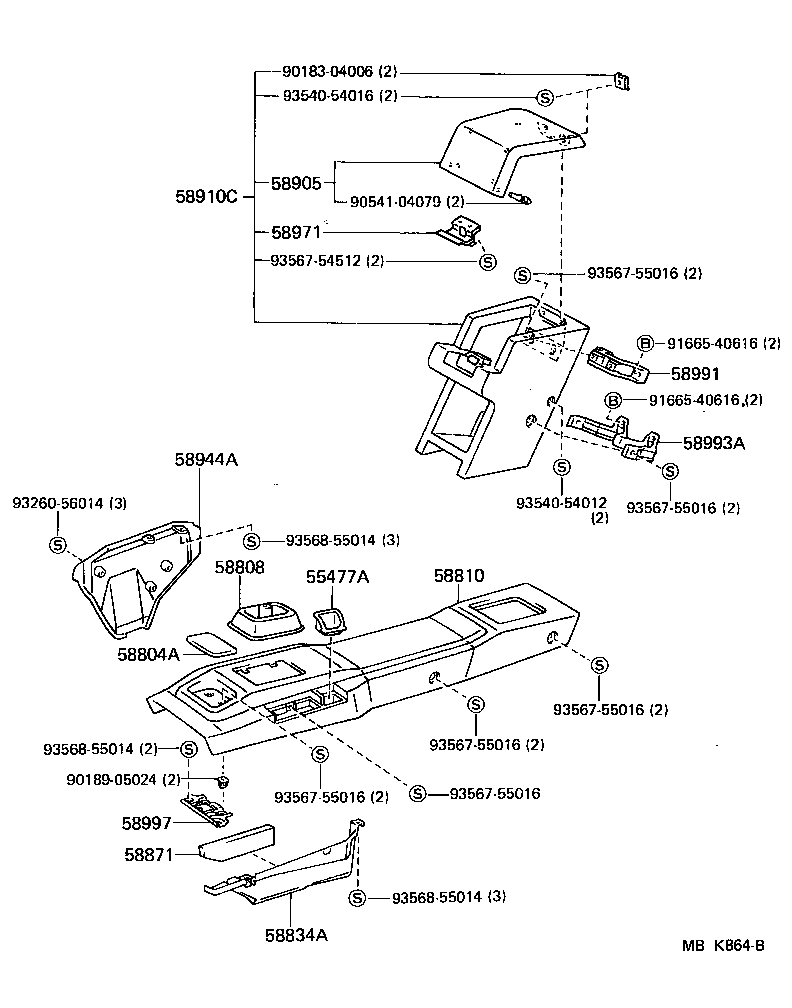

(8608- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 55477A - BEZEL, CIGARETTE LIGHTER HOLE | ||||
| 55477-17010 |
AW11 BLACK |
1 | ||
| 58804A - PANEL SUB-ASSY, CONSOLE, UPPER | ||||
| 58804-1701001 |
AW11..LHD BLACK,BLACK,TRIM2# |
1 | ||
| 58804-1704005 |
AW11..EUR,GEN BEIGE,DARK BEIGE,TRIM4# |
1 | ||
| 58804-1704001 |
AW11 BLACK,TRIM2# |
1 | ||
| 58804-1704004 |
AW11 BLUE,DARK BLUE,TRIM8# |
1 | ||
| 58804-1704001 |
AW11 BLACK,BLACK,TRIM2# |
1 | ||
| 58804-1704005 |
AW11..EUR,GEN DARK BEIGE,TRIM4# |
1 | ||
| 58808 - COVER SUB-ASSY, SHIFTING HOLE | ||||
| 58808-1701001 |
AW11 BLACK,TRIM2# |
1 | ||
| 58808-1701004 |
AW11 BLUE,DARK BLUE,TRIM8# |
1 | ||
| 58808-1701005 |
AW11..EUR,GEN BEIGE,DARK BEIGE,TRIM4# |
1 | ||
| 58808-1701005 |
AW11..EUR,GEN DARK BEIGE,TRIM4# |
1 | ||
| 58808-17010 |
AW11 |
1 | ||
| 58808-1701001 |
AW11 BLACK,BLACK,TRIM2# |
1 | ||
| 58810 - CONSOLE ASSY | ||||
| 58801-1702001 |
AW11..LHD..EUG;AW11..LHD..GEN BLACK,BLACK,TRIM2# |
1 | ||
| 58801-1707001 |
AW11..EUR,GEN BLACK,BLACK,TRIM2# |
1 | ||
| 58801-1709005 |
AW11..EUR,GEN W/LEATHER,BEIGE,DARK BEIGE,TRIM4# |
1 | ||
| 58801-1709005 |
AW11..GEN W(LEATHER),DARK BEIGE,TRIM4# |
1 | ||
| 58801-1709001 |
AW11 W/LEATHER,BLACK,BLACK,TRIM2# |
1 | ||
| 58801-1709004 |
AW11 W/LEATHER,BLUE,DARK BLUE,TRIM8# |
1 | ||
| 58801-1707001 |
AW11..EUR,GEN BLACK,TRIM2# |
1 | ||
| 58801-1707004 |
AW11..EUR,GEN BLUE,DARK BLUE,TRIM8# |
1 | ||
| 58801-1704001 |
AW11..LHD W/LEATHER,BLACK,BLACK,TRIM2# |
1 | ||
| 58801-1707005 |
AW11..EUR,GEN BEIGE,DARK BEIGE,TRIM4# |
1 | ||
| 58801-1707005 |
AW11..EUR,GEN DARK BEIGE,TRIM4# |
1 | ||
| 58801-1709001 |
AW11..GEN W(LEATHER),BLACK,TRIM2# |
1 | ||
| 58834A - COVER, CONSOLE, LOWER | ||||
| 58834-1702001 |
AW11 BLACK,BLACK,TRIM2# |
1 | ||
| 58834-1702005 |
AW11..EUR,GEN BEIGE,DARK BEIGE,TRIM4# |
1 | ||
| 58834-1702001 |
AW11 BLACK,TRIM2# |
1 | ||
| 58834-1702004 |
AW11 BLUE,DARK BLUE,TRIM8# |
1 | ||
| 58834-1702005 |
AW11..EUR,GEN DARK BEIGE,TRIM4# |
1 | ||
| 58905 - DOOR SUB-ASSY, CONSOLE COMPARTMENT | ||||
| 58905-1702001 |
AW11 BLACK,BLACK,TRIM2# |
1 | ||
| 58905-1702105 |
AW11..EUR,GEN BEIGE,DARK BEIGE,TRIM4# |
1 | ||
| 58905-1702101 |
AW11 BLACK,BLACK,TRIM2# |
1 | ||
| 58905-1702105 |
AW11..EUR,GEN DARK BEIGE,TRIM4# |
1 | ||
| 58905-1702104 |
AW11 BLUE,DARK BLUE,TRIM8# |
1 | ||
| 58905-1702101 |
AW11..EUR,GEN BLACK,TRIM2# |
1 | ||
| 58910C - BOX ASSY, CONSOLE, REAR | ||||
| 58910-1701104 |
AW11 BLUE,DARK BLUE,TRIM8# |
1 | ||
| 58910-1701101 |
AW11 BLACK,BLACK,TRIM2# |
1 | ||
| 58910-1701105 |
AW11..EUR,GEN DARK BEIGE,TRIM4# |
1 | ||
| 58910-1701105 |
AW11..EUR,GEN BEIGE,DARK BEIGE,TRIM4# |
1 | ||
| 58910-1701001 |
AW11 BLACK,BLACK,TRIM2# |
1 | ||
| 58910-1701101 |
AW11..EUR,GEN BLACK,TRIM2# |
1 | ||
| 58944A - COVER, CONSOLE, REAR | ||||
| 58944-1703001 |
AW11 BLACK,BLACK,TRIM2# |
1 | ||
| 58944-1703004 |
AW11 BLUE,DARK BLUE,TRIM8# |
1 | ||
| 58944-1703001 |
AW11 BLACK,TRIM2# |
1 | ||
| 58944-1702001 |
AW11..LHD BLACK,BLACK,TRIM2# |
1 | ||
| 58944-1703005 |
AW11..EUR,GEN BEIGE,DARK BEIGE,TRIM4# |
1 | ||
| 58944-1703005 |
AW11..EUR,GEN DARK BEIGE,TRIM4# |
1 | ||
| 58971 - LOCK, CONSOLE COMPARTMENT DOOR | ||||
| 58971-1701001 |
AW11 BLACK,BLACK,TRIM2# |
1 | ||
| 58971-1701005 |
AW11..EUR,GEN DARK BEIGE,TRIM4# |
1 | ||
| 58971-1701001 |
AW11..EUR,GEN BLACK,TRIM2# |
1 | ||
| 58971-1701005 |
AW11..EUR,GEN BEIGE,DARK BEIGE,TRIM4# |
1 | ||
| 58971-1701004 |
AW11 BLUE,DARK BLUE,TRIM8# |
1 | ||
| 58991 - BRACKET, CONSOLE BOX MOUNTING, UPPER | ||||
| 58991-17010 |
AW11 |
1 | ||
| 58993A - BRACKET, CONSOLE BOX MOUNTING, LOWER | ||||
| 58993-17010 |
AW11 |
1 | ||
| Common parts | ||||
| 90183-04006 | ||||
| 90189-05024 | ||||
| 90541-04079 | ||||
| 91665-40616 | ||||
| 93260-56014 | ||||
| 93540-54012 | ||||
| 93540-54016 | ||||
| 93567-54512 | ||||
| 93567-55016 | ||||
| 93568-55014 | ||||
