AW11L-WCMQF (1984)

Toyota Mr2

Production Nov 1984 - Aug 1988
Engine 4AGEL
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(8411- )

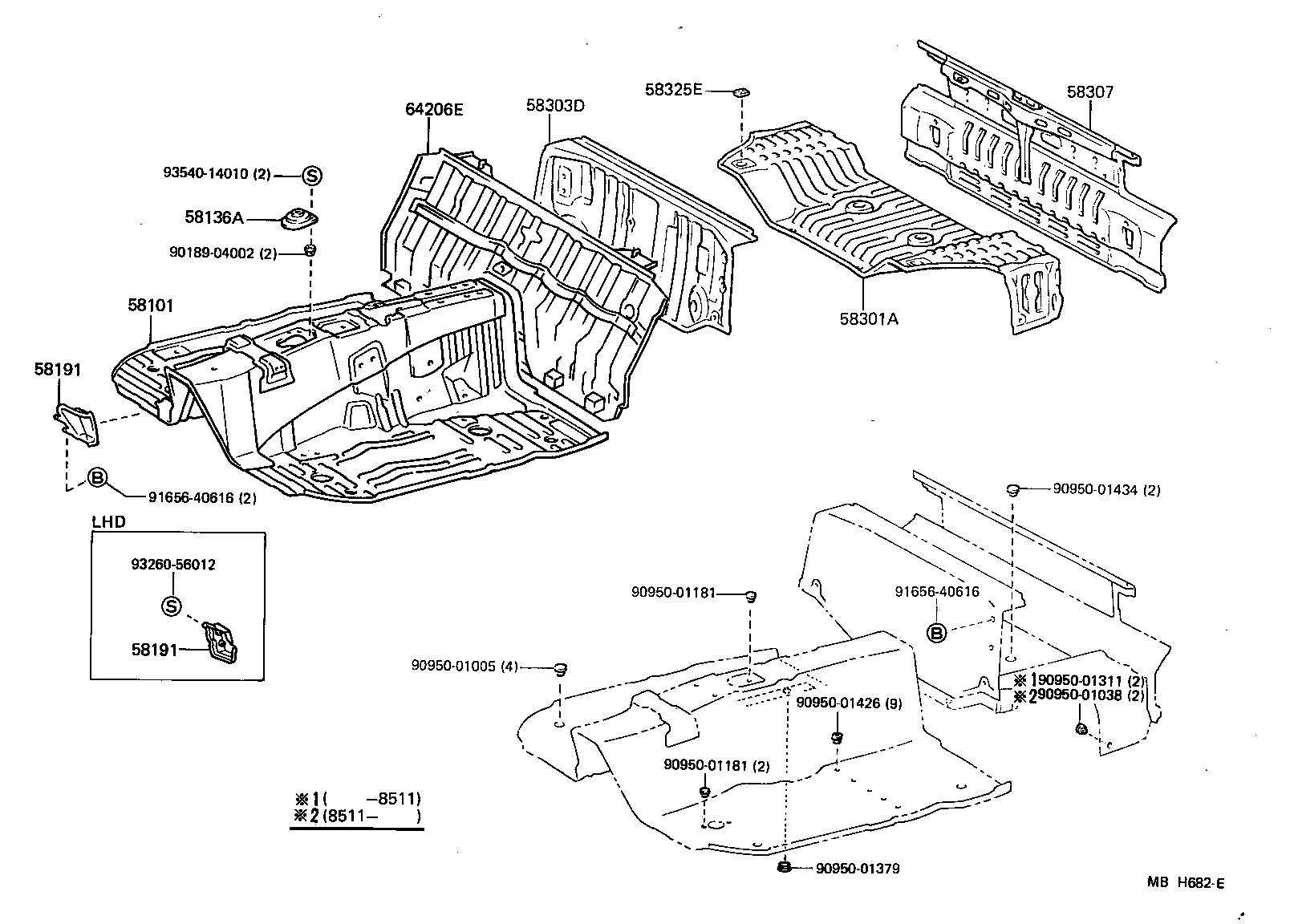

Click highlighted areas on diagram

diagram 58101 58136A 58191 58191 58301A 58303D 58307 58325E 64206E 9018904002 9095001005 9095001038 9095001181 9095001181 9095001311 9095001379 9095001426 9095001434 9165640616 9165640616 9326056012 9354014010
Part # Description Qty Price
58101 - PAN SUB-ASSY, FRONT FLOOR
58101-17903

AW11..LHD

 1
58136A - COVER, FRONT FLOOR SERVICE HOLE
58136-17010

AW11

 1
58191 - FOOTREST, FRONT FLOOR
58192-17010

AW11..LHD

 1
58191 - FOOTREST, FRONT FLOOR
58192-17010

AW11..LHD

 1
58301A - PANEL SUB-ASSY, REAR FLOOR
58301-17020

AW11

 1
58303D - PANEL SUB-ASSY, REAR FLOOR PARTITION
58303-17021

AW11..LHD..EUG;AW11..LHD..GEN;AW11..RHD..(EUR,GEN)

 1
58303-17030

AW11..LHD

 1
58307 - PANEL SUB-ASSY, BODY LOWER BACK
58307-17021

AW11..EUR,GEN

 1
58307-17021

AW11

 1
58307-17020

AW11

 1
58325E - COVER, REAR FLOOR SERVICE HOLE
58325-17010

AW11

 2
Common parts
90189-04002
90950-01005
90950-01038
90950-01181
90950-01311
90950-01379
90950-01426
90950-01434
91656-40616
93260-56012
93540-14010
