AW11L-WCMQF (1984)
Toyota Mr2
Production
Nov 1984
-
Aug 1988
Engine
4AGEL
Transmission
5F MTM
Displacement
2500cc
Power
168 HP (125 kW)
(8411- )

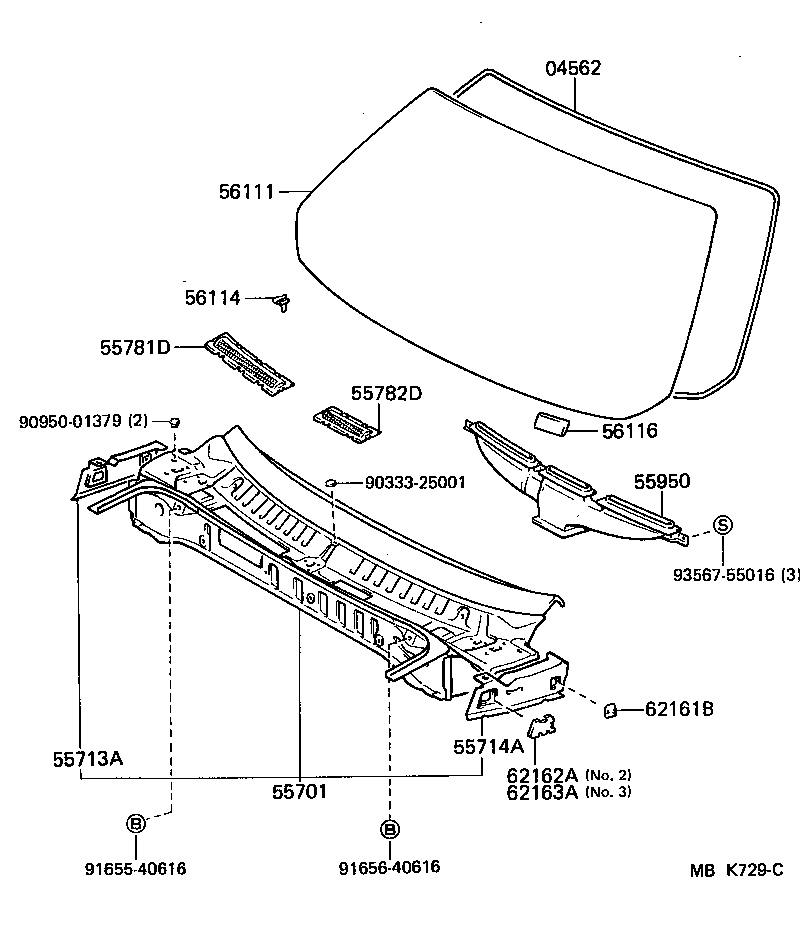

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 04562 - DAM KIT, WINDSHIELD GLASS | ||||
| 04562-30040 |
AW11 |
1 | ||
| 55701 - PANEL SUB-ASSY, COWL | ||||
| 55700-17040 |
AW11..LHD |
1 | ||
| 55713A - PANEL, COWL TOP SIDE, RH | ||||
| 55713-17010 |
AW11 |
1 | ||
| 55714A - PANEL, COWL TOP SIDE, LH | ||||
| 55714-17010 |
AW11 |
1 | ||
| 55781D - LOUVER, COWL TOP VENTILATOR, RH | ||||
| 55781-17020 |
AW11..LHD |
1 | ||
| 55782D - LOUVER, COWL TOP VENTILATOR, LH | ||||
| 55782-17020 |
AW11..LHD |
1 | ||
| 55950 - NOZZLE ASSY, DEFROSTER | ||||
| 55950-17020 |
AW11..LHD |
1 | ||
| 55950-1702001 |
AW11..LHD BLACK,BLACK,TRIM2# |
1 | ||
| 55950-1702005 |
AW11..LHD DARK BEIGE,TRIM4# |
1 | ||
| 55950-1702004 |
AW11..LHD BLUE,DARK BLUE,TRIM8# |
1 | ||
| 55950-1702005 |
AW11..LHD BEIGE,DARK BEIGE,TRIM4# |
1 | ||
| 55950-1702001 |
AW11..LHD BLACK,TRIM2# |
1 | ||
| 56111 - GLASS, WINDSHIELD | ||||
| 56111-17020 |
AW11..EUR,GEN *TL,T=5.3,*TL,T=5.3 |
1 | ||
| 56114 - RETAINER, WINDSHIELD GLASS | ||||
| 56114-17010 |
AW11 |
2 | ||
| 62161B - COVER, COWL SIDE PANEL SERVICE HOLE | ||||
| 62161-17010 |
AW11 |
2 | ||
| 62162A - COVER, COWL SIDE PANEL HOLE, NO.2 | ||||
| 62162-17010 |
AW11 |
1 | ||
| 62163A - COVER, COWL SIDE PANEL HOLE, NO.3 | ||||
| 62163-17010 |
AW11 |
1 | ||
| Common parts | ||||
| 90333-25001 | ||||
| 90950-01379 | ||||
| 91655-40616 | ||||
| 91656-40616 | ||||
| 93567-55016 | ||||
