AW11L-WCMQF (1984)
Toyota Mr2

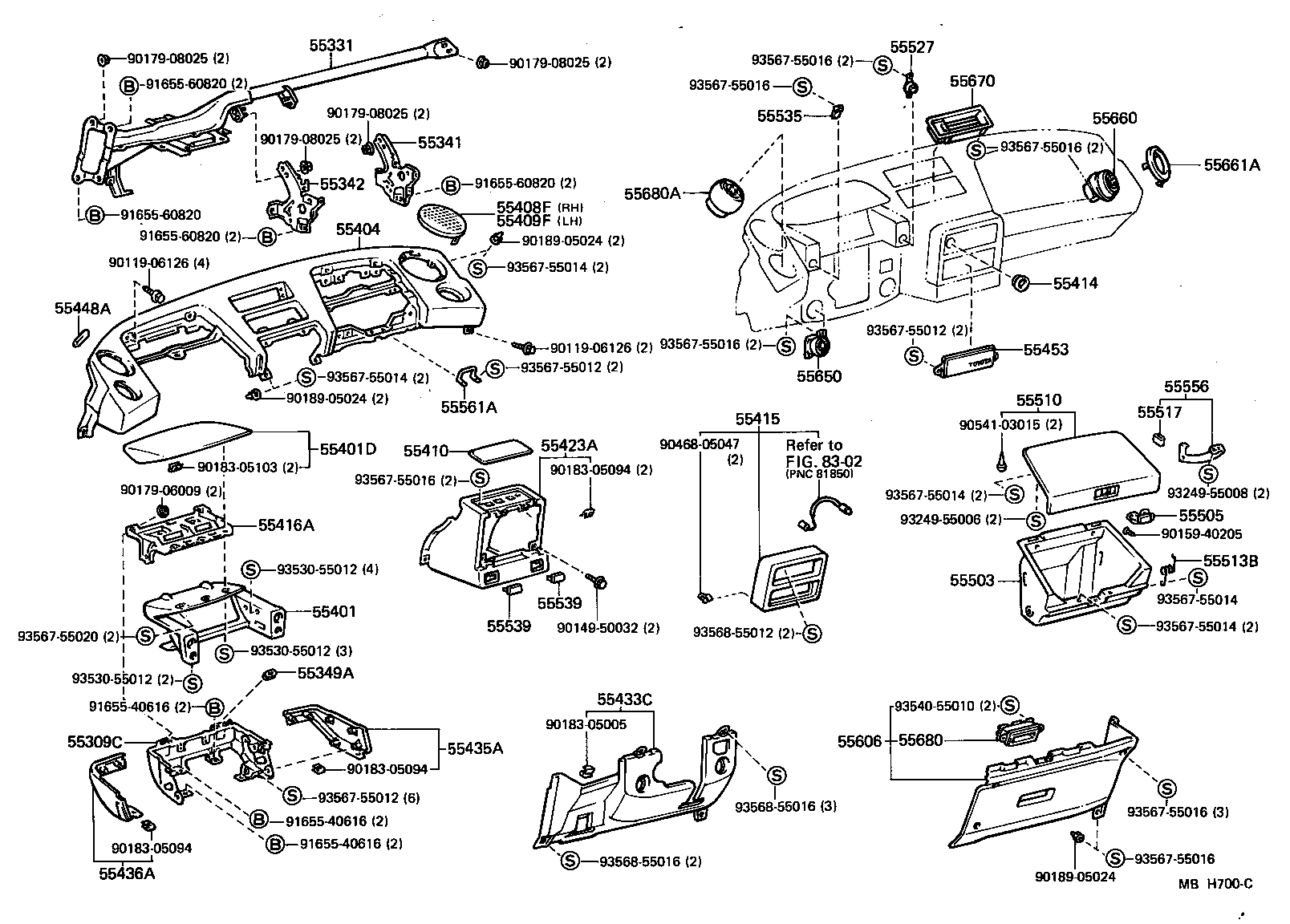

(8411-8608)LHD
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 55309C - REINFORCEMENT SUB-ASSY, INSTRUMENT PANEL, CENTER | ||||
| 55309-17010 |
AW11 |
1 | ||
| 55331 - REINFORCEMENT, INSTRUMENT PANEL | ||||
| 55330-17020 |
AW11..LHD |
1 | ||
| 55341 - BRACE, INSTRUMENT PANEL, NO.1 | ||||
| 55306-17010 |
AW11 |
1 | ||
| 55342 - BRACE, INSTRUMENT PANEL, NO.2 | ||||
| 55307-17010 |
AW11 |
1 | ||
| 55349A - CUSHION, INSTRUMENT PANEL | ||||
| 55349-17010 |
AW11 TYPE B |
6 | ||
| 55349-14050 |
AW11 TYPE A |
2 | ||
| 55401 - PANEL SUB-ASSY, INSTRUMENT CLUSTER FINISH | ||||
| 55411-17020 |
AW11..LHD |
1 | ||
| 55401D - PANEL, INSTRUMENT CLUSTER FINISH, UPPER | ||||
| 55421-1701005 |
AW11..EUR,GEN DARK BEIGE,TRIM4# |
1 | ||
| 55421-1702001 |
AW11..GEN W/*AAC,BLACK,BLACK,TRIM2# |
1 | ||
| 55421-1702004 |
AW11..GEN W/*AAC,BLUE,DARK BLUE,TRIM8# |
1 | ||
| 55421-1702001 |
AW11..LHD..GEN W(AUTOMATIC AIR CONDITIONER(MOP)),BLACK,TRIM2# |
1 | ||
| 55421-1701005 |
AW11..EUR,GEN BEIGE,DARK BEIGE,TRIM4# |
1 | ||
| 55421-1701004 |
AW11 BLUE,DARK BLUE,TRIM8# |
1 | ||
| 55421-1701001 |
AW11 BLACK,TRIM2# |
1 | ||
| 55421-1701001 |
AW11 BLACK,BLACK,TRIM2# |
1 | ||
| 55421-1702005 |
AW11..GEN W/*AAC,BEIGE,DARK BEIGE,TRIM4# |
1 | ||
| 55421-1702005 |
AW11..LHD..GEN W(AUTOMATIC AIR CONDITIONER(MOP)),DARK BEIGE,TRIM4# |
1 | ||
| 55404 - SAFETY PAD SUB-ASSY, INSTRUMENT PANEL, UPPER | ||||
| 55401-1702004 |
AW11..LHD BLUE,DARK BLUE,TRIM8# |
1 | ||
| 55401-1702001 |
AW11..LHD BLACK,BLACK,TRIM2# |
1 | ||
| 55401-1702005 |
AW11..LHD BEIGE,DARK BEIGE,TRIM4# |
1 | ||
| 55401-1702001 |
AW11..LHD BLACK,TRIM2# |
1 | ||
| 55401-1702005 |
AW11..LHD DARK BEIGE,TRIM4# |
1 | ||
| 55408F - PANEL SUB-ASSY, INSTRUMENT PANEL SPEAKER, NO.1 | ||||
| 55408-1701004 |
AW11 BLUE,DARK BLUE,TRIM8# |
1 | ||
| 55408-1701005 |
AW11..EUR,GEN BEIGE,DARK BEIGE,TRIM4# |
1 | ||
| 55408-1701001 |
AW11 BLACK,TRIM2# |
1 | ||
| 55408-1701001 |
AW11 BLACK,BLACK,TRIM2# |
1 | ||
| 55408-1701005 |
AW11..EUR,GEN DARK BEIGE,TRIM4# |
1 | ||
| 55409F - PANEL SUB-ASSY, INSTRUMENT PANEL SPEAKER, NO.2 | ||||
| 55409-1701004 |
AW11 BLUE,DARK BLUE,TRIM8# |
1 | ||
| 55409-1701001 |
AW11 BLACK,TRIM2# |
1 | ||
| 55409-1701005 |
AW11..EUR,GEN DARK BEIGE,TRIM4# |
1 | ||
| 55409-1701001 |
AW11 BLACK,BLACK,TRIM2# |
1 | ||
| 55409-1701005 |
AW11..EUR,GEN BEIGE,DARK BEIGE,TRIM4# |
1 | ||
| 55410 - PANEL ASSY, INSTRUMENT CLUSTER FINISH, NO.2 | ||||
| 55404-1701004 |
AW11 BLUE,DARK BLUE,TRIM8# |
1 | ||
| 55404-1701011 |
AW11 BLACK,BLACK,TRIM2# |
1 | ||
| 55404-1701005 |
AW11..EUR,GEN BEIGE,DARK BEIGE,TRIM4# |
1 | ||
| 55404-1701005 |
AW11..EUR,GEN DARK BEIGE,TRIM4# |
1 | ||
| 55414 - BEZEL, CIGAR LIGHTER HOLE | ||||
| 55477-12060 |
AW11 |
1 | ||
| 55415 - PANEL, INSTRUMENT CLUSTER FINISH, CENTER | ||||
| 55405-1702005 |
AW11..GEN BEIGE,DARK BEIGE,TRIM4# |
1 | ||
| 55405-1702004 |
AW11..ARL,GEN BLUE,DARK BLUE,TRIM8# |
1 | ||
| 55405-1701001 |
AW11 BLACK,BLACK,TRIM2# |
1 | ||
| 55405-1702001 |
AW11..ARL,GEN BLACK,TRIM2# |
1 | ||
| 55405-1702001 |
AW11..ARL,GEN BLACK,BLACK,TRIM2# |
1 | ||
| 55405-1702005 |
AW11..GEN DARK BEIGE,TRIM4# |
1 | ||
| 55416A - RETAINER, METER HOOD, NO.1 | ||||
| 55416-17010 |
AW11 |
1 | ||
| 55423A - PANEL, RADIO TUNER FINISH | ||||
| 55424-1702005 |
AW11..EUR,GEN DARK BEIGE,TRIM4# |
1 | ||
| 55424-1702004 |
AW11..EUR,GEN BLUE,DARK BLUE,TRIM8# |
1 | ||
| 55424-1701001 |
AW11 BLACK,BLACK,TRIM2# |
1 | ||
| 55424-1702005 |
AW11 BEIGE,DARK BEIGE,TRIM4# |
1 | ||
| 55424-1702001 |
AW11 BLACK,TRIM2# |
1 | ||
| 55424-1702001 |
AW11 BLACK,BLACK,TRIM2# |
1 | ||
| 55433C - PANEL, INSTRUMENT PANEL FINISH, LOWER LH | ||||
| 55433-1702005 |
AW11..LHD BEIGE,DARK BEIGE,TRIM4# |
1 | ||
| 55433-1702001 |
AW11..LHD BLACK,BLACK,TRIM2# |
1 | ||
| 55433-1703001 |
AW11..LHD BLACK,BLACK,TRIM2# |
1 | ||
| 55433-1703005 |
AW11..LHD BEIGE,DARK BEIGE,TRIM4# |
1 | ||
| 55433-1703004 |
AW11..LHD BLUE,DARK BLUE,TRIM8# |
1 | ||
| 55433-1702004 |
AW11..LHD BLUE,DARK BLUE,TRIM8# |
1 | ||
| 55433-1703001 |
AW11..LHD BLACK,TRIM2# |
1 | ||
| 55433-1703005 |
AW11..LHD DARK BEIGE,TRIM4# |
1 | ||
| 55435A - PANEL, INSTRUMENT PANEL FINISH, END RH | ||||
| 55435-1701101 |
AW11 BLACK,TRIM2# |
1 | ||
| 55435-1701001 |
AW11 BLACK,BLACK,TRIM2# |
1 | ||
| 55435-1701105 |
AW11..EUR,GEN DARK BEIGE,TRIM4# |
1 | ||
| 55435-1701105 |
AW11..EUR,GEN BEIGE,DARK BEIGE,TRIM4# |
1 | ||
| 55435-1701104 |
AW11 BLUE,DARK BLUE,TRIM8# |
1 | ||
| 55435-1701101 |
AW11 BLACK,BLACK,TRIM2# |
1 | ||
| 55436A - PANEL, INSTRUMENT PANEL FINISH, END LH | ||||
| 55436-1701001 |
AW11 BLACK,BLACK,TRIM2# |
1 | ||
| 55436-1701104 |
AW11 BLUE,DARK BLUE,TRIM8# |
1 | ||
| 55436-1701101 |
AW11 BLACK,BLACK,TRIM2# |
1 | ||
| 55436-1701101 |
AW11 BLACK,TRIM2# |
1 | ||
| 55436-1701105 |
AW11..EUR,GEN BEIGE,DARK BEIGE,TRIM4# |
1 | ||
| 55436-1701105 |
AW11..EUR,GEN DARK BEIGE,TRIM4# |
1 | ||
| 55448A - CUSHION, INSTRUMENT PANEL FINISH, NO.1 | ||||
| 55448-16040 |
AW11 |
4 | ||
| 55453 - COVER, RADIO TUNER OPENING | ||||
| 55522-12100 |
AW11 |
1 | ||
| 55522-32010 |
AW11..ARL,GEN |
1 | ||
| 55503 - COMPARTMENT SUB-ASSY, GLOVE | ||||
| 55506-17020 |
AW11..LHD |
1 | ||
| 55505 - LOCK SUB-ASSY, GLOVE COMPARTMENT DOOR | ||||
| 55560-1701001 |
AW11 BLACK,BLACK,TRIM2# |
1 | ||
| 55510 - DOOR ASSY, GLOVE COMPARTMENT | ||||
| 55550-1701001 |
AW11 BLACK,BLACK,TRIM2# |
1 | ||
| 55550-1702001 |
AW11 BLACK,BLACK,TRIM2# |
1 | ||
| 55550-1702005 |
AW11..EUR,GEN DARK BEIGE,TRIM4# |
1 | ||
| 55550-1702005 |
AW11..EUR,GEN BEIGE,DARK BEIGE,TRIM4# |
1 | ||
| 55550-1702001 |
AW11 BLACK,TRIM2# |
1 | ||
| 55550-1702004 |
AW11 BLUE,DARK BLUE,TRIM8# |
1 | ||
| 55513B - SPRING, TORSION(FOR GLOVE COMPARTMENT DOOR CHECK ARM) | ||||
| 90508-23082 |
AW11..LHD |
1 | ||
| 55527 - COVER, TRANSMISSION CONTROL SWITCH HOLE | ||||
| 55527-17010 |
AW11..ARL,GEN |
1 | ||
| 55535 - COVER, WARNING LAMP HOLE | ||||
| 55534-17010 |
AW11..ARL,GEN |
1 | ||
| 55534-17010 |
AW11..RHD;AW11..FRG;AW11..LHD..GEN |
1 | ||
| 55539 - COVER, SPARE SWITCH HOLE | ||||
| 55539-3201001 |
AW11..LHD BLACK,BLACK,TRIM2# |
2 | ||
| 55539 - COVER, SPARE SWITCH HOLE | ||||
| 55539-3201001 |
AW11..LHD BLACK,BLACK,TRIM2# |
2 | ||
| 55556 - ARM, GLOVE COMPARTMENT DOOR CHECK | ||||
| 55556-17020 |
AW11..LHD |
1 | ||
| 55561A - STRIKER, GLOVE COMPARTMENT DOOR LOCK | ||||
| 55561-17010 |
AW11 |
1 | ||
| 55606 - COVER SUB-ASSY, INSTRUMENT PANEL UNDER, NO.1 | ||||
| 55606-1701005 |
AW11..LHD BEIGE,DARK BEIGE,TRIM4# |
1 | ||
| 55606-1701005 |
AW11..LHD DARK BEIGE,TRIM4# |
1 | ||
| 55606-1701001 |
AW11..LHD BLACK,TRIM2# |
1 | ||
| 55606-1701001 |
AW11..LHD BLACK,BLACK,TRIM2# |
1 | ||
| 55606-1701004 |
AW11..LHD BLUE,DARK BLUE,TRIM8# |
1 | ||
| 55650 - REGISTER ASSY, INSTRUMENT PANEL, NO.1 | ||||
| 55650-1701001 |
AW11 BLACK,BLACK,TRIM2# |
2 | ||
| 55650-1701005 |
AW11..EUR,GEN DARK BEIGE,TRIM4# |
2 | ||
| 55650-1701004 |
AW11 BLUE,DARK BLUE,TRIM8# |
2 | ||
| 55650-17010 |
AW11 |
2 | ||
| 55650-1701005 |
AW11..EUR,GEN BEIGE,DARK BEIGE,TRIM4# |
2 | ||
| 55650-1701001 |
AW11 BLACK,TRIM2# |
2 | ||
| 55660 - REGISTER ASSY, INSTRUMENT PANEL, NO.2 | ||||
| 55660-17010 |
AW11 |
1 | ||
| 55660-1702001 |
AW11..EUR,GEN BLACK,TRIM2# |
1 | ||
| 55660-1702004 |
AW11..EUR,GEN BLUE,DARK BLUE,TRIM8# |
1 | ||
| 55660-1702005 |
AW11 BEIGE,DARK BEIGE,TRIM4# |
1 | ||
| 55660-1702001 |
AW11 BLACK,BLACK,TRIM2# |
1 | ||
| 55660-1702005 |
AW11..EUR,GEN DARK BEIGE,TRIM4# |
1 | ||
| 55661A - BEZEL, INSTRUMENT PANEL REGISTER | ||||
| 55661-17010 |
AW11 |
1 | ||
| 55661-1701004 |
AW11 BLUE,DARK BLUE,TRIM8# |
1 | ||
| 55661-1701001 |
AW11 BLACK,BLACK,TRIM2# |
1 | ||
| 55661-1701001 |
AW11 BLACK,TRIM2# |
1 | ||
| 55661-1701005 |
AW11..EUR,GEN BEIGE,DARK BEIGE,TRIM4# |
1 | ||
| 55661-1701005 |
AW11..EUR,GEN DARK BEIGE,TRIM4# |
1 | ||
| 55670 - REGISTER ASSY, INSTRUMENT PANEL, NO.3 | ||||
| 55670-17020 |
AW11..LHD |
1 | ||
| 55670-1703004 |
AW11..LHD BLUE,DARK BLUE,TRIM8# |
1 | ||
| 55670-1703005 |
AW11..LHD BEIGE,DARK BEIGE,TRIM4# |
1 | ||
| 55670-1703001 |
AW11..LHD BLACK,BLACK,TRIM2# |
1 | ||
| 55670-1702001 |
AW11..LHD BLACK,TRIM2# |
1 | ||
| 55670-1702005 |
AW11..LHD DARK BEIGE,TRIM4# |
1 | ||
| 55680 - REGISTER ASSY, INSTRUMENT PANEL, LOWER NO.1 | ||||
| 55680-1401005 |
AW11..LHD BEIGE,DARK BEIGE,TRIM4# |
1 | ||
| 55680-1401001 |
AW11..LHD BLACK,BLACK,TRIM2# |
1 | ||
| 55680-1401005 |
AW11..LHD DARK BEIGE,TRIM4# |
1 | ||
| 55680-1401014 |
AW11..LHD BLUE,DARK BLUE,TRIM8# |
1 | ||
| 55680A - REGISTER ASSY, INSTRUMENT PANEL, NO.4 | ||||
| 55680-1702001 |
AW11..LHD BLACK,BLACK,TRIM2# |
1 | ||
| 55680-1704004 |
AW11..LHD BLUE,DARK BLUE,TRIM8# |
1 | ||
| 55680-1704001 |
AW11..LHD BLACK,TRIM2# |
1 | ||
| 55680-1704005 |
AW11..LHD BEIGE,DARK BEIGE,TRIM4# |
1 | ||
| 55680-1704001 |
AW11..LHD BLACK,BLACK,TRIM2# |
1 | ||
| 55680-1704005 |
AW11..LHD DARK BEIGE,TRIM4# |
1 | ||
| Common parts | ||||
| 90119-06126 | ||||
| 90149-50032 | ||||
| 90159-40205 | ||||
| 90179-06009 | ||||
| 90179-08025 | ||||
| 90183-05005 | ||||
| 90183-05094 | ||||
| 90183-05103 | ||||
| 90189-05024 | ||||
| 90468-05047 | ||||
| 90541-03015 | ||||
| 91655-40616 | ||||
| 91655-60820 | ||||
| 93249-55006 | ||||
| 93249-55008 | ||||
| 93530-55012 | ||||
| 93540-55010 | ||||
| 93567-55012 | ||||
| 93567-55014 | ||||
| 93567-55016 | ||||
| 93567-55020 | ||||
| 93568-55012 | ||||
| 93568-55016 | ||||
| Linked diagrams | ||||
| 8302 | ||||

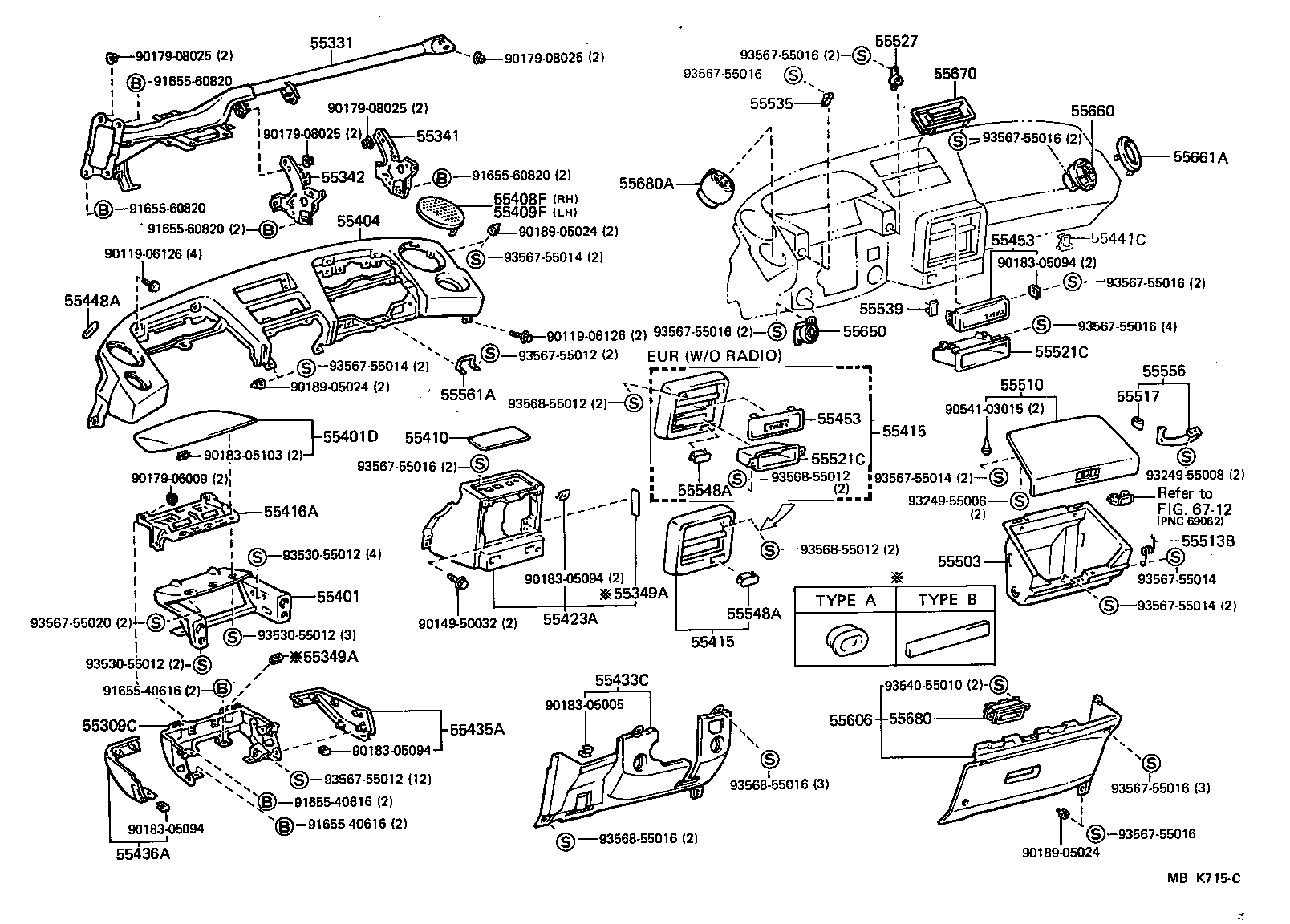

(8608- )LHD
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 55309C - REINFORCEMENT SUB-ASSY, INSTRUMENT PANEL, CENTER | ||||
| 55309-17010 |
AW11 |
1 | ||
| 55331 - REINFORCEMENT, INSTRUMENT PANEL | ||||
| 55330-17020 |
AW11..LHD |
1 | ||
| 55341 - BRACE, INSTRUMENT PANEL, NO.1 | ||||
| 55306-17010 |
AW11 |
1 | ||
| 55342 - BRACE, INSTRUMENT PANEL, NO.2 | ||||
| 55307-17010 |
AW11 |
1 | ||
| 55349A - CUSHION, INSTRUMENT PANEL | ||||
| 55349-17010 |
AW11 TYPE B |
6 | ||
| 55349-14050 |
AW11 TYPE A |
2 | ||
| 55349A - CUSHION, INSTRUMENT PANEL | ||||
| 55349-17010 |
AW11 TYPE B |
6 | ||
| 55349-14050 |
AW11 TYPE A |
2 | ||
| 55401 - PANEL SUB-ASSY, INSTRUMENT CLUSTER FINISH | ||||
| 55411-17020 |
AW11..LHD |
1 | ||
| 55401D - PANEL, INSTRUMENT CLUSTER FINISH, UPPER | ||||
| 55421-1701005 |
AW11..EUR,GEN DARK BEIGE,TRIM4# |
1 | ||
| 55421-1702001 |
AW11..GEN W/*AAC,BLACK,BLACK,TRIM2# |
1 | ||
| 55421-1702004 |
AW11..GEN W/*AAC,BLUE,DARK BLUE,TRIM8# |
1 | ||
| 55421-1702001 |
AW11..LHD..GEN W(AUTOMATIC AIR CONDITIONER(MOP)),BLACK,TRIM2# |
1 | ||
| 55421-1701005 |
AW11..EUR,GEN BEIGE,DARK BEIGE,TRIM4# |
1 | ||
| 55421-1701004 |
AW11 BLUE,DARK BLUE,TRIM8# |
1 | ||
| 55421-1701001 |
AW11 BLACK,TRIM2# |
1 | ||
| 55421-1701001 |
AW11 BLACK,BLACK,TRIM2# |
1 | ||
| 55421-1702005 |
AW11..GEN W/*AAC,BEIGE,DARK BEIGE,TRIM4# |
1 | ||
| 55421-1702005 |
AW11..LHD..GEN W(AUTOMATIC AIR CONDITIONER(MOP)),DARK BEIGE,TRIM4# |
1 | ||
| 55404 - SAFETY PAD SUB-ASSY, INSTRUMENT PANEL, UPPER | ||||
| 55401-1702004 |
AW11..LHD BLUE,DARK BLUE,TRIM8# |
1 | ||
| 55401-1702001 |
AW11..LHD BLACK,BLACK,TRIM2# |
1 | ||
| 55401-1702005 |
AW11..LHD BEIGE,DARK BEIGE,TRIM4# |
1 | ||
| 55401-1702001 |
AW11..LHD BLACK,TRIM2# |
1 | ||
| 55401-1702005 |
AW11..LHD DARK BEIGE,TRIM4# |
1 | ||
| 55408F - PANEL SUB-ASSY, INSTRUMENT PANEL SPEAKER, NO.1 | ||||
| 55408-1701004 |
AW11 BLUE,DARK BLUE,TRIM8# |
1 | ||
| 55408-1701005 |
AW11..EUR,GEN BEIGE,DARK BEIGE,TRIM4# |
1 | ||
| 55408-1701001 |
AW11 BLACK,TRIM2# |
1 | ||
| 55408-1701001 |
AW11 BLACK,BLACK,TRIM2# |
1 | ||
| 55408-1701005 |
AW11..EUR,GEN DARK BEIGE,TRIM4# |
1 | ||
| 55409F - PANEL SUB-ASSY, INSTRUMENT PANEL SPEAKER, NO.2 | ||||
| 55409-1701004 |
AW11 BLUE,DARK BLUE,TRIM8# |
1 | ||
| 55409-1701001 |
AW11 BLACK,TRIM2# |
1 | ||
| 55409-1701005 |
AW11..EUR,GEN DARK BEIGE,TRIM4# |
1 | ||
| 55409-1701001 |
AW11 BLACK,BLACK,TRIM2# |
1 | ||
| 55409-1701005 |
AW11..EUR,GEN BEIGE,DARK BEIGE,TRIM4# |
1 | ||
| 55410 - PANEL ASSY, INSTRUMENT CLUSTER FINISH, NO.2 | ||||
| 55404-1701004 |
AW11 BLUE,DARK BLUE,TRIM8# |
1 | ||
| 55404-1701011 |
AW11 BLACK,BLACK,TRIM2# |
1 | ||
| 55404-1701005 |
AW11..EUR,GEN BEIGE,DARK BEIGE,TRIM4# |
1 | ||
| 55404-1701005 |
AW11..EUR,GEN DARK BEIGE,TRIM4# |
1 | ||
| 55415 - PANEL, INSTRUMENT CLUSTER FINISH, CENTER | ||||
| 55405-1702005 |
AW11..GEN BEIGE,DARK BEIGE,TRIM4# |
1 | ||
| 55405-1702004 |
AW11..ARL,GEN BLUE,DARK BLUE,TRIM8# |
1 | ||
| 55405-1701001 |
AW11 BLACK,BLACK,TRIM2# |
1 | ||
| 55405-1702001 |
AW11..ARL,GEN BLACK,TRIM2# |
1 | ||
| 55405-1702001 |
AW11..ARL,GEN BLACK,BLACK,TRIM2# |
1 | ||
| 55405-1702005 |
AW11..GEN DARK BEIGE,TRIM4# |
1 | ||
| 55415 - PANEL, INSTRUMENT CLUSTER FINISH, CENTER | ||||
| 55405-1702005 |
AW11..GEN BEIGE,DARK BEIGE,TRIM4# |
1 | ||
| 55405-1702004 |
AW11..ARL,GEN BLUE,DARK BLUE,TRIM8# |
1 | ||
| 55405-1701001 |
AW11 BLACK,BLACK,TRIM2# |
1 | ||
| 55405-1702001 |
AW11..ARL,GEN BLACK,TRIM2# |
1 | ||
| 55405-1702001 |
AW11..ARL,GEN BLACK,BLACK,TRIM2# |
1 | ||
| 55405-1702005 |
AW11..GEN DARK BEIGE,TRIM4# |
1 | ||
| 55416A - RETAINER, METER HOOD, NO.1 | ||||
| 55416-17010 |
AW11 |
1 | ||
| 55423A - PANEL, RADIO TUNER FINISH | ||||
| 55424-1702005 |
AW11..EUR,GEN DARK BEIGE,TRIM4# |
1 | ||
| 55424-1702004 |
AW11..EUR,GEN BLUE,DARK BLUE,TRIM8# |
1 | ||
| 55424-1701001 |
AW11 BLACK,BLACK,TRIM2# |
1 | ||
| 55424-1702005 |
AW11 BEIGE,DARK BEIGE,TRIM4# |
1 | ||
| 55424-1702001 |
AW11 BLACK,TRIM2# |
1 | ||
| 55424-1702001 |
AW11 BLACK,BLACK,TRIM2# |
1 | ||
| 55433C - PANEL, INSTRUMENT PANEL FINISH, LOWER LH | ||||
| 55433-1702005 |
AW11..LHD BEIGE,DARK BEIGE,TRIM4# |
1 | ||
| 55433-1702001 |
AW11..LHD BLACK,BLACK,TRIM2# |
1 | ||
| 55433-1703001 |
AW11..LHD BLACK,BLACK,TRIM2# |
1 | ||
| 55433-1703005 |
AW11..LHD BEIGE,DARK BEIGE,TRIM4# |
1 | ||
| 55433-1703004 |
AW11..LHD BLUE,DARK BLUE,TRIM8# |
1 | ||
| 55433-1702004 |
AW11..LHD BLUE,DARK BLUE,TRIM8# |
1 | ||
| 55433-1703001 |
AW11..LHD BLACK,TRIM2# |
1 | ||
| 55433-1703005 |
AW11..LHD DARK BEIGE,TRIM4# |
1 | ||
| 55435A - PANEL, INSTRUMENT PANEL FINISH, END RH | ||||
| 55435-1701101 |
AW11 BLACK,TRIM2# |
1 | ||
| 55435-1701001 |
AW11 BLACK,BLACK,TRIM2# |
1 | ||
| 55435-1701105 |
AW11..EUR,GEN DARK BEIGE,TRIM4# |
1 | ||
| 55435-1701105 |
AW11..EUR,GEN BEIGE,DARK BEIGE,TRIM4# |
1 | ||
| 55435-1701104 |
AW11 BLUE,DARK BLUE,TRIM8# |
1 | ||
| 55435-1701101 |
AW11 BLACK,BLACK,TRIM2# |
1 | ||
| 55436A - PANEL, INSTRUMENT PANEL FINISH, END LH | ||||
| 55436-1701001 |
AW11 BLACK,BLACK,TRIM2# |
1 | ||
| 55436-1701104 |
AW11 BLUE,DARK BLUE,TRIM8# |
1 | ||
| 55436-1701101 |
AW11 BLACK,BLACK,TRIM2# |
1 | ||
| 55436-1701101 |
AW11 BLACK,TRIM2# |
1 | ||
| 55436-1701105 |
AW11..EUR,GEN BEIGE,DARK BEIGE,TRIM4# |
1 | ||
| 55436-1701105 |
AW11..EUR,GEN DARK BEIGE,TRIM4# |
1 | ||
| 55441C - BOX, INSTRUMENT PANEL COIN | ||||
| 55441-2014005 |
AW11..LHD BEIGE,DARK BEIGE,TRIM4# |
1 | ||
| 55441-2014005 |
AW11..EUR,GEN DARK BEIGE,TRIM4# |
1 | ||
| 55441-2014001 |
AW11..LHD BLACK,BLACK,TRIM2# |
1 | ||
| 55441-2014034 |
AW11..LHD BLUE,DARK BLUE,TRIM8# |
1 | ||
| 55441-2014001 |
AW11 BLACK,TRIM2# |
1 | ||
| 55448A - CUSHION, INSTRUMENT PANEL FINISH, NO.1 | ||||
| 55448-16040 |
AW11 |
4 | ||
| 55453 - COVER, RADIO TUNER OPENING | ||||
| 55522-12100 |
AW11 |
1 | ||
| 55522-32010 |
AW11..ARL,GEN |
1 | ||
| 55453 - COVER, RADIO TUNER OPENING | ||||
| 55522-12100 |
AW11 |
1 | ||
| 55522-32010 |
AW11..ARL,GEN |
1 | ||
| 55503 - COMPARTMENT SUB-ASSY, GLOVE | ||||
| 55506-17020 |
AW11..LHD |
1 | ||
| 55510 - DOOR ASSY, GLOVE COMPARTMENT | ||||
| 55550-1701001 |
AW11 BLACK,BLACK,TRIM2# |
1 | ||
| 55550-1702001 |
AW11 BLACK,BLACK,TRIM2# |
1 | ||
| 55550-1702005 |
AW11..EUR,GEN DARK BEIGE,TRIM4# |
1 | ||
| 55550-1702005 |
AW11..EUR,GEN BEIGE,DARK BEIGE,TRIM4# |
1 | ||
| 55550-1702001 |
AW11 BLACK,TRIM2# |
1 | ||
| 55550-1702004 |
AW11 BLUE,DARK BLUE,TRIM8# |
1 | ||
| 55513B - SPRING, TORSION(FOR GLOVE COMPARTMENT DOOR CHECK ARM) | ||||
| 90508-23082 |
AW11..LHD |
1 | ||
| 55521C - COVER, STEREO OPENING | ||||
| 55521-16010 |
AW11..ARL,GEN |
1 | ||
| 55521C - COVER, STEREO OPENING | ||||
| 55521-16010 |
AW11..ARL,GEN |
1 | ||
| 55527 - COVER, TRANSMISSION CONTROL SWITCH HOLE | ||||
| 55527-17010 |
AW11..ARL,GEN |
1 | ||
| 55535 - COVER, WARNING LAMP HOLE | ||||
| 55534-17010 |
AW11..ARL,GEN |
1 | ||
| 55534-17010 |
AW11..RHD;AW11..FRG;AW11..LHD..GEN |
1 | ||
| 55539 - COVER, SPARE SWITCH HOLE | ||||
| 55539-3201001 |
AW11..LHD BLACK,BLACK,TRIM2# |
2 | ||
| 55548A - COVER, INSTRUMENT PANEL HOLE | ||||
| 55548-1701005 |
AW11..EUR,GEN BEIGE,DARK BEIGE,TRIM4# |
1 | ||
| 55548-1701001 |
AW11 BLACK,TRIM2# |
1 | ||
| 55548-1701001 |
AW11 BLACK,BLACK,TRIM2# |
1 | ||
| 55548-1701005 |
AW11..EUR,GEN DARK BEIGE,TRIM4# |
1 | ||
| 55548-1701004 |
AW11 BLUE,DARK BLUE,TRIM8# |
1 | ||
| 55548A - COVER, INSTRUMENT PANEL HOLE | ||||
| 55548-1701005 |
AW11..EUR,GEN BEIGE,DARK BEIGE,TRIM4# |
1 | ||
| 55548-1701001 |
AW11 BLACK,TRIM2# |
1 | ||
| 55548-1701001 |
AW11 BLACK,BLACK,TRIM2# |
1 | ||
| 55548-1701005 |
AW11..EUR,GEN DARK BEIGE,TRIM4# |
1 | ||
| 55548-1701004 |
AW11 BLUE,DARK BLUE,TRIM8# |
1 | ||
| 55556 - ARM, GLOVE COMPARTMENT DOOR CHECK | ||||
| 55556-17020 |
AW11..LHD |
1 | ||
| 55561A - STRIKER, GLOVE COMPARTMENT DOOR LOCK | ||||
| 55561-17010 |
AW11 |
1 | ||
| 55606 - COVER SUB-ASSY, INSTRUMENT PANEL UNDER, NO.1 | ||||
| 55606-1701005 |
AW11..LHD BEIGE,DARK BEIGE,TRIM4# |
1 | ||
| 55606-1701005 |
AW11..LHD DARK BEIGE,TRIM4# |
1 | ||
| 55606-1701001 |
AW11..LHD BLACK,TRIM2# |
1 | ||
| 55606-1701001 |
AW11..LHD BLACK,BLACK,TRIM2# |
1 | ||
| 55606-1701004 |
AW11..LHD BLUE,DARK BLUE,TRIM8# |
1 | ||
| 55650 - REGISTER ASSY, INSTRUMENT PANEL, NO.1 | ||||
| 55650-1701001 |
AW11 BLACK,BLACK,TRIM2# |
2 | ||
| 55650-1701005 |
AW11..EUR,GEN DARK BEIGE,TRIM4# |
2 | ||
| 55650-1701004 |
AW11 BLUE,DARK BLUE,TRIM8# |
2 | ||
| 55650-17010 |
AW11 |
2 | ||
| 55650-1701005 |
AW11..EUR,GEN BEIGE,DARK BEIGE,TRIM4# |
2 | ||
| 55650-1701001 |
AW11 BLACK,TRIM2# |
2 | ||
| 55660 - REGISTER ASSY, INSTRUMENT PANEL, NO.2 | ||||
| 55660-17010 |
AW11 |
1 | ||
| 55660-1702001 |
AW11..EUR,GEN BLACK,TRIM2# |
1 | ||
| 55660-1702004 |
AW11..EUR,GEN BLUE,DARK BLUE,TRIM8# |
1 | ||
| 55660-1702005 |
AW11 BEIGE,DARK BEIGE,TRIM4# |
1 | ||
| 55660-1702001 |
AW11 BLACK,BLACK,TRIM2# |
1 | ||
| 55660-1702005 |
AW11..EUR,GEN DARK BEIGE,TRIM4# |
1 | ||
| 55661A - BEZEL, INSTRUMENT PANEL REGISTER | ||||
| 55661-17010 |
AW11 |
1 | ||
| 55661-1701004 |
AW11 BLUE,DARK BLUE,TRIM8# |
1 | ||
| 55661-1701001 |
AW11 BLACK,BLACK,TRIM2# |
1 | ||
| 55661-1701001 |
AW11 BLACK,TRIM2# |
1 | ||
| 55661-1701005 |
AW11..EUR,GEN BEIGE,DARK BEIGE,TRIM4# |
1 | ||
| 55661-1701005 |
AW11..EUR,GEN DARK BEIGE,TRIM4# |
1 | ||
| 55670 - REGISTER ASSY, INSTRUMENT PANEL, NO.3 | ||||
| 55670-17020 |
AW11..LHD |
1 | ||
| 55670-1703004 |
AW11..LHD BLUE,DARK BLUE,TRIM8# |
1 | ||
| 55670-1703005 |
AW11..LHD BEIGE,DARK BEIGE,TRIM4# |
1 | ||
| 55670-1703001 |
AW11..LHD BLACK,BLACK,TRIM2# |
1 | ||
| 55670-1702001 |
AW11..LHD BLACK,TRIM2# |
1 | ||
| 55670-1702005 |
AW11..LHD DARK BEIGE,TRIM4# |
1 | ||
| 55680 - REGISTER ASSY, INSTRUMENT PANEL, LOWER NO.1 | ||||
| 55680-1401005 |
AW11..LHD BEIGE,DARK BEIGE,TRIM4# |
1 | ||
| 55680-1401001 |
AW11..LHD BLACK,BLACK,TRIM2# |
1 | ||
| 55680-1401005 |
AW11..LHD DARK BEIGE,TRIM4# |
1 | ||
| 55680-1401014 |
AW11..LHD BLUE,DARK BLUE,TRIM8# |
1 | ||
| 55680A - REGISTER ASSY, INSTRUMENT PANEL, NO.4 | ||||
| 55680-1702001 |
AW11..LHD BLACK,BLACK,TRIM2# |
1 | ||
| 55680-1704004 |
AW11..LHD BLUE,DARK BLUE,TRIM8# |
1 | ||
| 55680-1704001 |
AW11..LHD BLACK,TRIM2# |
1 | ||
| 55680-1704005 |
AW11..LHD BEIGE,DARK BEIGE,TRIM4# |
1 | ||
| 55680-1704001 |
AW11..LHD BLACK,BLACK,TRIM2# |
1 | ||
| 55680-1704005 |
AW11..LHD DARK BEIGE,TRIM4# |
1 | ||
| Common parts | ||||
| 90119-06126 | ||||
| 90149-50032 | ||||
| 90179-06009 | ||||
| 90179-08025 | ||||
| 90183-05005 | ||||
| 90183-05094 | ||||
| 90183-05103 | ||||
| 90189-05024 | ||||
| 90541-03015 | ||||
| 91655-40616 | ||||
| 91655-60820 | ||||
| 93249-55006 | ||||
| 93249-55008 | ||||
| 93530-55012 | ||||
| 93540-55010 | ||||
| 93567-55012 | ||||
| 93567-55014 | ||||
| 93567-55016 | ||||
| 93567-55020 | ||||
| 93568-55012 | ||||
| 93568-55016 | ||||
| Linked diagrams | ||||
| 6712 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
