AW11L-WCMQF (1984)

Toyota Mr2

Production Nov 1984 - Aug 1988
Engine 4AGEL
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(8411-8608)

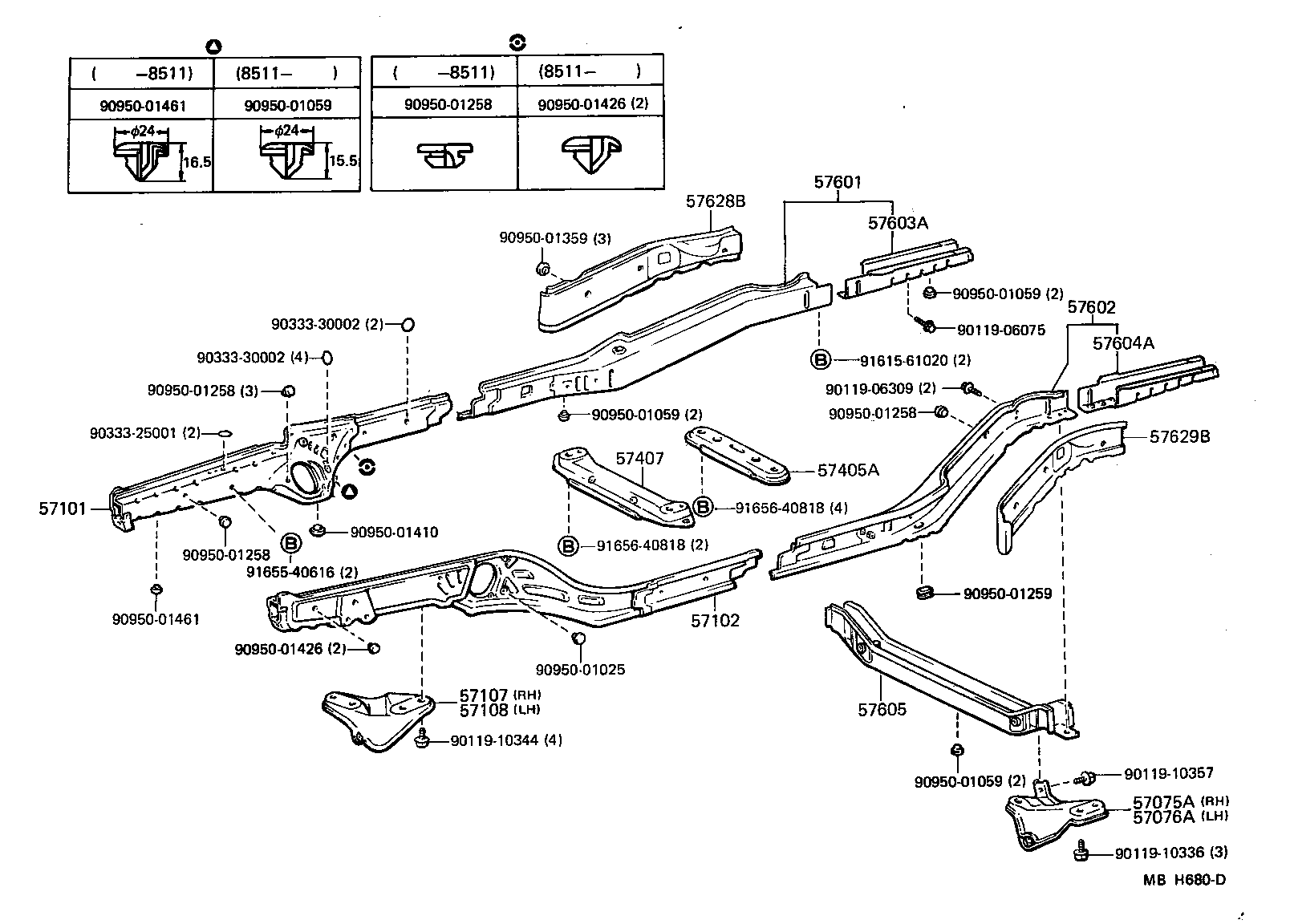

Click highlighted areas on diagram

diagram 57075A 57076A 57101 57102 57107 57108 57405A 57407 57601 57602 57603A 57604A 57605 57628B 57629B 9011906075 9011906309 9011910336 9011910344 9011910357 9033325001 9033330002 9033330002 9095001025 9095001059 9095001059 9095001059 9095001059 9095001258 9095001258 9095001258 9095001258 9095001259 9095001359 9095001410 9095001426 9095001426 9095001461 9095001461 9161561020 9165540616 9165640818 9165640818
Part # Description Qty Price
57075A - BRACKET SUB-ASSY, REAR SUSPENSION ARM, RH
57075-17010

AW11

 1
57076A - BRACKET SUB-ASSY, REAR SUSPENSION ARM, LH
57076-17010

AW11

 1
57101 - MEMBER SUB-ASSY, FRONT SIDE, RH
57101-17901

AW11

 1
57102 - MEMBER SUB-ASSY, FRONT SIDE, LH
57102-17901

AW11..LHD

 1
57107 - BRACKET SUB-ASSY, STRUT BAR, RH
57107-17010

AW11

 1
57108 - BRACKET SUB-ASSY, STRUT BAR, LH
57108-17010

AW11

 1
57405A - MEMBER SUB-ASSY, CENTER FLOOR CROSS, NO.2
57459-17010

AW11

 1
57407 - CROSS MEMBER SUB-ASSY, CENTER FLOOR, NO.1
57408-17010

AW11

 1
57601 - MEMBER SUB-ASSY, REAR FLOOR SIDE, RH
57601-17905

AW11..CP

 1
57601-17901

AW11

 1
57602 - MEMBER SUB-ASSY, REAR FLOOR SIDE, LH
57602-17901

AW11

 1
57602-17907

AW11..CP

 1
57603A - MEMBER SUB-ASSY, REAR FLOOR SIDE, REAR RH
57603-17011

AW11..CP

 1
57603-17010

AW11

 1
57604A - MEMBER SUB-ASSY, REAR FLOOR SIDE, REAR LH
57604-17011

AW11..CP

 1
57604-17010

AW11

 1
57605 - CROSSMEMBER SUB-ASSY, REAR
57605-17010

AW11

 1
57628B - PLATE, REAR FLOOR SIDE MEMBER, RH
57628-17010

AW11

 1
57628-17020

AW11

 1
57629B - PLATE, REAR FLOOR SIDE MEMBER, LH
57629-17020

AW11

 1
57629-17010

AW11

 1
Common parts
90119-06075
90119-06309
90119-10336
90119-10344
90119-10357
90333-25001
90333-30002
90950-01025
90950-01059
90950-01258
90950-01259
90950-01359
90950-01410
90950-01426
90950-01461
91615-61020
91655-40616
91656-40818

(8608- )

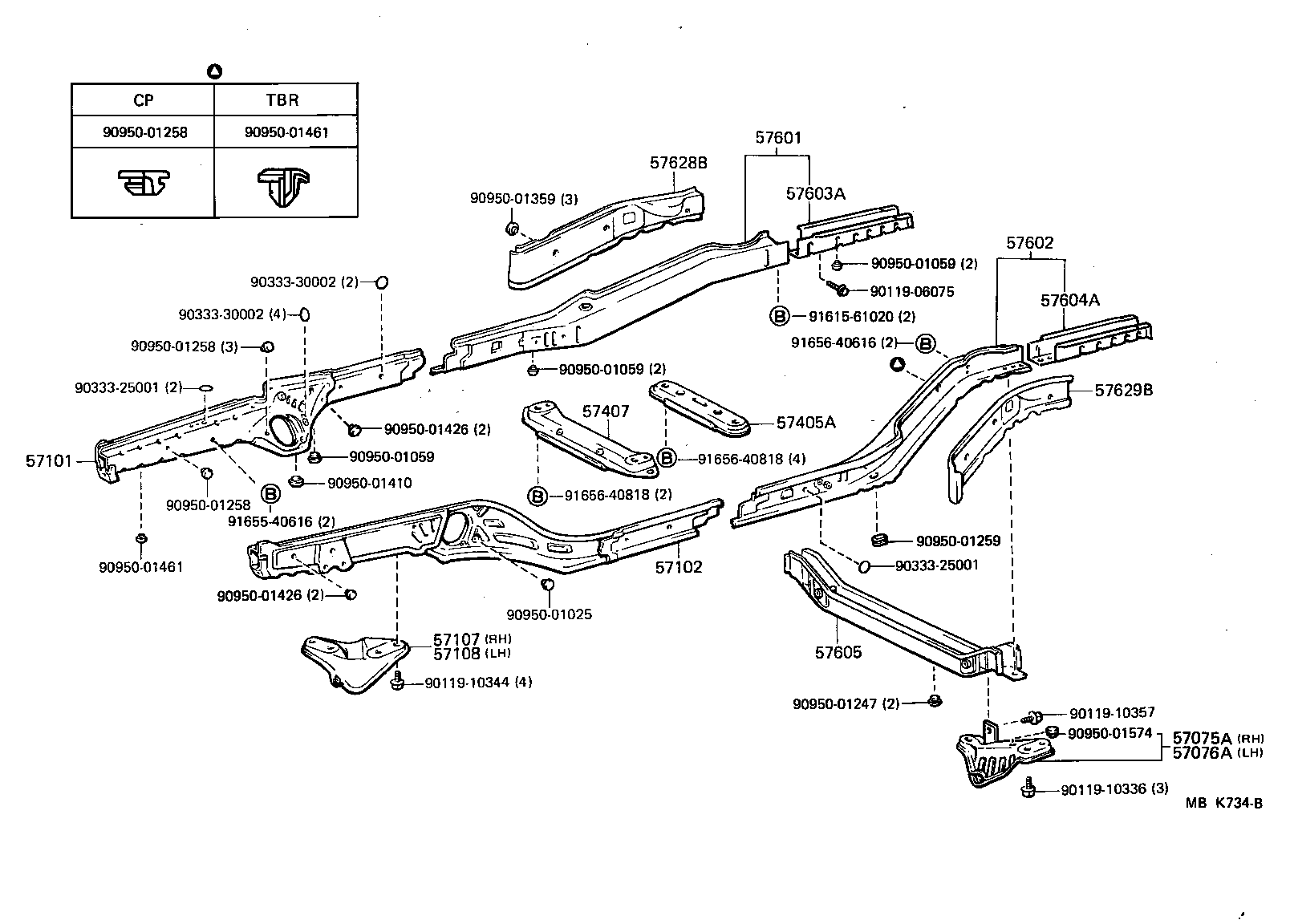

Click highlighted areas on diagram

diagram 57075A 57076A 57101 57102 57107 57108 57405A 57407 57601 57602 57603A 57604A 57605 57628B 57629B 9011906075 9011910336 9011910344 9011910357 9033325001 9033325001 9033330002 9033330002 9095001025 9095001059 9095001059 9095001059 9095001247 9095001258 9095001258 9095001258 9095001259 9095001359 9095001410 9095001426 9095001426 9095001461 9095001461 9095001574 9161561020 9165540616 9165640616 9165640818 9165640818
Part # Description Qty Price
57075A - BRACKET SUB-ASSY, REAR SUSPENSION ARM, RH
57075-17010

AW11

 1
57076A - BRACKET SUB-ASSY, REAR SUSPENSION ARM, LH
57076-17010

AW11

 1
57101 - MEMBER SUB-ASSY, FRONT SIDE, RH
57101-17901

AW11

 1
57102 - MEMBER SUB-ASSY, FRONT SIDE, LH
57102-17901

AW11..LHD

 1
57107 - BRACKET SUB-ASSY, STRUT BAR, RH
57107-17010

AW11

 1
57108 - BRACKET SUB-ASSY, STRUT BAR, LH
57108-17010

AW11

 1
57405A - MEMBER SUB-ASSY, CENTER FLOOR CROSS, NO.2
57459-17010

AW11

 1
57407 - CROSS MEMBER SUB-ASSY, CENTER FLOOR, NO.1
57408-17010

AW11

 1
57601 - MEMBER SUB-ASSY, REAR FLOOR SIDE, RH
57601-17905

AW11..CP

 1
57601-17901

AW11

 1
57602 - MEMBER SUB-ASSY, REAR FLOOR SIDE, LH
57602-17901

AW11

 1
57602-17907

AW11..CP

 1
57603A - MEMBER SUB-ASSY, REAR FLOOR SIDE, REAR RH
57603-17010

AW11

 1
57603-17011

AW11..CP

 1
57604A - MEMBER SUB-ASSY, REAR FLOOR SIDE, REAR LH
57604-17011

AW11..CP

 1
57604-17010

AW11

 1
57605 - CROSSMEMBER SUB-ASSY, REAR
57605-17010

AW11

 1
57628B - PLATE, REAR FLOOR SIDE MEMBER, RH
57628-17010

AW11

 1
57628-17020

AW11

 1
57629B - PLATE, REAR FLOOR SIDE MEMBER, LH
57629-17020

AW11

 1
57629-17010

AW11

 1
Common parts
90119-06075
90119-10336
90119-10344
90119-10357
90333-25001
90333-30002
90950-01025
90950-01059
90950-01247
90950-01258
90950-01259
90950-01359
90950-01410
90950-01426
90950-01461
90950-01574
91615-61020
91655-40616
91656-40616
91656-40818
