AW11L-WCMQF (1984)
Toyota Mr2
Production
Nov 1984
-
Aug 1988
Engine
4AGEL
Transmission
5F MTM
Displacement
2500cc
Power
168 HP (125 kW)
(8411-8608)

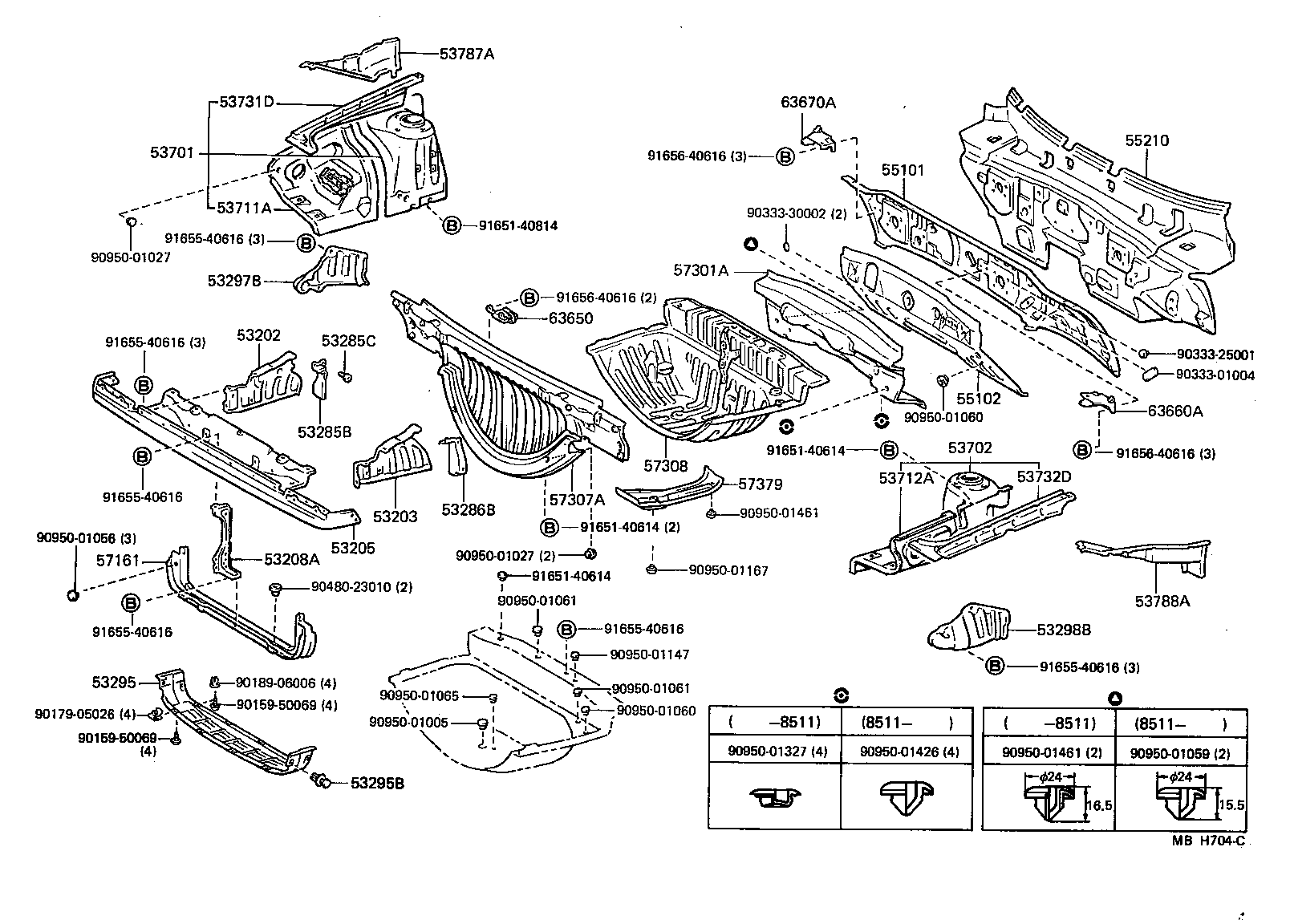

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 53202 - SUPPORT SUB-ASSY, RADIATOR, RH | ||||
| 53211-17010 |
AW11 |
1 | ||
| 53203 - SUPPORT SUB-ASSY, RADIATOR, LH | ||||
| 53212-17010 |
AW11 |
1 | ||
| 53205 - SUPPORT SUB-ASSY, RADIATOR, UPPER | ||||
| 53205-17020 |
AW11 |
1 | ||
| 53208A - SUPPORT SUB-ASSY, HOOD LOCK | ||||
| 53215-17020 |
AW11 |
1 | ||
| 53285B - SEAL, RADIATOR SIDE AIR, NO.1 | ||||
| 53285-17010 |
AW11 |
1 | ||
| 53285C - CLIP(FOR RADIATOR SIDE AIR SEAL) | ||||
| 90467-0601701 |
AW11 BLACK,BLACK,TRIM2# |
4 | ||
| 53286B - SEAL, RADIATOR SIDE AIR, NO.2 | ||||
| 53286-17010 |
AW11 |
1 | ||
| 53295 - DEFLECTOR, RADIATOR LOWER AIR | ||||
| 53295-17020 |
AW11..GEN W/COOLER |
1 | ||
| 53295-17010 |
AW11 |
1 | ||
| 53295B - CLIP(FOR RADIATOR LOWER AIR DEFLECTOR) | ||||
| 90467-0704101 |
AW11 BLACK,BLACK,TRIM2# |
2 | ||
| 53297B - PROTECTOR, RADIATOR HOSE, NO.1 | ||||
| 53297-17010 |
AW11 |
1 | ||
| 53298B - PROTECTOR, RADIATOR HOSE, NO.2 | ||||
| 53298-17010 |
AW11 |
1 | ||
| 53701 - APRON SUB-ASSY, FRONT FENDER, RH | ||||
| 53701-17020 |
AW11 |
1 | ||
| 53701-17022 |
AW11..EUR,GEN |
1 | ||
| 53701-17021 |
AW11 |
1 | ||
| 53702 - APRON SUB-ASSY, FRONT FENDER, LH | ||||
| 53702-17020 |
AW11 |
1 | ||
| 53702-17021 |
AW11 |
1 | ||
| 53711A - APRON, FRONT FENDER, W/SUPPORT, FRONT RH | ||||
| 53711-17901 |
AW11 |
1 | ||
| 53712A - APRON, FRONT FENDER, W/SUPPORT, FRONT LH | ||||
| 53712-17901 |
AW11 |
1 | ||
| 53731D - MEMBER, FRONT APRON TO COWL SIDE, UPPER RH | ||||
| 53731-17010 |
AW11 |
1 | ||
| 53732D - MEMBER, FRONT APRON TO COWL SIDE, UPPER LH | ||||
| 53732-17010 |
AW11 |
1 | ||
| 53787A - GUSSET, FRONT FENDER APRON, LOWER RH | ||||
| 53707-17010 |
AW11 |
1 | ||
| 53788A - GUSSET, FRONT FENDER APRON, LOWER LH | ||||
| 53708-17010 |
AW11 |
1 | ||
| 55101 - PANEL SUB-ASSY, DASH | ||||
| 55101-17030 |
AW11..LHD |
1 | ||
| 55102 - PANEL SUB-ASSY, DASH, LOWER | ||||
| 55102-17030 |
AW11..LHD |
1 | ||
| 55210 - INSULATOR ASSY, DASH PANEL | ||||
| 55210-17020 |
AW11..LHD |
1 | ||
| 57161 - CROSSMEMBER, FRONT | ||||
| 57104-17020 |
AW11 |
1 | ||
| 57301A - MEMBER SUB-ASSY, STEERING GEAR BOX SUPPORT | ||||
| 57301-17020 |
AW11..LHD |
1 | ||
| 57307A - PANEL SUB-ASSY, FRONT LUGGAGE END | ||||
| 57307-17901 |
AW11 |
1 | ||
| 57308 - PAN SUB-ASSY, FRONT LUGGAGE | ||||
| 57308-17020 |
AW11..LHD |
1 | ||
| 57379 - REINFORCEMENT, FRONT LUGGAGE UNDER | ||||
| 57379-17020 |
AW11 |
1 | ||
| 63650 - HOLDER ASSY, REMOVABLE ROOF | ||||
| 63650-17010 |
AW11 |
1 | ||
| 63660A - STAY ASSY, REMOVABLE ROOF, LH | ||||
| 63660-17010 |
AW11 |
1 | ||
| 63670A - STAY ASSY, REMOVABLE ROOF, RH | ||||
| 63670-17010 |
AW11 |
1 | ||
| Common parts | ||||
| 90159-50069 | ||||
| 90179-05026 | ||||
| 90189-06006 | ||||
| 90333-01004 | ||||
| 90333-25001 | ||||
| 90333-30002 | ||||
| 90480-23010 | ||||
| 90950-01005 | ||||
| 90950-01027 | ||||
| 90950-01056 | ||||
| 90950-01059 | ||||
| 90950-01060 | ||||
| 90950-01061 | ||||
| 90950-01065 | ||||
| 90950-01147 | ||||
| 90950-01167 | ||||
| 90950-01327 | ||||
| 90950-01426 | ||||
| 90950-01461 | ||||
| 91651-40614 | ||||
| 91651-40814 | ||||
| 91655-40616 | ||||
| 91656-40616 | ||||
(8608- )

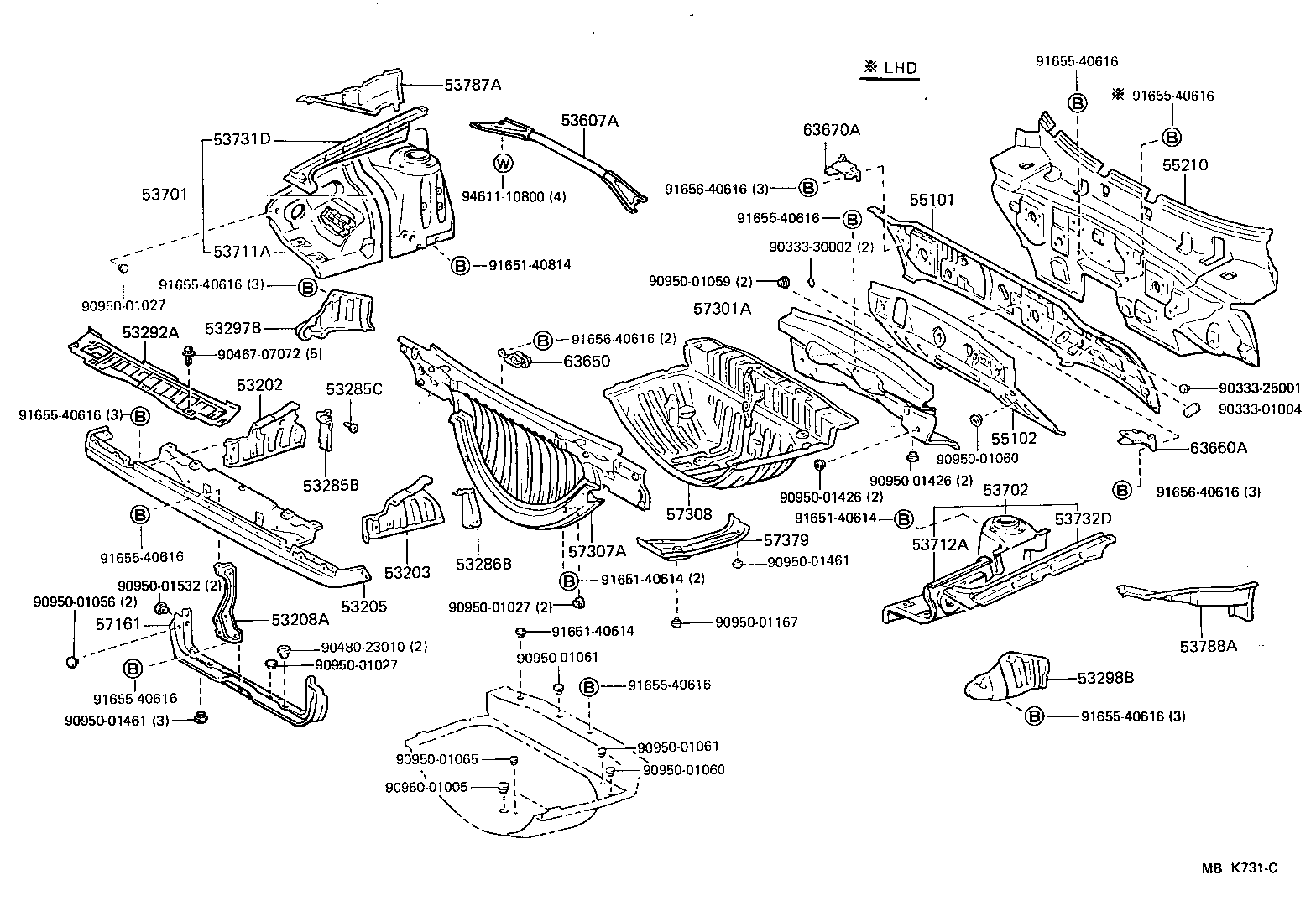

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 53202 - SUPPORT SUB-ASSY, RADIATOR, RH | ||||
| 53211-17010 |
AW11 |
1 | ||
| 53203 - SUPPORT SUB-ASSY, RADIATOR, LH | ||||
| 53212-17010 |
AW11 |
1 | ||
| 53205 - SUPPORT SUB-ASSY, RADIATOR, UPPER | ||||
| 53205-17020 |
AW11 |
1 | ||
| 53208A - SUPPORT SUB-ASSY, HOOD LOCK | ||||
| 53215-17020 |
AW11 |
1 | ||
| 53285B - SEAL, RADIATOR SIDE AIR, NO.1 | ||||
| 53285-17010 |
AW11 |
1 | ||
| 53285C - CLIP(FOR RADIATOR SIDE AIR SEAL) | ||||
| 90467-0601701 |
AW11 BLACK,BLACK,TRIM2# |
4 | ||
| 53286B - SEAL, RADIATOR SIDE AIR, NO.2 | ||||
| 53286-17010 |
AW11 |
1 | ||
| 53297B - PROTECTOR, RADIATOR HOSE, NO.1 | ||||
| 53297-17010 |
AW11 |
1 | ||
| 53298B - PROTECTOR, RADIATOR HOSE, NO.2 | ||||
| 53298-17010 |
AW11 |
1 | ||
| 53607A - BRACE SUB-ASSY, FRONT SUSPENSION, UPPER CENTER | ||||
| 53607-17010 |
AW11 |
1 | ||
| 53701 - APRON SUB-ASSY, FRONT FENDER, RH | ||||
| 53701-17020 |
AW11 |
1 | ||
| 53701-17022 |
AW11..EUR,GEN |
1 | ||
| 53701-17021 |
AW11 |
1 | ||
| 53702 - APRON SUB-ASSY, FRONT FENDER, LH | ||||
| 53702-17020 |
AW11 |
1 | ||
| 53702-17021 |
AW11 |
1 | ||
| 53711A - APRON, FRONT FENDER, W/SUPPORT, FRONT RH | ||||
| 53711-17901 |
AW11 |
1 | ||
| 53712A - APRON, FRONT FENDER, W/SUPPORT, FRONT LH | ||||
| 53712-17901 |
AW11 |
1 | ||
| 53731D - MEMBER, FRONT APRON TO COWL SIDE, UPPER RH | ||||
| 53731-17010 |
AW11 |
1 | ||
| 53732D - MEMBER, FRONT APRON TO COWL SIDE, UPPER LH | ||||
| 53732-17010 |
AW11 |
1 | ||
| 53787A - GUSSET, FRONT FENDER APRON, LOWER RH | ||||
| 53707-17010 |
AW11 |
1 | ||
| 53788A - GUSSET, FRONT FENDER APRON, LOWER LH | ||||
| 53708-17010 |
AW11 |
1 | ||
| 55101 - PANEL SUB-ASSY, DASH | ||||
| 55101-17030 |
AW11..LHD |
1 | ||
| 55102 - PANEL SUB-ASSY, DASH, LOWER | ||||
| 55102-17030 |
AW11..LHD |
1 | ||
| 55210 - INSULATOR ASSY, DASH PANEL | ||||
| 55210-17020 |
AW11..LHD |
1 | ||
| 57161 - CROSSMEMBER, FRONT | ||||
| 57104-17020 |
AW11 |
1 | ||
| 57301A - MEMBER SUB-ASSY, STEERING GEAR BOX SUPPORT | ||||
| 57301-17020 |
AW11..LHD |
1 | ||
| 57307A - PANEL SUB-ASSY, FRONT LUGGAGE END | ||||
| 57307-17901 |
AW11 |
1 | ||
| 57308 - PAN SUB-ASSY, FRONT LUGGAGE | ||||
| 57308-17020 |
AW11..LHD |
1 | ||
| 57379 - REINFORCEMENT, FRONT LUGGAGE UNDER | ||||
| 57379-17020 |
AW11 |
1 | ||
| 63650 - HOLDER ASSY, REMOVABLE ROOF | ||||
| 63650-17010 |
AW11 |
1 | ||
| 63660A - STAY ASSY, REMOVABLE ROOF, LH | ||||
| 63660-17010 |
AW11 |
1 | ||
| 63670A - STAY ASSY, REMOVABLE ROOF, RH | ||||
| 63670-17010 |
AW11 |
1 | ||
| Common parts | ||||
| 90333-01004 | ||||
| 90333-25001 | ||||
| 90333-30002 | ||||
| 90467-07072 | ||||
| 90480-23010 | ||||
| 90950-01005 | ||||
| 90950-01027 | ||||
| 90950-01056 | ||||
| 90950-01059 | ||||
| 90950-01060 | ||||
| 90950-01061 | ||||
| 90950-01065 | ||||
| 90950-01167 | ||||
| 90950-01426 | ||||
| 90950-01461 | ||||
| 90950-01532 | ||||
| 91651-40614 | ||||
| 91651-40814 | ||||
| 91655-40616 | ||||
| 91656-40616 | ||||
| 94611-10800 | ||||
