AW11L-WCMQF (1984)
Toyota Mr2
Production
Nov 1984
-
Aug 1988
Engine
4AGEL
Transmission
5F MTM
Displacement
2500cc
Power
168 HP (125 kW)
(8411- )

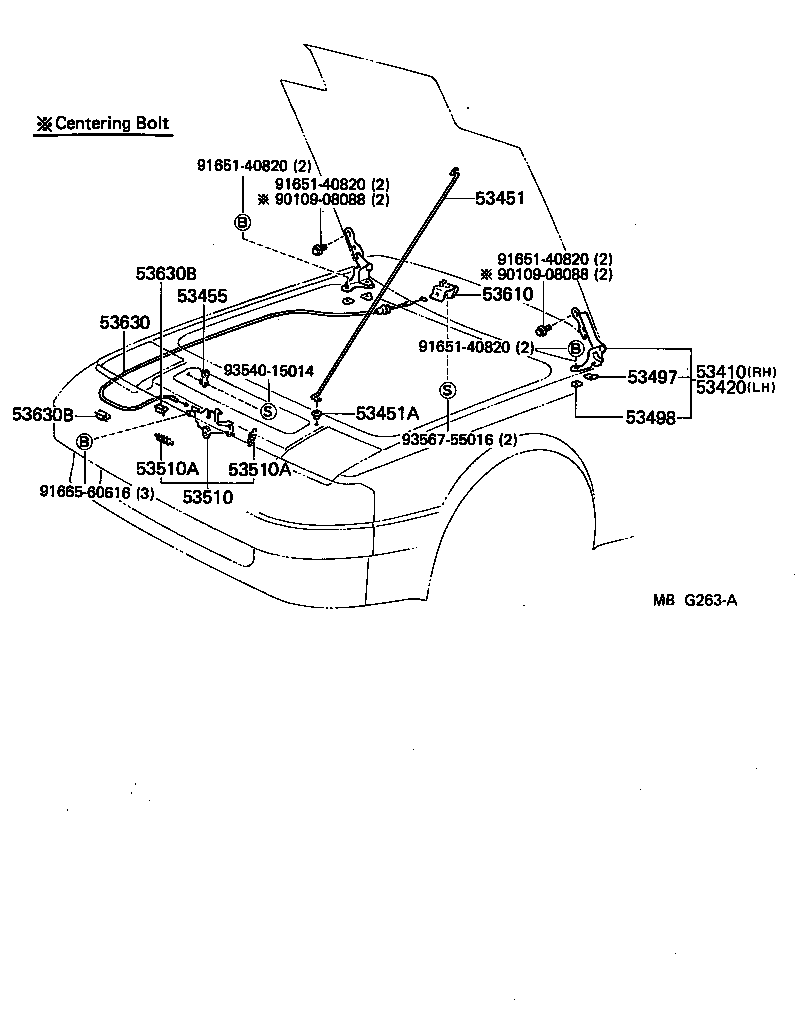

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 53410 - HINGE ASSY, HOOD, RH | ||||
| 53410-17010 |
AW11 |
1 | ||
| 53420 - HINGE ASSY, HOOD, LH | ||||
| 53420-17010 |
AW11 |
1 | ||
| 53451 - ROD, HOOD SUPPORT | ||||
| 53451-17010 |
AW11 |
1 | ||
| 53451A - GROMMET(FOR HOOD SUPPORT ROD) | ||||
| 90480-01264 |
AW11 |
1 | ||
| 53455 - CLAMP, HOOD SUPPORT ROD | ||||
| 53455-17010 |
AW11 |
1 | ||
| 53497 - PAD, HOOD HINGE, NO.1 | ||||
| 53497-17010 |
AW11 |
2 | ||
| 53497-17010 |
AW11 T=1.0 |
1 | ||
| 53497-17010 |
AW11 |
1 | ||
| 53498 - PAD, HOOD HINGE, NO.2 | ||||
| 53498-12010 |
AW11 |
2 | ||
| 53498-12010 |
AW11 T=1.0 |
1 | ||
| 53498-12010 |
AW11 |
1 | ||
| 53510 - LOCK ASSY, HOOD | ||||
| 53510-17020 |
AW11..LHD |
1 | ||
| 53510A - SPRING, TENSION(FOR HOOD LOCK) | ||||
| 90506-20043 |
AW11 WD=2.0 |
1 | ||
| 90506-09029 |
AW11 WD=0.9,WD=0.9 |
1 | ||
| 53510A - SPRING, TENSION(FOR HOOD LOCK) | ||||
| 90506-20043 |
AW11 WD=2.0 |
1 | ||
| 90506-09029 |
AW11 WD=0.9,WD=0.9 |
1 | ||
| 53610 - LEVER ASSY, HOOD LOCK RELEASE | ||||
| 53601-1701001 |
AW11 BLACK,BLACK,TRIM2# |
1 | ||
| 53601-1701005 |
AW11..EUR,GEN DARK BEIGE,TRIM4# |
1 | ||
| 53601-1701004 |
AW11 BLUE,DARK BLUE,TRIM8# |
1 | ||
| 53601-1701005 |
AW11..EUR,GEN BEIGE,DARK BEIGE,TRIM4# |
1 | ||
| 53601-1701001 |
AW11 BLACK,TRIM2# |
1 | ||
| 53630 - CABLE ASSY, HOOD LOCK CONTROL | ||||
| 53630-17020 |
AW11..LHD |
1 | ||
| 53630B - CLAMP(FOR HOOD LOCK CONTROL CABLE) | ||||
| 90467-09043 |
AW11 |
2 | ||
| 53630B - CLAMP(FOR HOOD LOCK CONTROL CABLE) | ||||
| 90467-09043 |
AW11 |
2 | ||
| Common parts | ||||
| 90109-08088 | ||||
| 91651-40820 | ||||
| 91665-60616 | ||||
| 93540-15014 | ||||
| 93567-55016 | ||||
