AW11L-WCMQF (1984)

Toyota Mr2

Production Nov 1984 - Aug 1988
Engine 4AGEL
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

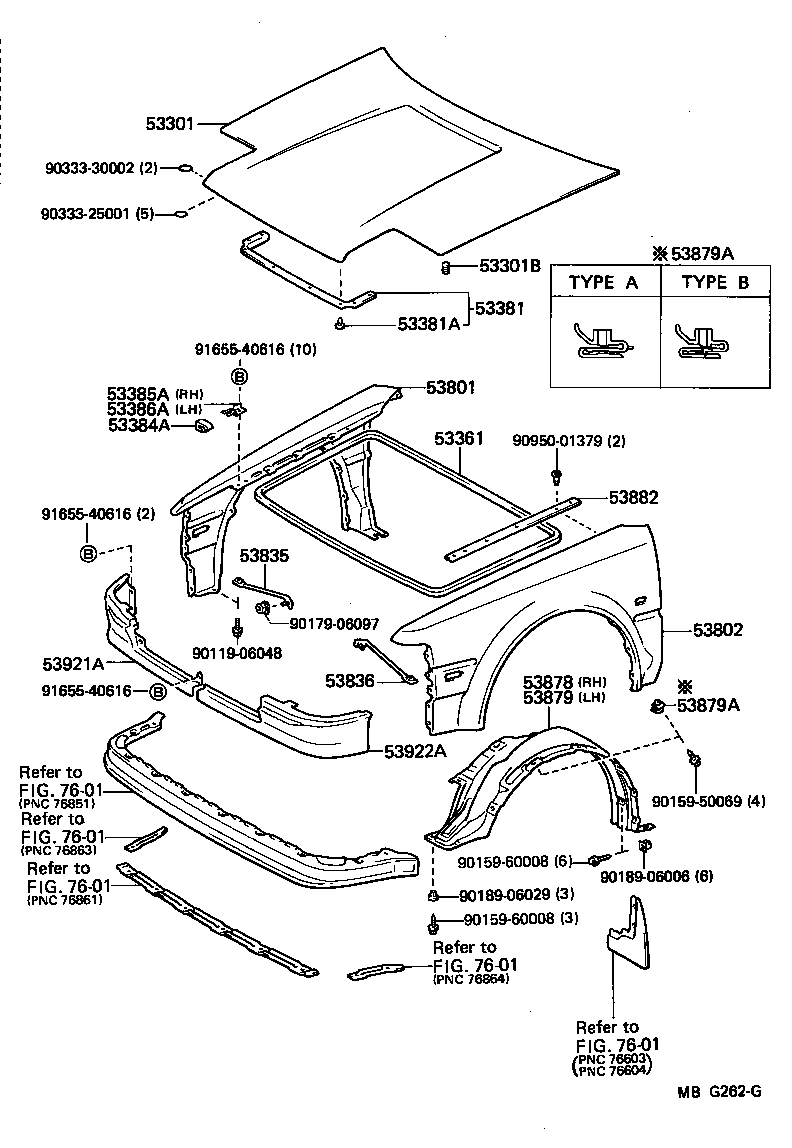

(8411-8608)

Click highlighted areas on diagram

diagram 53301 53301B 53361 53381 53381A 53384A 53385A 53386A 53801 53802 53835 53836 53878 53879 53879A 53879A 53882 53921A 53922A 7601 7601 7601 7601 7601 9011906048 9015950069 9015960008 9015960008 9017906097 9018906006 9018906029 9033325001 9033330002 9095001379 9165540616 9165540616 9165540616
Part # Description Qty Price
53301 - HOOD SUB-ASSY
53301-17030

AW11

 1
53301-17010

AW11..GEN

 1
53301-17020

AW11

 1
53301B - CUSHION, HOOD BUMPER
90541-15111

AW11

 4
53361 - WEATHERSTRIP, HOOD
53361-17010

AW11

 1
53381 - SEAL, HOOD TO RADIATOR SUPPORT
53381-17010

AW11

 1
53381A - CLIP(FOR HOOD TO RADIATOR SUPPORT SEAL)
90467-08011

AW11

 6
53384A - BUMPER, FENDER TO HOOD
53384-14030

AW11

 2
53385A - RETAINER, HOOD BUMPER, RH
53386-14010

AW11

 1
53386A - RETAINER, HOOD BUMPER, LH
53385-14010

AW11

 1
53801 - FENDER SUB-ASSY, FRONT RH
53801-17040

AW11..GEN

 1
53802 - FENDER SUB-ASSY, FRONT LH
53802-17040

AW11..GEN

 1
53835 - BRACE, FRONT FENDER TO EXTENSION, RH
53835-17010

AW11

 1
53836 - BRACE, FRONT FENDER TO EXTENSION, LH
53836-17010

AW11

 1
53878 - LINER, FRONT FENDER, RH
53875-17010

AW11

 1
53879 - LINER, FRONT FENDER, LH
53876-17010

AW11

 1
53879A - RETAINER, FRONT FENDER LINER
53879-14010

AW11

TYPE A

 4
53879-17010

AW11

TYPE B

 4
53879A - RETAINER, FRONT FENDER LINER
53879-14010

AW11

TYPE A

 4
53879-17010

AW11

TYPE B

 4
53882 - PACKING, FRONT FENDER MAIN
53882-17010

AW11

 2
53921A - PANEL, FRONT VALANCE, RH
53921-17010

AW11..GEN

 1
53921-17020

AW11

 1
53922A - PANEL, FRONT VALANCE, LH
53922-17010

AW11..GEN

 1
53922-17020

AW11

 1
Common parts
90119-06048
90159-50069
90159-60008
90179-06097
90189-06006
90189-06029
90333-25001
90333-30002
90950-01379
91655-40616
Linked diagrams
7601

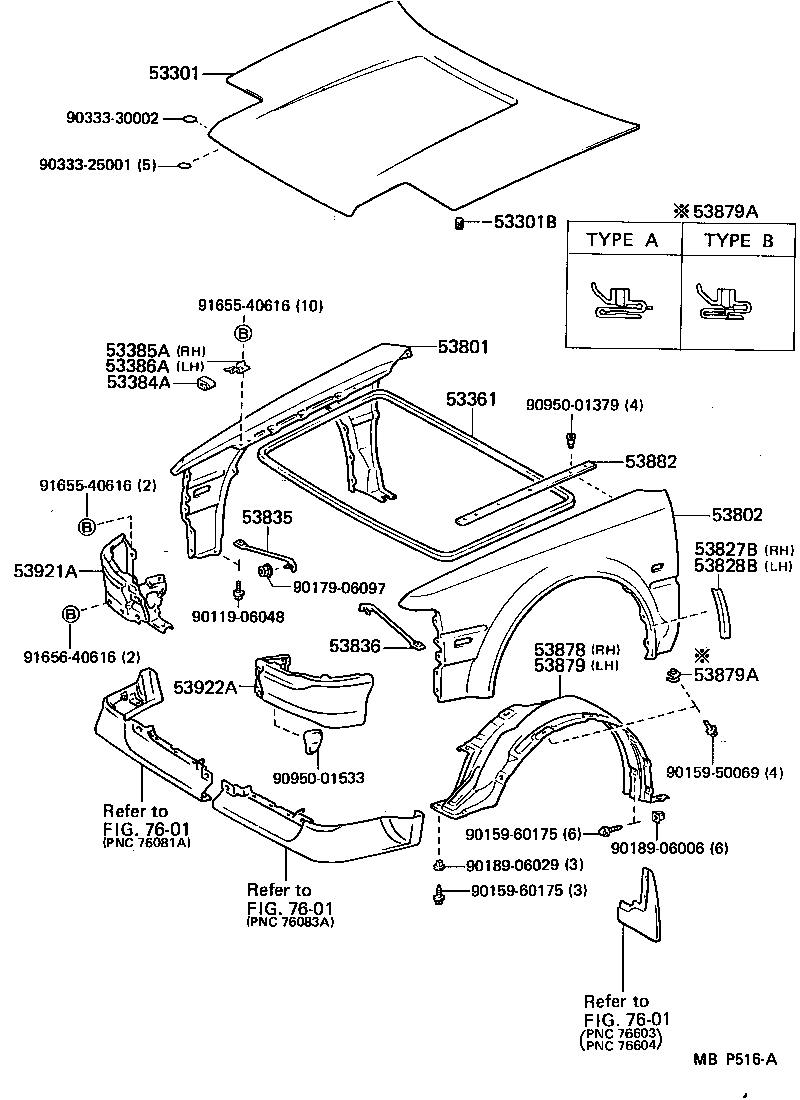

(8608- )

Click highlighted areas on diagram

diagram 53301 53301B 53361 53384A 53385A 53386A 53801 53802 53827B 53828B 53835 53836 53878 53879 53879A 53879A 53882 53921A 53922A 7601 7601 7601 9011906048 9015950069 9015960175 9015960175 9017906097 9018906006 9018906029 9033325001 9033330002 9095001379 9095001533 9165540616 9165540616 9165640616
Part # Description Qty Price
53301 - HOOD SUB-ASSY
53301-17030

AW11

 1
53301-17010

AW11..GEN

 1
53301-17020

AW11

 1
53301B - CUSHION, HOOD BUMPER
90541-15111

AW11

 4
53361 - WEATHERSTRIP, HOOD
53361-17010

AW11

 1
53384A - BUMPER, FENDER TO HOOD
53384-14030

AW11

 2
53385A - RETAINER, HOOD BUMPER, RH
53386-14010

AW11

 1
53386A - RETAINER, HOOD BUMPER, LH
53385-14010

AW11

 1
53801 - FENDER SUB-ASSY, FRONT RH
53801-17040

AW11..GEN

 1
53802 - FENDER SUB-ASSY, FRONT LH
53802-17040

AW11..GEN

 1
53835 - BRACE, FRONT FENDER TO EXTENSION, RH
53835-17010

AW11

 1
53836 - BRACE, FRONT FENDER TO EXTENSION, LH
53836-17010

AW11

 1
53878 - LINER, FRONT FENDER, RH
53875-17010

AW11

 1
53879 - LINER, FRONT FENDER, LH
53876-17010

AW11

 1
53879A - RETAINER, FRONT FENDER LINER
53879-14010

AW11

TYPE A

 4
53879-17010

AW11

TYPE B

 4
53879A - RETAINER, FRONT FENDER LINER
53879-14010

AW11

TYPE A

 4
53879-17010

AW11

TYPE B

 4
53882 - PACKING, FRONT FENDER MAIN
53882-17010

AW11

 2
53921A - PANEL, FRONT VALANCE, RH
53921-17010

AW11..GEN

 1
53921-17020

AW11

 1
53922A - PANEL, FRONT VALANCE, LH
53922-17010

AW11..GEN

 1
53922-17020

AW11

 1
Common parts
90119-06048
90159-50069
90159-60175
90179-06097
90189-06006
90189-06029
90333-25001
90333-30002
90950-01379
90950-01533
91655-40616
91656-40616
Linked diagrams
7601
