AW11L-WCMQF (1984)

Toyota Mr2

Production Nov 1984 - Aug 1988
Engine 4AGEL
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(8411- )

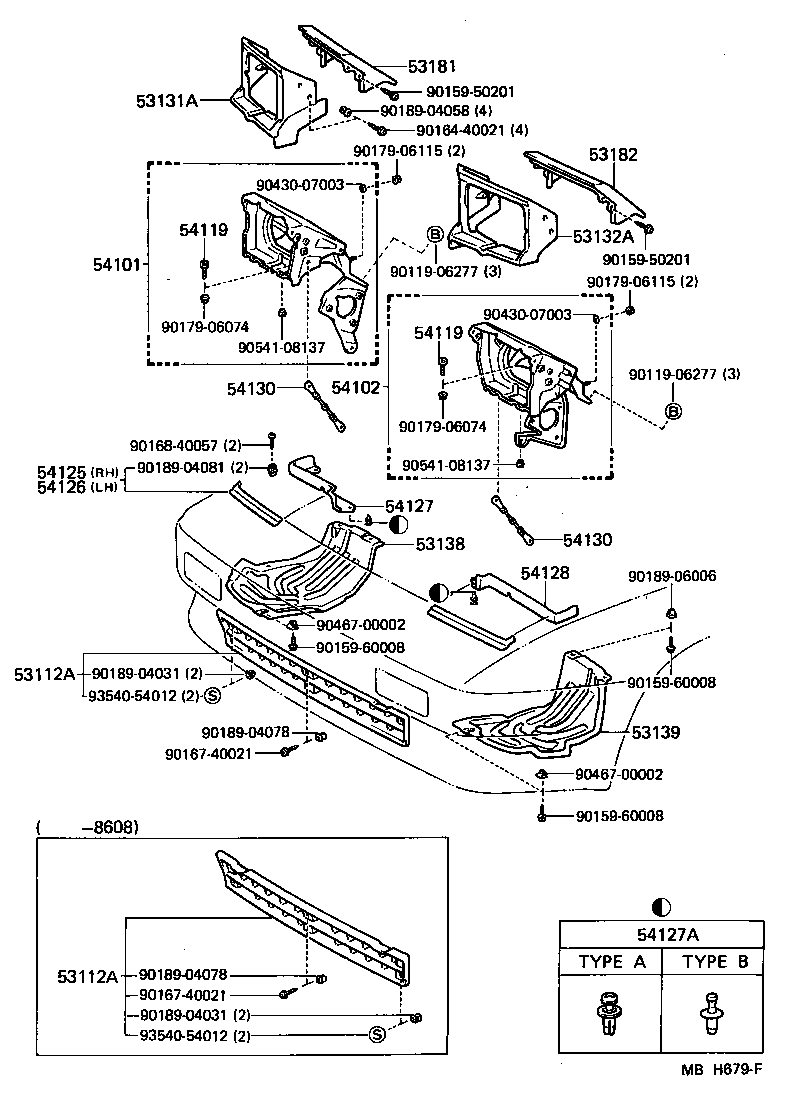

Click highlighted areas on diagram

diagram 53112A 53112A 53131A 53132A 53138 53139 53181 53182 54101 54102 54119 54119 54125 54126 54127 54127A 54128 54130 54130 9011906277 9011906277 9015950201 9015950201 9015960008 9015960008 9015960008 9016440021 9016740021 9016740021 9016840057 9017906074 9017906074 9017906115 9017906115 9018904031 9018904031 9018904058 9018904078 9018904078 9018904081 9018906006 9043007003 9043007003 9046700002 9046700002 9054108137 9054108137 9354054012 9354054012
Part # Description Qty Price
53112A - GRILLE, RADIATOR, LOWER
53112-19035

AW11

 1
53112A - GRILLE, RADIATOR, LOWER
53112-19035

AW11

 1
53131A - DOOR, HEADLAMP, RH
53130-17010

AW11..ARL,GEN

 1
53130-17010

AW11..ARL,GEN

 1
53132A - DOOR, HEADLAMP, LH
53140-17010

AW11..ARL,GEN

 1
53140-17010

AW11..ARL,GEN

 1
53138 - PROTECTOR, HEADLAMP DOOR, RH
53138-17010

AW11

 1
53139 - PROTECTOR, HEADLAMP DOOR, LH
53139-17010

AW11

 1
53181 - COVER, HEADLAMP, RH
53181-17010

AW11

 1
53182 - COVER, HEADLAMP, LH
53182-17010

AW11

 1
54101 - BRACKET SUB-ASSY, RETRACTABLE HEADLAMP, RH
54110-17010

AW11

 1
54102 - BRACKET SUB-ASSY, RETRACTABLE HEADLAMP, LH
54120-17010

AW11

 1
54119 - STOP, RETRACTABLE HEADLAMP LINK
54119-14010

AW11

 2
54119 - STOP, RETRACTABLE HEADLAMP LINK
54119-14010

AW11

 2
54125 - PROTECTOR, RETRACTABLE HEADLAMP, NO.1 RH
54125-1701103

AW11

SUPER SILVER-M,SUPER SILVER M,150

 1
54125-1701107

AW11

D-GREEN-M,DARK GREEN METALLIC,28B

 1
54125-1701113

AW11

SUPER SILVER-M 2,SUPER SILVER M,166

 1
54125-1701124

AW11

MEDIUM BLUE MICA,MEDIUM BLUE METALLIC,8E3

 1
54125-1701107

AW11

D-GREEN-M,DARK GREEN METALLIC,2S8

 1
54125-1701108

AW11

SUPER WHITE 2,040

 1
54125-1701102

AW11

SUPER RED 2,SUPER RED 2,3E5

 1
54125-17010

AW11

 1
54125-1701118

AW11

WHITE,WHITE,2Z9

 1
54125-1701115

AW11

BEIGE-M,BEIGE METALLIC,4G8

 1
54125-1701105

AW11

FINE BEIGE-M,FINE BEIGE METALLIC,4E3

 1
54125-1701114

AW11

SKY BLUE-M,SKY BLUE METALLIC,8B8

 1
54125-1701123

AW11

GRAY-M,GRAY M,167

 1
54125-1701101

AW11

BLACK-M,BLACK METALLIC,204

 1
54125-1701101

AW11

BLACK METALLIC,204

 1
54125-1701108

AW11

SUPER WHITE 2,SUPER WHITE 2,040

 1
54125-1701113

AW11

GRAY-M,SUPER SILVER M,21E

 1
54126 - PROTECTOR, RETRACTABLE HEADLAMP, NO.1 LH
54126-1701105

AW11

FINE BEIGE-M,FINE BEIGE METALLIC,4E3

 1
54126-17010

AW11

 1
54126-1701103

AW11

SUPER SILVER-M,SUPER SILVER M,150

 1
54126-1701107

AW11

D-GREEN-M,DARK GREEN METALLIC,2S8

 1
54126-1701108

AW11

SUPER WHITE 2,SUPER WHITE 2,040

 1
54126-1701114

AW11

SKY BLUE-M,SKY BLUE METALLIC,8B8

 1
54126-1701108

AW11

SUPER WHITE 2,040

 1
54126-1701124

AW11

MEDIUM BLUE MICA,MEDIUM BLUE METALLIC,8E3

 1
54126-1701107

AW11

D-GREEN-M,DARK GREEN METALLIC,28B

 1
54126-1701101

AW11

BLACK METALLIC,204

 1
54126-1701118

AW11

WHITE,WHITE,2Z9

 1
54126-1701115

AW11

BEIGE-M,BEIGE METALLIC,4G8

 1
54126-1701123

AW11

GRAY-M,GRAY M,167

 1
54126-1701101

AW11

BLACK-M,BLACK METALLIC,204

 1
54126-1701113

AW11

SUPER SILVER-M 2,SUPER SILVER M,166

 1
54126-1701102

AW11

SUPER RED 2,SUPER RED 2,3E5

 1
54126-1701113

AW11

GRAY-M,SUPER SILVER M,21E

 1
54127 - PROTECTOR, RETRACTABLE HEADLAMP, NO.2 RH
54127-17010

AW11

 1
54127A - CLIP(FOR RETRACTABLE HEADLAMP PROTECTOR)
90467-0704101

AW11

TYPE B,BLACK,BLACK,TRIM2#

 2
90467-0601701

AW11

TYPE A,BLACK,BLACK,TRIM2#

 6
90467-0601701

AW11

BLACK,BLACK,TRIM2#

 8
90467-0706601

AW11

TYPE B,BLACK,BLACK,TRIM2#

 2
54128 - PROTECTOR, RETRACTABLE HEADLAMP, NO.2 LH
54128-17010

AW11

 1
54130 - ROD ASSY, RETRACTABLE HEADLAMP
54130-17010

AW11

 2
54130 - ROD ASSY, RETRACTABLE HEADLAMP
54130-17010

AW11

 2
Common parts
90119-06277
90159-50201
90159-60008
90164-40021
90167-40021
90168-40057
90179-06074
90179-06115
90189-04031
90189-04058
90189-04078
90189-04081
90189-06006
90430-07003
90467-00002
90541-08137
93540-54012
