AW11L-WCMQF (1984)
Toyota Mr2
Production
Nov 1984
-
Aug 1988
Engine
4AGEL
Transmission
5F MTM
Displacement
2500cc
Power
168 HP (125 kW)

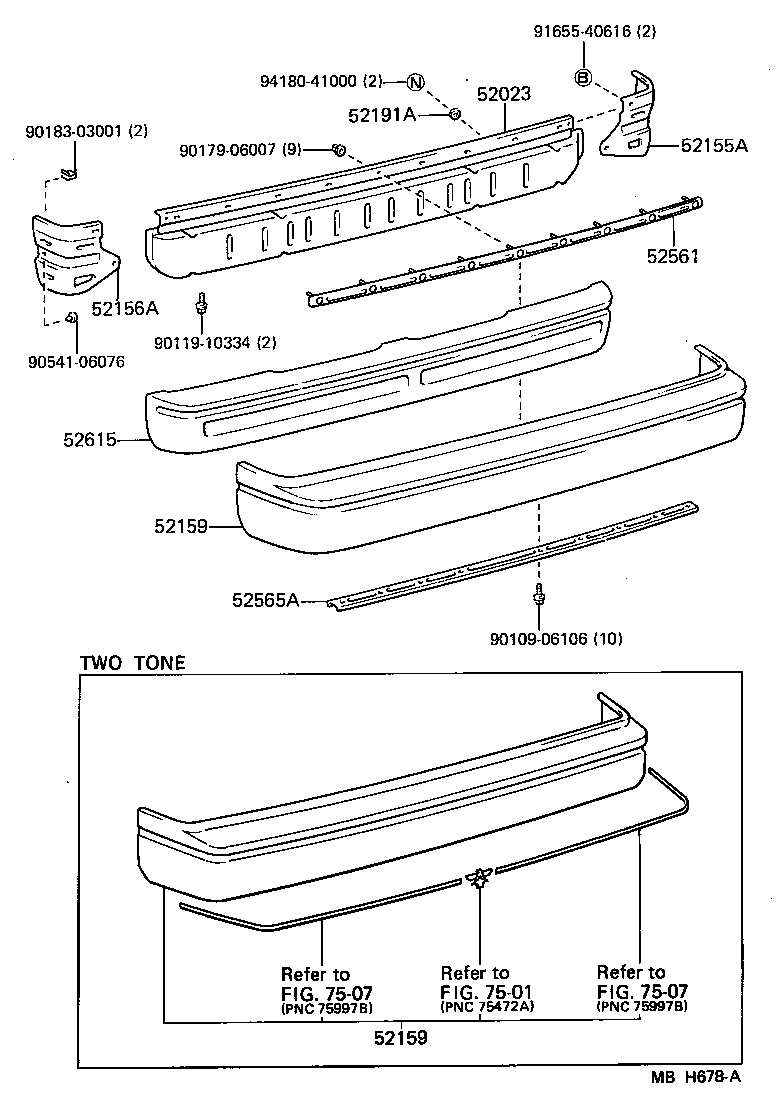

(8411-8508)
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 52023 - REINFORCEMENT SUB-ASSY, REAR BUMPER | ||||
| 52023-17010 |
AW11 |
1 | ||
| 52155A - SUPPORT, REAR BUMPER SIDE, RH | ||||
| 52155-17010 |
AW11 |
1 | ||
| 52156A - SUPPORT, REAR BUMPER SIDE, LH | ||||
| 52156-17010 |
AW11 |
1 | ||
| 52159 - COVER, REAR BUMPER | ||||
| 52159-17900 |
AW11 |
1 | ||
| 52159 - COVER, REAR BUMPER | ||||
| 52159-17900 |
AW11 |
1 | ||
| 52191A - SEAL, REAR BUMPER ARM | ||||
| 52191-17010 |
AW11 |
2 | ||
| 52561 - RETAINER, REAR BUMPER, UPPER CENTER | ||||
| 52561-17010 |
AW11 |
1 | ||
| 52565A - RETAINER, REAR BUMPER, LOWER | ||||
| 52565-17010 |
AW11 |
1 | ||
| 52615 - ABSORBER, REAR BUMPER ENERGY | ||||
| 52615-17010 |
AW11 |
1 | ||
| Common parts | ||||
| 90109-06106 | ||||
| 90119-10334 | ||||
| 90179-06007 | ||||
| 90183-03001 | ||||
| 90541-06076 | ||||
| 91655-40616 | ||||
| 94180-41000 | ||||
| Linked diagrams | ||||
| 7501 | ||||
| 7507 | ||||

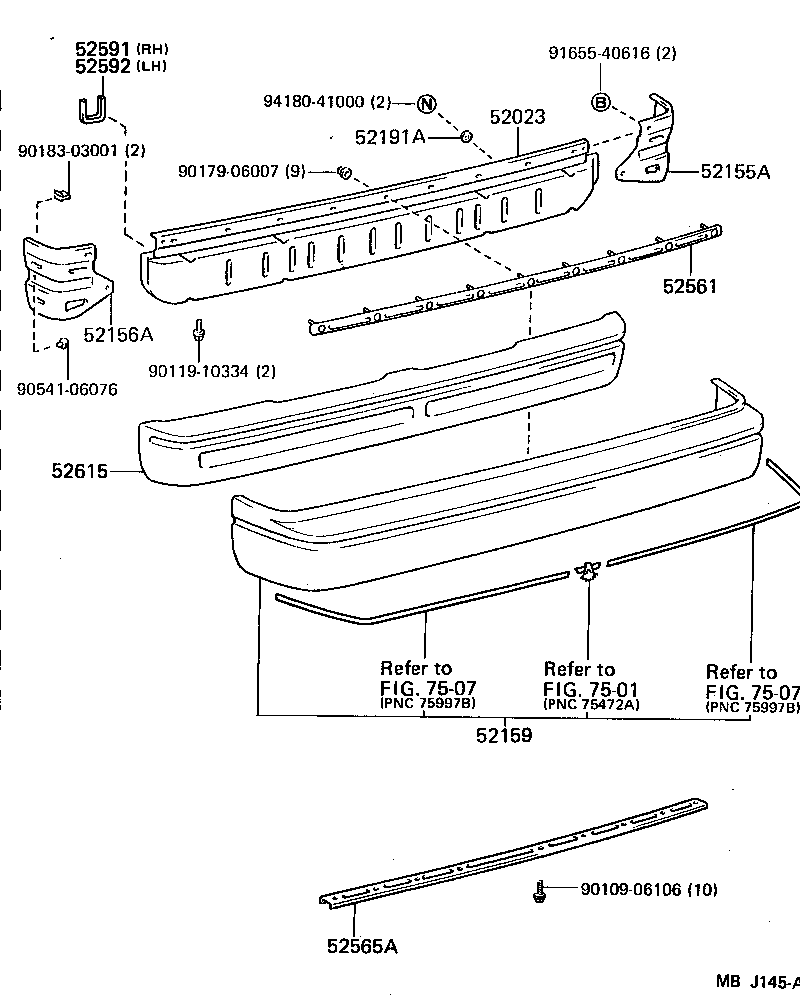

(8508- )
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 52023 - REINFORCEMENT SUB-ASSY, REAR BUMPER | ||||
| 52023-17010 |
AW11 |
1 | ||
| 52155A - SUPPORT, REAR BUMPER SIDE, RH | ||||
| 52155-17010 |
AW11 |
1 | ||
| 52156A - SUPPORT, REAR BUMPER SIDE, LH | ||||
| 52156-17010 |
AW11 |
1 | ||
| 52159 - COVER, REAR BUMPER | ||||
| 52159-17900 |
AW11 |
1 | ||
| 52191A - SEAL, REAR BUMPER ARM | ||||
| 52191-17010 |
AW11 |
2 | ||
| 52561 - RETAINER, REAR BUMPER, UPPER CENTER | ||||
| 52561-17010 |
AW11 |
1 | ||
| 52565A - RETAINER, REAR BUMPER, LOWER | ||||
| 52565-17010 |
AW11 |
1 | ||
| 52615 - ABSORBER, REAR BUMPER ENERGY | ||||
| 52615-17010 |
AW11 |
1 | ||
| Common parts | ||||
| 90109-06106 | ||||
| 90119-10334 | ||||
| 90179-06007 | ||||
| 90183-03001 | ||||
| 90541-06076 | ||||
| 91655-40616 | ||||
| 94180-41000 | ||||
| Linked diagrams | ||||
| 7501 | ||||
| 7507 | ||||
