AW11L-WCMQF (1984)

Toyota Mr2

Production Nov 1984 - Aug 1988
Engine 4AGEL
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(8411- )

Click highlighted areas on diagram

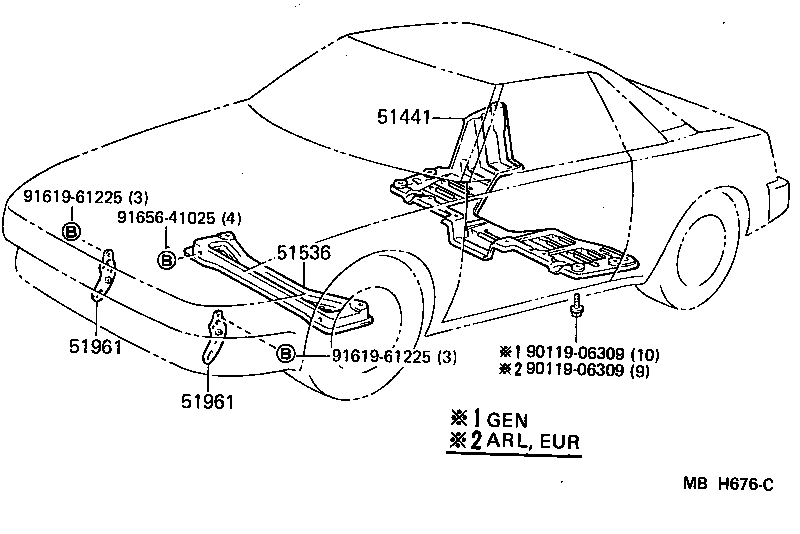

diagram 51441 51536 51961 51961 9011906309 9011906309 9161961225 9161961225 9165641025
Part # Description Qty Price
51441 - COVER, ENGINE UNDER, NO.1
51441-17010

AW11..GEN

 1
51536 - SUPPORT, LWR CONTROL LINK BRACKET
51536-17010

AW11

 1
51961 - HOOK, NO.1
51963-17010

AW11

RH

 1
51964-17010

AW11

LH

 1
51961 - HOOK, NO.1
51963-17010

AW11

RH

 1
51964-17010

AW11

LH

 1
Common parts
90119-06309
91619-61225
91656-41025
