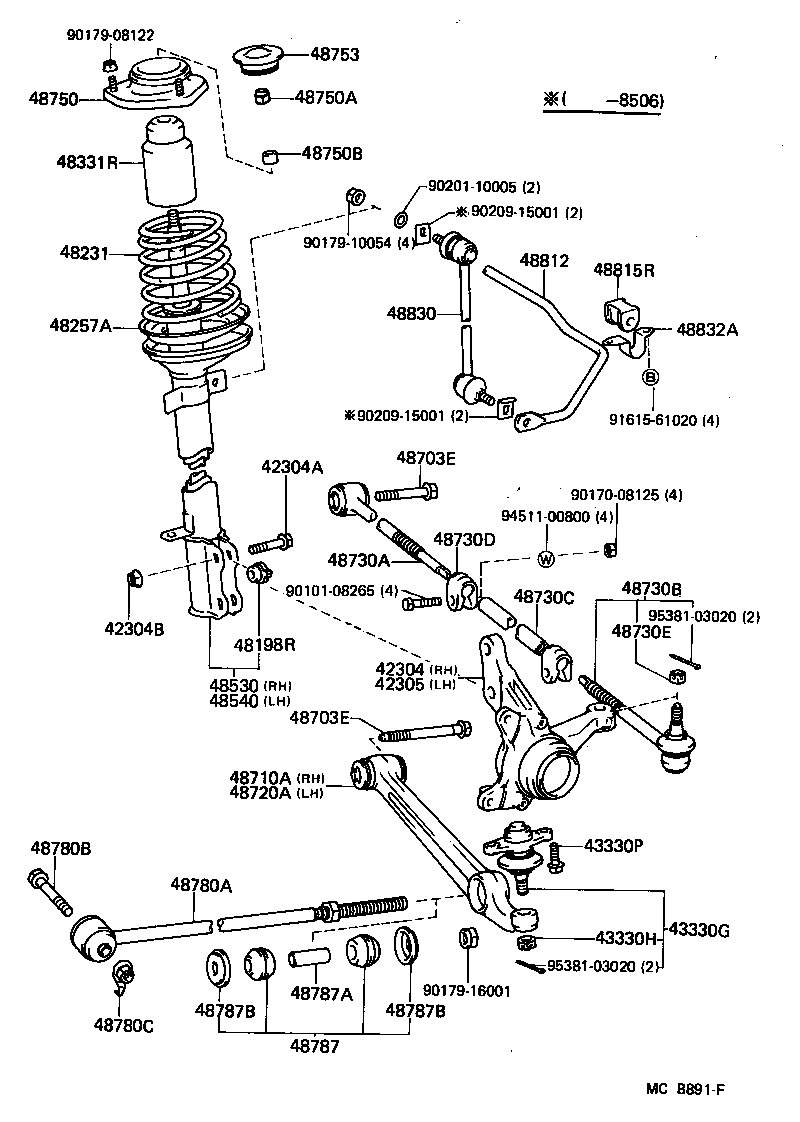

Toyota Mr2 AW11 REAR SPRING & SHOCK ABSORBER

Part #	Description	Period	Qty
42304 - CARRIER SUB-ASSY, REAR AXLE, RH
42313-17020	AW11	08/1986 - 04/1988	1
42313-17010	AW11	11/1984 - 08/1986	1
42304A - BOLT (FOR REAR AXLE CARRIER)
90105-15001	AW11	08/1986 - 03/1988	4
90105-12042	AW11	11/1984 - 08/1986	4
90105-15001	AW11	03/1988 - 04/1988	2
42304B - NUT (FOR REAR AXLE CARRIER)
90179-15001	AW11	08/1986 - 03/1988	4
90179-12025	AW11	11/1984 - 08/1986	4
90179-15001	AW11	03/1988 - 04/1988	2
42305 - CARRIER SUB-ASSY, REAR AXLE, LH
42314-17010	AW11	11/1984 - 08/1986	1
42314-17020	AW11	08/1986 - 04/1988	1
43330G - JOINT ASSY, LOWER BALL, REAR
43330-39135	AW11	03/1988 - 04/1988	4
43330-19036	AW11	11/1984 - 07/1985	2
43330-39135	AW11	08/1986 - 03/1988	2
43330-19037	AW11	07/1985 - 08/1986	2
43330H - NUT (FOR REAR LOWER BALL JOINT)
90171-14002	AW11	11/1984 - 04/1988	2
43330P - BOLT (FOR REAR LOWER BALL JOINT SETTING)
90105-12059	AW11	08/1986 - 04/1988	4
90105-10129	AW11	11/1984 - 08/1986	4
48198R - CAM, REAR SUSPENSION CAMBER ADJUST, NO.2
48198-16010	AW11 RH	11/1984 - 07/1985	1
48194-32020	AW11 LH	08/1986 - 03/1988	1
48194-16011	AW11 LH	07/1985 - 08/1986	1
48194-16010	AW11 LH	11/1984 - 07/1985	1
48198-32020	AW11 RH	03/1988 - 04/1988	1
48194-32020	AW11 LH	03/1988 - 04/1988	1
48198-32020	AW11 RH	08/1986 - 03/1988	1
48198-16011	AW11 RH	07/1985 - 08/1986	1
48231 - SPRING, COIL, REAR
48231-17060	AW11	11/1984 - 08/1986	2
48231-17340	AW11	08/1986 - 08/1987	2
48231-17470	AW11..ARL,GEN	08/1987 - 04/1988	2
48257A - INSULATOR, REAR COIL SPRING, LOWER
48258-16010	AW11	11/1984 - 04/1988	2
48331R - BUMPER, REAR SPRING
48331-16030	AW11	11/1984 - 08/1986	2
48331-14020	AW11	08/1986 - 04/1988	2
48530 - ABSORBER ASSY, SHOCK, REAR RH
48530-17030	AW11	11/1984 - 08/1986	1
48530-17070	AW11	08/1986 - 08/1987	1
48540 - ABSORBER ASSY, SHOCK, REAR LH
48540-17030	AW11	11/1984 - 08/1986	1
48540-17070	AW11	08/1986 - 08/1987	1
48703E - BOLT(FOR REAR SUSPENSION ARM)
90119-12130	AW11 *12-1.25PX70-30	03/1988 - 04/1988	2
90119-12083	AW11 *12-1.25PX80-25	03/1988 - 04/1988	2
90119-12130	AW11 *12-1.25PX70-30,NO.2 ARM	12/1986 - 03/1988	2
90105-12101	AW11 NO.2 ARM	08/1986 - 12/1986	2
90105-12037	AW11 NO.2 ARM	11/1984 - 08/1986	2
90119-12083	AW11 *12-1.25PX80-25,NO.1 ARM	11/1984 - 03/1988	2
48703E - BOLT(FOR REAR SUSPENSION ARM)
90119-12130	AW11 *12-1.25PX70-30	03/1988 - 04/1988	2
90119-12083	AW11 *12-1.25PX80-25	03/1988 - 04/1988	2
90119-12130	AW11 *12-1.25PX70-30,NO.2 ARM	12/1986 - 03/1988	2
90105-12101	AW11 NO.2 ARM	08/1986 - 12/1986	2
90105-12037	AW11 NO.2 ARM	11/1984 - 08/1986	2
90119-12083	AW11 *12-1.25PX80-25,NO.1 ARM	11/1984 - 03/1988	2
48710A - ARM ASSY, REAR SUSPENSION, NO.1 RH
48703-17010	AW11	11/1984 - 04/1988	1
48720A - ARM ASSY, REAR SUSPENSION, NO.1 LH
48703-17010	AW11	11/1984 - 04/1988	1
48730A - ARM ASSY, REAR SUSPENSION, NO.2
48709-17020	AW11	08/1986 - 04/1988	2
48709-17010	AW11	11/1984 - 08/1986	2
48730B - END SUB-ASSY, TIE ROD(FOR REAR SUSPENSION ARM)
45046-19155	AW11	11/1984 - 08/1986	2
45046-19185	AW11	08/1986 - 04/1988	2
48730C - TUBE, TIE ROD ADJUSTING(FOR REAR SUSPENSION ARM)
45465-12020	AW11	11/1984 - 04/1988	2
48730D - CLAMP, TIE ROD END(FOR REAR SUSPENSION ARM)
45466-22010	AW11	11/1984 - 04/1988	4
48730E - NUT(FOR TIE ROD END)
90171-12028	AW11	11/1984 - 04/1988	2
48750 - SUPPORT ASSY, REAR SUSPENSION
48750-17010	AW11	11/1984 - 04/1988	2
48750A - NUT(FOR REAR SUPPORT TO REAR SHOCK ABSORBER)
90179-14015	AW11	11/1984 - 04/1988	2
48750B - COLLAR(FOR REAR SUPPORT TO REAR SHOCK ABSORBER)
90387-15012	AW11	11/1984 - 04/1988	2
48753 - COVER, REAR SUSPENSION SUPPORT
48753-17010	AW11	11/1984 - 04/1988	2
48780A - ROD ASSY, STRUT, REAR
48780-17010	AW11	11/1984 - 08/1986	2
48780-17020	AW11	08/1986 - 04/1988	2
48780B - BOLT(FOR STRUT ROD)
90119-12131	AW11	03/1988 - 04/1988	2
90119-12131	AW11	12/1986 - 03/1988	2
90105-12082	AW11	11/1984 - 12/1986	2
48780C - NUT(FOR STRUT ROD)
90179-12039	AW11	11/1984 - 04/1988	2
48787 - CUSHION, STRUT BAR
48787-19015	AW11	11/1984 - 04/1988	4
48787A - COLLER(FOR STRUT BAR CUSHION)
90387-16003	AW11	11/1984 - 04/1988	2
48787B - RETAINER, CUSHION(FOR STRUT BAR CUSHION)
90948-02057	AW11	11/1984 - 04/1988	4
48787B - RETAINER, CUSHION(FOR STRUT BAR CUSHION)
90948-02057	AW11	11/1984 - 04/1988	4
48812 - BAR, STABILIZER, REAR
48812-17030	AW11	08/1986 - 08/1987	1
48812-17010	AW11	11/1984 - 08/1986	1
48812-17050	AW11	08/1987 - 04/1988	1
48815R - BUSH, STABILIZER(FOR REAR)
48818-17030	AW11	08/1986 - 08/1987	2
48818-17010	AW11	11/1984 - 08/1986	2
48818-17050	AW11	08/1987 - 11/1987	2
48818-17060	AW11	11/1987 - 04/1988	2
48830 - LINK ASSY, REAR STABILIZER
48830-17010	AW11	11/1984 - 08/1986	2
48830-17020	AW11	08/1986 - 04/1988	2
48832A - BRACKET, REAR STABILIZER BAR, NO.1
48832-17010	AW11	11/1984 - 08/1986	2
48832-17020	AW11	08/1986 - 03/1988	2
48832-17020	AW11	03/1988 - 04/1988	2
Common parts
90101-08265
90170-08125
90179-08122
90179-10054
90179-16001
90201-10005
90209-15001
91615-61020
94511-00800
95381-03020

AW11L-WCMQF (1984)

(8411- )
