AW11L-WCMQF (1984)
Toyota Mr2
Production
Nov 1984
-
Aug 1988
Engine
4AGEL
Transmission
5F MTM
Displacement
2500cc
Power
168 HP (125 kW)
(8411- )

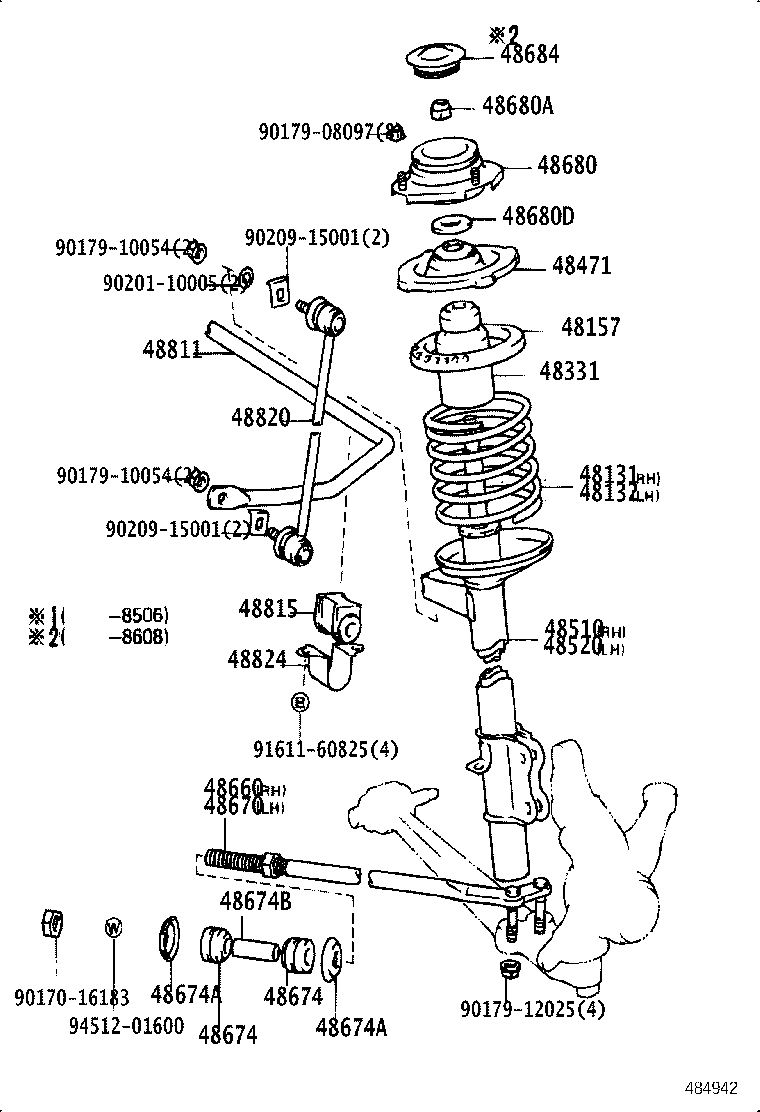

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 48131 - SPRING, FRONT COIL, RH | ||||
| 48131-17030 |
AW11 |
1 | ||
| 48131-17080 |
AW11..CP |
1 | ||
| 48132 - SPRING, FRONT COIL, LH | ||||
| 48131-17030 |
AW11 |
1 | ||
| 48131-17080 |
AW11..CP |
1 | ||
| 48157 - INSULATOR, FRONT COIL SPRING, UPPER | ||||
| 48157-17010 |
AW11 |
2 | ||
| 48331 - BUMPER, FRONT SPRING, NO.1 | ||||
| 48331-17010 |
AW11 |
2 | ||
| 48471 - SEAT, FRONT SPRING, UPPER | ||||
| 48044-17010 |
AW11 |
2 | ||
| 48510 - ABSORBER ASSY, SHOCK, FRONT RH | ||||
| 48510-17030 |
AW11 MARK 48510-17030 |
1 | ||
| 48510-17010 |
AW11 MARK 48510-17010 |
1 | ||
| 48520 - ABSORBER ASSY, SHOCK, FRONT LH | ||||
| 48520-17010 |
AW11 MARK 48520-17010 |
1 | ||
| 48520-17030 |
AW11 MARK 48520-17030 |
1 | ||
| 48660 - BAR ASSY, STRUT, RH | ||||
| 48660-17010 |
AW11 |
1 | ||
| 48670 - BAR ASSY, STRUT, LH | ||||
| 48670-17010 |
AW11 |
1 | ||
| 48674 - CUSHION, STRUT BAR | ||||
| 48674-17010 |
AW11 |
4 | ||
| 48674 - CUSHION, STRUT BAR | ||||
| 48674-17010 |
AW11 |
4 | ||
| 48674A - RETAINER, CUSHION(FOR STRUT BAR CUSHION) | ||||
| 90948-02036 |
AW11 |
4 | ||
| 48674A - RETAINER, CUSHION(FOR STRUT BAR CUSHION) | ||||
| 90948-02036 |
AW11 |
4 | ||
| 48674B - COLLAR(FOR STRUT BAR CUSHION) | ||||
| 90387-16108 |
AW11 |
2 | ||
| 48680 - SUPPORT ASSY, FRONT SUSPENSION | ||||
| 48609-17020 |
AW11 |
2 | ||
| 48609-17010 |
AW11 |
2 | ||
| 48680A - NUT(FOR FRONT SUPPORT TO FRONT SHOCK ABSORBER) | ||||
| 94182-11400 |
AW11 |
2 | ||
| 48680D - SEAL, DUST(FOR FRONT SUSPENSION SUPPORT) | ||||
| 90303-22049 |
AW11 |
2 | ||
| 48684 - COVER, BEARING DUST | ||||
| 48684-17010 |
AW11 |
2 | ||
| 48811 - BAR, STABILIZER, FRONT | ||||
| 48811-17020 |
AW11 |
1 | ||
| 48811-17030 |
AW11..EUR,GEN |
1 | ||
| 48815 - BUSH, FRONT STABILIZER BAR, NO.1 | ||||
| 48815-17010 |
AW11 |
2 | ||
| 48815-17020 |
AW11..EUR,GEN |
2 | ||
| 48820 - LINK ASSY, FRONT STABILIZER | ||||
| 48820-17010 |
AW11 |
2 | ||
| 48824 - BRACKET, STABILIZER, FRONT | ||||
| 48824-17010 |
AW11 |
2 | ||
| Common parts | ||||
| 90170-16183 | ||||
| 90179-08097 | ||||
| 90179-10054 | ||||
| 90179-12025 | ||||
| 90201-10005 | ||||
| 90209-15001 | ||||
| 91611-60825 | ||||
| 94512-01600 | ||||
