AW11L-WCMQF (1984)
Toyota Mr2
Production
Nov 1984
-
Aug 1988
Engine
4AGEL
Transmission
5F MTM
Displacement
2500cc
Power
168 HP (125 kW)
(8411- )LHD

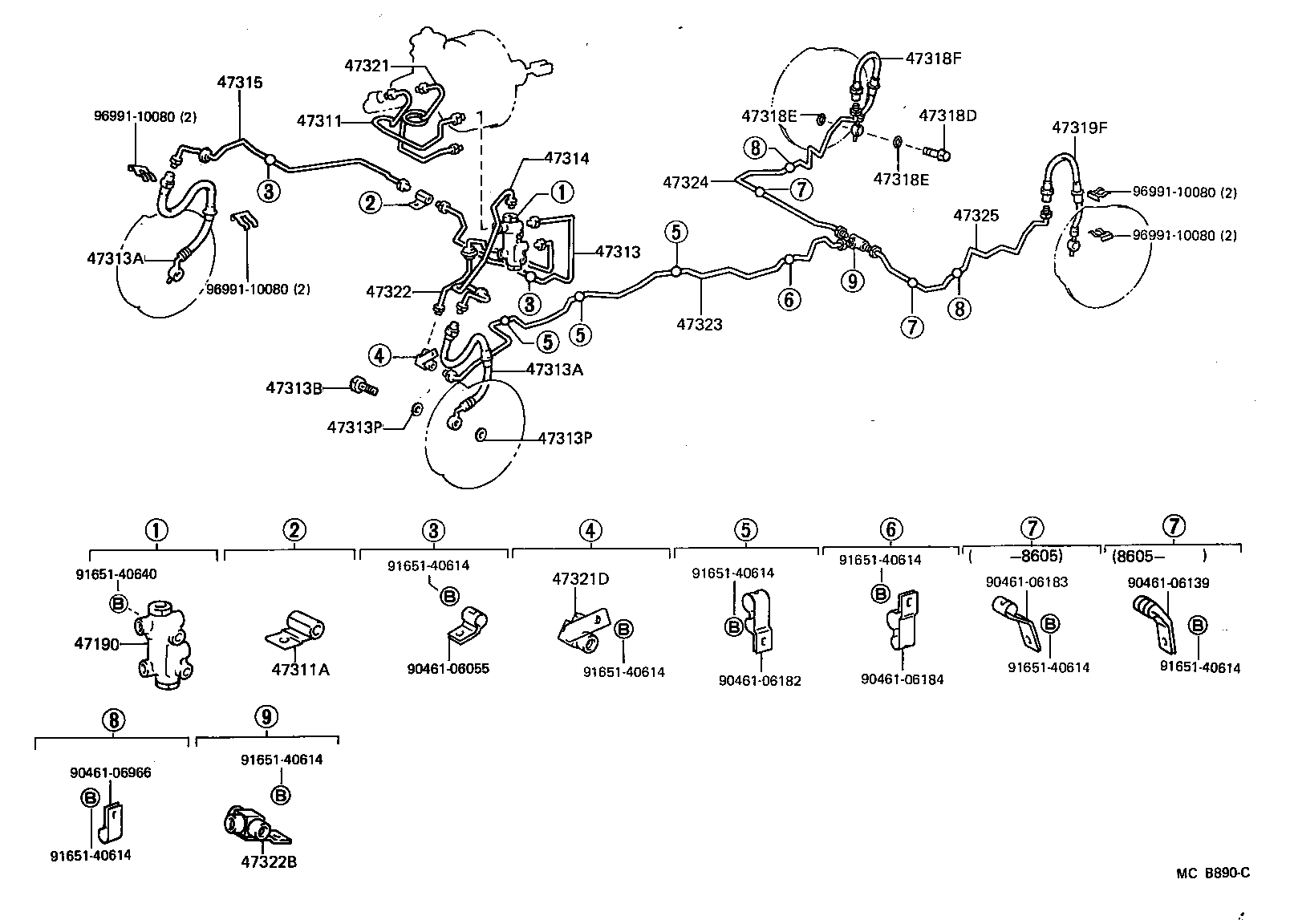

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 47190 - VALVE ASSY, PROPORTIONING & BY-PASS | ||||
| 47190-14030 |
AW11..GEN |
1 | ||
| 47190-14030 |
AW11 |
1 | ||
| 47311 - TUBE, FRONT BRAKE, NO.1 | ||||
| 47311-17060 |
AW11..LHD |
1 | ||
| 47311-17020 |
AW11..LHD |
1 | ||
| 47311A - WAY(FOR FRONT BRAKE TUBE) | ||||
| 90412-10041 |
AW11..LHD |
1 | ||
| 47313 - TUBE, FRONT BRAKE, NO.3 | ||||
| 47313-17020 |
AW11..LHD |
1 | ||
| 47313-17040 |
AW11..LHD |
1 | ||
| 47313A - HOSE, FLEXIBLE, NO.1(FOR FRONT) | ||||
| 90947-02459 |
AW11 |
2 | ||
| 90947-02499 |
AW11 |
2 | ||
| 90947-02554 |
AW11 |
2 | ||
| 47313A - HOSE, FLEXIBLE, NO.1(FOR FRONT) | ||||
| 90947-02459 |
AW11 |
2 | ||
| 90947-02499 |
AW11 |
2 | ||
| 90947-02554 |
AW11 |
2 | ||
| 47313B - BOLT, UNION(FOR FRONT FLEXIBLE HOSE) | ||||
| 90401-10015 |
AW11 |
2 | ||
| 47313P - GASKET(FOR FRONT FLEXIBLE HOSE) | ||||
| 90430-10074 |
AW11 |
4 | ||
| 47313P - GASKET(FOR FRONT FLEXIBLE HOSE) | ||||
| 90430-10074 |
AW11 |
4 | ||
| 47314 - TUBE, FRONT BRAKE, NO.4 | ||||
| 47314-17050 |
AW11..LHD |
1 | ||
| 47314-17020 |
AW11..LHD |
1 | ||
| 47315 - TUBE, FRONT BRAKE, NO.5 | ||||
| 47315-17010 |
AW11..LHD |
1 | ||
| 47318D - BOLT, UNION(FOR REAR FLEXIBLE HOSE) | ||||
| 90401-10015 |
AW11 |
2 | ||
| 47318E - GASKET(FOR REAR FLEXIBLE HOSE) | ||||
| 90430-10074 |
AW11 |
4 | ||
| 47318E - GASKET(FOR REAR FLEXIBLE HOSE) | ||||
| 90430-10074 |
AW11 |
4 | ||
| 47318F - HOSE, FLEXIBLE(FOR REAR RH) | ||||
| 90947-02460 |
AW11 |
1 | ||
| 90947-02552 |
AW11 |
1 | ||
| 47319F - HOSE, FLEXIBLE(FOR REAR LH) | ||||
| 90947-02460 |
AW11 |
1 | ||
| 90947-02552 |
AW11 |
1 | ||
| 47321 - TUBE, REAR BRAKE, NO.1 | ||||
| 47321-17060 |
AW11..LHD |
1 | ||
| 47321-17020 |
AW11..LHD |
1 | ||
| 47321D - WAY, NO.1(FOR REAR BRAKE TUBE) | ||||
| 90412-10117 |
AW11 |
1 | ||
| 47322 - TUBE, REAR BRAKE, NO.2 | ||||
| 47322-17020 |
AW11..LHD |
1 | ||
| 47322B - WAY, NO.2(FOR REAR BRAKE TUBE) | ||||
| 90413-10179 |
AW11 |
1 | ||
| 47323 - TUBE, REAR BRAKE, NO.3 | ||||
| 47323-17010 |
AW11 |
1 | ||
| 47324 - TUBE, REAR BRAKE, NO.4 | ||||
| 47324-17010 |
AW11 |
1 | ||
| 47324-17011 |
AW11 |
1 | ||
| 47325 - TUBE, REAR BRAKE, NO.5 | ||||
| 47325-17011 |
AW11 |
1 | ||
| 47325-17010 |
AW11 |
1 | ||
| Common parts | ||||
| 90461-06055 | ||||
| 90461-06139 | ||||
| 90461-06182 | ||||
| 90461-06183 | ||||
| 90461-06184 | ||||
| 90461-06966 | ||||
| 91651-40614 | ||||
| 91651-40640 | ||||
| 96991-10080 | ||||
