AW11L-WCMQF (1984)

Toyota Mr2

Production Nov 1984 - Aug 1988
Engine 4AGEL
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

ILLUST NO. 1 OF 2(8411- )

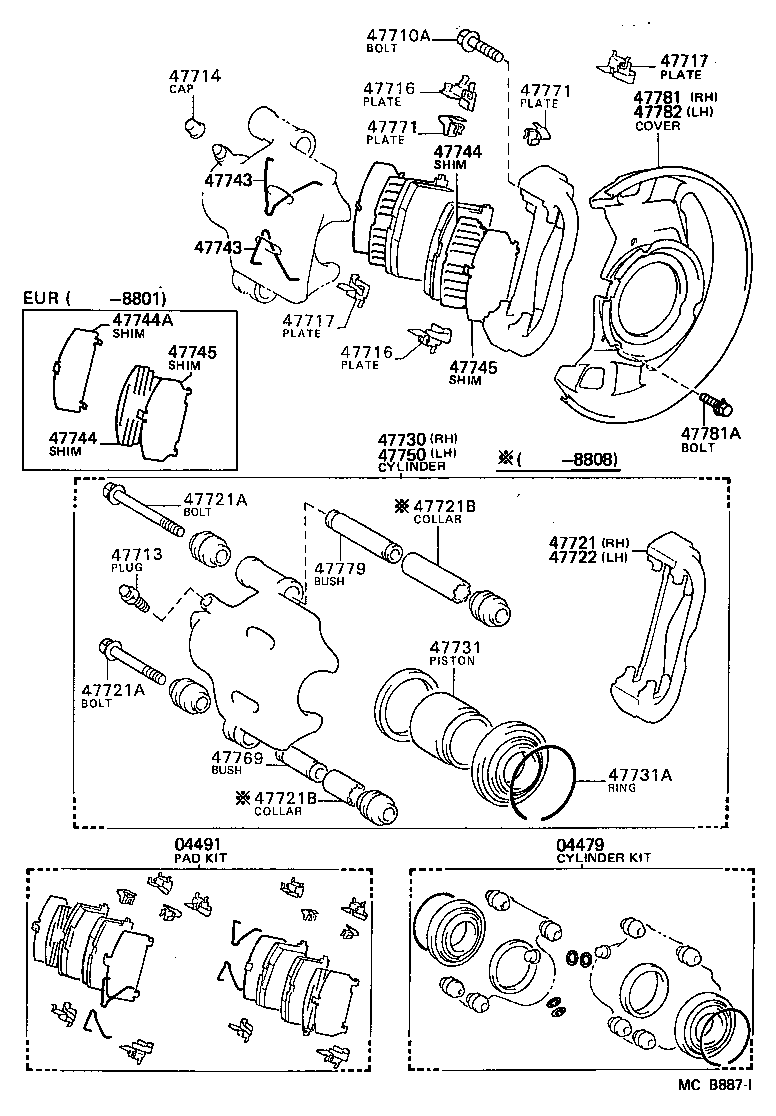

Click highlighted areas on diagram

diagram 04479 04491 47710A 47713 47714 47716 47716 47717 47717 47721 47721A 47721A 47721B 47721B 47722 47730 47731 47731A 47743 47743 47744 47744 47744A 47745 47745 47750 47769 47771 47771 47779 47781 47781A 47782
Part # Description Qty Price
04479 - CYLINDER KIT, DISC BRAKE, FRONT
04479-32010

AW11

 1
04491 - PAD KIT, DISC BRAKE, FRONT
04491-17040

AW11..GEN

 1
04491-17060

AW11..ARL,GEN

 1
04491-17050

AW11..GEN

 1
47710A - BOLT, HEXAGON(FOR FRONT DISC BRAKE CALIPER)
90119-12040

AW11

*12-1.25PX25.8-19.5

 4
47713 - PLUG, BLEEDER(FOR FRONT DISC BRAKE)
47547-20010

AW11

 2
47714 - CAP, BLEEDER PLUG(FOR FRONT DISC BRAKE)
31478-30010

AW11

 2
47716 - PLATE, PAD SUPPORT, NO.1(FOR FRONT DISC BRAKE)
47716-32010

AW11

 4
47716 - PLATE, PAD SUPPORT, NO.1(FOR FRONT DISC BRAKE)
47716-32010

AW11

 4
47717 - PLATE, PAD SUPPORT, NO.2(FOR FRONT DISC BRAKE)
47717-32010

AW11

 4
47717 - PLATE, PAD SUPPORT, NO.2(FOR FRONT DISC BRAKE)
47717-32010

AW11

 4
47721 - MOUNTING, FRONT DISC BRAKE CYLINDER, RH
47721-17010

AW11

 1
47721-17010

AW11

 2
47721-32010

AW11

 1
47721A - BOLT(FOR FRONT DISC BRAKE CYLINDER MOUNTING)
90119-09004

AW11

*9-1.25PX91-25,*9-1.25PX93-25

 2
90119-09003

AW11

*9-1.25PX71-25,*9-1.25PX73-25

 2
47721A - BOLT(FOR FRONT DISC BRAKE CYLINDER MOUNTING)
90119-09004

AW11

*9-1.25PX91-25,*9-1.25PX93-25

 2
90119-09003

AW11

*9-1.25PX71-25,*9-1.25PX73-25

 2
47721B - COLLAR(FOR FRONT DISC BRAKE CYLINDER MOUNTING)
90387-15004

AW11

 2
90387-15005

AW11

L=32

 2
90387-15005

AW11

 2
90387-15004

AW11

L=12

 2
47721B - COLLAR(FOR FRONT DISC BRAKE CYLINDER MOUNTING)
90387-15004

AW11

 2
90387-15005

AW11

L=32

 2
90387-15005

AW11

 2
90387-15004

AW11

L=12

 2
47722 - MOUNTING, FRONT DISC BRAKE CYLINDER, LH
47721-32010

AW11

 1
47721-17010

AW11

 1
47730 - CYLINDER ASSY, FRONT DISC BRAKE, RH
47730-17040

AW11

 1
47730-12170

AW11

 1
47731 - PISTON, FRONT DISC BRAKE
47731-20070

AW11

 2
47731A - RING, SET(FOR FRONT DISC BRAKE PISTON)
90522-61001

AW11

 2
47744 - SHIM, ANTI-SQUEAL, NO.1(FOR FRONT DISC BRAKE)
47742-17010

AW11..ARL,GEN

 2
47742-17010

AW11..GEN

 2
47742-32010

AW11

 2
47744 - SHIM, ANTI-SQUEAL, NO.1(FOR FRONT DISC BRAKE)
47742-17010

AW11..ARL,GEN

 2
47742-17010

AW11..GEN

 2
47742-32010

AW11

 2
47744A - SHIM, ANTI-SQUEAL, NO.3(FOR FRONT DISC BRAKE)
47744-32010

AW11

 2
47745 - SHIM, ANTI-SQUEAL, NO.2(FOR FRONT DISC BRAKE)
47745-17020

AW11..ARL,GEN

 2
47745-32010

AW11

 2
47745-17020

AW11..GEN

 2
47745 - SHIM, ANTI-SQUEAL, NO.2(FOR FRONT DISC BRAKE)
47745-17020

AW11..ARL,GEN

 2
47745-32010

AW11

 2
47745-17020

AW11..GEN

 2
47750 - CYLINDER ASSY, DISC BRAKE, LH
47750-12170

AW11

 1
47750-17040

AW11

 1
47769 - BUSH, CYLINDER SLIDE, NO.1(FOR FRONT DISC BRAKE)
47769-32010

AW11

 2
47771 - PLATE, PAD WEAR INDICATOR, NO.1
47771-32010

AW11

 2
47771-17020

AW11..ARL,GEN

 2
47771 - PLATE, PAD WEAR INDICATOR, NO.1
47771-32010

AW11

 2
47771-17020

AW11..ARL,GEN

 2
47779 - BUSH, CYLINDER SLIDE, NO.2(FOR FRONT DISC BRAKE)
47779-32010

AW11

 2
47781 - COVER, DISC BRAKE DUST, FRONT RH
47781-17010

AW11

 1
47781A - BOLT(FOR DUST COVER TO STEERING KNUCKLE ARM SETTING)
90119-06227

AW11

 6
47782 - COVER, DISC BRAKE DUST, FRONT LH
47781-17010

AW11

 1

ILLUST NO. 2 OF 2(8411- )

Click highlighted areas on diagram

diagram 04465 04945 04947
Part # Description Qty Price
04465 - PAD KIT, DISC BRAKE, FRONT
04465-17021

AW11..GEN

 1
04945 - SHIM KIT, ANTI SQUEAL, FRONT
04945-17030

AW11..GEN

 1
04947 - FITTING KIT, DISC BRAKE, FRONT
04947-32010

AW11..GEN

 1
